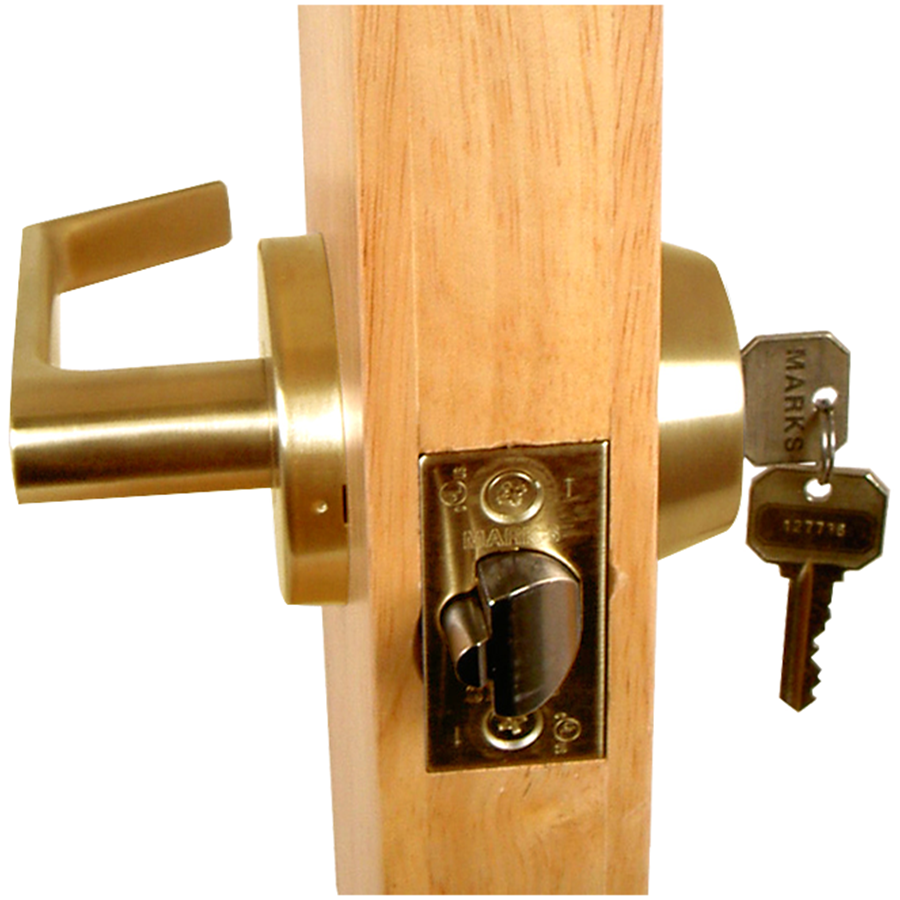

Marks Hardware 145KL/3-E11 Single Cylinder Gate Lock, Marks C Keyway, 6 Pin, 2-3/8in Backset, Bright Brass

Marks Hardware 145KL/3-E11 Gate Lock Single Cylinder X Lever combines robust security with exceptional usability. Designed to meet ANSI 156.5 grade 1 standards, this lock is perfect for both residential and commercial applications, ensuring peace of mind for property owners. With a durable bright brass finish (605/US3), it not only provides a secure locking mechanism but also complements various architectural styles. This gate lock features a 6-pin Marks "C" keyway, offering enhanced key control and security. The unit's 2-3/8 inch backset and 1-inch throw deadlatch provide reliable performance, while the tapered cylinder collar helps prevent break-in attempts by thwarting wrenching. Additionally, the steel shutter system protects the mounting screws when the door is locked, adding another layer of security. Installation is straightforward, as the unitized assemblies accommodate a standard 2-1/8 inch bore. For doors measuring 1-3/4 inches thick, this lock fits perfectly, while spacer rings are available for thinner doors. The Marks Hardware 145KL/3-E11 is compatible with various high-security cylinders, making it a versatile choice for any security need. Trust this lock to deliver quality, durability, and peace of mind for years to come.

Gate Lock Single Cylinder X Lever, Marks C Keyway, 6 Pin, 2-3/8in Backset, 605/US3 Bright Brass

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome

Resources

• Cut Sheet
