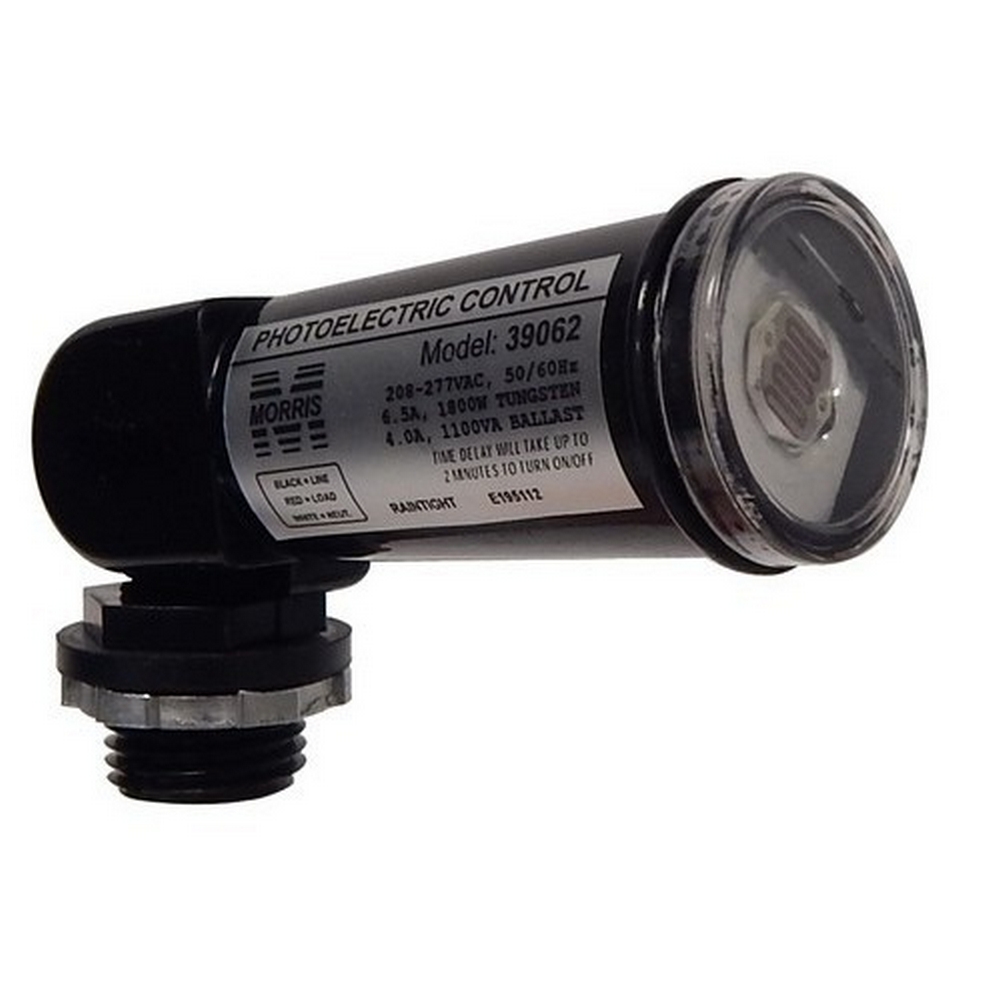

Morris 39062 Swivel Mount Photo Controls for Versatile Photography

Morris 39062 Swivel Mount Photo Control offers exceptional versatility for your lighting needs. Designed with a weatherproof polycarbonate housing and lens, this photo control withstands the elements while ensuring reliable performance. The 1/2" CDS light sensor features a heat sink to enhance durability, while a thermal switch protects against overheating. Its thin cylindrical shape makes it an ideal fit for tight spaces, such as between twin floodlights or other fixtures. The field-adjustable swivel base allows easy positioning, directing the photocell away from stray light for accurate functionality. This control operates effectively in a wide temperature range, from -40°F to +158°F, and can handle relative humidity levels up to 96%. The Morris 39062 is UL Listed, ensuring it meets rigorous safety standards. With a ballast rating of 1100 VA and a tungsten rating of 1800W, it is suitable for various applications. The contact position at night is normally open, and the device features a power consumption of just 1.5 watts max, with a life cycle of 6500 cycles. Complete with 6" color-coded leads and a wiring diagram, this product is designed for straightforward installation. Equip your lighting setup with the Morris 39062 Swivel Mount Photo Control for reliable and efficient operation.

Our Swivel Mount Photo Controls give you versatility.

• 1/2" CDS Light Sensor with Heat Sink
• UL Listed
• Relative Humidity: 96%
• Field adjustable swivel base makes it easy to direct the photocell away from stray light
• Light Levels: ON: .9 to 1.9 FC OFF: 2.8 To 5.6 FC
• "O" ring sealed to prevent water from entering through the knuckle
• Life Cycle: 6500 Cycles
• Temperature Range: -40°F – +158°F
• Weatherproof Polycarbonate Housing & Lens
• Thermal Switch
• Contact Position at Night is Normally Open
• Power Consumption:1.5 Watts Max
• Standard 1/2" I.P.S. Pipe Thread Nipple
• Swivel Mount Photo Controls typically mounts on fixtures or boxes
• Single Pole, Single Throw Switch
• 6" Color Coded Leads with Wiring Diagram on Control
• Thin cylindrical shape Swivel Mount Photo Control fits neatly between twin floodlights or other tight applications
