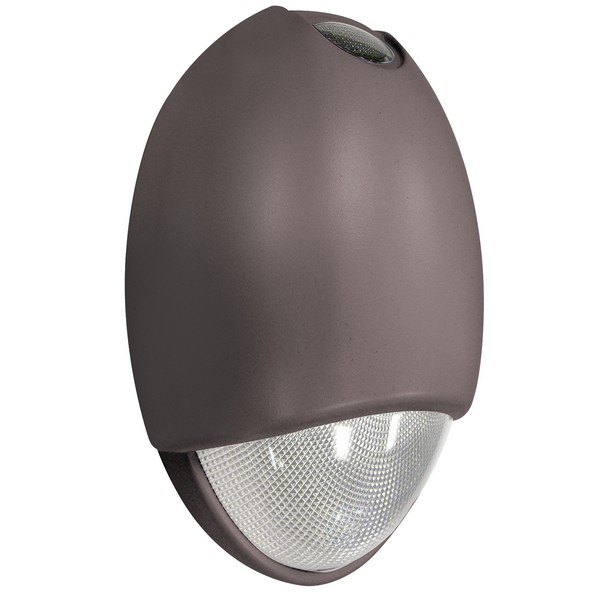

Morris 73301 LED Emergency Egress Light - Compact Emergency Lighting Solution

Morris 73301 LED Emergency Egress provides reliable emergency lighting in a compact, durable design. This versatile fixture can function as normally on or normally off, and it can be integrated into a controlled circuit for enhanced flexibility. With field-selectable wiring, it allows for AC operation controlled by a wall switch, photocell, or other mechanisms, making it perfect for various applications. The Morris 73301 is equipped with a standard photocell, enabling it to operate as a dusk-to-dawn fixture. In AC mode, it dissipates an impressive 1,286 lumens, while still providing 350 lumens in DC mode. Its self-diagnostic feature performs monthly, bi-annual, and annual tests to ensure reliability, adhering to electrical and life safety codes. Designed for longevity, this unit features a 4.8 Volt 2800 mAH rechargeable Ni-Cad battery and an automatic low voltage disconnect (LVD). The internal solid-state transfer switch guarantees a minimum of 90 minutes of emergency illumination. Operating in temperatures ranging from -22°F to 122°F, the die-cast aluminum housing with a powder coat bronze finish ensures durability in outdoor settings. With a three-year warranty, the Morris 73301 LED Emergency Egress is UL 924 wet location rated and meets NFPA 101 Life Safety Code, making it an essential addition to any safety plan.

LED Emergency Egress Provides Emergency Lighting in a Compact Design.

• Internal Solid-State Transfer Switch Automatically Connects the Internal Battery to Lamp Heads for a Minimum of 90-Minute Emergency Illumination
• Self-Diagnostic Feature Performs Monthy, Bi-Anual, and Annual Tests to Ensure Reliable Operation and Meets Electrical and Life Safety Codes
• Fully Automatic Solid-State, Dual-Rate Charger Initiates Battery Charging to Recharge a Discharged Battery in 24 Hours
• Meets UL 924, NFPA 101 Life Safety Code, NEC & OSHA Codes
• UL924 Wet Location Rated
• Die Cast Aluminum Housing, Powder Coat Bronze Finish
• Sealed and Gasketed Polycarbonate Optic Lens with Mirror Reflector
• 3 Year Warranty
• 12 Watts - Dissipates 1,286 Lumens in AC Mode and 350 Lumens in DC Mode
• Universal Transformer fo 120 or 277 VAC
• Automatic, Low Voltage Disconnect (LVD)
• Function as Normally On or Normally Off; Or On a Controlled Circuit
• Photocell Standard - Allows for Use as Dusk to Dawn Fixture
• Charge Rate/Power On LED Indicator Light
• 4.8 Volt 2800 mAH Rechargable Ni-Cad Battery
• Field Selectable Wiring Allows for AC Operation of Unit to be Controlled by Wall Switch, Photocell, or Other Switching Mechanism
• Operating Temperature: -22°F to 122°F
• Push to Test Switch
• 90 Minute Minimum Emergency Operation
