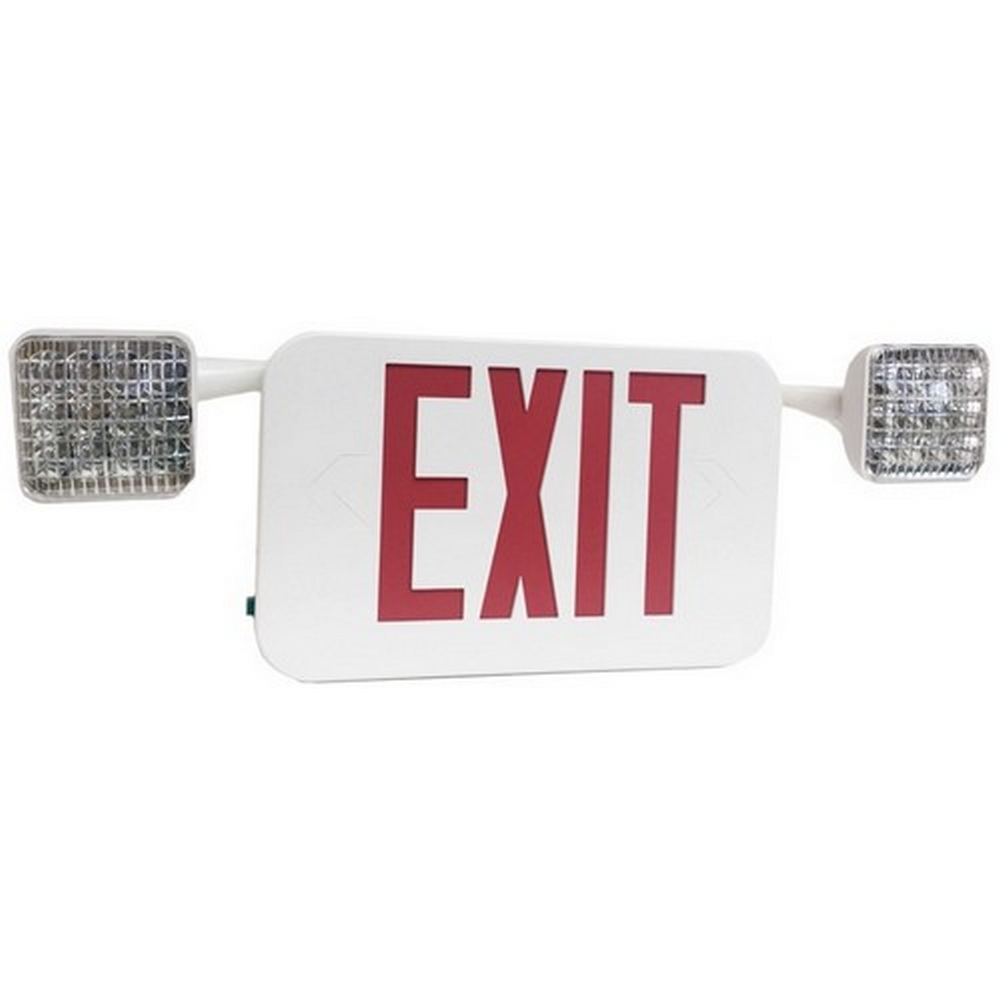

Morris 73474 LED Energy Saving Exit Sign Emergency Lighting Unit with Rotatable Heads

Morris 73474 Combination LED Energy Saving Exit Sign and LED Emergency Lighting Unit seamlessly integrates functionality and efficiency in one compact design. Featuring long-life energy-saving LED lamps, this unit ensures reliable performance with an energy consumption of less than 4 watts for red letters and less than 2 watts for green letters, making it exceptionally cost-effective. The rotatable lamp heads can pivot 180°+ for maximum coverage, while the fully self-contained system operates automatically. With a push-to-test switch and an automatic low voltage disconnect (LVD), maintaining optimal performance is straightforward. The unit is designed for versatility, supporting both 120 and 277 VAC operation. Constructed from injection-molded, UL 94 V-O flame retardant, high impact thermoplastic housing, the Morris 73474 is built to last. Its glare-free LED lamps are fully adjustable, ensuring visibility without distractions. Installation is made easy with a universal mounting canopy and integral wiring channels. The unit is damp location rated and UL 924 listed, providing peace of mind in various environments. With a 3.6-volt sealed Ni-Cad rechargeable maintenance-free battery, this unit supports remote capability for additional LED lamp heads. Backed by a 3-year warranty, the Morris 73474 is a dependable choice for both residential and commercial applications.

Combination LED Energy Saving Exit Sign and LED Emergency Lighting Unit with Rotatable Lamp Heads In One Compact Design.

• Completely Self-Contained
• Remote Capability for up to 2 Additional LED Remote Lamp Heads
• 2 heads - 4 hours operation
• Universal Mounting Canopy for Top or Back J-box Installation & 2 Snap-fit Face Plates
• Field replaceable chevron directional indicators
• 3.6-Volt Sealed Ni-Cad Rechargeable Maintenance-Free Battery
• 3 heads - 2 hours operation
• Energy Consumption of Less than 4 Watts for Red letters and Less than 2 Watts for Green Letters
• CAUTION: Use Only LED Remote Lamp Heads with Remote Capable Units
• 4 heads - 1.5 hours operation
• Long Life Energy Saving LED Lamps
• Input Current: .22A 120V .10A 277V
• Push to Test Switch
• Fully Adjustable Glare-Free LED Lamps
• Self Diagnostic Capability
• Damp Location Rated
• Environmentally-Coated, Solid State Charger
• 120 or 277 VAC Operation
• 3 Year Warranty
• Automatic Low Voltage Disconnect (LVD)
• Integral wiring channels to facilitate installation
• Fully Automatic Operation
• Charge Rate/Power On LED Indicator Light
• UL 924 Listed
• Heads Rotate 180°+ for Maximum Field Flexibility
• Rotatable Lamp Heads
• Input Wattage: 1.8W Standard; 2.5W Remote Capable
• Injection-Molded, UL 94 V-O Flame Retardant, High Impact, Thermoplastic Housing
