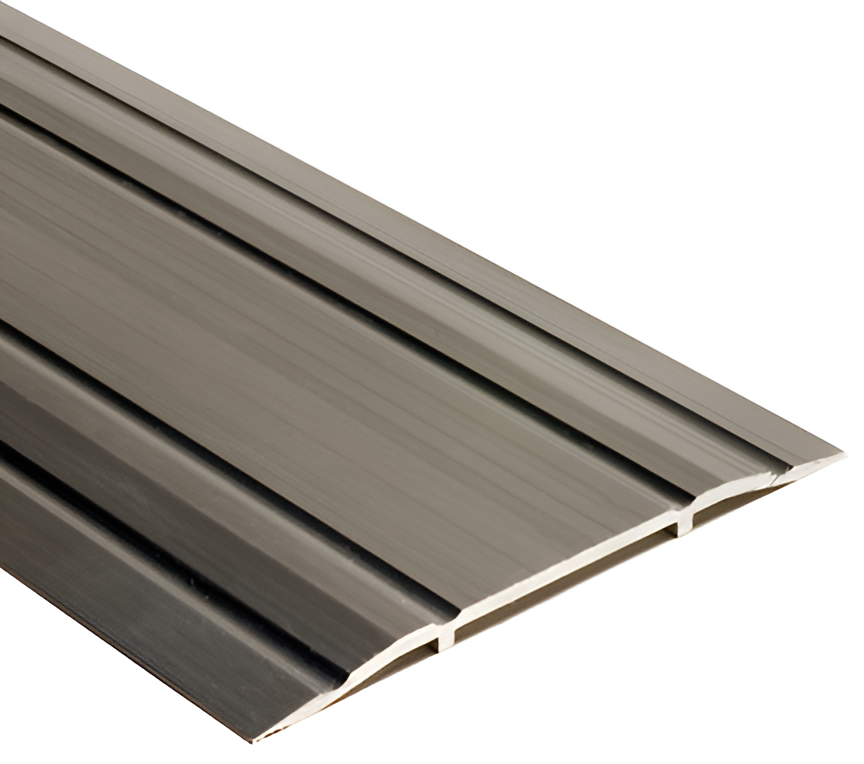

NGP 513 36IN Saddle Threshold 1/4in H x 5in W

National Guard Products Inc NGP 513 36IN Saddle Threshold offers a reliable solution for enhancing doorways while ensuring structural integrity and safety. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold is both durable and lightweight, weighing in at just 0.68 lbs./ft. Measuring 5 inches wide and 1/4 inch tall, its fluted top design not only adds an aesthetic touch but also assists in slip resistance, particularly when the optional SIA finish is chosen. This product is BHMA certified to ANSI/BHMA A156.21 standards, capable of withstanding a rigorous 1,000 lb load test, making it ideal for high-traffic areas. The typical wall thickness of 0.125 inches ensures durability, while the included 10 x 1-1/2" FH zinc-plated wood screws facilitate straightforward installation. The NGP 513 36IN Saddle Threshold is not only fire-rated for 180 minutes and 90 minutes but also complies with multiple industry certifications, including A117.1 and NFPA standards, ensuring it meets safety regulations for various applications. With a mill aluminum finish, this threshold blends seamlessly into any environment, providing an effective transition that combines functionality with style.

Saddle Threshold 1/4in H x 5in W

• Aluminum alloy 6063, T5 temper
• 5" wide x 1/4" tall
• Fluted top
• BHMA certified to ANSI/BHMA A156.21 1,000lb load test
• Typical wall thickness .125"
• Weight: .68 lbs./ft.
• 10 x 1-1/2" FH zinc plated wood screws included
• Mill finish
• Options: Slip resistant SIA finish

Features

• Mill finish
• Fluted top
• 5" wide x 1/4" tall
• Typical wall thickness .125"
• Options: Slip resistant SIA finish
• Weight: .68 lbs./ft.
• 10 x 1-1/2" FH zinc plated wood screws included
• Aluminum alloy 6063, T5 temper
• BHMA certified to ANSI/BHMA A156.21 1,000lb load test
