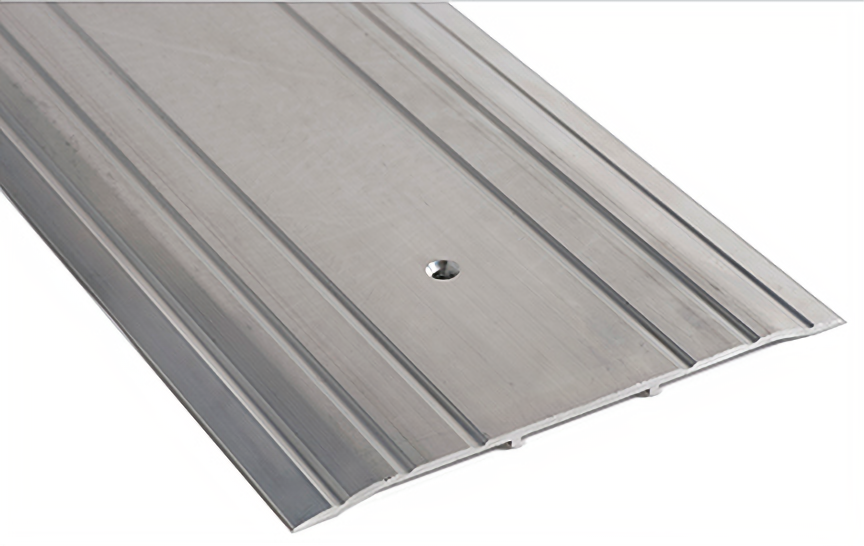

NGP 813 36IN Saddle Threshold 1/4in H x 8in W

National Guard Products Inc NGP 813 36IN Saddle Threshold is an essential accessory designed to enhance the durability and functionality of doorways. Crafted from high-quality aluminum alloy 6063 in T5 temper, this threshold measures 8 inches wide and 1/4 inch tall, providing a robust barrier that withstands daily wear and tear. The fluted top not only adds an aesthetic touch but also contributes to improved traction and safety. This product is BHMA certified to ANSI/BHMA A156.21, ensuring it meets rigorous standards with a 1,000 lb. load test, making it an ideal choice for both residential and commercial applications. With a typical wall thickness of .125 inches and a weight of 1.20 lbs/ft, it offers stability without being cumbersome. The threshold comes with ten 1-1/2 inch zinc-plated wood screws for easy installation. Available in a mill finish, the NGP 813 also offers an optional slip-resistant SIA finish for enhanced safety. Additionally, it is fire rated for up to 180 minutes, ensuring compliance with various safety codes. This threshold is not just functional but also a reliable choice for anyone looking to improve their doorways while ensuring long-lasting performance.

Saddle Threshold 1/4in H x 8in W

• Aluminum alloy 6063, T5 temper
• 8" wide x 1/4" tall
• Fluted top
• BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
• Typical wall thickness .125"
• Weight: 1.20 lbs./ft.
• 10 x 1-1/2" FH zinc plated wood screws included
• Mill finish
• Options: Slip resistant SIA finish

Features

• Mill finish
• Fluted top
• Typical wall thickness .125"
• BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
• Weight: 1.20 lbs./ft.
• Options: Slip resistant SIA finish
• 8" wide x 1/4" tall
• 10 x 1-1/2" FH zinc plated wood screws included
• Aluminum alloy 6063, T5 temper

Resources

• Cut Sheet
• Installation Sheet
