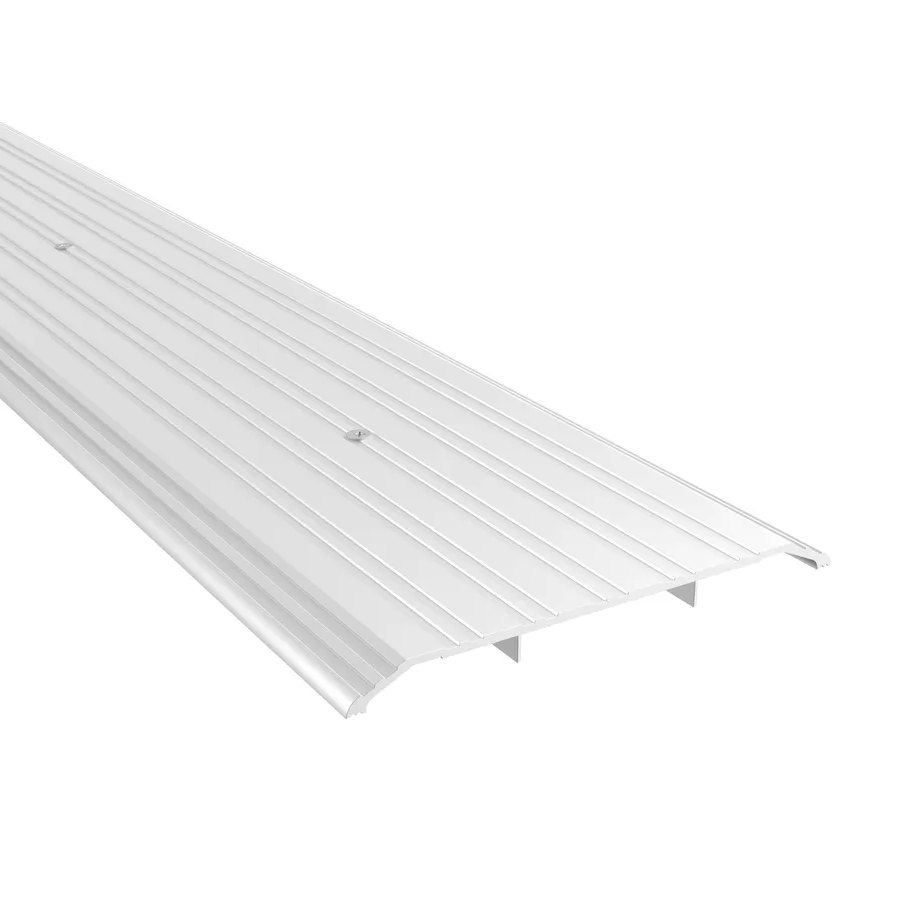

Pemko 176A 72IN Threshold 1/2in H x 7in W 72in Aluminum

Pemko Manufacturing Co 176A 72IN Threshold is a versatile commercial flat saddle threshold designed to ensure a seamless transition under doors. With dimensions of 1/2" high and 7" wide, this threshold is not only functional but also aesthetically pleasing, available in a range of finishes including mill finish aluminum, extruded bronze, dark bronze anodized, and gold anodized. This barrier-free and fire-rated threshold meets the highest standards of safety and accessibility, making it an ideal choice for both residential and commercial applications. Its symmetrical design allows for use in offset conditions, especially beneficial when integrating with elevators. The threshold is BHMA certified, having undergone rigorous testing to guarantee durability and performance. Installation is straightforward as it comes with wood screws as a standard, while other fastener options are also available. This product is ADA accessible, making it compliant with accessibility standards. Weighing just 1.29 lbs and available in lengths ranging from 24" to 185", the Pemko 176A is practical for various door sizes. Enhance your building's entrance with a threshold that combines functionality and style, ensuring you create a smooth and safe transition under every door.

Threshold 1/2in H x 7in W 72in Aluminum

The 176 commercial flat saddle threshold is 1/2" high x 7" wide and designed to create a smooth transition under a door. It is available in various finishes and is barrier-free and fire-rated. This symmetrical threshold can be used in offset conditions with the use of an elevator. It is BHMA certified and has undergone rigorous testing for durability and performance.

Features:

• Wood screw standard, other fasteners available
• Barrier-free and fire rated
• Symmetrical design
• Used in offset conditions with elevator
• ADA accessible
• Creates a smooth transition under door
• Durable, high-performing

Specifications:

• Base Material: Aluminum, brass
• Fasteners: WS #10 x 1.5"
• Maximum Length: 185"
• Minimum Length: 24"
• Overall Height: 1/2"
• Weight: 1.29 lbs
• Width: 7"

Finishes:

• A - Mill finish aluminum
• B - Mill finish extruded bronze (brass)
• D - Dark bronze anodized
• G - Gold anodized

Resources

• Cut Sheet
