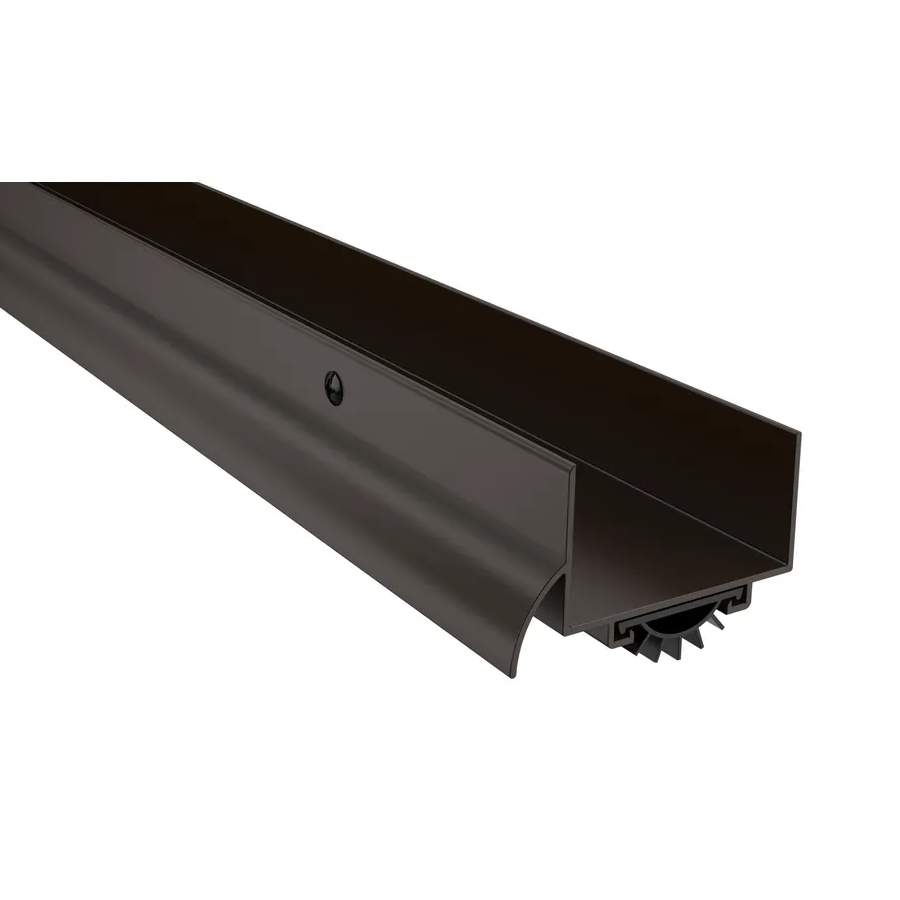

Pemko 216DV 36IN Door Shoe w/Drip 36in Dark Bronze

Pemko Manufacturing Co 216DV 36IN Door Shoe w/Drip offers a reliable solution for sealing the gap beneath 1 3/4" thick doors while preserving their aesthetic appeal. This fire and smoke rated U-shaped door shoe features a robust aluminum base and comes in a sleek dark bronze finish. With its innovative rain drip design, it effectively diverts water away from the door bottom, ensuring added protection against moisture intrusion. Constructed from eco-friendly materials, the 216DV is Greenguard Gold certified, containing no phthalates or heavy metals, making it an excellent choice for environmentally conscious projects. The door shoe boasts elongated slots for simple adjustments and is offered in a stock length of 36 inches, accommodating various building applications. With options for durable inserts such as Eco-V vinyl or PemkoPrene, including a frost guard variant, it assures long-lasting performance that surpasses traditional vinyl solutions. Designed to meet Pemko's gasketing standards for compression and tensile strength, this door shoe also minimizes air leakage and enhances energy efficiency. The 216DV is suitable for a variety of environments, ensuring that your doors remain secure and weather-tight. For professionals and homeowners alike, this door shoe combines functionality, durability, and style.

Door Shoe w/Drip 36in Dark Bronze

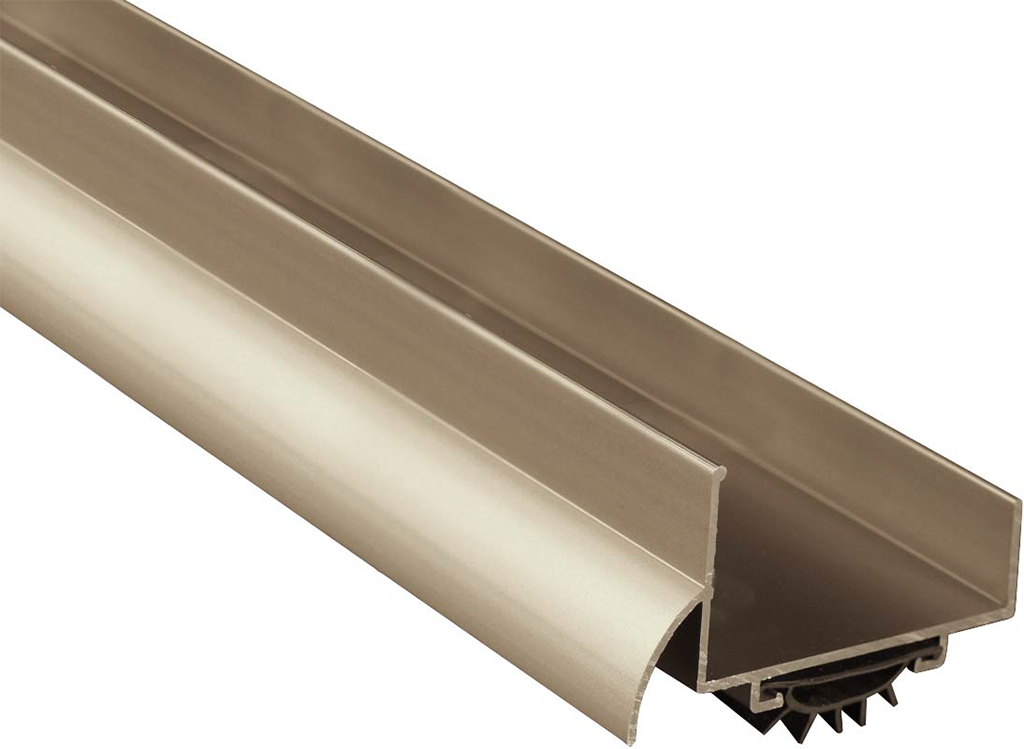

The 216 series is a fire and smoke rated U-shaped door shoe, designed to fill the gap under a 1 3/4" thick door while maintaining the door's appearance. It features durable insert options including Eco-V (vinyl) or PemkoPrene (including a frost guard option) and is available in a stock length of 36". The door shoe has elongated slots for easy adjustments and a rain drip design to deflect water from the door bottom.

Features:

• Greenguard Gold certified, eco-friendly material
• Economical bio-based material, contains no phthalates or heavy metals
• Assists building and design teams with emissions criteria in green building rating programs
• Highly versatile, easily deployable for a variety of building applications
• Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
• Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
• Prevents air leakage
• Heavy metal free
• Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
• Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions

Specifications:

• Base Material: Aluminum, Brass
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1-5/16" (33.3 mm)
• Width: 1-3/4" (44.5 mm)
• Total Height with Insert: Approx. 1-9/16" (39.7 mm)

Finishes:

• A - Mill finish aluminum
• B - Mill finish extruded bronze (brass)
• BDG - Bright dip gold anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized aluminum
• PW - Painted white aluminum
• SN - Satin nickel anodized aluminum

Resources

• Cut Sheet
