Pemko 221AV 36IN Door Shoe with Vinyl Insert 36in Aluminum

Pemko Manufacturing Co 221AV 36IN Door Shoe With Vinyl Insert offers an effective solution for enhancing door protection and efficiency. This U-shaped door shoe combines a kick plate design that seals gaps up to 0.5 inches at the bottom of the door, safeguarding against wear and tear while revitalizing damaged doors. With a 3-inch high casing, it is perfectly suited for doors with a width of 1.75 inches. The 221AV features an Eco-V Fingered or PemkoPrene insert, ensuring a reliable seal that adapts to extreme weather conditions. Its practical design includes slotted holes for easy adjustments and a recommended gasket compression of 1/16-inch. Additionally, it effectively blocks unwanted airflow and light, enhancing privacy and comfort. Constructed from durable aluminum, this door shoe is available in multiple finishes: mill finish aluminum, dark bronze anodized, and gold anodized aluminum. It accommodates various lengths from 24 inches to a maximum of 185 inches, with a height of 3 inches and a width of 1-3/4 inches. The total height with the insert reaches approximately 3-1/2 inches. For building professionals and homeowners alike, the Pemko 221AV 36IN Door Shoe is an essential choice for robust door protection and energy efficiency.

Door Shoe With Vinyl Insert 36in Aluminum

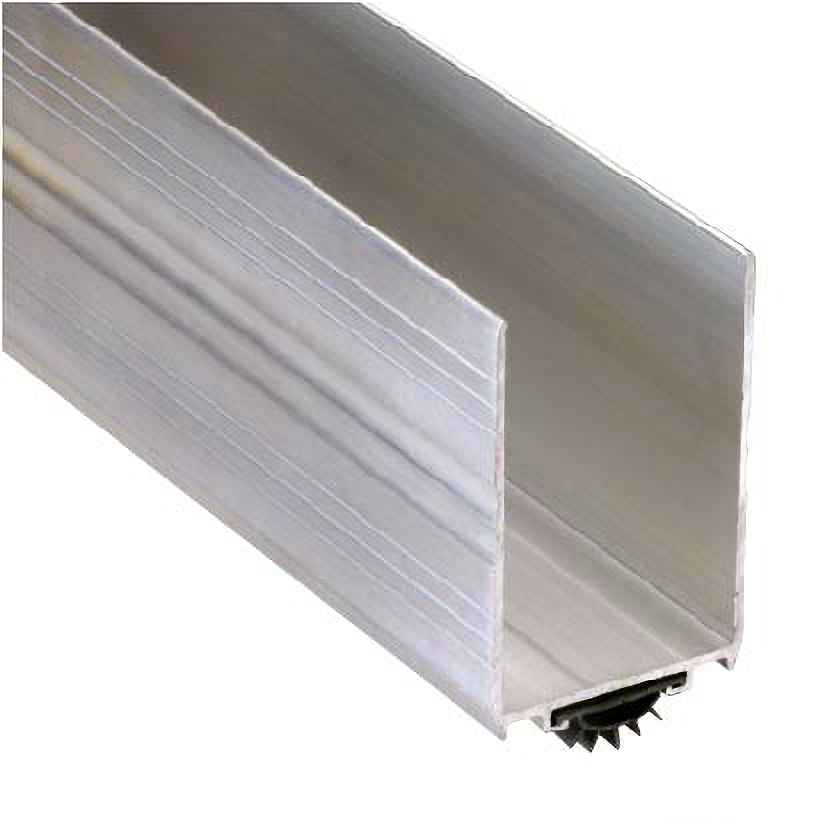

The 221 series U-shaped door shoe with combination kick plate provides added protection to your door. It seals gaps up to .5" at the bottom of the door, protecting against traffic abuse and restoring badly damaged doors. The casing extends up the face and back of the door 3", ideal for doors 1.75" in width. It features Eco-V Fingered or PemkoPrene insert for proper sealing and flexibility in extreme weather.

Features:

• Combination door shoe and kick plate
• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering
• Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
• Provides protection for the bottom and bottom face of the door
• Blocks unwanted airflow and light, and provides privacy

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 3" (76.2 mm)
• Width: 1-3/4" (44.5 mm)
• Total Height with Insert: Approx. 3-1/2" (89.0 mm)

Finishes:

• A - Mill finish aluminum
• D - Dark bronze anodized
• G - Gold anodized aluminum

Resources

• Cut Sheet
