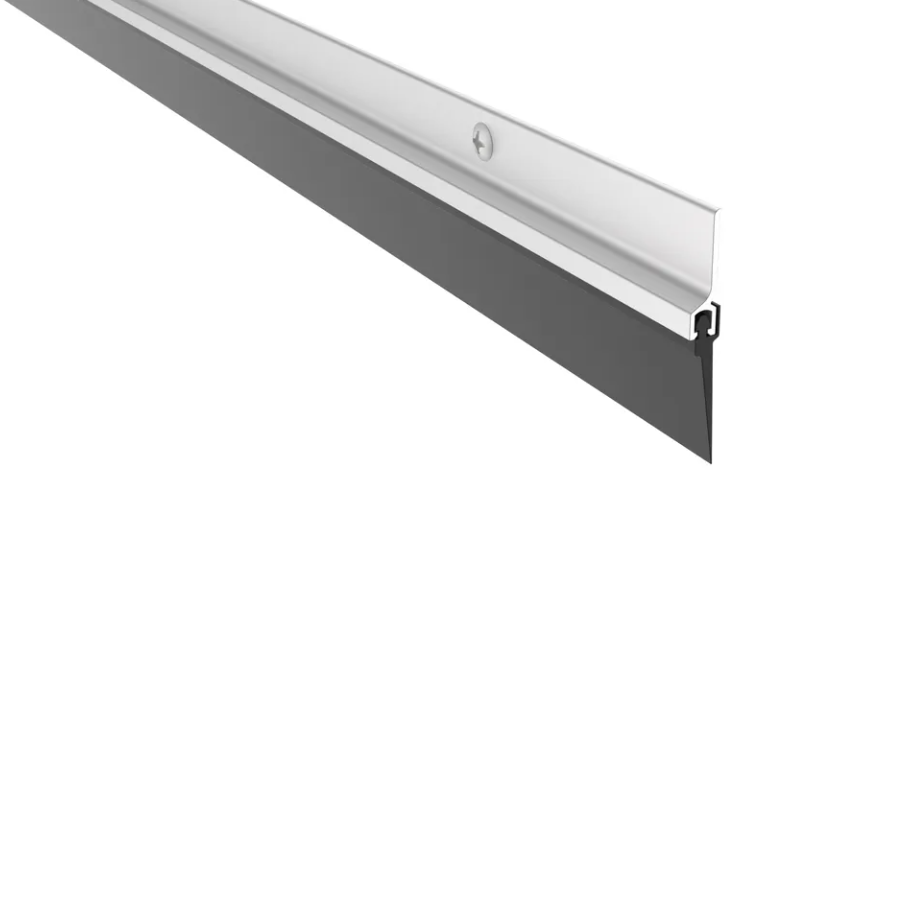

Pemko 307AV 36IN 1in Vinyl Sweep 36in Aluminum, Overall Height 1-7/8in

Pemko Manufacturing Co 307AV 36IN 1in Vinyl Sweep offers a reliable solution for enhancing door insulation and protection against the elements. This surface-mounted door sweep is expertly designed to seal gaps up to 1 inch between the door and threshold or floor, effectively preventing the infiltration of moisture, smoke, sound, light, and air. Constructed from durable aluminum, it features either an Eco-V (Vinyl) or PemkoPrene seal, both of which provide excellent performance while being low in VOC emissions. The 307AV is fire and smoke rated, making it ideal for use in commercial and residential applications where safety is paramount. Installation is straightforward thanks to the included instructions and PHSMS fasteners, while slotted holes allow for easy adjustments during setup. With a height of 1-7/8 inches and a width of 1/4 inch, this door sweep fits seamlessly on various door types. Available in multiple finishes-including mill finish aluminum, bright dip gold anodized, dark bronze anodized, and painted white aluminum-this door sweep not only maximizes functionality but also enhances the aesthetic appeal of any entryway. Choose the Pemko 307AV 36IN for a durable, efficient, and visually appealing door sealing solution.

1in Vinyl Sweep 36in Aluminum, Overall Height 1-7/8in

The 307 series surface plate rubber door sweep is designed to insulate and prevent infiltration of moisture, fire, smoke, sound, and light. This door sweep features an Eco-V (Vinyl) or PemkoPrene seal and is fire and smoke rated. It can be used to seal up to a 1" gap between the door and threshold or floor surface. The sweep is surface mounted to the face of the door and comes with installation instructions and screws.

Features:

• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Low VOC emission
• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
• Seal up to a 1" the gap between the door and threshold or to the floor surface

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1 7/8"
• Width: 1/4"

Finishes:

• A - Mill finish aluminum
• BDG - Bright dip gold anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• PW - Painted white aluminum
• SN - Satin nickel anodized aluminum

Resources

• Cut Sheet
