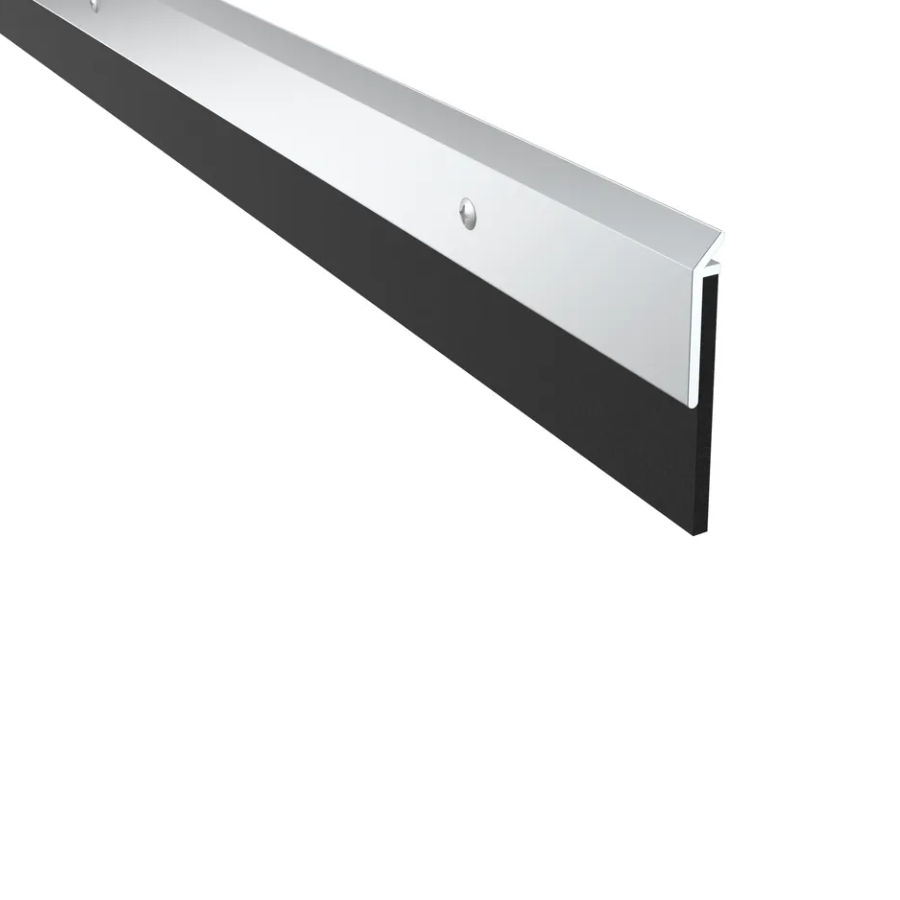

Pemko 3151CN 36IN 1in Neoprene Sweep 36in Aluminum

Pemko Manufacturing Co 3151CN 36IN 1in Neoprene Sweep 36in Aluminum is an essential solution for enhancing door performance and energy efficiency. This surface plate door sweep is designed with slotted holes, allowing for easy adjustment and installation. The neoprene synthetic rubber extrusion provides an effective seal, making it ideal for closing gaps up to 1 inch between a door and threshold or floor surface. With a recommended gasket compression of 1/16", this door sweep significantly reduces the infiltration of light, air, wind, rain, and snow, while also controlling the penetration of smoke and fumes. Its robust construction offers outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, and various weather conditions, ensuring lasting durability in diverse environments. The 3151CN model is made with high-quality aluminum and is available in multiple finishes, including clear anodized, dark bronze anodized, gold anodized, painted white aluminum, and satin nickel anodized aluminum. It accommodates lengths between 24 inches and 185 inches, providing flexibility for various door sizes. Ideal for residential and commercial applications, this door sweep is a necessary addition for any building professional or knowledgeable homeowner looking to enhance weatherproofing and energy efficiency.

1in Neoprene Sweep 36in Aluminum

The 3151 series surface plate door sweep features slotted holes for easy adjustment and a neoprene synthetic rubber extrusion for effective sealing. With a recommended 1/16" gasket compression, it seals up to a 1" gap between the door and threshold or floor surface, offering outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, and weather, while reducing the infiltration of light, air, wind, rain, and snow, and controlling the penetration of smoke and fumes, making it a versatile and durable solution.

Features:

• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Fitted with a neoprene synthetic rubber extrusion
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
• Surface applied
• Outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, weather
• Seal up to a 1" the gap between the door and threshold or to the floor surface
• Resistant to polar substances and steam
• Not recommended in situations that involved significant gasoline or other fuel oil, kerosene, propane, or mineral oil

Specifications:

• Base Material: Aluminum, stainless steel
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1-1/4" (31.8 mm)
• Width: 1/4" (6.4 mm)
• Total Height with Insert: 2-1/4" (57.2 mm)

Finishes:

• C - Clear anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• PW - Painted white aluminum
• SN - Satin nickel anodized aluminum
