Richelieu 189LINX800WT LIN-X800 Lateral Opening System InstructionsRichelieu 189LINX800WT LIN-X800 Lateral Opening System offers an innovative solution for wood cabinet doors in overlay applications, supporting a weight capacity of up to 40 kg. Designed for versatility, this system accommodates two door height options-2400 mm and 2980 mm-allowing for tailored installations that fit your specific needs. You can choose from two elegant finishes, white or black, to seamlessly integrate with your cabinetry. This lateral opening system is adaptable for both left- and right-hand applications, providing flexibility in design. Its four-way adjustability ensures precise alignment, while the included dampers facilitate a smooth, soft-closing operation, enhancing the user experience. The vertical connecting rod contributes to superior stability, making this system ideal for pantry, closet, laundry storage, and hidden room applications. The LIN-X800 is compatible with door widths ranging from 29 1/2 to 33 1/2 inches and thicknesses between 15/16 and 1 9/16 inches. With a straightforward installation process, this product is an excellent choice for both building professionals and discerning homeowners seeking functionality without compromising style. For best results, it's recommended to use metric dimensions during installation.

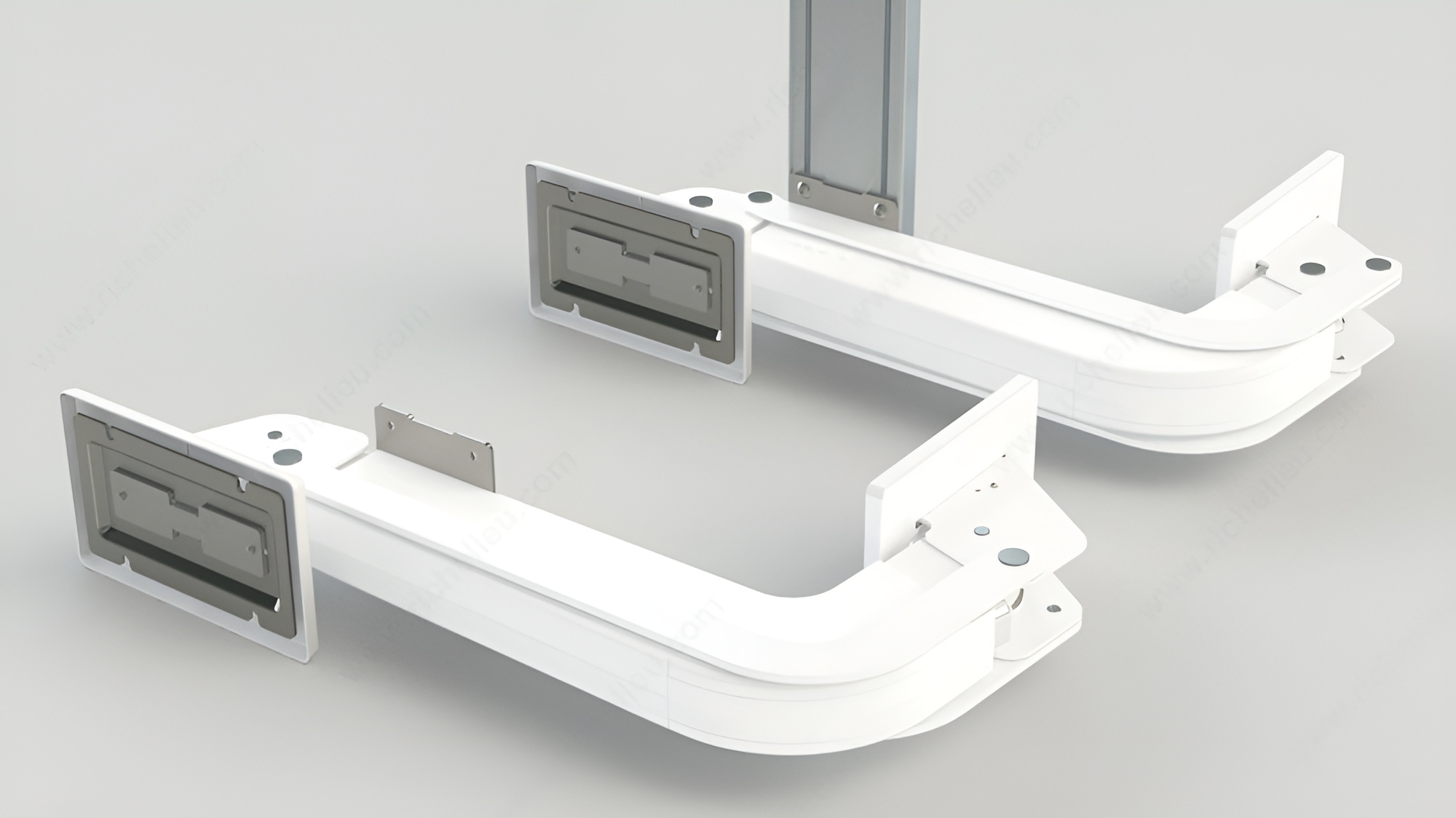

LIN-X800 Lateral Opening System
The LIN-X800 Lateral opening door system for one wood cabinet door for overlay applications for weight capacity 40 kg each.
Features:
* Select from two types of set for different door heights 2400 mm and 2980 mm
* Two choices of finishes white and black
* Can be mounted for left- and right-hand applications
* 4 way adjustable
* Smooth movement with dampers for smooth soft-closing
* Vertical connecting rod for superior stability
* Simple and Flexible

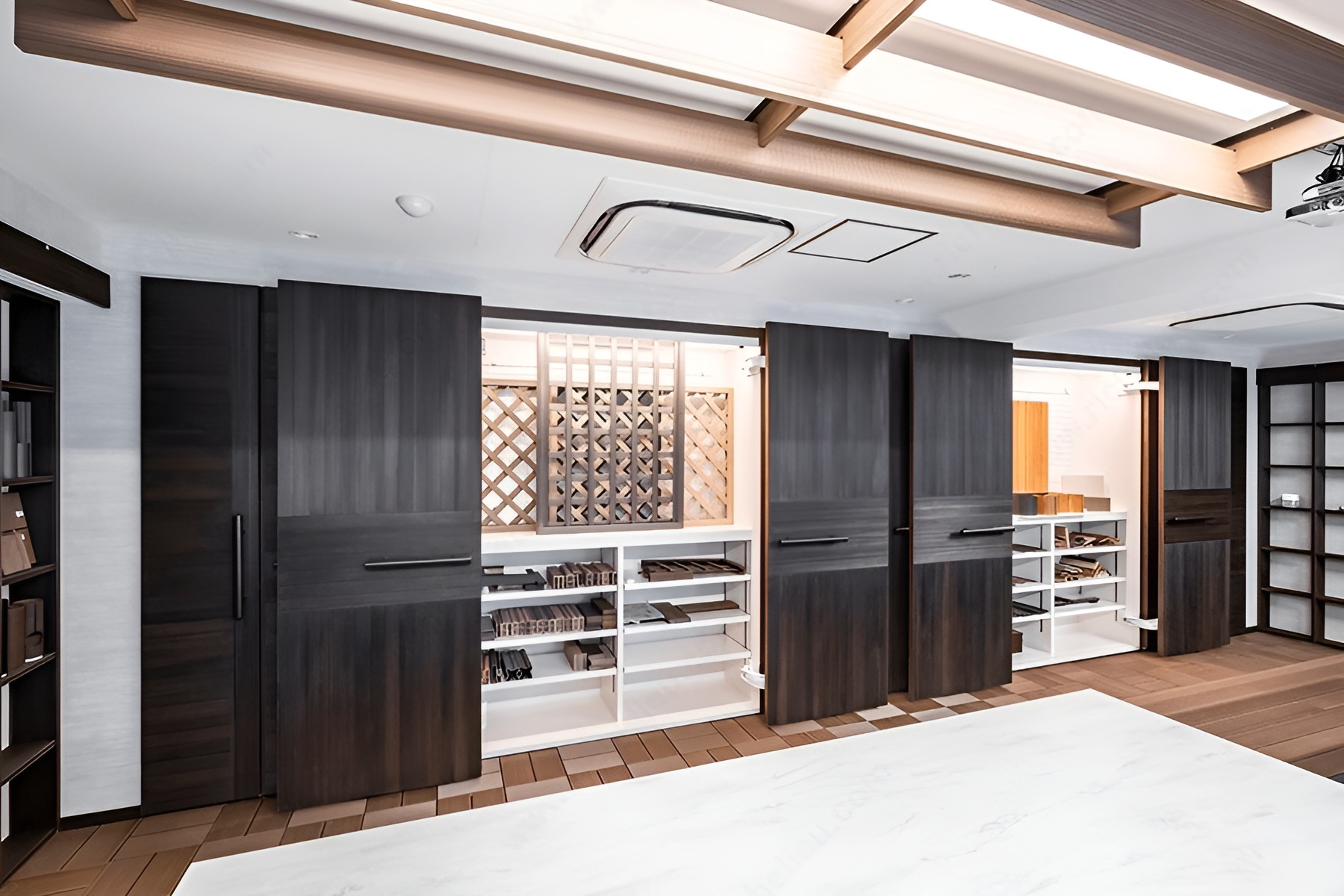

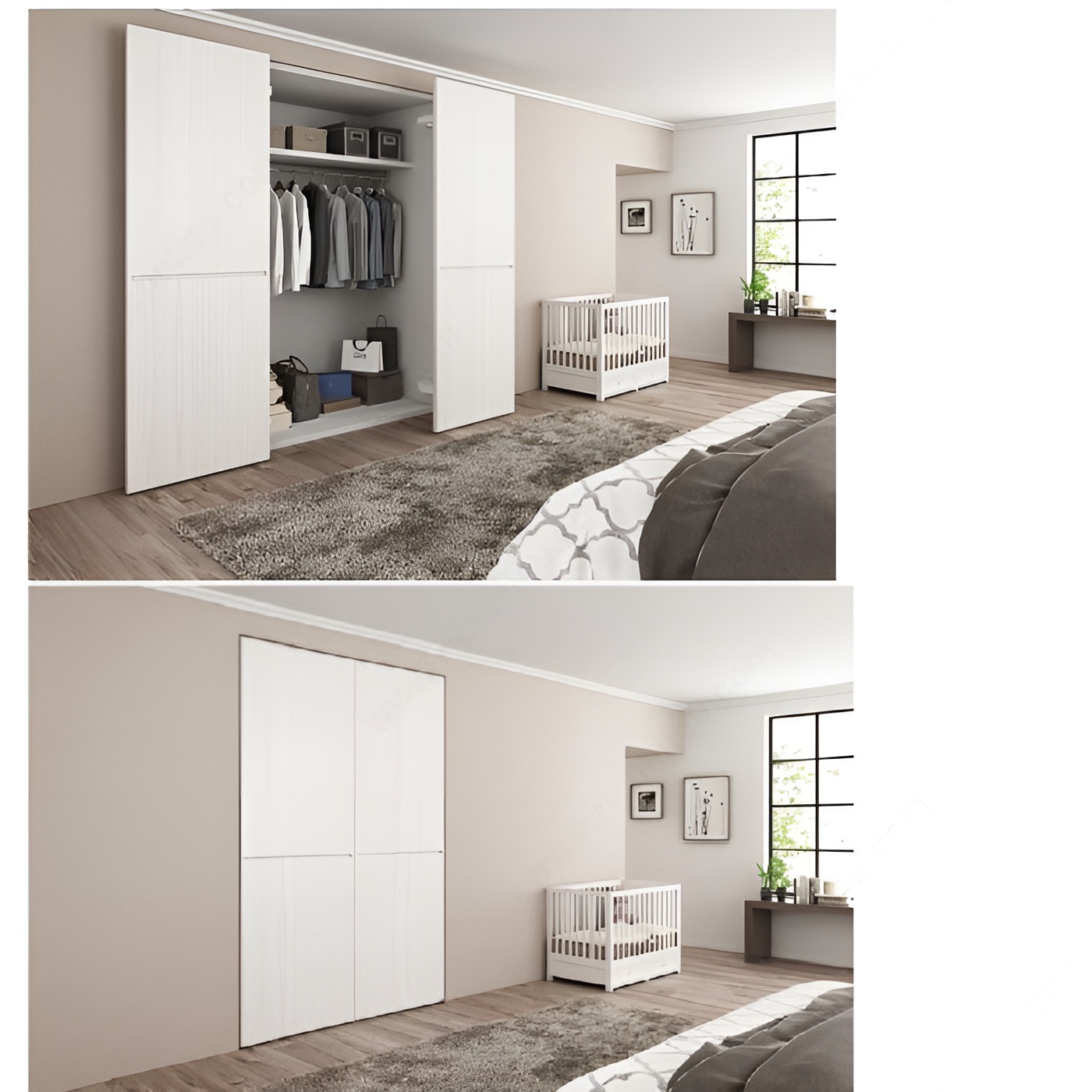

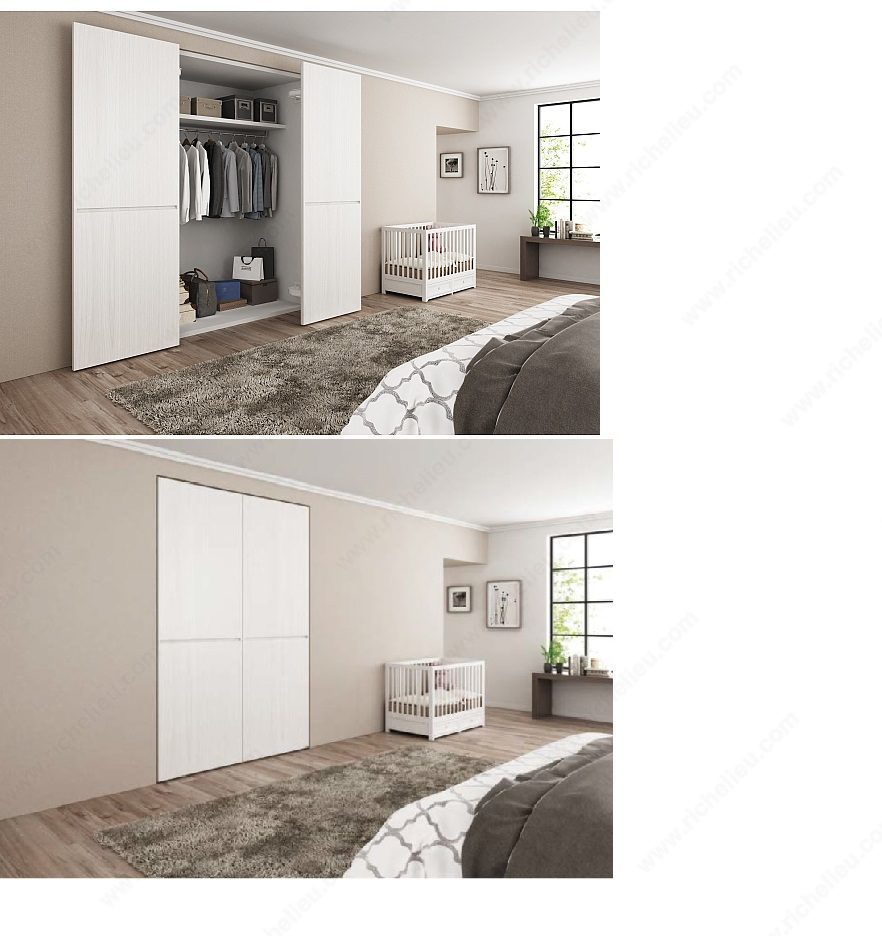

The LIN-X800 lateral opening door system is an ideal solution for Pantry, Closet, Laundry Storage and Hidden Rooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Pantry
Brand: LIN-X
Brand Model: Sugatsune/Lamp
Detailed Door Movement: Lateral Swing
Door Height: 1 600 to 2 400 mm
Door Material: Wood
Door Movement: Lateral
Door Position: Full Overlay
Door Thickness: 15/16 to 1 9/16 in*
Door Width: 29 1/2 to 33 1/2 in*
Finish: White
Load Capacity: 88.2 lb*
Number of Doors: 1
Opening: Lateral swing
Product #: 189LINX800WT
Product type: Hinge
Product №: 189LINX800WT
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Weight Capacity per Door: 88.2 lb*
