Richelieu 87H2R1001910171 3/4" Back-to-Back Ladder Handle - 19 mm DiameterRichelieu 87H2R1001910171 3/4" (19 mm) Diameter Back-to-Back Ladder Handle offers a seamless blend of functionality and style, making it an ideal choice for glass doors in various settings. Crafted from durable Stainless Steel 304, this polished chrome handle not only enhances the aesthetic appeal of your space but also provides long-lasting performance. Designed for ease of installation, the handle requires drilling just two 12mm holes in the door, allowing for quick and straightforward setup. With a center-to-center drilling spacing of 10 inches, it is perfectly suited for hinged, sliding, and shower doors, accommodating glass thicknesses ranging from 1/4 inch to 15/32 inch. The handle's height of 14 inches and 2 3/8-inch projection ensures a comfortable grip for everyday use. Included with the handle are M6 screws, facilitating a secure attachment. The product comes as a set, ready to elevate your project. To maintain its pristine appearance, simply clean with a soft, non-abrasive cloth and ammonia-free soap. Whether you're a professional builder or a discerning homeowner, the Richelieu Back-to-Back Ladder Handle is a reliable solution that marries modern design with practical application.
3/4" (19 mm) Diameter Back-to-Back Ladder Handle

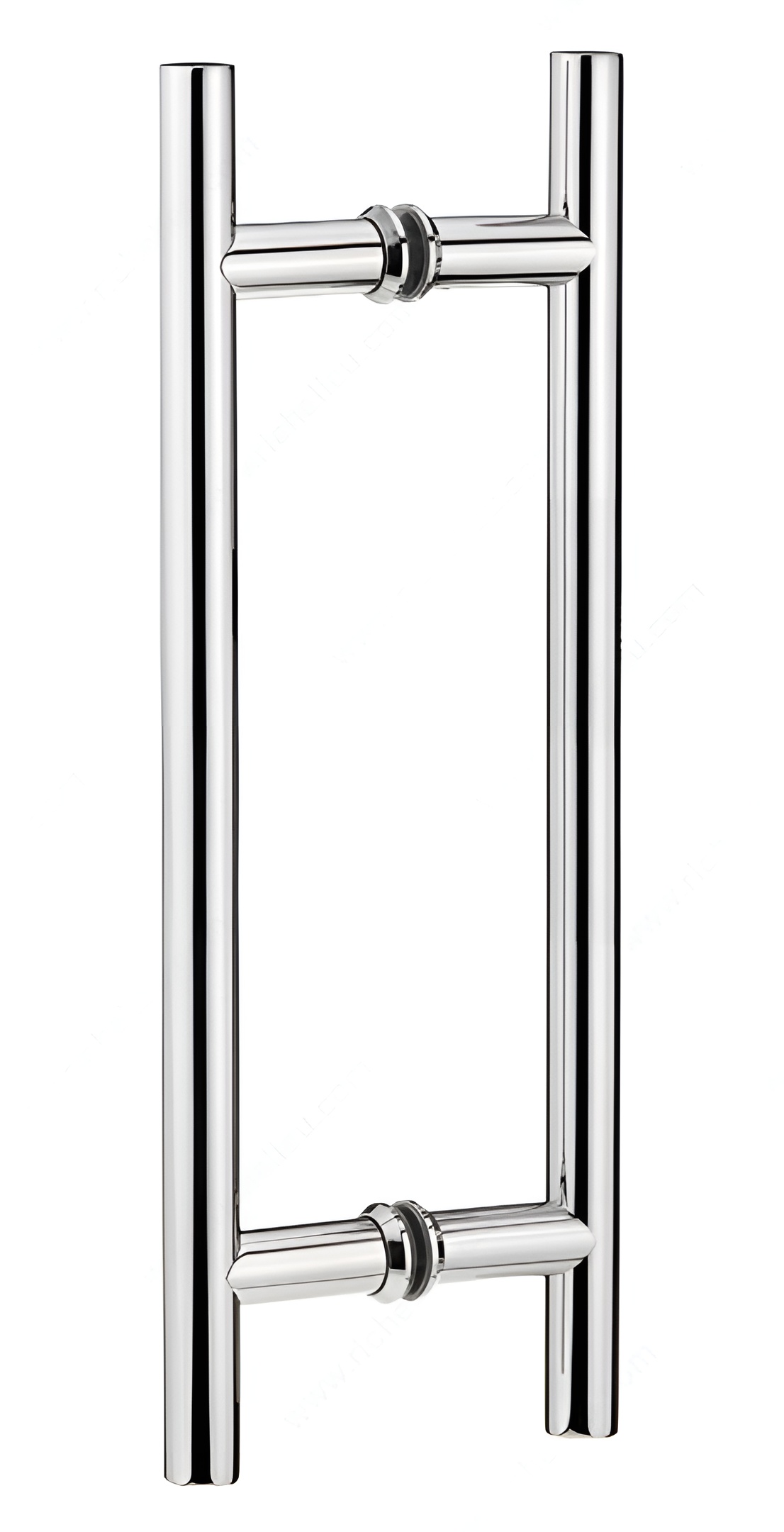

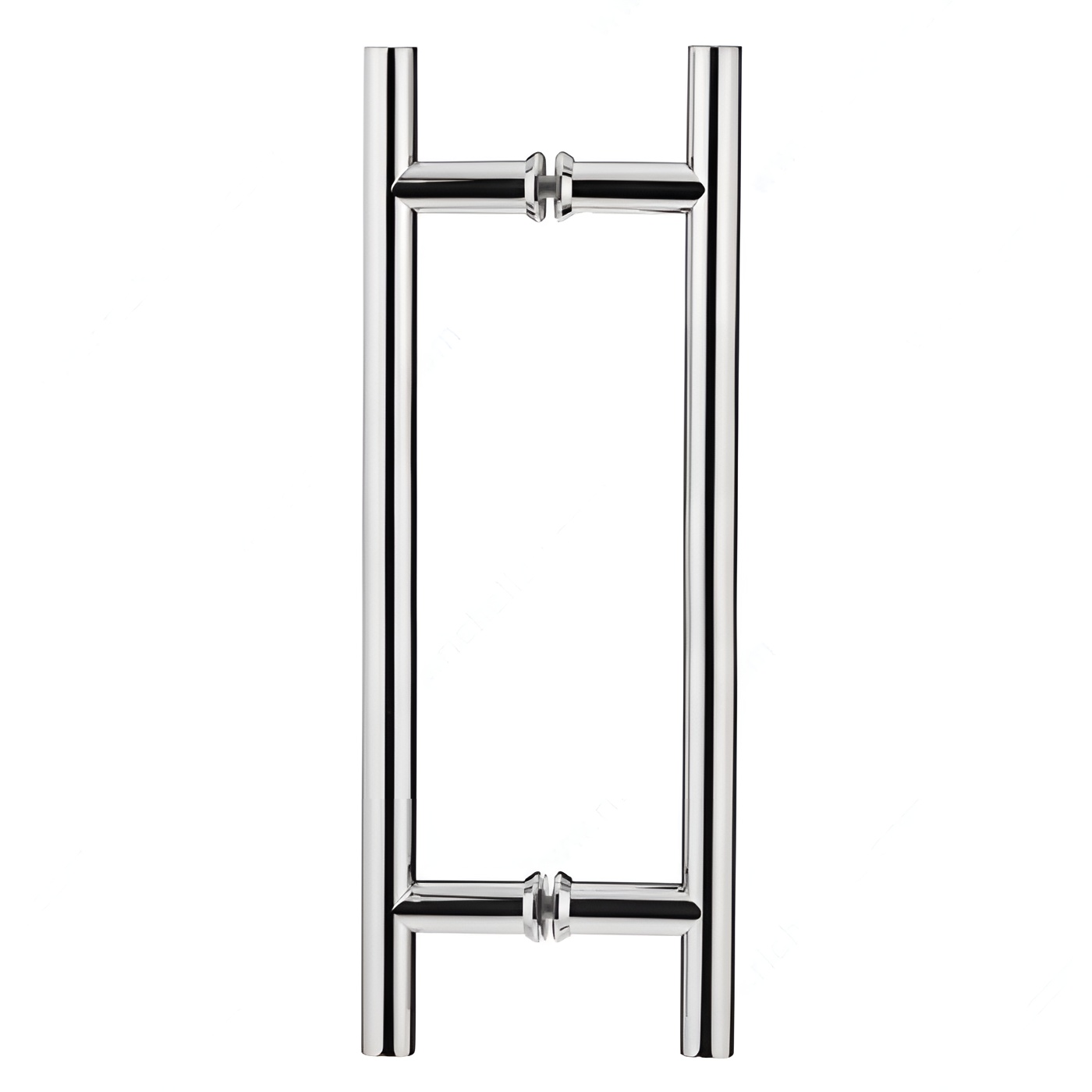

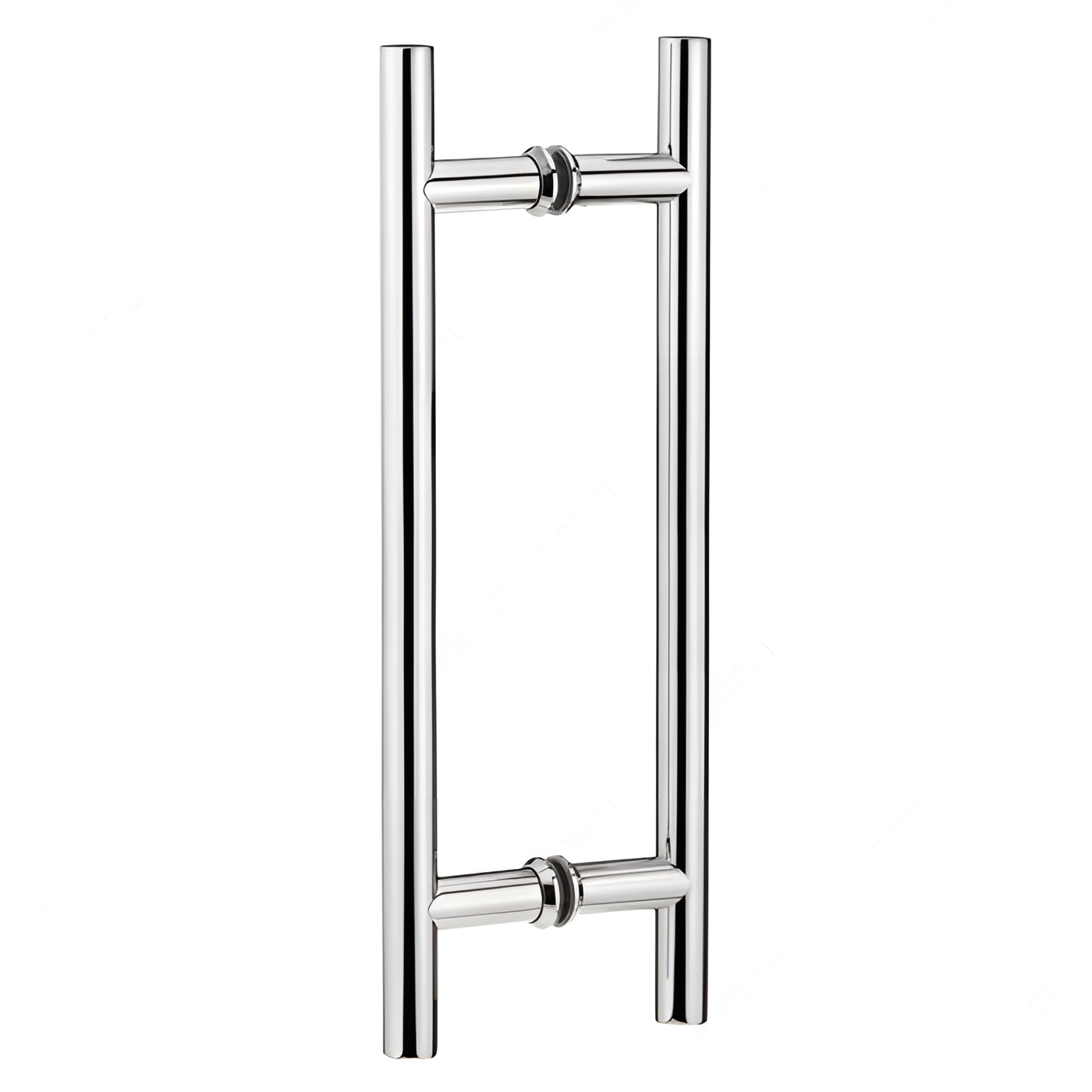

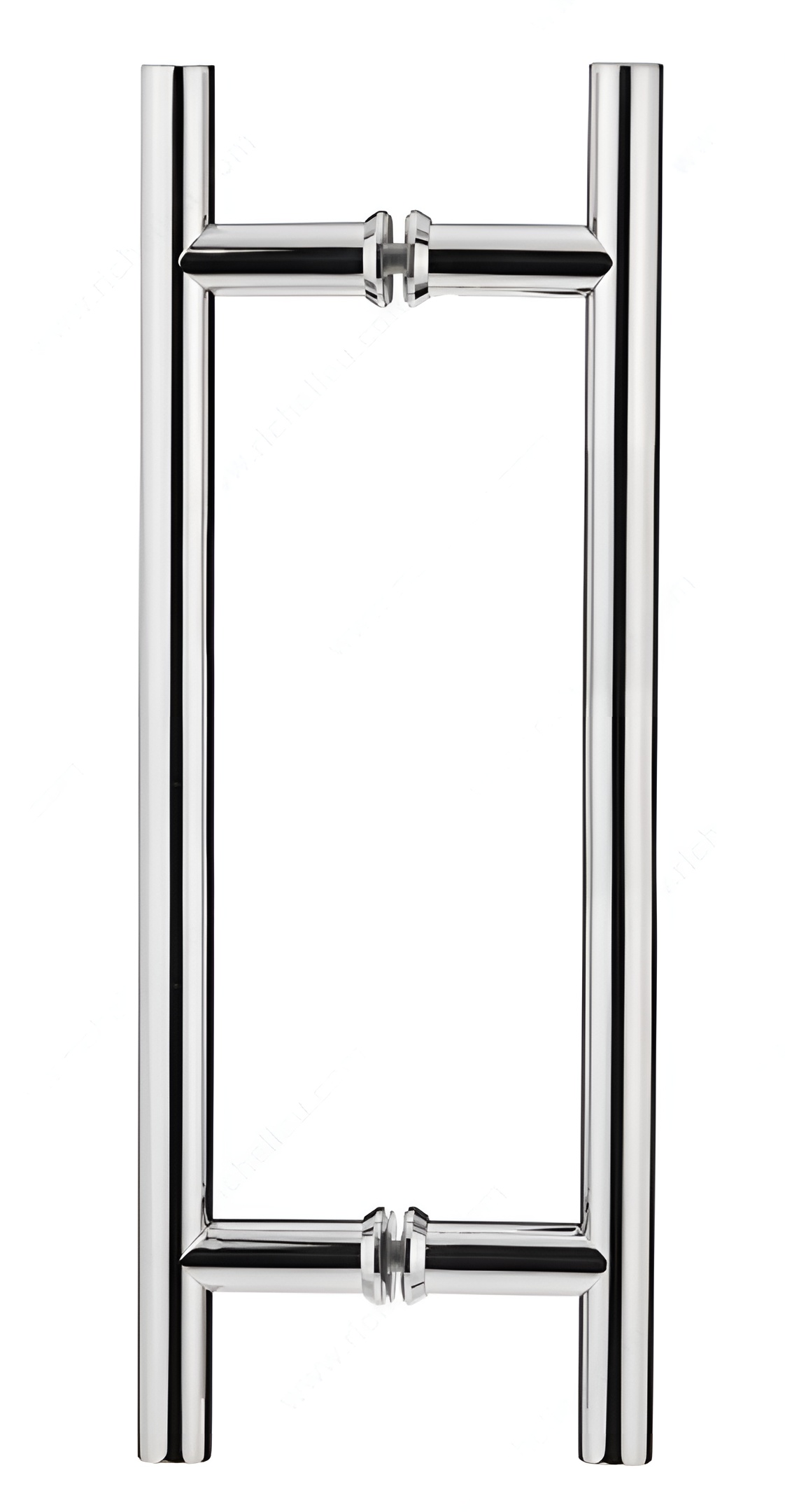

This classic back-to-back ladder-style handle is designed for glass doors. With its modern and simple design, this handle easily fits into any décor. Easy to install, drill two 12mm holes in the door, then insert both sides of the handle and tighten with the Allen wrench. The handle is perfect for hinged, sliding, and shower doors.
Important information
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer. Never use a spray lubricant on this product. Clean with a soft cloth and soap that is ammonia-free and nonabrasive. Always use a dry cloth to remove debris, dust and residues (sawdust and/or aluminum dust) from rails before installing hangers.
Attributes
Brand: Riveo

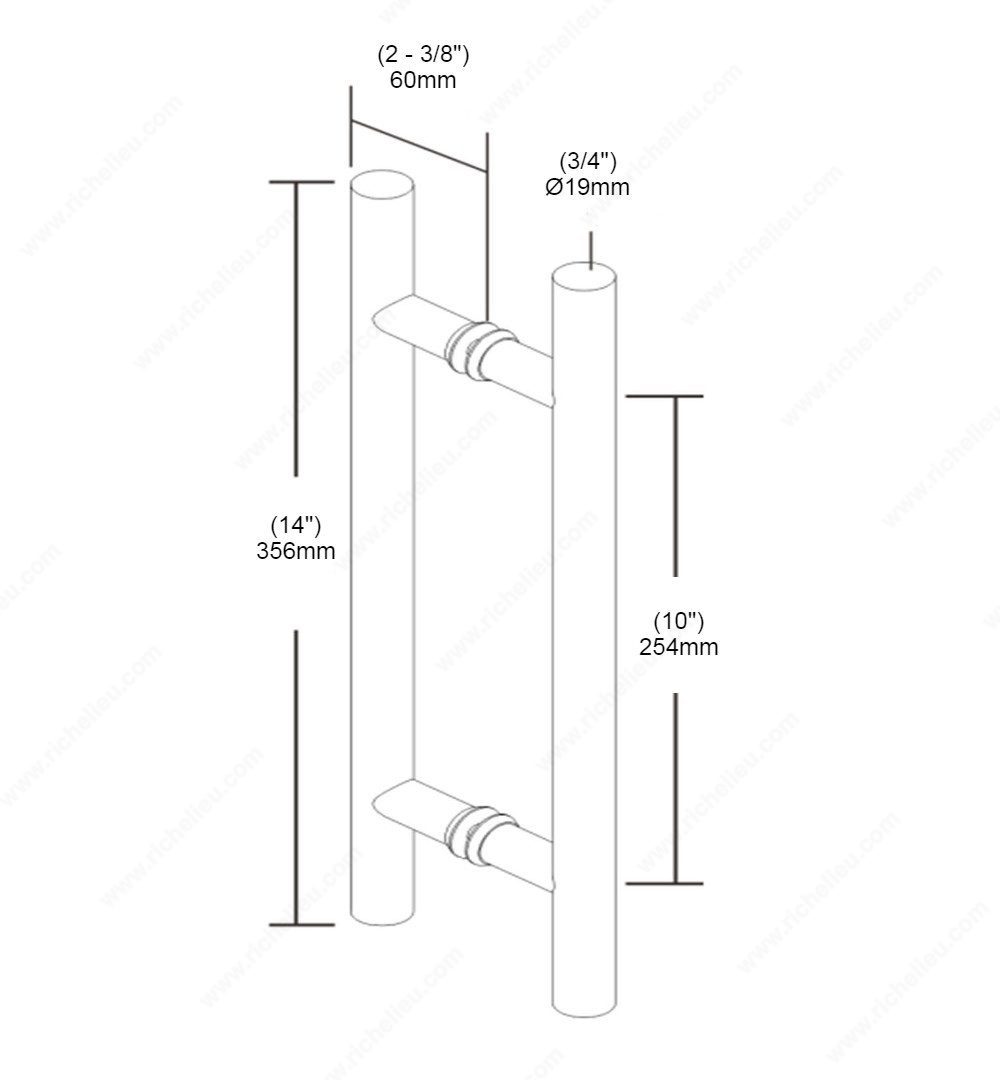

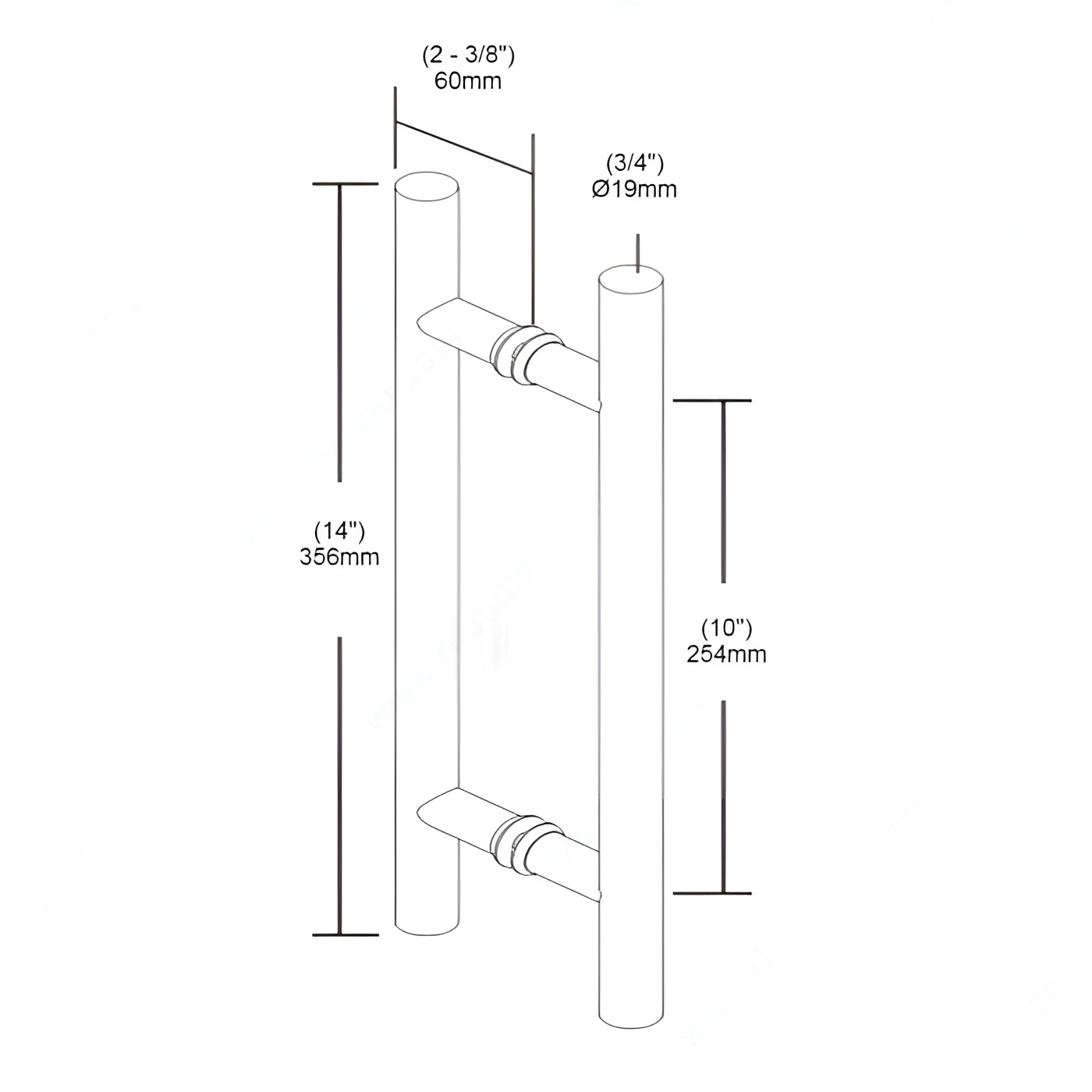

Center to Center Drilling ( Spacing): 10 in
Color/ Finish: Chrome / Polished Stainless Steel
Diameter: 19 mm
Door Type: Glass
Function: Pull Handle

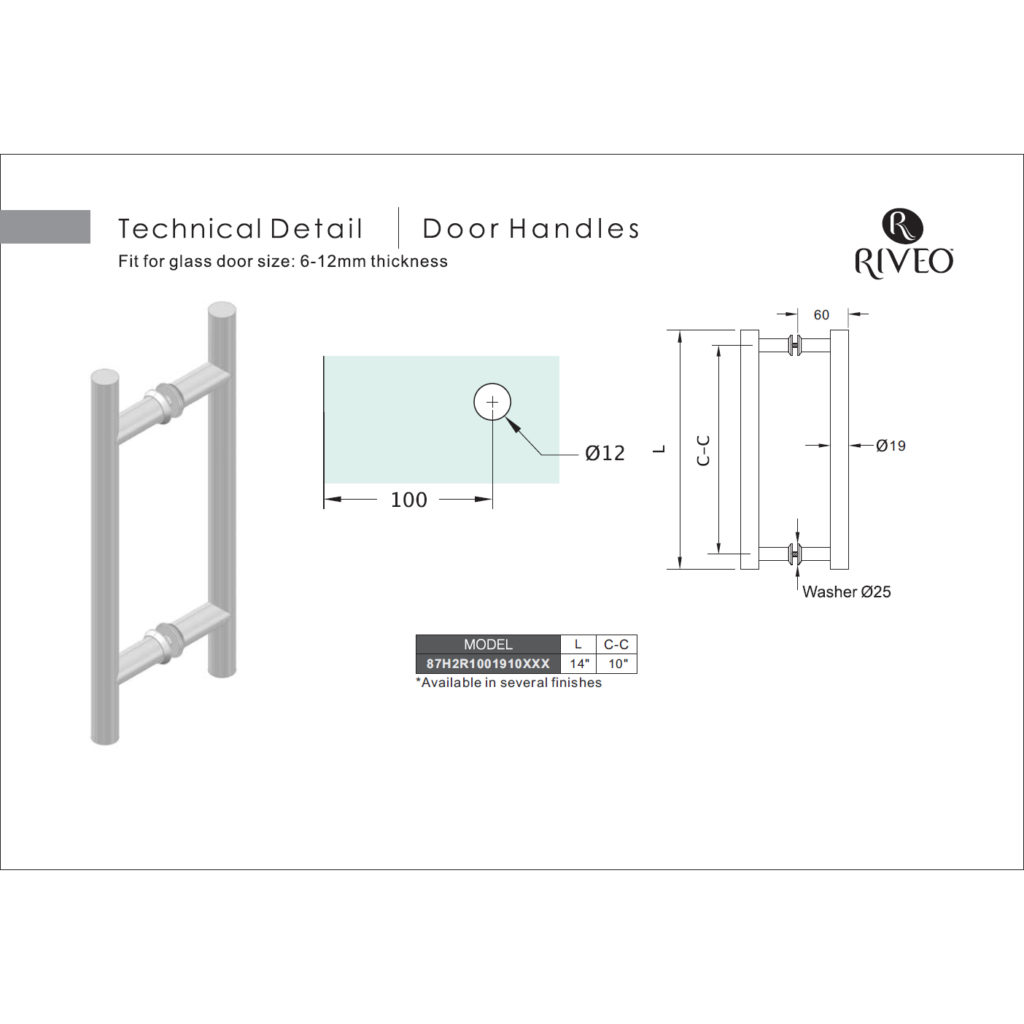

Glass Thickness: 6 to 12 mm
Height: 14 in
Manufacturing Material: Stainless Steel: 304
Material: Stainless Steel: 304
Milling Diameter: 12 mm
Packaging format: Set
Product #: 87H2R1001910171
Product number: 87H2R1001910171
Product №: 87H2R1001910171
Projection: 60 mm
Screw/ Nail: Included, M6
Type: Round
Unit: Set
Unit 1: case - 20
Unit 2: case - 20
Usage: Sliding Door / Hinge Door
Washers Diameter: 25 mm
