Richelieu WEBKIT1236499 HAWA-CONCEPTA Multi-System for 3 4 DoorsRichelieu WEBKIT1236499 HAWA-CONCEPTA Multi-Systems for Three and Four Doors offers a versatile solution for configuring multiple panel arrangements, accommodating up to four doors with ease. Designed with functionality in mind, this system features a concealed hinge with a soft-close mechanism, ensuring a smooth and quiet operation. Each single operating door can support weights up to 66 lb (30 kg), while bifolding configurations can handle up to 110 lb (50 kg) per pair. The compact design requires only 2 7/8 in (73 mm) x 4 11/32 in (110 mm) of depth in the pocket area, making it ideal for tight spaces. Integrated dampeners enhance user experience by providing a refined operation. Optional reinforcement profiles are available to support the upper guide track, minimizing flexing, and various bottom guide channels and magnet sets help maintain alignment when the doors are closed. With a maximum door height of 102 in and a width of 27 1/2 in, this system is perfect for applications like home offices, laundry rooms, and wide storage areas. The anodized finish adds durability and a polished look, making it suitable for a range of environments. For technical support, call 800-334-0818 (US) or 844-775-3039.
HAWA-CONCEPTA Multi-Systems for Three and Four Doors

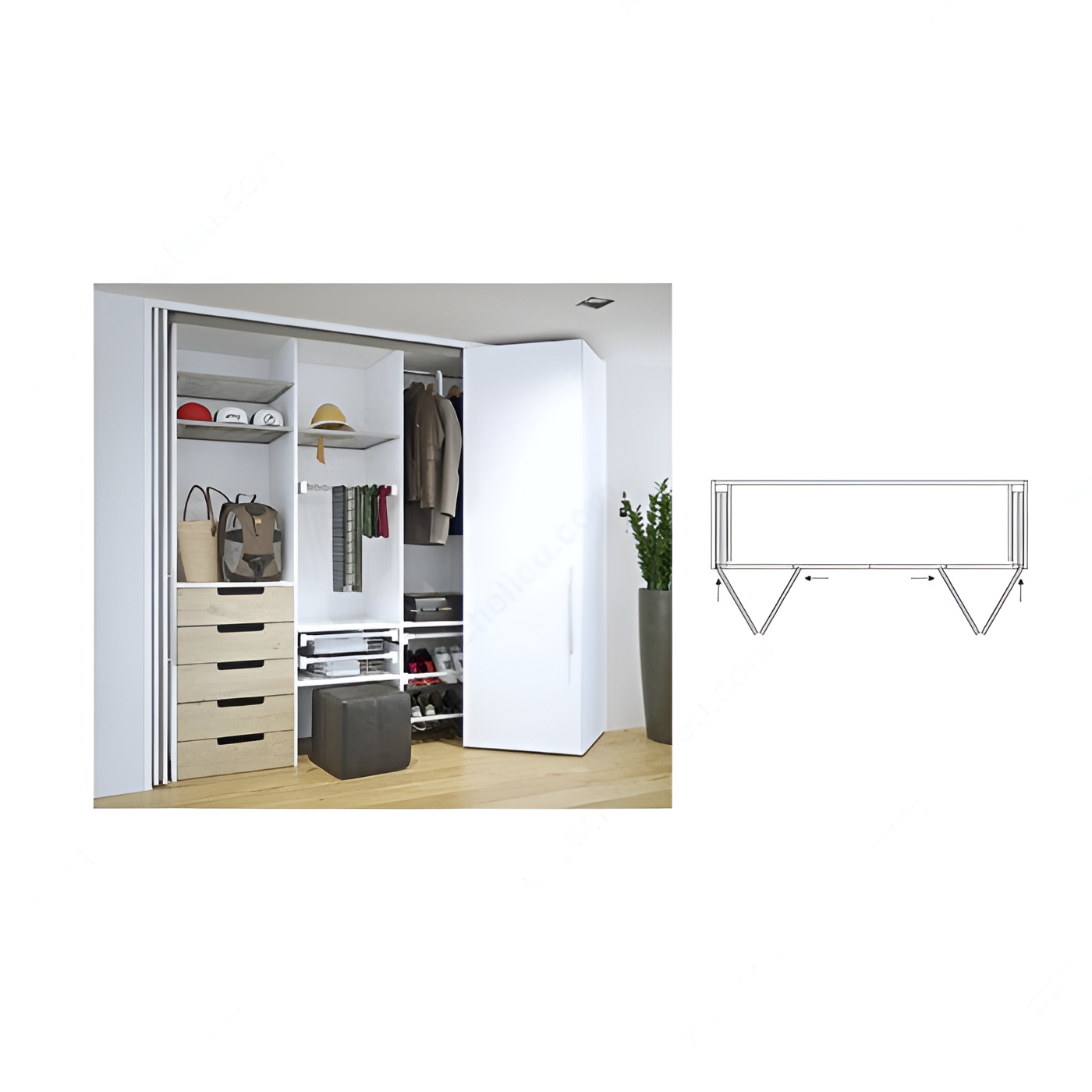

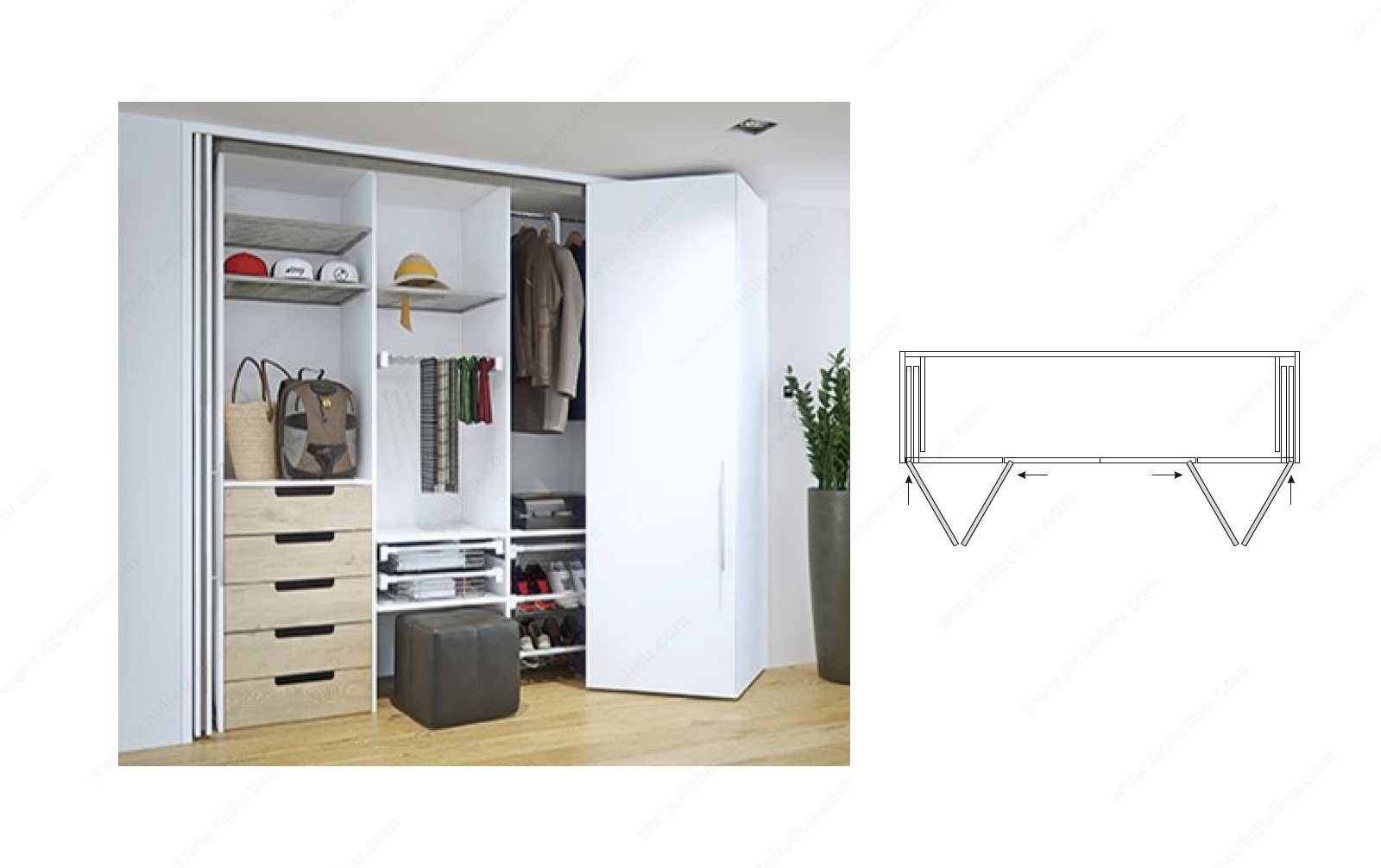

The HAWA-Concepta multi-systems can be configured for multiple panel configurations with three or four door panels.
The following webkits are examples of various creative configurations.
Features:
- Concealed hinge with soft-close mechanism
- Series for single operating doors weighing up to 66 lb (30 kg) each and bifolding doors weighing 110 lb (50 kg) per pair of doors
- Integrated dampeners for smooth operation
- Requires a small space with 2 7/8 in (73 mm) x 4 11/32 in (110 mm) depth inside the pocket area to retract the mechanism
- Parking area varies depending on whether it's retracting a single or bifolding door. See instructions for more information.
- Optional reinforcement profile available to support the top panel that carries the upper guide track, and helps resist flexing
- Available bottom guide channels and magnet sets to help keep doors in line when opening is closed
- For technical support and planning tool for drilling patterns for the cabinet and the door, call 800-334-0818 (US) or 844-775-3039
The HAWA-Concepta multi-system for multiple panels is an ideal solution for home offices, laundry rooms, self-serve food and beverage areas, and wide storage areas.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Storage
Brand: Hawa
Door Height: 1 851 to 2 600 mm
Door Material: Wood
Door Movement: Pivot and Slide
Door Position: Inset/Inlay
Door Width: Max. 700 mm
Finish: Anodized
Load Capacity: 55.1 lb*
Number of Doors: 4
Opening: Left and Right-Hand Opening
Packaging format: Per unit
Product #: WEBKIT1236499
Product number: WEBKIT1236499
Product №: WEBKIT1236499
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Anodized
Weight Capacity per Door: 25 kg
