Richelieu WEBKIT1257135 HAWA JUNIOR 40B System InstructionsRichelieu WEBKIT1257135 HAWA JUNIOR 40 B System is expertly designed for sliding wood doors weighing up to 40 kg (88 lb), making it a reliable choice for various applications. This top-hung sliding system features a recessed suspension plate that allows for low clearance, ensuring a sleek and unobtrusive installation. It accommodates door thicknesses ranging from 35 to 80 mm (1-3/8" to 3-1/8"), providing versatility for different wood door styles. The system includes a standard track that can be surface-mounted or recessed into the ceiling, crafted from clear anodized aluminum for both durability and aesthetics. An adjustable track stopper with a retention spring effectively minimizes door bounce-back, while the option for a robust soft-close mechanism enhances user experience, especially in commercial settings. To ensure optimal performance, a groove must be machined into the bottom of the door for a rattle-free guiding system. The minimum door width for the soft close feature in both directions is 830 mm (32 5/8 in). For doors wider than 1500 mm (59 in), incorporating a floor guide channel is recommended for added stability. Ideal for residential, commercial, and institutional projects, the HAWA JUNIOR 40 B System is the perfect solution for kitchens, offices, and more.
HAWA JUNIOR 40 B System

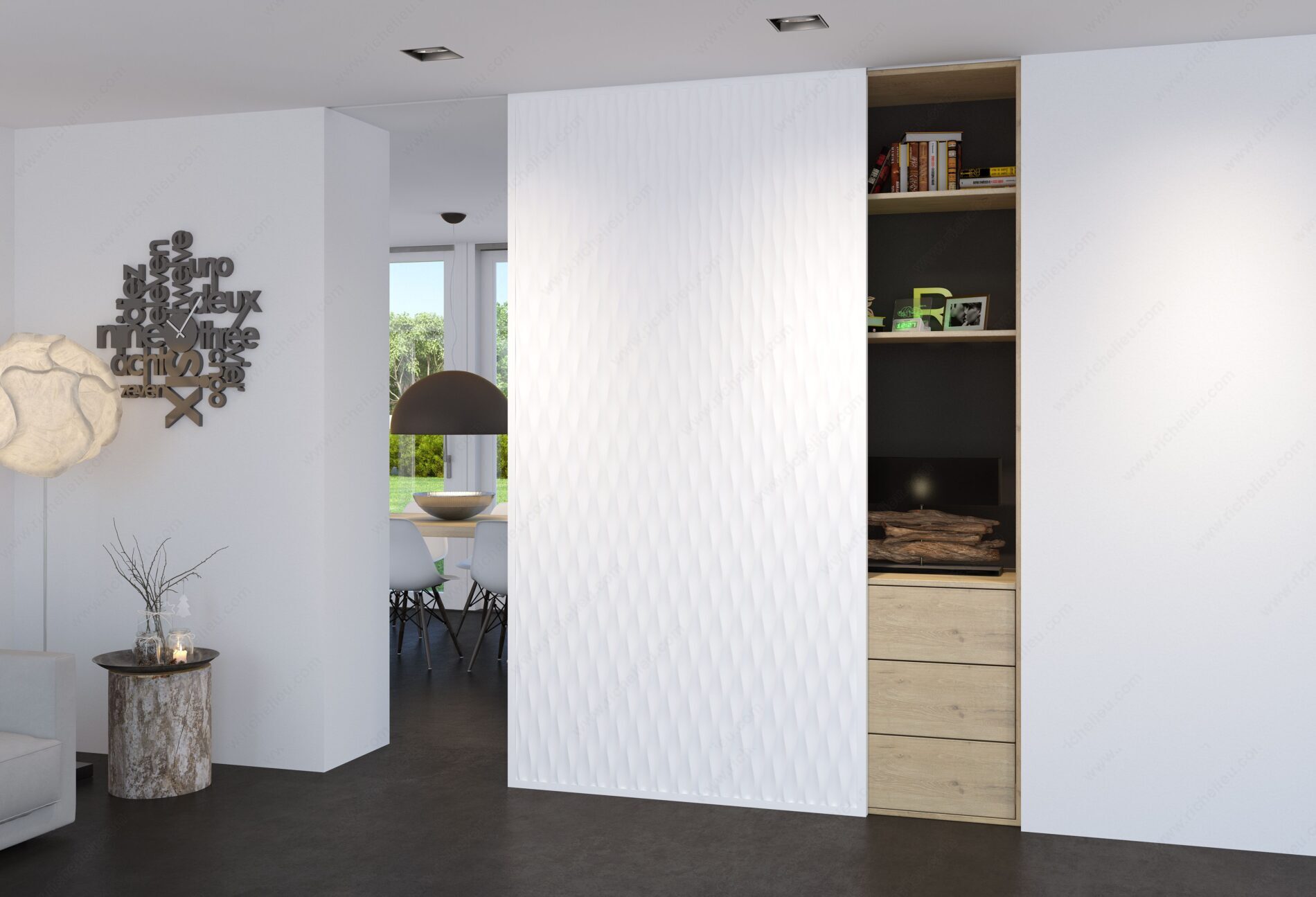

Designed for sliding wood doors weighing up to 40 kg (88 lb) each, the HAWA JUNIOR 40 B System is a top-hung sliding system equipped with a recessed suspension plate in the top of the door for low clearance. Opt for the standard hardware set with stoppers or upgrade to the robust soft-close mechanism.
Features:
- For door thickness of 35 to 80 mm (1-3/8" to 3-1/8")
- Standard track for surface and recessed mounting
- Clear anodized aluminum track can be surface mounted or recessed into the ceiling.
- Track stopper with adjustable retention spring resists door bounce-back.
- Robust soft close mechanism for commercial applications.
Minimum door width: 830 mm (32 5/8 in) for soft close in both directions.

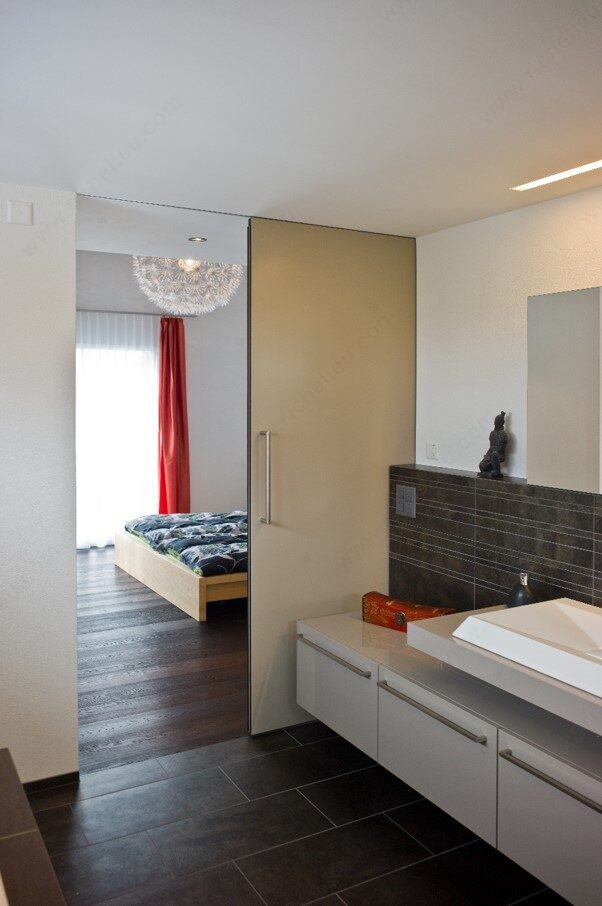

This is an ideal solution for residential, commercial, and institutional projects. It is suitable for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms, and washrooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
For door width greater than 1500 mm (59 in), add a floor guide channel for greater stability.
Attributes
Detailed Door Movement: Single sliding
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 3 5/32 in*
Groove Depth: 25/32 in*
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 15/32 in*
Load Capacity: 33.1 to 88.2 lb*
Overall Length: 78 3/4 in*
Product #: WEBKIT1257135
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Stopper: Two
Track Mounting: Ceiling Mount
