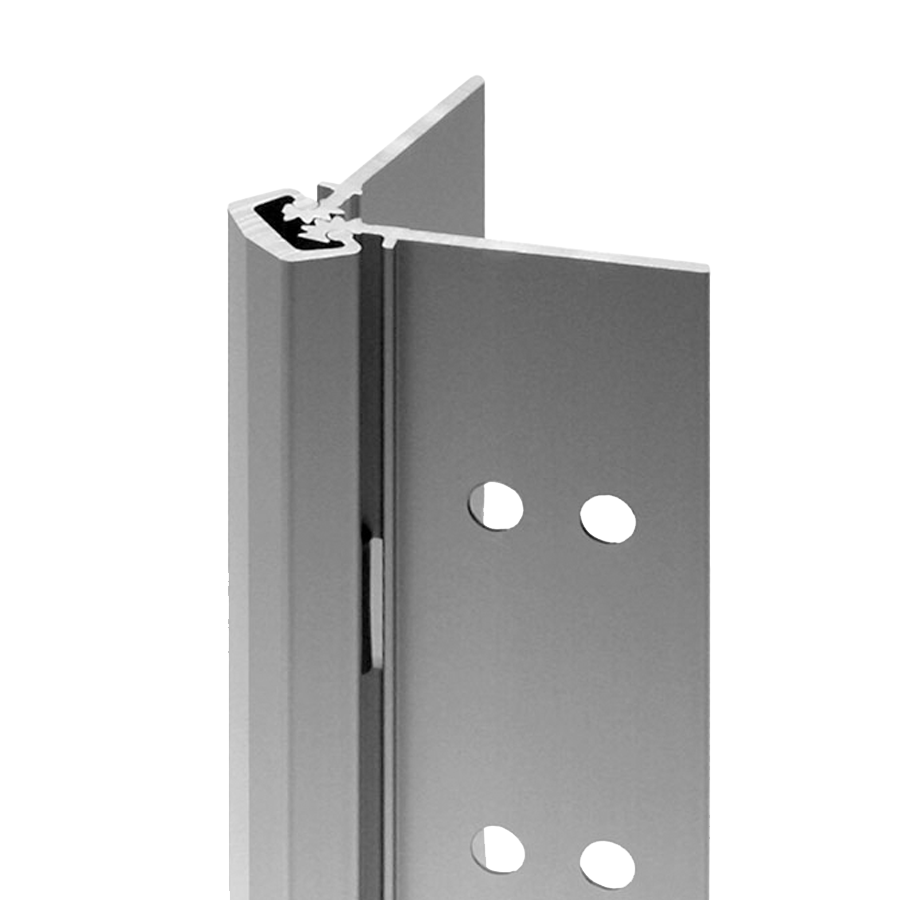

Select Products SL11-95-CL-SD Full Mortise Standard Duty Geared Continuous Hinge, 95in, Clear

SELECT Products Limited SL11-95-CL-SD Full Mortise Standard Duty Geared Continuous Hinge offers an exceptional solution for high-traffic doors, ensuring durability and longevity. Measuring 95 inches in length, this aluminum geared continuous hinge is engineered to endure an impressive 25 million cycles, translating to over 60 years of reliable service. Such durability not only reduces the need for frequent replacements but also minimizes waste and resource consumption, contributing to a more sustainable building environment. Designed for 1-3/4" thick doors with a maximum width of 48", the SL11 hinge can support door loads up to 300 lbs without requiring additional frame reinforcement. Available in clear anodized finish, it is also stocked in dark bronze and black, with custom finishes offered upon request. The hinge features a standard screw count of 21 for both door and frame, ensuring a secure installation. Compatible with conventional overhead surface closers and concealed sliding arm overhead closers, the SL11-95-CL-SD is non-handed, making it versatile for various applications. With a commitment to quality, SELECT Products Limited backs this hinge with a continuous warranty, providing peace of mind and a hassle-free experience for building professionals and knowledgeable homeowners alike.

Full Mortise Standard Duty Geared Continuous Hinge, 95in, Clear

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
