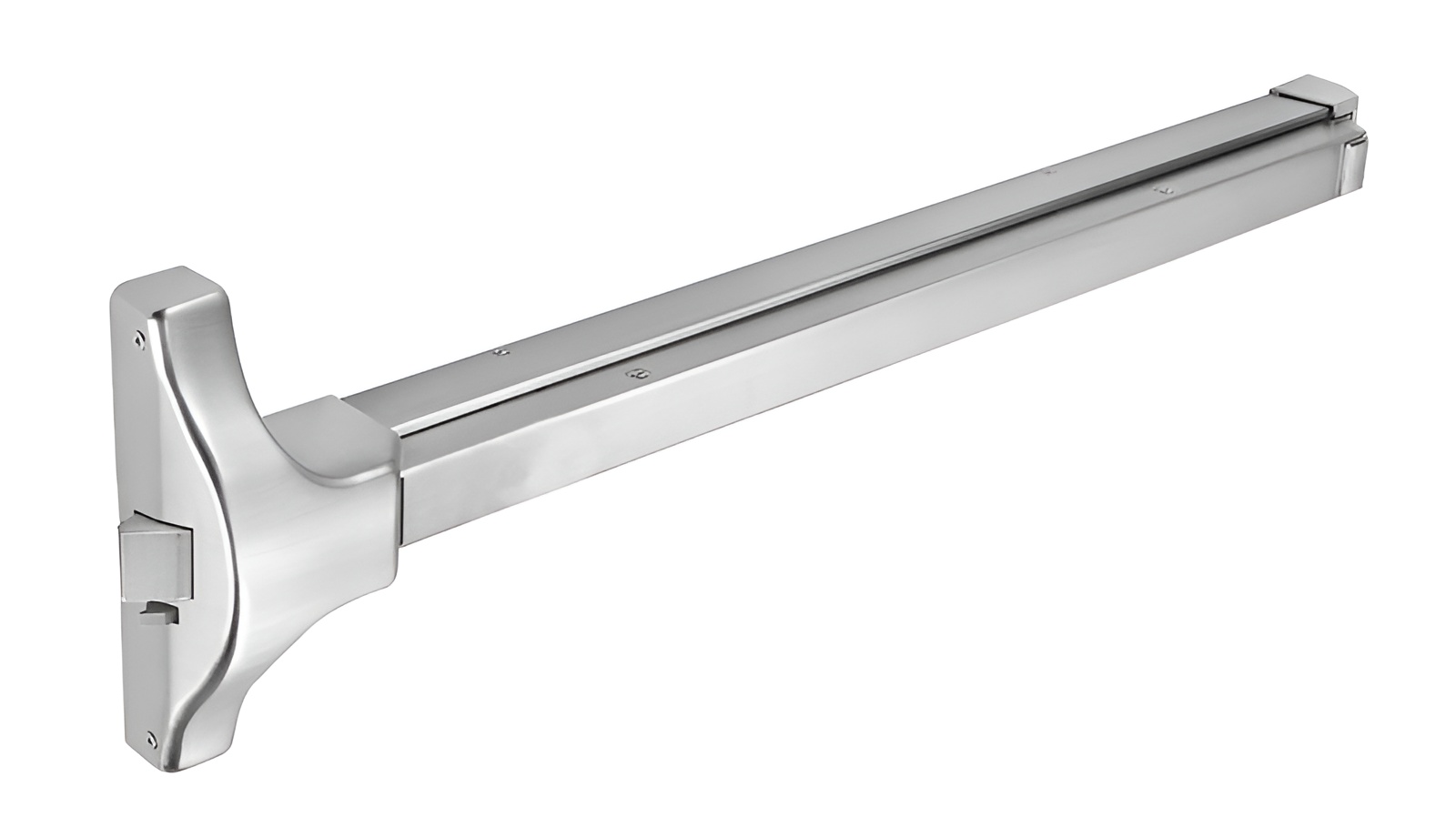

Yale 2100F-36 630 2100 Series Rim Exit Device

Yale 2100F-36 630 2100 Series Rim Exit Device delivers exceptional performance for high-traffic areas, ensuring safety and convenience in commercial settings. This ANSI/BHMA Grade 1 exit device is designed for wide stile doors and features a sleek satin stainless steel finish, making it a perfect blend of durability and aesthetics. At 36 inches in length, it is fire-rated for up to 3 hours, providing peace of mind in emergency situations. Equipped with the innovative Yale SquareBolt® rim latch, the 2100 Series enhances security, making it suitable for the toughest applications. Its unique Free Wheeling lever mechanism allows the lever to rotate freely, even when locked, effectively deterring vandalism. This exit device is windstorm certified, ensuring compliance with local codes when specified with the "WS" suffix. Installation is straightforward, and with no trim included, it’s ready for a variety of configurations, including rim and concealed vertical rod setups. Additionally, the option for a MicroShield® antimicrobial coating helps inhibit the growth of harmful microorganisms, promoting a cleaner environment. Backed by a one-year warranty on the device and a five-year warranty on trims, the Yale 2100F-36 is a reliable choice for any commercial application.

2100 Series Rim Exit Device

Grade 1 Rim Exit Bar for Wide Stile Doors, Narrow Stile Pushpad, 36" Fire-Rated Device, Exit Only, Less Dogging, Satin Stainless Steel, Non-Handed

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. This economy exit device is now available with the Yale SquareBolt rim latch for the toughest applications. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important.

Economy exit device is now available with the Yale SquareBolt® rim latch for the toughest applications.

Windstorm certified and is also available in satin stainless steel when aesthetics matters.

• Available in rim, SquareBolt®, surface vertical rod and concealed vertical rod configurations
• Certified ANSI/BHMA A156.3, Grade 1
• UL/cUL Listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted
• Featuring unique Free Wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism
• Windstorm certified (refer to local codes). Specify suffix "WS" to 2100(F) devices.
• ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
• Warranty: 2100 exit devices are protected by a one-year warranty. Trims have a five-year warranty.
• Available with MicroShield® antimicrobial coating, a revolutionary hardware finish coating which inhibits the growth of bacteria, algae, yeast fungus, mold and mildew

Resources

• 2023 Yale Commercial Price Book (effective 4.17.2023)
• 2100 Series Flatbar Exit Device Catalog
• 2100, 2150 SquareBolt, and 1800 Rim Exit Device Installation Instructions
• 2110, 2170, 1810 Surface Vertical Rod Exit Device Installation Instructions
• Exit Devices with Electric Dogging (G) and/or Monitors
• Exit Devices with Electric Latch Retraction (P) and/or Monitors
• Yale 2100 Series Exit Devices Cut Sheet
• Yale Commercial Finishes Chart
