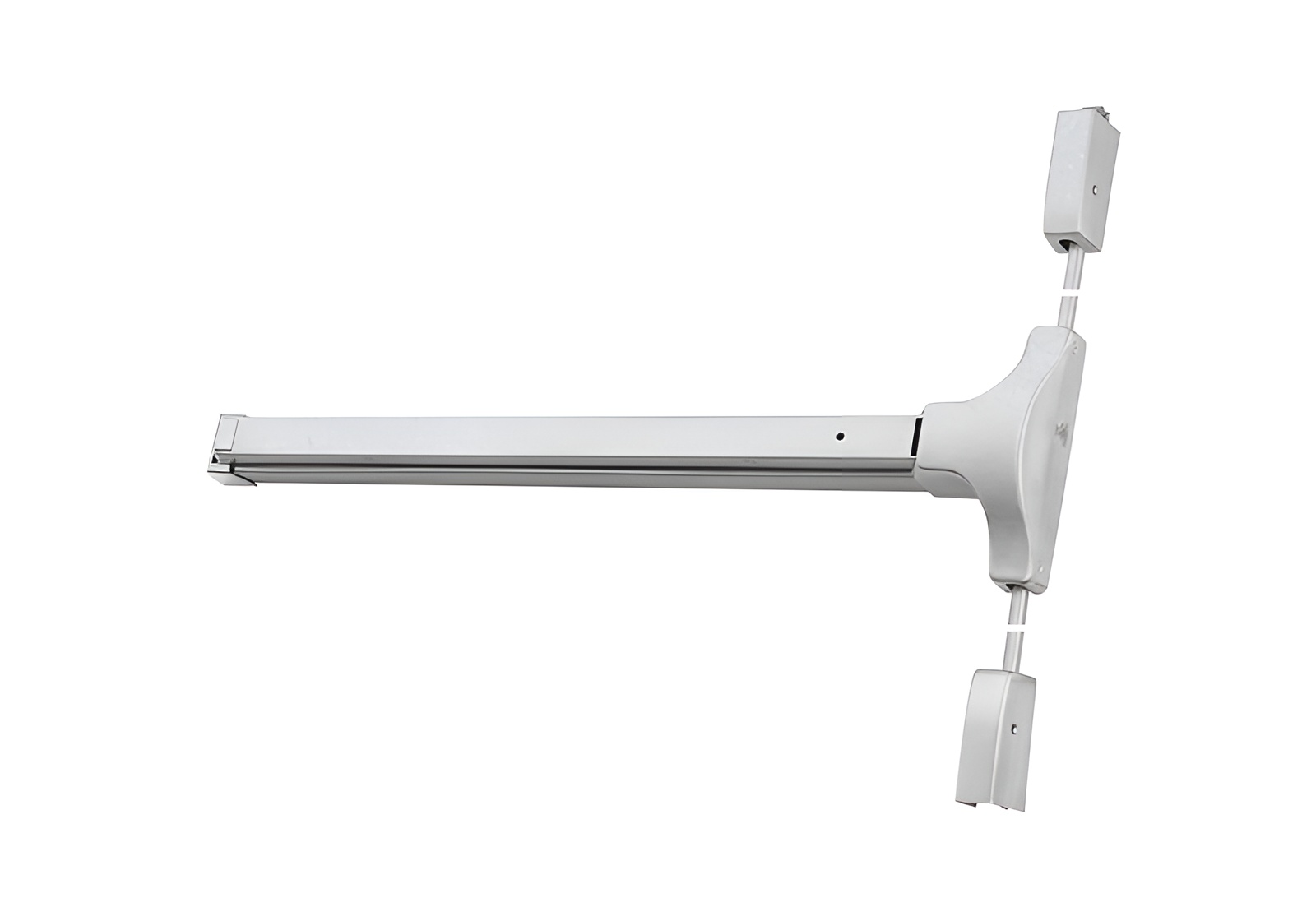

Yale 2110-36 630 LHR 2000 Series Surface Rod Exit Device

Yale 2110-36 630 LHR 2000 Series Surface Rod Exit offers a robust solution for secure egress on wide stile doors. This Grade 1 surface vertical rod exit device is designed for durability, making it ideal for high-traffic environments. With a device length of 36 inches and suitable for 84-inch door heights, it features a left-hand reverse installation that is field reversible for added flexibility. Engineered to exceed ANSI/BHMA Grade 1 standards, the Yale 2100 Series ensures reliable performance with its unique Free Wheeling lever mechanism, preventing unauthorized access and vandalism. The exit device is equipped with hex key dogging for convenience, while its satin stainless steel finish not only enhances security but also provides a polished aesthetic for commercial spaces. Certified for windstorm resistance and UL/cUL listed for use on fire doors up to three hours, the 2110-36 is a practical choice for diverse applications. It accommodates door widths of 30 to 36 inches and is compatible with both wood and metal doors. Additionally, this device can be specified with MicroShield® antimicrobial coating, ensuring a cleaner environment by inhibiting the growth of harmful microorganisms. With a one-year warranty on the exit device and a five-year warranty on trims, Yale stands behind its quality and commitment to security.

2000 Series Surface Rod Exit

Grade 1 Surface Vertical Rod Exit Bar for Wide Stile Doors, Narrow Stile Pushpad, 36" Device, 84" Door Height, Exit Only, Hex Key Dogging, Satin Stainless Steel, Left Hand Reverse, Field Reversible

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. This economy exit device is now available with the Yale SquareBolt rim latch for the toughest applications. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important.

Economy exit device is now available with the Yale SquareBolt® rim latch for the toughest applications.

Windstorm certified and is also available in satin stainless steel when aesthetics matters.

• Available in rim, SquareBolt®, surface vertical rod and concealed vertical rod configurations
• Certified ANSI/BHMA A156.3, Grade 1
• UL/cUL Listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted
• Featuring unique Free Wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism
• Windstorm certified (refer to local codes). Specify suffix "WS" to 2100(F) devices.
• ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
• Warranty: 2100 exit devices are protected by a one-year warranty. Trims have a five-year warranty.
• Available with MicroShield® antimicrobial coating, a revolutionary hardware finish coating which inhibits the growth of bacteria, algae, yeast fungus, mold and mildew

Resources

• 2023 Yale Commercial Price Book (effective 4.17.2023)
• 2100 Series Flatbar Exit Device Catalog
• 2100, 2150 SquareBolt, and 1800 Rim Exit Device Installation Instructions
• 2110, 2170, 1810 Surface Vertical Rod Exit Device Installation Instructions
• Exit Devices with Electric Dogging (G) and/or Monitors
• Exit Devices with Electric Latch Retraction (P) and/or Monitors
• Yale 2100 Series Exit Devices Cut Sheet
• Yale Commercial Finishes Chart
