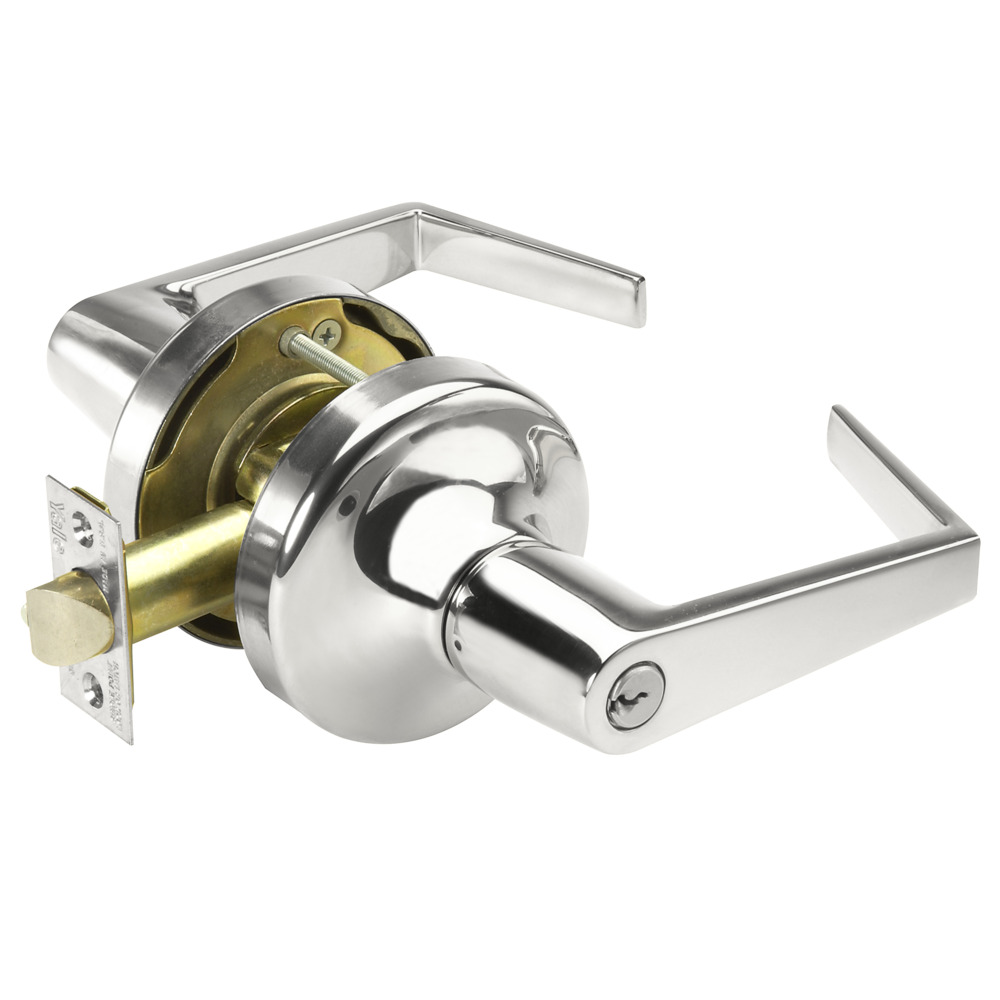

Yale AU5304LN 625 Grade 2 Entry Lock

Yale AU5304LN 625 Grade 2 Entry Lock offers a robust solution for both commercial and residential applications. This Grade 2 cylindrical lockset features the Augusta lever design, crafted with a bright chrome finish that not only enhances aesthetics but also ensures durability. Its vandal-resistant Free Wheeling lever mechanism adds an extra layer of security, making it ideal for high-traffic areas. Designed for ease of installation, the lock accommodates adjustable door thicknesses between 1-3/4" and 2", with special orders available for 1-3/8" and 2-1/4". The through-bolting system provides a secure fit, minimizing unwanted movement and increasing stability. With a selection of three lever designs and thirteen finishes, customization is effortless, allowing you to match any decor. The Yale AU5304LN supports 19 mechanical functions and 4 electrified options, catering to various access needs. It is equipped with a wide range of Yale® 6-pin cylinder options, offering competitive keying choices compatible with major brands such as Schlage® and Medeco®. Backed by a lifetime warranty against lever sag and breakage, this lock combines reliability with style, making it a smart choice for your locking needs.

Grade 2 Entry Lock

Grade 2 Entry Cylindrical Lock, Augusta Lever, Conventional Cylinder, Bright Chrome Finish, Non-handed

This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.

The 5300LN Series is a revolutionary Grade 2 cylindrical lockset.

The 5300LN Series features a vandal-resistant Free Wheeling lever mechanism. It also has through-bolting, which gives a secure fit that resists shaking and rattling.

• Free Wheeling lever mechanism for increased vandal resistance

• 13 finish options

• 3 lever designs

• 19 mechanical functions, 4 electrified

• Adjustable door thickness: (Patent #6,131,970) - Preset at factory for 1-3/4" (44mm) to 2" (51mm) - Special order available for 1-3/8" (35mm), 2-1/4" (57mm)

• 3-1/2" rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”

• Through-bolts solidly through the door, providing greater stability

• Wide range of Yale® 6-pin cylinder options: - Standard, Interchangeable core, Security and Yale® KeyMark® protected keyway cylinders (see page 10)

• Competitive keying options: - Standard cylinders with Schlage® C and Sargent® LA keyways - Levers which accept interchangeable core cylinders by Best®, Schlage®, Medeco® and ASSA® - Levers which accept standard cylinders by Schlage®

• Lifetime warranty against lever sag and lever spring breakage

Resources

• 5300LN Grade 2 Cylindrical Lever Locks Cut Sheet
• 5300LN Grade 2 or 4700LN Grade 1 Cylindrical Lever Locks Installation Instructions
• 5300LN Series Grade 2 Cylindrical Lever Locks Catalog
• Electrified Wiring Instructions 5390LN/5391LN and 4790LN/4791LN
