Yale AU5417LN ICLC 605 Apartment Exit Lockset Instructions

Yale AU5417LN ICLC 605 Apartment/Exit Lockset offers a robust solution for high-traffic environments, combining durability with performance. This Grade 1 cylindrical lockset features the elegant Augusta lever design and is crafted with a bright brass finish that enhances both aesthetics and resilience. The lockset is designed for commercial, industrial, and institutional use, ensuring it meets the stringent demands of these settings. Equipped with a free wheeling lever mechanism, the AU5417LN enhances vandal resistance while minimizing maintenance, a crucial benefit for busy facilities. The stainless steel latchbolt ensures added strength and a standard 1/2" throw, with options for a 3/4" throw for fire-rated doors. Its wear-resistant chassis plates and lifetime warranted lever return springs promote smooth operation and longevity, while the non-handed design allows for versatile installation. With 24 function options, including electrified variants, and compatibility with various keying systems, this lockset adapts to diverse security needs. It accommodates door thicknesses from 1-3/4" to 2" and features 3-1/2" roses that cover ANSI/BHMA hollow metal door cutouts. Yale’s commitment to quality is evident in the AU5417LN, making it a preferred choice for architects and building owners alike.

Apartment/Exit Lockset

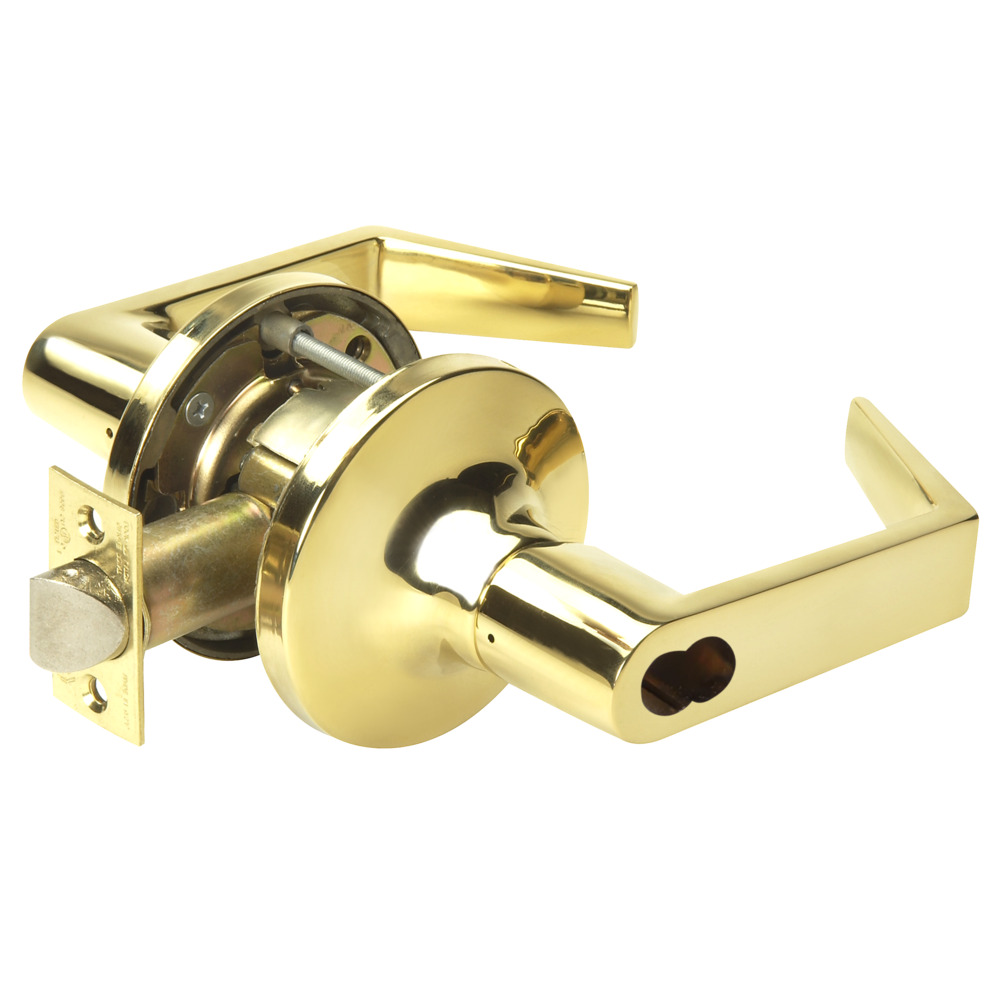

Grade 1 Apartment/Exit Cylindrical Lock, Augusta Lever, LFIC 6-Pin Less Core, Bright Brass Finish, Non-handed

Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.

Designed for industrial, commercial, and institutional settings.

Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.

• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.

• 13 finish options.

• 3 lever designs.

• 24 functions including electrified.

• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2" throw is standard.

• A 3/4" latch throw for fire-rated or pairs of doors is available.

• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.

• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.

• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.

• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2". Rose spacers available for 1-3/8" thick doors.

• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.

• Expanded cylinder and keying options: - Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. - Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. - Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.

• 3-1/2" roses cover ANSI/BHMA hollow metal door cutout.
