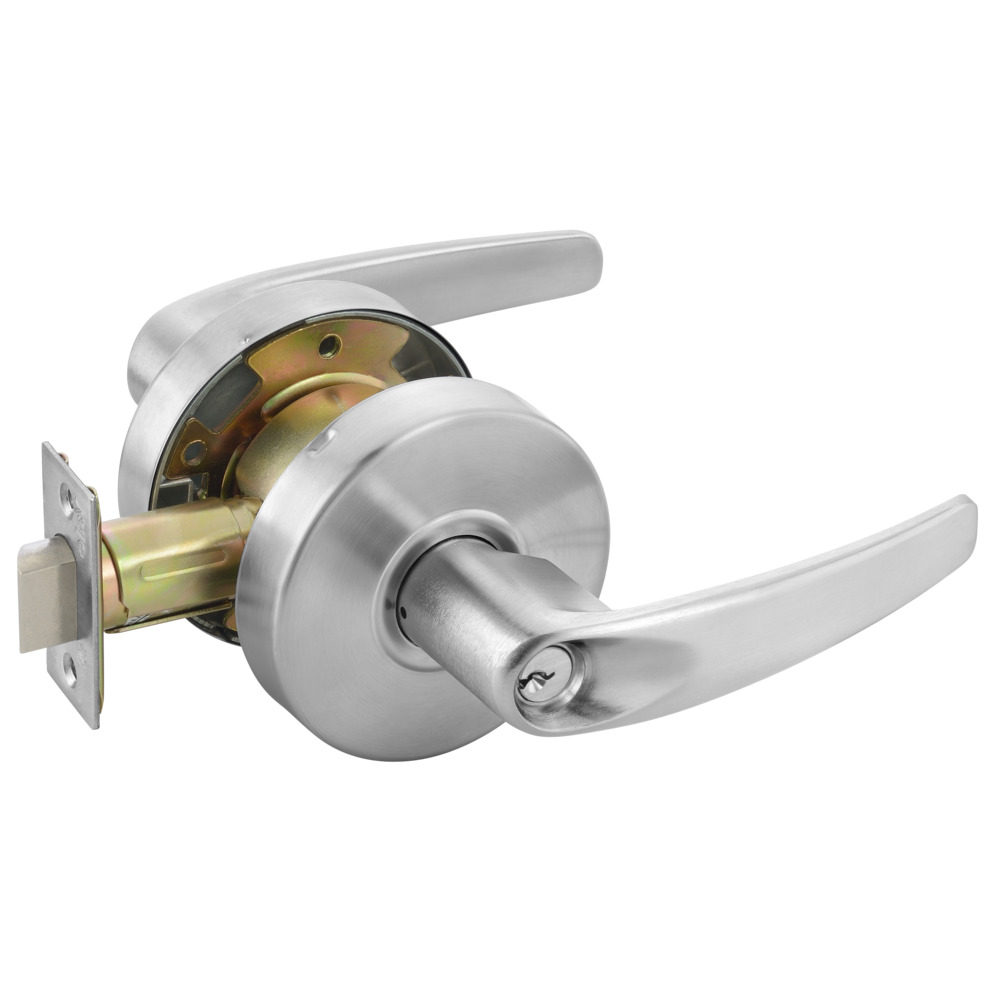

Yale MO4605LN 626 Grade 2 Storeroom Lock

Yale MO4605LN 626 Grade 2 Storeroom Lock offers robust performance tailored for a wide array of commercial applications. This Grade 2 cylindrical lock features the elegant Monroe lever design and a durable satin chrome finish, ensuring both style and reliability. Designed with a conventional cylinder, it provides excellent security while maintaining ease of use and installation. Certified to ANSI/BHMA Grade 2 standards and UL Fire Listed for all functions, this lock guarantees dependable operation and peace of mind, particularly in storeroom and closet settings. Its non-handed configuration allows for flexible installation on doors with a thickness ranging from 1-3/8" to 1-3/4". The 4600LN series comes with a standard 2-3/4" backset and a 1/2" throw latchbolt, ensuring secure locking. Installation is straightforward, adhering to ANSI/BHMA A156.115 standards, making it compatible with both steel and wood doors. Additionally, Yale backs this product with a three-year mechanical warranty, highlighting its durability. The lockset includes two cut keys and optional through-bolts for added installation support. Choose the Yale MO4605LN for a reliable locking solution that combines quality, functionality, and affordability for your commercial needs.

Grade 2 Storeroom Lock

Grade 2 Storeroom/Closet Cylindrical Lock, Monroe Lever, Conventional Cylinder, Satin Chrome Finish, Non-handed

Yale 4600LN cylindrical locks are the idea choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL Fire Listed for all functions insuring reliability and peace of mind.

Ideal for commercial applications.

Ideal choice for a wide variety of grade 2 commercial applications where consistent quality, ease of use and installation are required at an economical price.

• ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
• Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
• Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
• Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
• Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
• Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
• Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
• Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
• Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.

Resources

• 4600(LN) Series Grade 2 Cylindrical Locks Catalog
• 4600LN Grade 2 Cylindrical Lever Locks Cut Sheet
• 4600LN Lever Lock Installation Instructions
