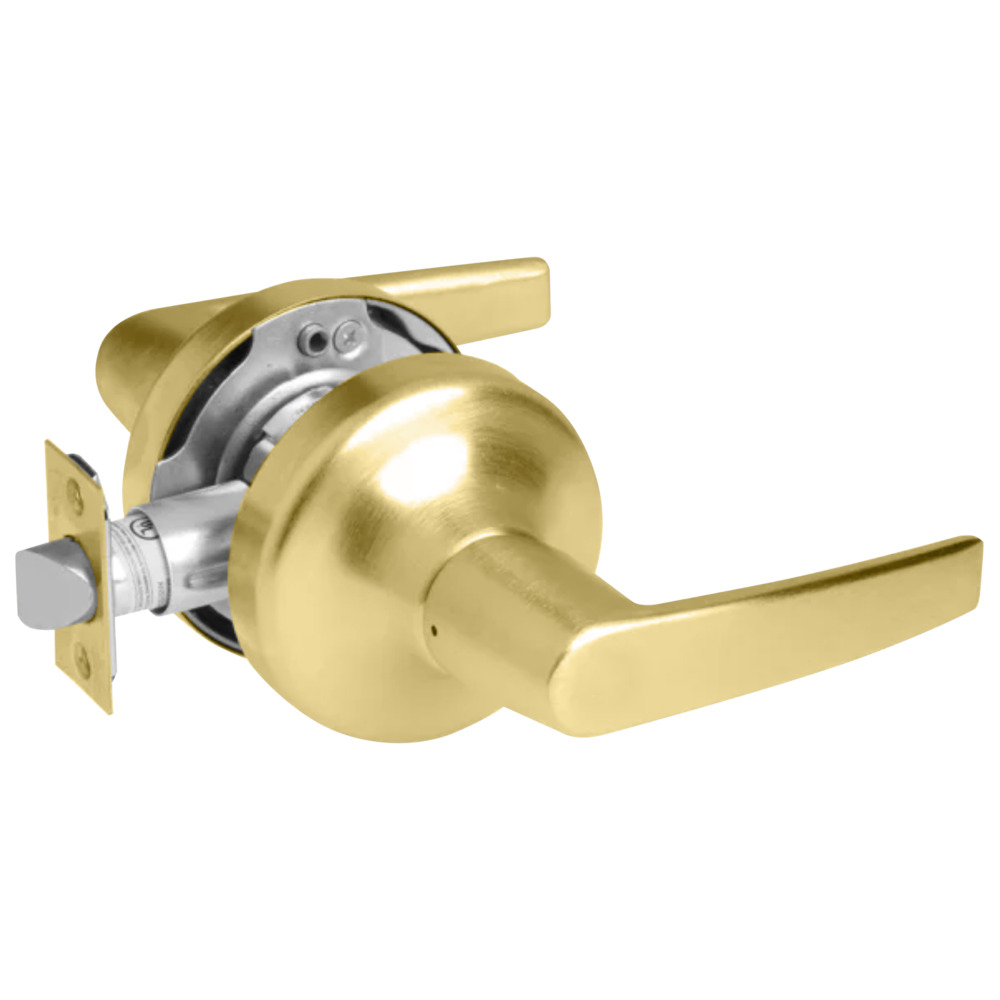

Yale MO5301LN 606 Grade 2 Passage Latch

Yale MO5301LN 606 Grade 2 Passage Latch offers a blend of security and style for any commercial setting. This Grade 2 cylindrical lockset features the sleek Monroe lever design and comes with a non-keyed satin brass finish, providing both aesthetic appeal and durability. The vandal-resistant Free Wheeling lever mechanism enhances security, ensuring it withstands daily wear and tear. With adjustable door thickness capability, the Yale MO5301LN accommodates doors ranging from 1-3/4" to 2" thick, making installation straightforward and versatile. Its through-bolting design ensures a secure fit, reducing any shaking or rattling that could compromise performance. Available in 13 finishes and with three distinct lever designs, this lockset can seamlessly complement various decor styles. The MO5301LN series boasts 19 mechanical functions and offers a wide range of Yale® 6-pin cylinder options, including standard and interchangeable cores. This lockset is not only ANSI/BHMA certified but also fire-rated for up to 3 hours, ensuring safety in emergencies. Backed by a lifetime warranty against lever sag and spring breakage, the Yale MO5301LN 606 is a reliable choice for professionals seeking quality and performance in door hardware.

Grade 2 Passage Latch

Grade 2 Passage/Closet Latch Cylindrical Lock, Monroe Lever, Non-Keyed, Satin Brass Finish, Non-handed

This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.

The 5300LN Series is a revolutionary Grade 2 cylindrical lockset.

The 5300LN Series features a vandal-resistant Free Wheeling lever mechanism. It also has through-bolting, which gives a secure fit that resists shaking and rattling.

• Free Wheeling lever mechanism for increased vandal resistance

• 13 finish options

• 3 lever designs

• 19 mechanical functions, 4 electrified

• Adjustable door thickness: (Patent #6,131,970) - Preset at factory for 1-3/4" (44mm) to 2" (51mm) - Special order available for 1-3/8" (35mm), 2-1/4" (57mm)

• 3-1/2" rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”

• Through-bolts solidly through the door, providing greater stability

• Wide range of Yale® 6-pin cylinder options: - Standard, Interchangeable core, Security and Yale® KeyMark® protected keyway cylinders (see page 10)

• Competitive keying options: - Standard cylinders with Schlage® C and Sargent® LA keyways - Levers which accept interchangeable core cylinders by Best®, Schlage®, Medeco® and ASSA® - Levers which accept standard cylinders by Schlage®

• Lifetime warranty against lever sag and lever spring breakage

Resources

• 5300LN Grade 2 Cylindrical Lever Locks Cut Sheet
• 5300LN Grade 2 or 4700LN Grade 1 Cylindrical Lever Locks Installation Instructions
• 5300LN Series Grade 2 Cylindrical Lever Locks Catalog
• Electrified Wiring Instructions 5390LN/5391LN and 4790LN/4791LN
