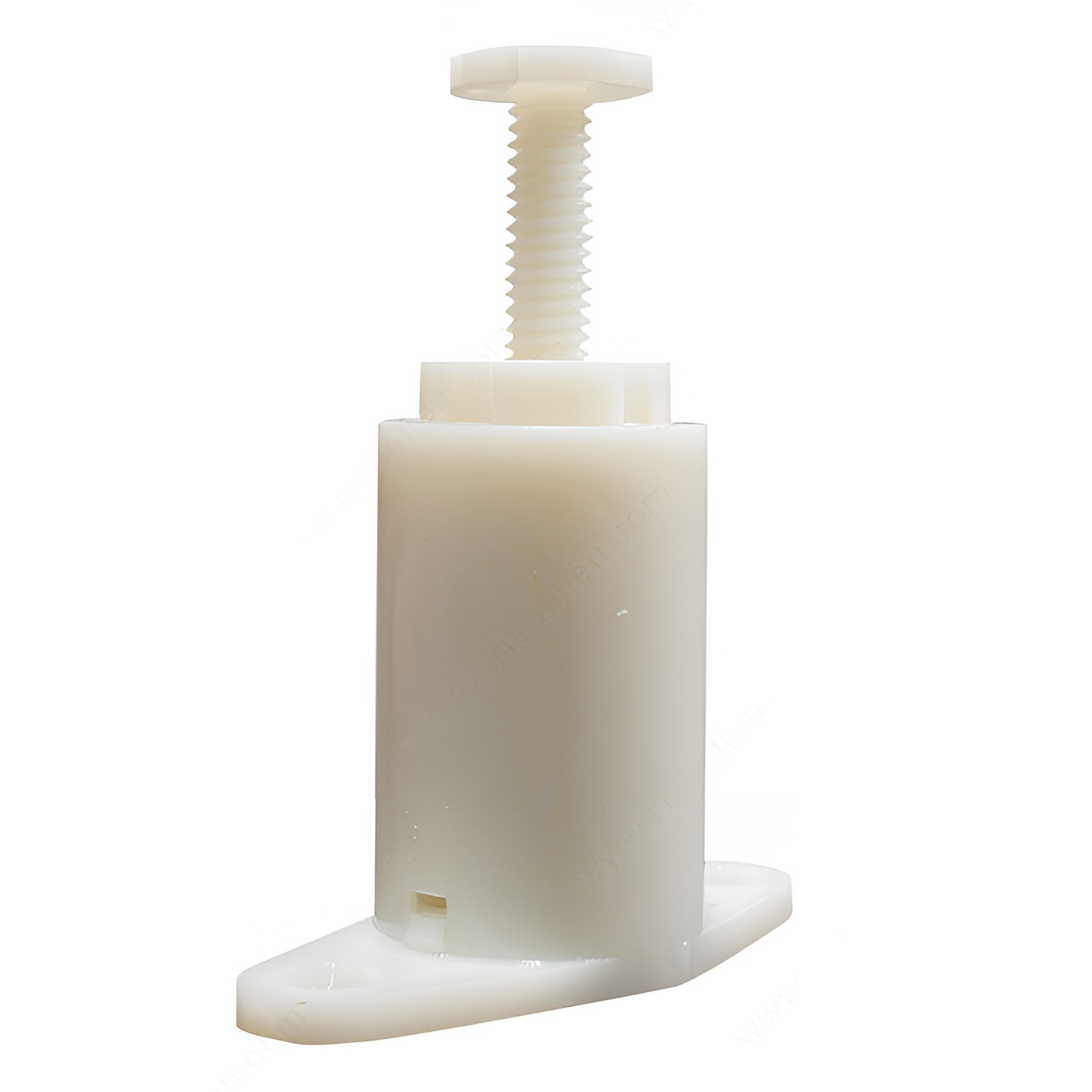

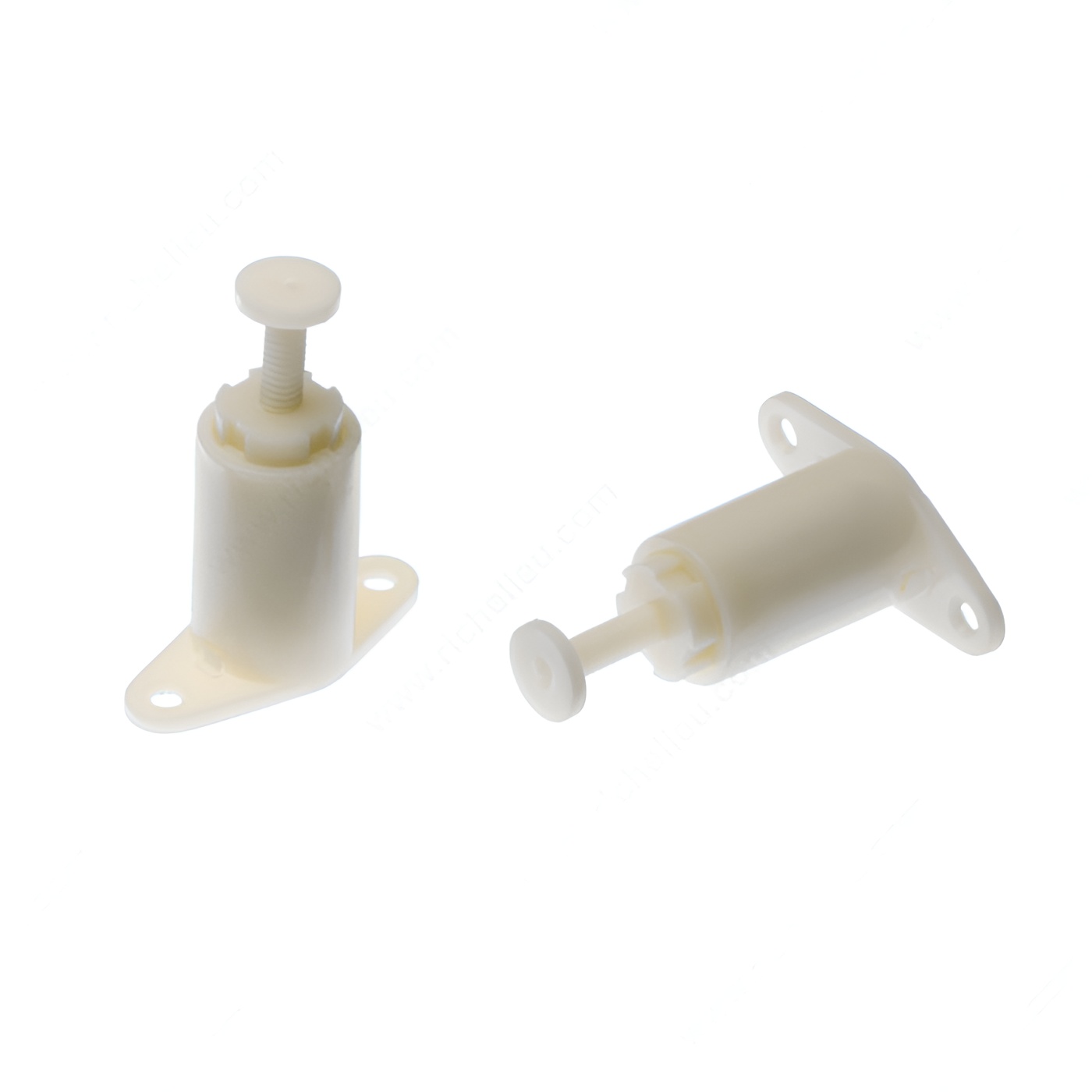

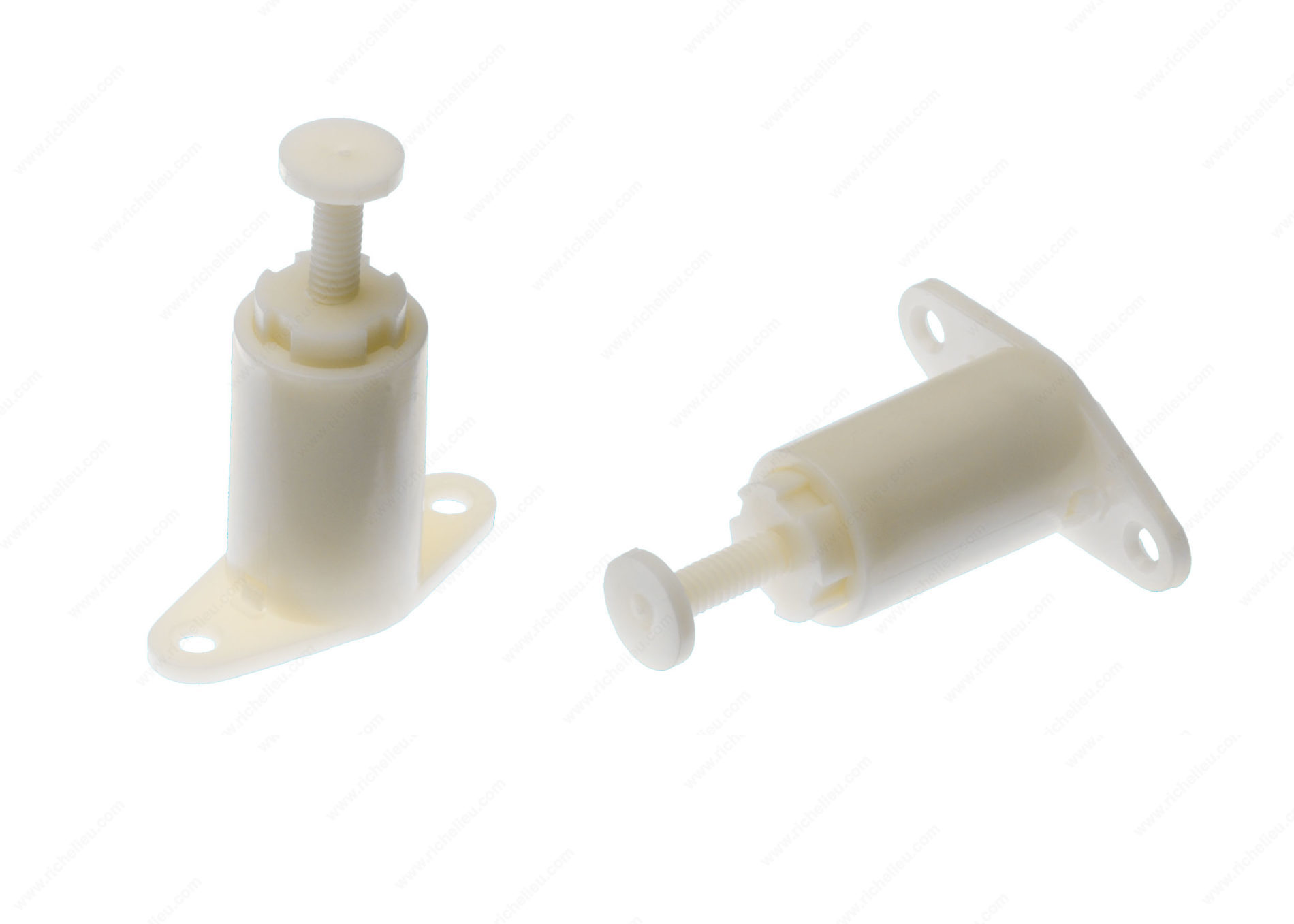

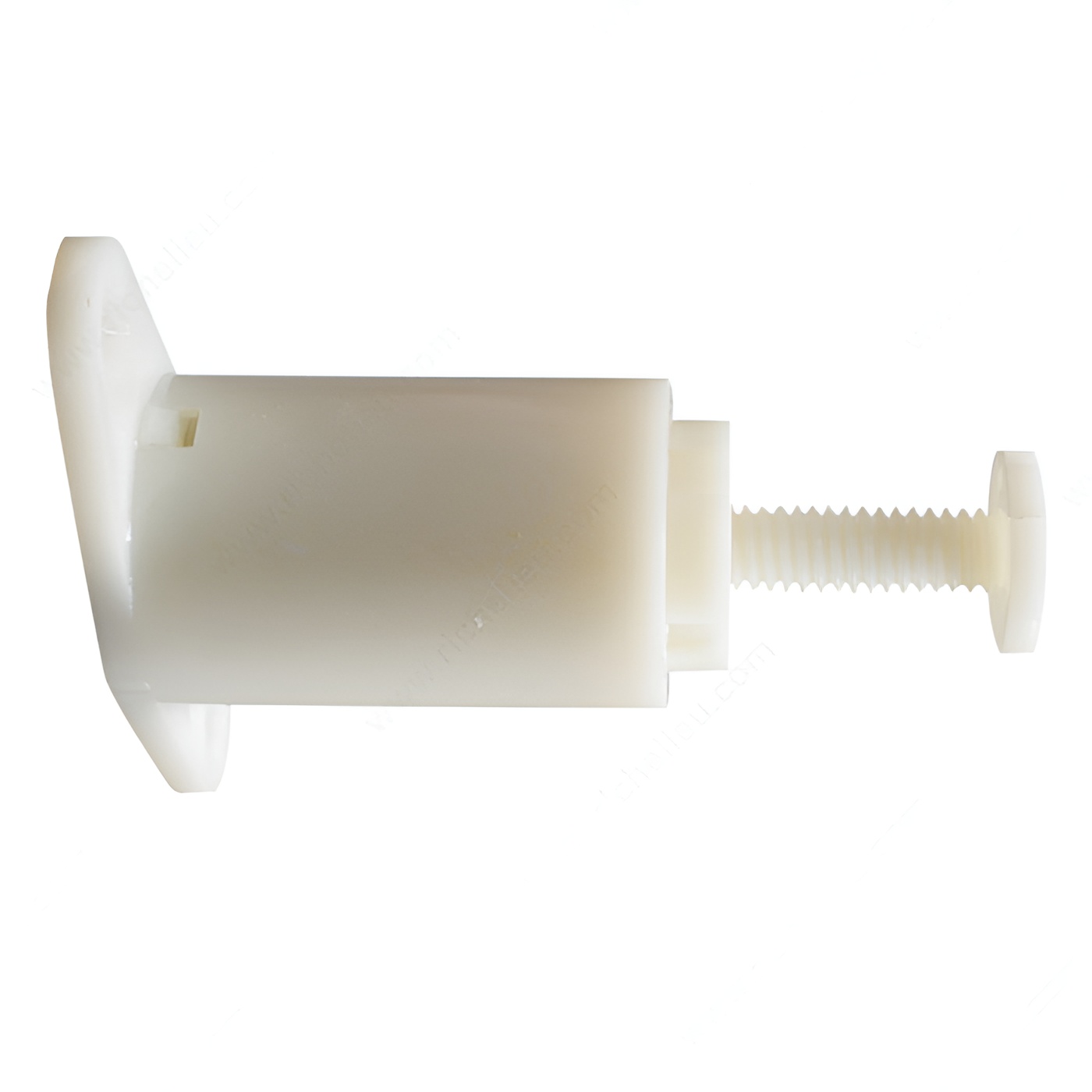

Richelieu 102111 Spring Mechanism for Drawer offers a seamless solution for enhancing drawer accessibility in your cabinetry. This innovative mechanism is ingeniously installed at the back of the drawer, leaning against the compartment's rear. With a simple push on the drawer face, the mechanism activates, allowing the drawer to open automatically without the need for pulling. This hands-free functionality not only improves convenience but also lends a sleek, modern touch to your furniture design. The adjustment feature, accommodating a range from 0" to 3/4", provides flexibility for various drawer depths. Constructed from durable ABS material, this mechanism ensures longevity and reliable performance. It measures 2 1/4 inches in width and 31/32 inches in height, fitting comfortably into a variety of drawer configurations. The depth adjustment ranges from 2 5/8 to 3 7/16 inches, making it versatile for different installations. Available in a clean white finish, the Richelieu 102111 enhances aesthetic appeal while remaining discreet. With a center-to-center distance of 1 23/32 inches and designed to ship via UPS, this product is both practical and efficient for building professionals and discerning homeowners alike. Elevate your cabinetry experience with this functional and stylish drawer mechanism.

Spring Mechanism for Drawer

Resources

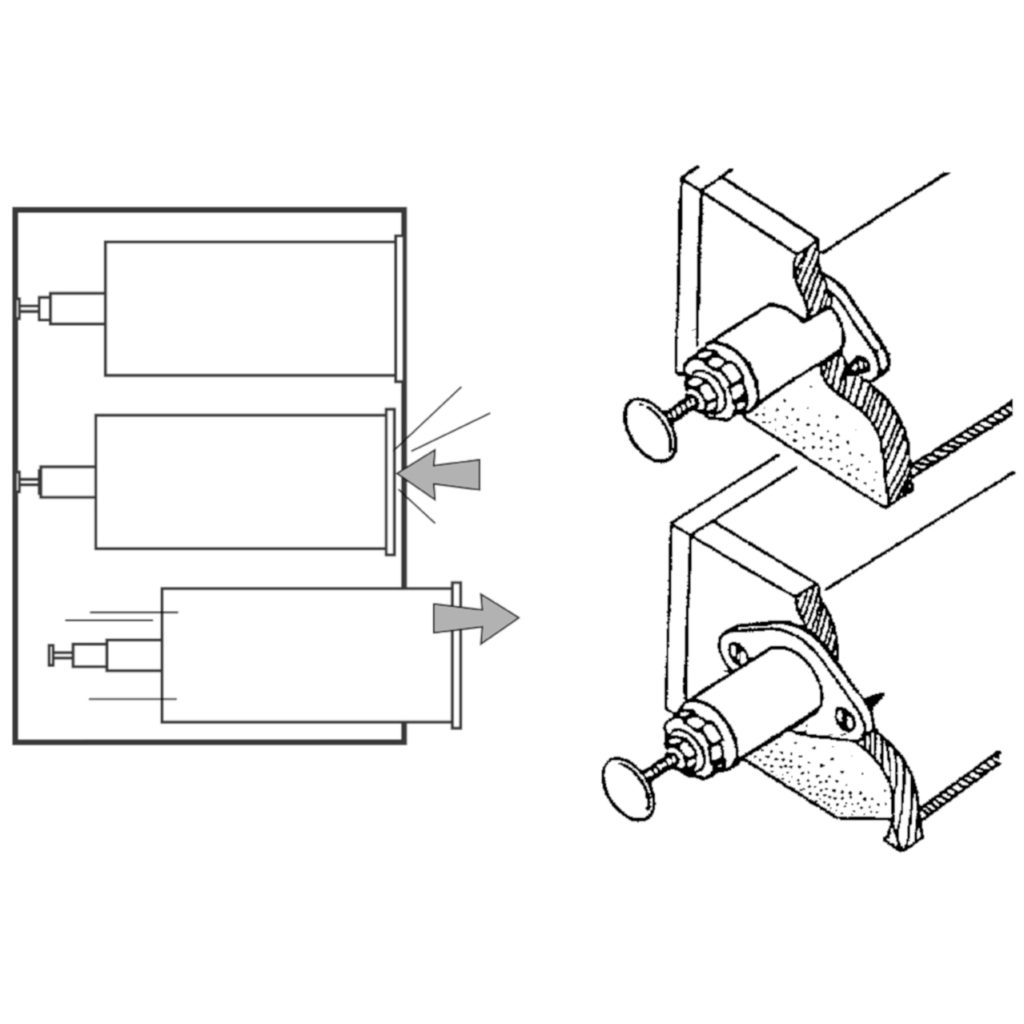

• Function
• Function
• Instructions
• Instructions

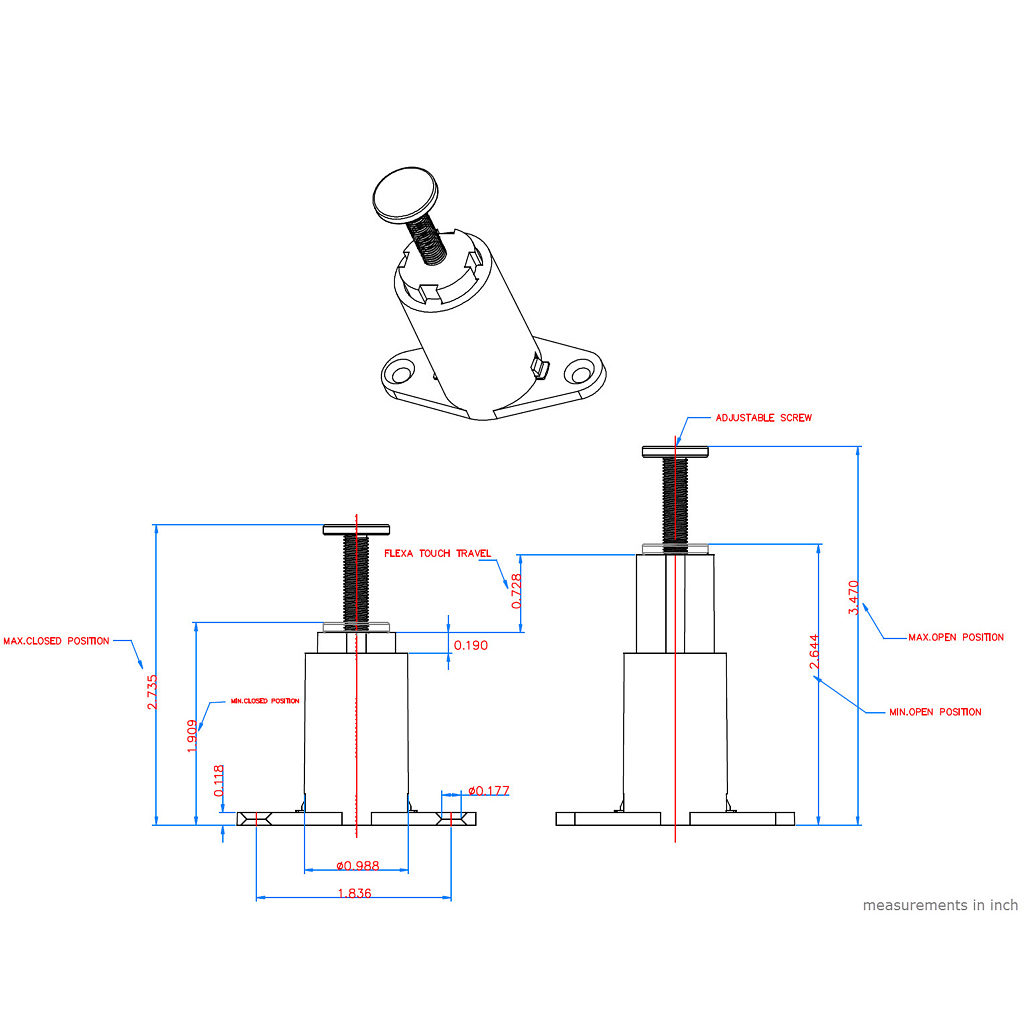

• Line art (inch)
• Line art (inch)

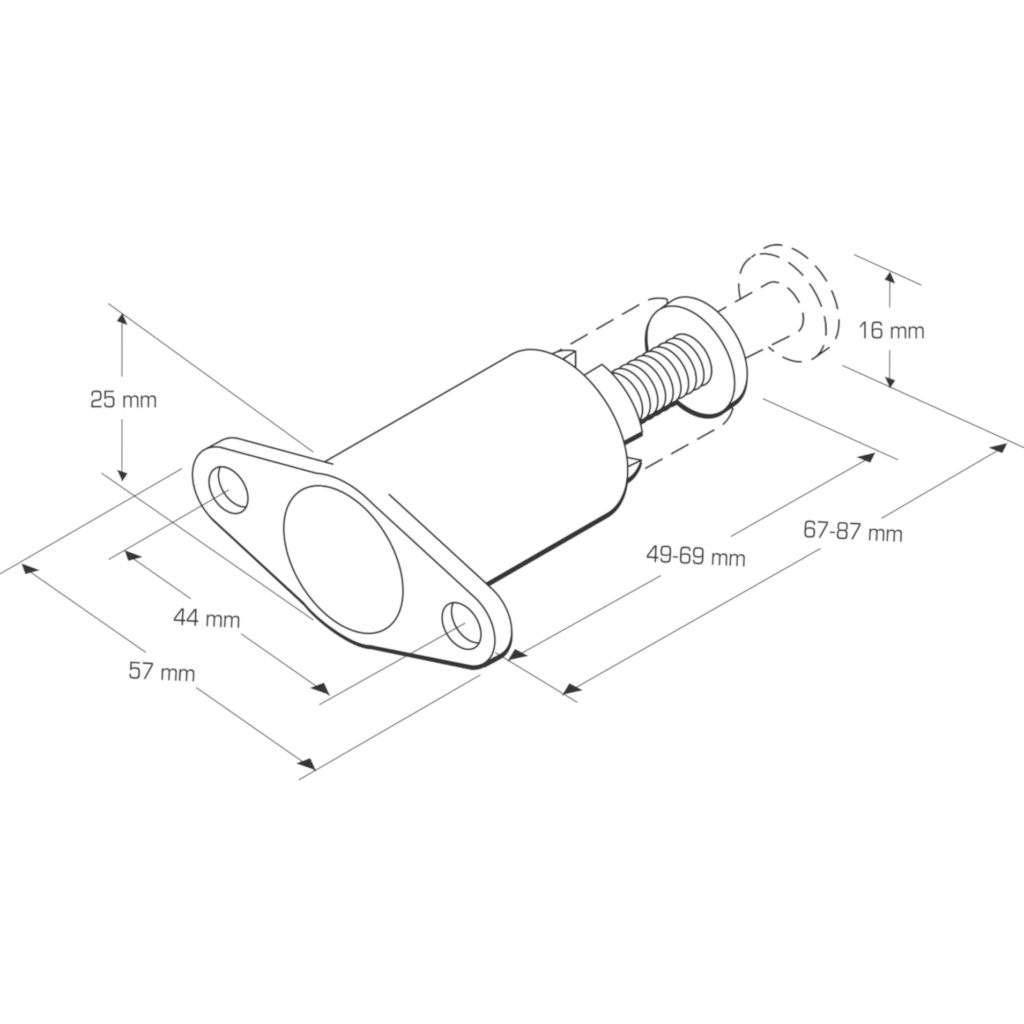

• Line art (mm)
• Line art (mm)
