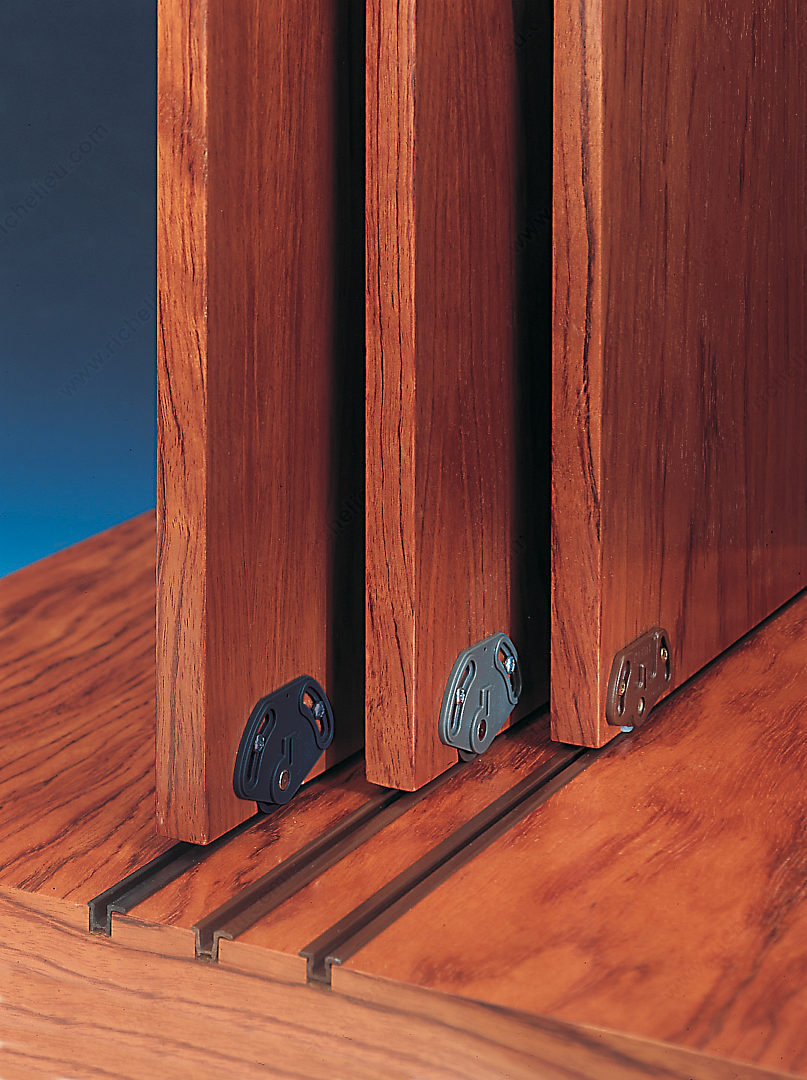

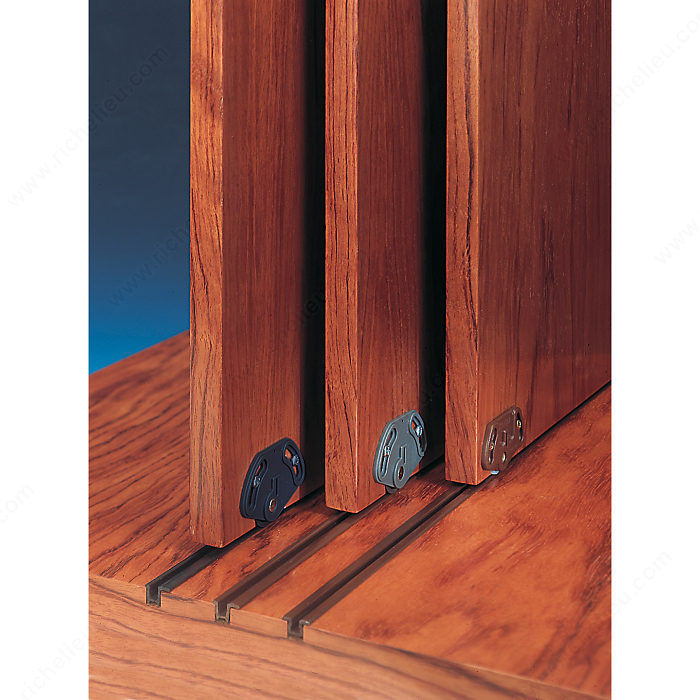

Richelieu 123104 ROLL 12 Single Carrier System for Small Cabinet offers an elegant solution for cabinet door sliding with its minimalist design. This system features rollers positioned at the bottom of the panel, allowing for a smooth and effortless glide. With only a tiny 4 mm gap between the door and frame, this system ensures a clean and refined aesthetic for any furniture or cabinet application. Designed for practicality and regular use, the ROLL 12 system utilizes a recessed profile and is installed with both upper and lower profiles. The lower profile enhances the sliding action of the door, while the adjustable height system secures the door firmly in place. This system accommodates a door thickness of a minimum of 15/32 inches, making it suitable for various wood materials. With a maximum load capacity of 26.5 lbs, the ROLL 12 is robust yet lightweight, crafted from durable plastic for long-lasting performance. It is designed for a single door configuration and does not include a soft-closing feature. Ideal for modern cabinetry, this system is displayed in showrooms such as Montreal and can ship via UPS, making it a convenient choice for building professionals and discerning homeowners alike.

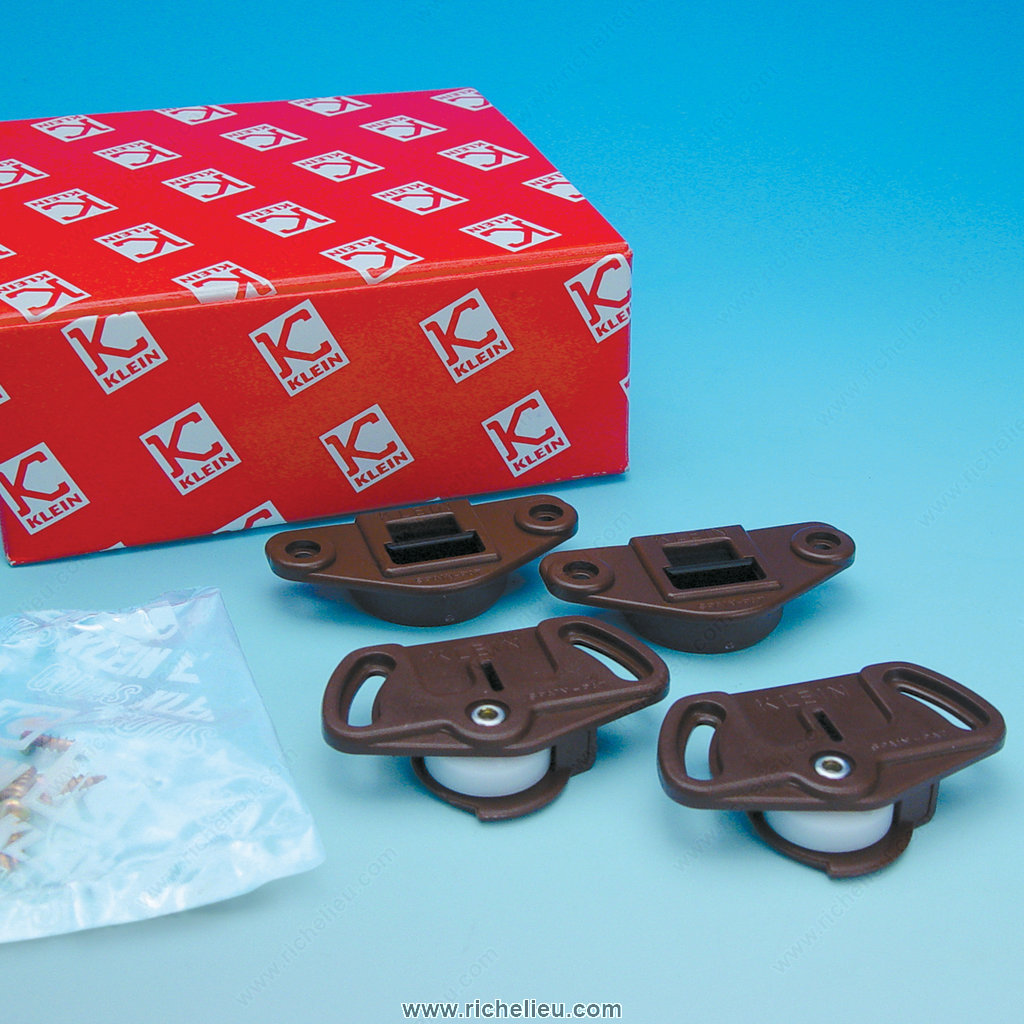

ROLL 12 Single Carrier System for Small Cabinet
Application: Furniture, Cabinet
Brand: Klein
Displayed in These Showrooms: Montreal
Door Material: Wood
Door Position: Inset/Inlay
Door Thickness: Min. 12 mm
Drilling: 30 mm
Drilling Depth: 9.5 mm
Finish: Brown
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: Max. 26.5 lb*
Manufacturing Material: Plastic
Number of Doors: 1
Overall Length: 2 m
Product #: 123104
Product number: 123104
Product №: 123104
Roller Position: Lower
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Finish: Brown
Track Length: 2 m
Track Material: Plastic
Track Mounting: Recessed - Inside the Cabinet
Unit: Bag
Unit 1: case - 20
Unit 2: case - 20
Weight Capacity per Door: Max. 12 kg
