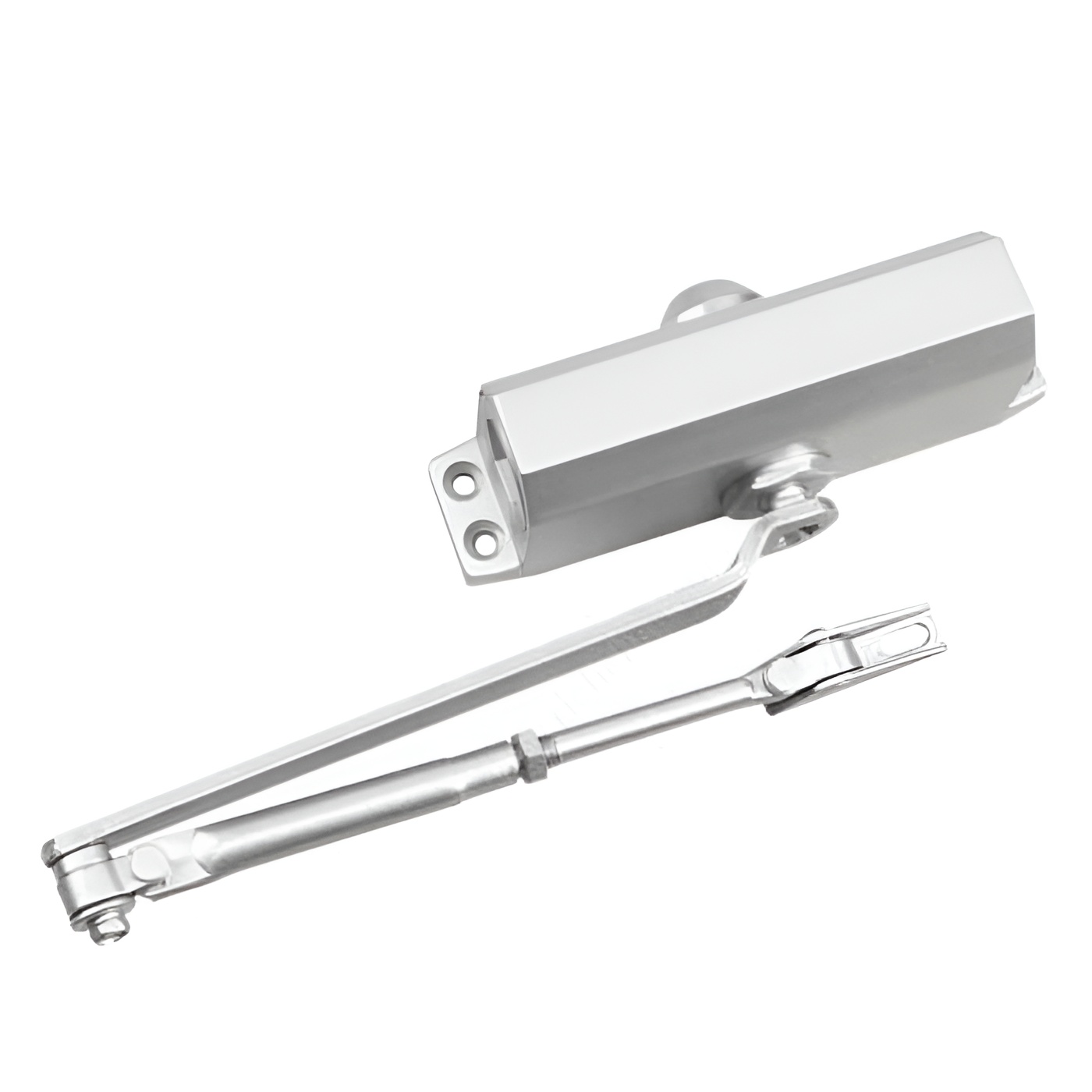

Richelieu 1600SI22BC 1600 Series Fixed Power Door Closer - Grade 2 offers a versatile solution for both commercial and residential applications. This high-quality door closer is designed with an adjustable latching speed and closing speed, allowing for optimal control over door operation. Its compatibility with both left-hand and right-hand doors ensures seamless installation regardless of your setup. With a maximum opening angle of 180°, this door closer accommodates various door designs and uses, making it ideal for hinge doors. The tri-pack installation options-regular, parallel arm, and top jamb-provide additional flexibility in mounting configurations. Constructed from precision cast aluminum alloy, the robust housing is not only durable but also lightweight. The 1600SI22BC features a reliable rack and pinion mechanism paired with non-critical thermostatic valves, ensuring smooth functionality in diverse temperature conditions. The high-quality hydraulic fluid used is both non-gumming and non-freezing, enhancing durability over time. UL and CUL listed for safety and performance, this door closer supports a weight capacity of 55.1 to 99.2 lbs. Backed by a 5-year limited warranty on finishes, it guarantees lasting performance and reliability for your door hardware needs.
1600 Series Fixed Power Door Closer - Grade 2
Body Type: N°2
Brand: Onward
Case Type: N°2
Characteristic: Non Hold-Open
Collection: Door Closers
Color/ Finish: Satin Aluminum
Fire- Rating: 2 hours
Force #: no. 2
Grade: 2
Guarantee: 5-year guarantee
Handing Position / Opening Side: Reversible for Left or Right
Length: 0 in
Level: 2
Manufacturing Material: Aluminum
Material: Aluminum
Product #: 1600SI22BC
Product number: 1600SI22BC
Product №: 1600SI22BC
Projection: 72.5 mm
Screw/ Nail: Included
Standards and Certifications: UL10C, ANSI A156.4
Unit 1: case - 10
Usage: Hinge Door
Weight Capacity: 25 to 45 kg
Width: 2.8437 in
