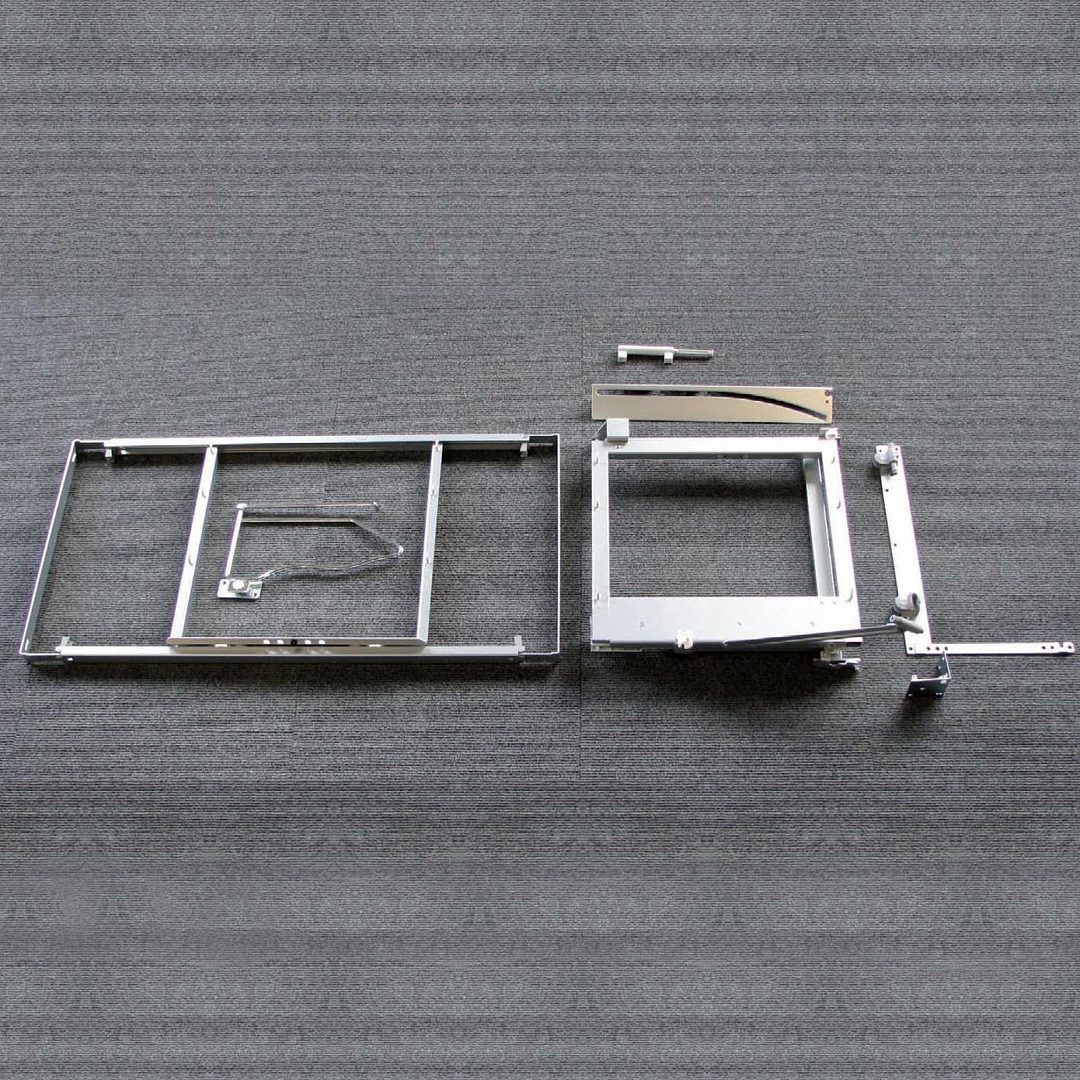

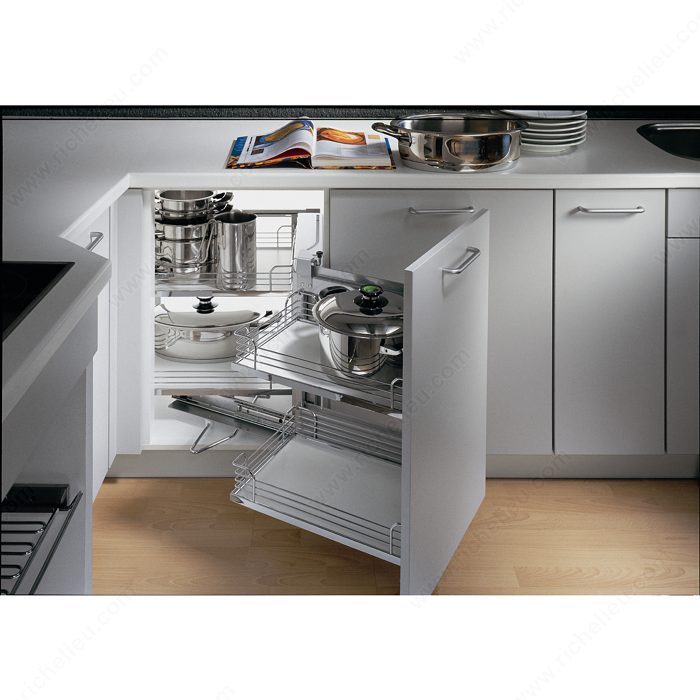

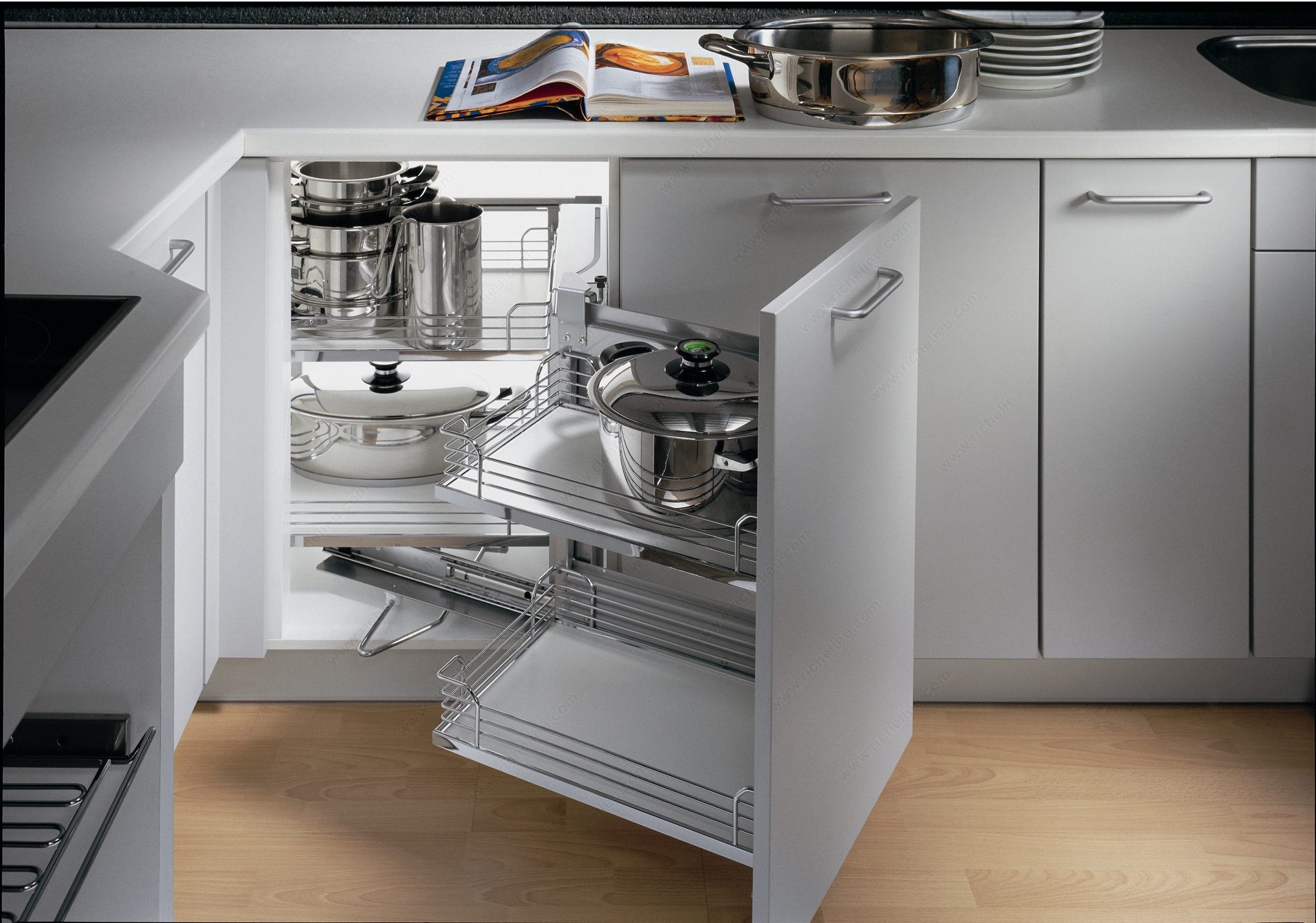

Richelieu 16103100 Frame for Magic Corner redefines efficiency in kitchen storage with its innovative sliding frame system and enhanced closing mechanism. Designed for corner cabinets, this frame offers a seamless solution for food storage and preparation, maximizing the use of otherwise wasted space. Installation is a breeze with this pre-assembled system, requiring no special tools for adjustment or mounting. The existing sets of baskets integrate flawlessly with this new frame, ensuring compatibility and ease of use. For an even smoother operation, the SoftStop dampening device (sold separately) adds a soft-closing feature, enhancing user experience by minimizing noise and wear. This frame boasts impressive capacity, supporting up to 14 kg in the front and 18 kg in the corner, making it suitable for a variety of items. With a generous extension of 450 mm (17-3/4"), it provides easy access to stored goods. The frame is finished in a sleek gray, complementing modern kitchen aesthetics. To ensure the perfect fit, the required interior dimensions include a depth of 19 5/8 in, a minimum height of 21 1/4 in, and a width between 33 7/8 to 38 1/4 in. The opening is designed for right-side access, with a minimum opening width of 15 1/2 in. Elevate your kitchen with Richelieu's expertly crafted frame.
Frame for Magic Corner
Area of Activity: Food Storage, Storage, Preparation
Capacity: Max. 14 kg (front), 18 kg (corner)
Extension: 450 mm (17-3/4")
Finish: Gray
Interior Dimensions Required - Depth: 500 mm
Interior Dimensions Required - Height: Min. 540 mm
Interior Dimensions Required - Width: 960 to 1 071 mm
Opening: Right
Opening Width: Min. 395 mm
Product #: 16103100
Product number: 16103100
Product №: 16103100
Solutions: Corner Cabinets
