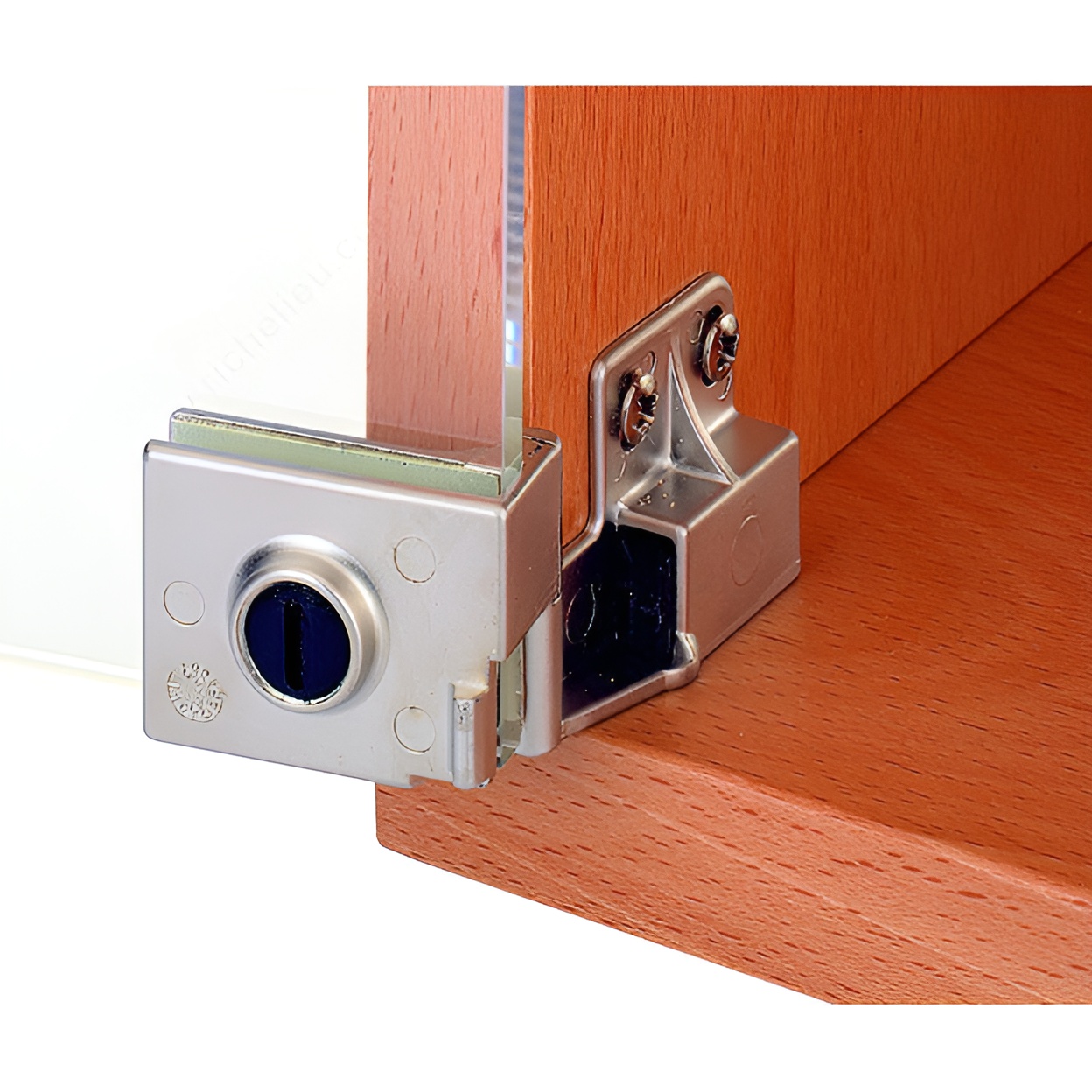

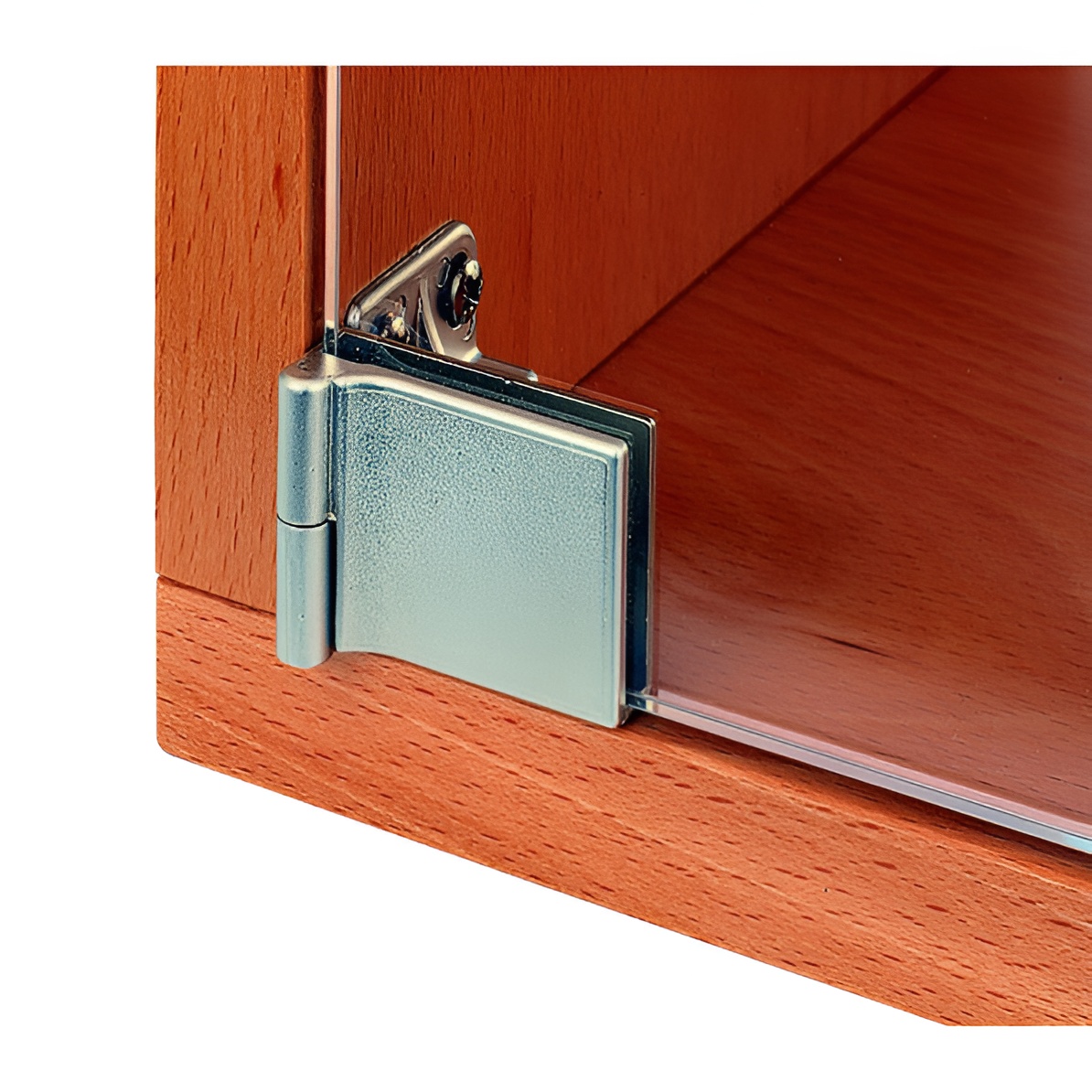

Richelieu 2183180 Snap-In Hinge for Glass Door Recessed Within Furniture/Cabinet offers a seamless solution for integrating glass doors into your cabinetry. Designed with a built-in snap mechanism, this hinge ensures that glass doors remain securely closed when shut, providing a clean and elegant appearance while requiring a handle or pull for easy access. Crafted from durable zinc and finished in a sophisticated nickel, the hinge complements a variety of design aesthetics, while its pebbled-grain style adds a touch of refinement. With a height of 1 3/16 inches and a length of 1 25/32 inches, it is specifically engineered to accommodate glass thicknesses between 3/16 to 1/4 inches. The hinge supports a maximum load capacity of 16.5 pounds, making it suitable for a range of glass door applications. For optimal performance, the maximum height of the door should not exceed 39 3/8 inches, and the width should be limited to 23 5/8 inches. This hinge is an excellent choice for both building professionals and discerning homeowners looking to enhance their furniture or cabinet designs with stylish, functional hardware. With the ability to ship via UPS, integrating this essential component into your project is both convenient and efficient.
Snap-In Hinge for Glass Door Recessed Within Furniture/Cabinet
Finish: Nickel
Height: 30 mm
Height of Door to Respect: Max. 1 000 mm
Length: 45 mm
Load Capacity: 7.5 kg
Material: Zinc
Product #: 2183180
Product number: 2183180
Product №: 2183180
Thickness of Glass: 5 to 6 mm
Unit: Pair
Unit 1: case - 150
Unit 2: case - 150
Use Type: Glass
Width: 40 mm
Width of Door to Respect: Max. 600 mm
