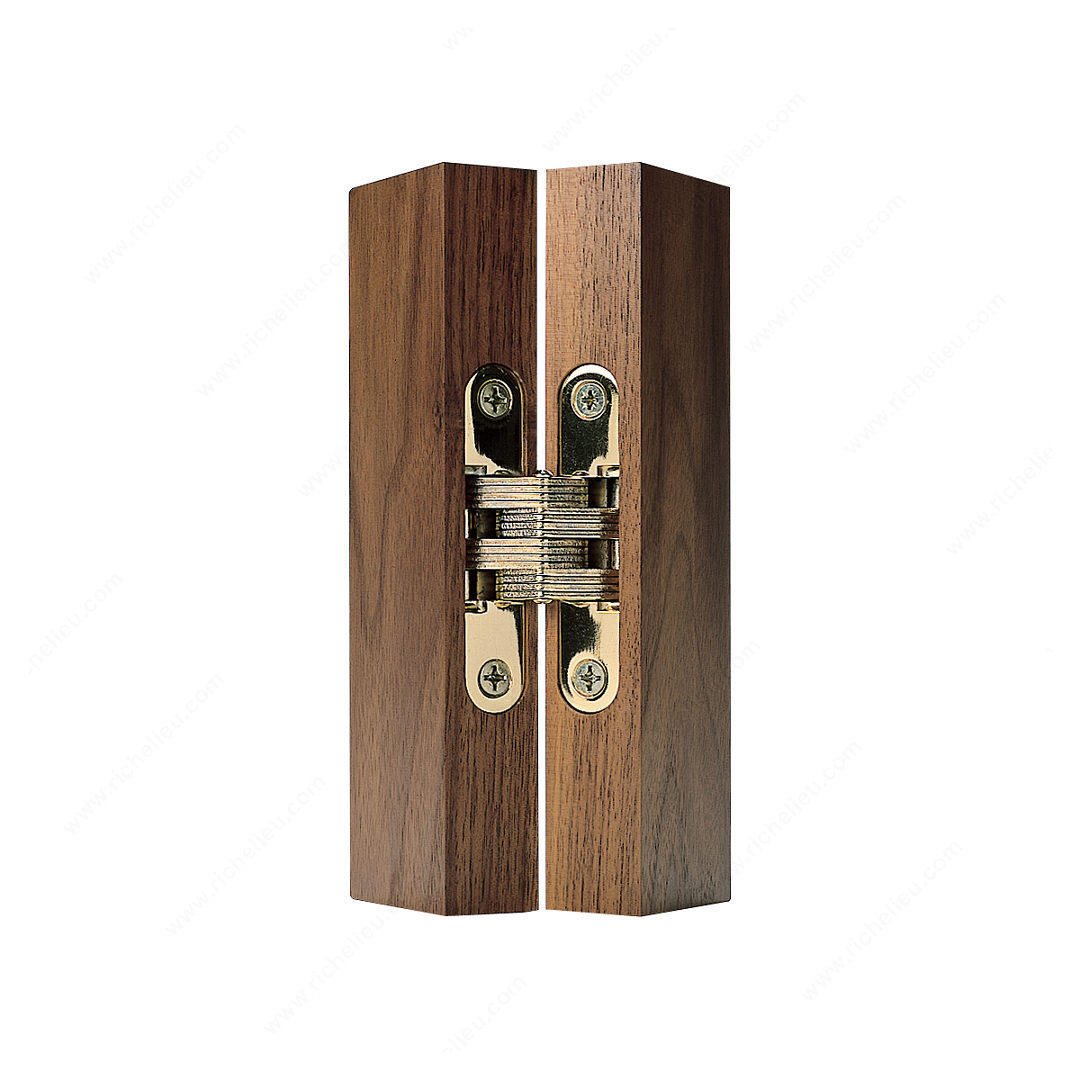

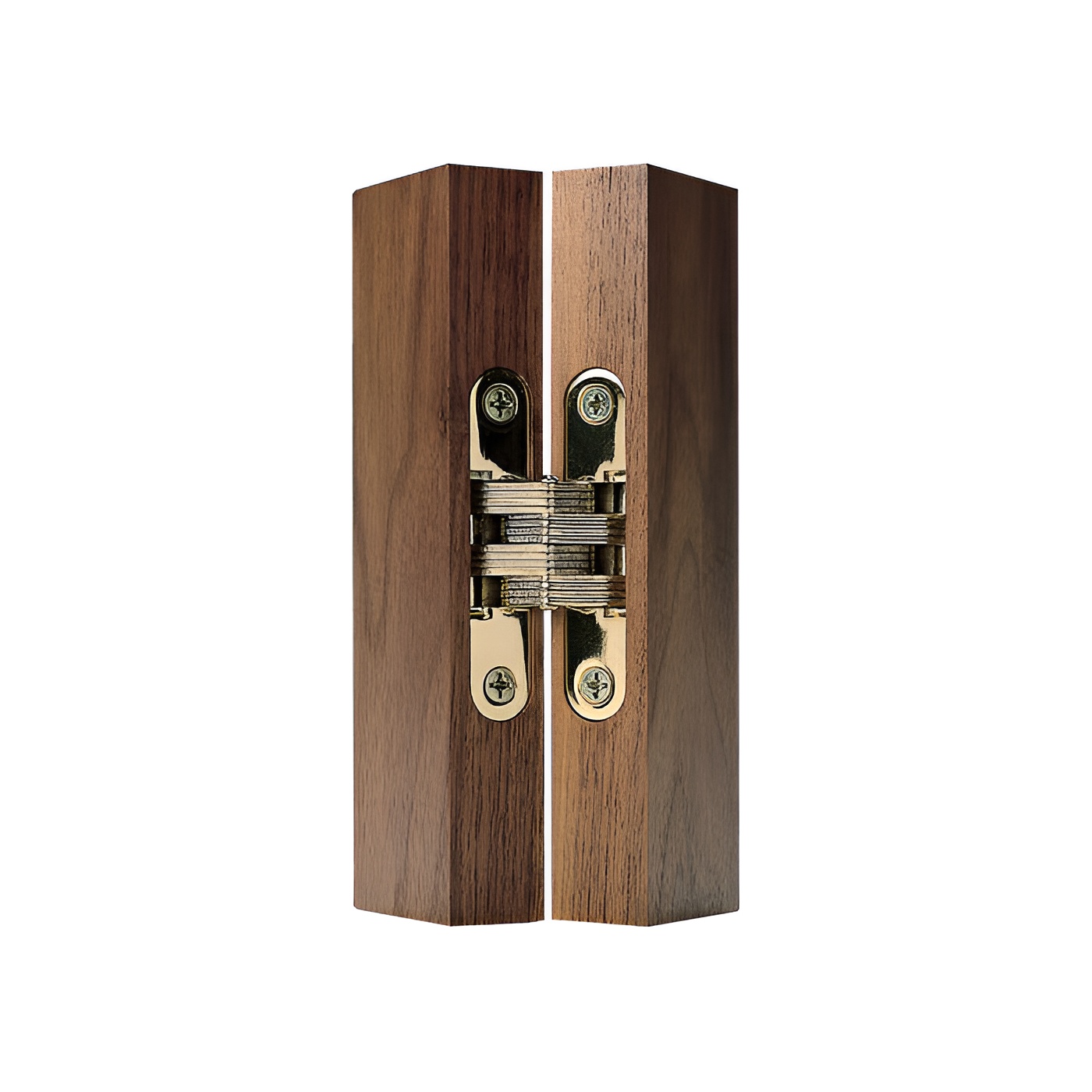

Richelieu 420100160 Concealed Steel Hinge - Model 100 offers an exceptional blend of aesthetics and functionality for your door installations. Designed for both wood and metal doors, this hinge features a sleek satin brass finish that complements any contemporary space while ensuring lasting durability. With a remarkable 180° hinge opening angle, it provides maximum accessibility and ease of use, making it ideal for various applications. This reversible hinge is engineered with a minimum door thickness requirement of just 1/2 inch, accommodating diverse design needs. Its mortise mounting type ensures a flush fit, enhancing the overall appearance of your doors. The hinge boasts a height of 15/32 inches and a width of 3/8 inches, with a leaf body mortise length of 3/8 inch, ensuring a secure and stable installation. Additional specifications include a cabinet angle of 180°, a door/jamb gap of 3/32 inch, and a leaf gap of 9/32 inch. The included screws facilitate an easy installation process, providing the convenience that professionals and homeowners alike appreciate. Choose the Richelieu Concealed Steel Hinge for its reliable performance and refined style, perfect for elevating any project’s finish.

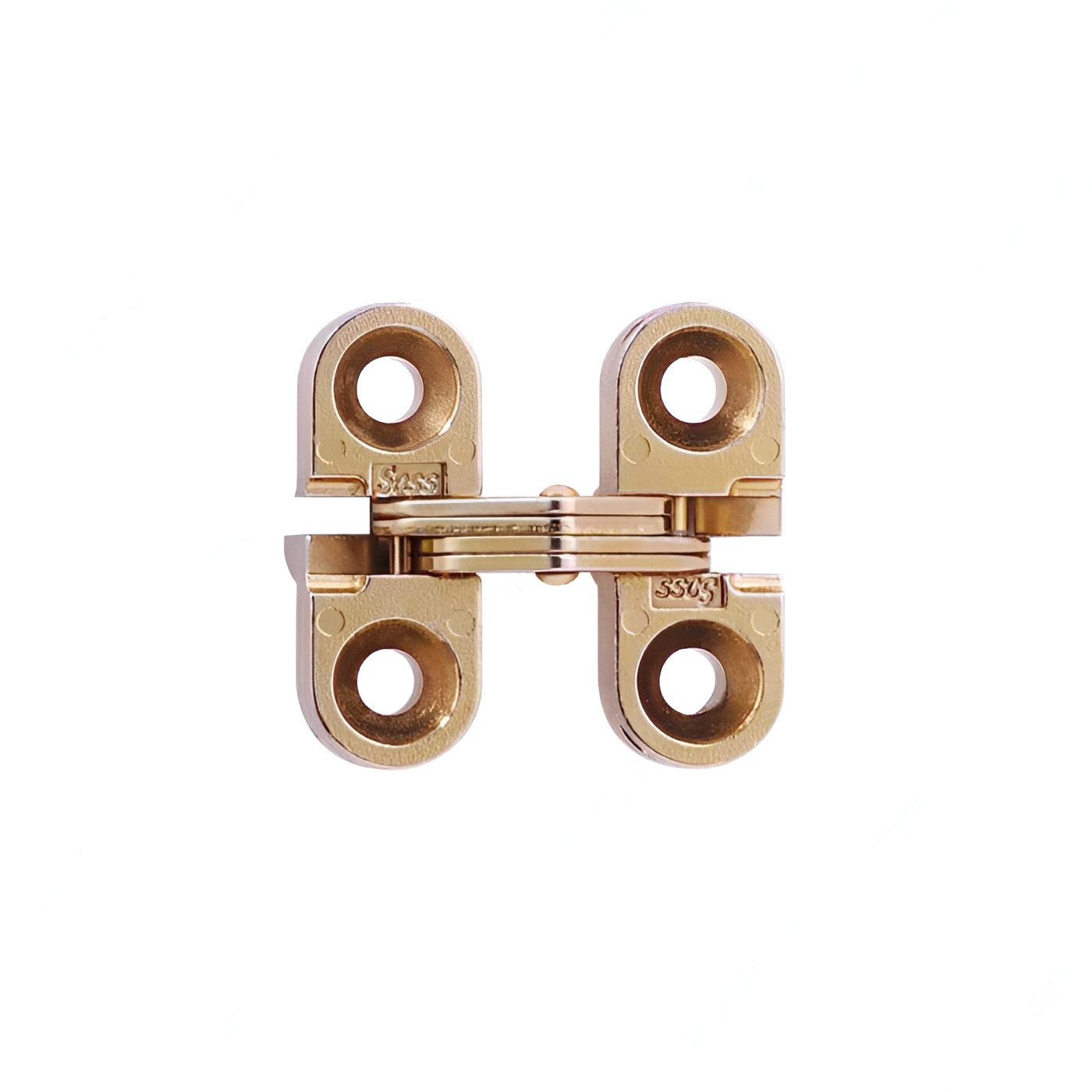

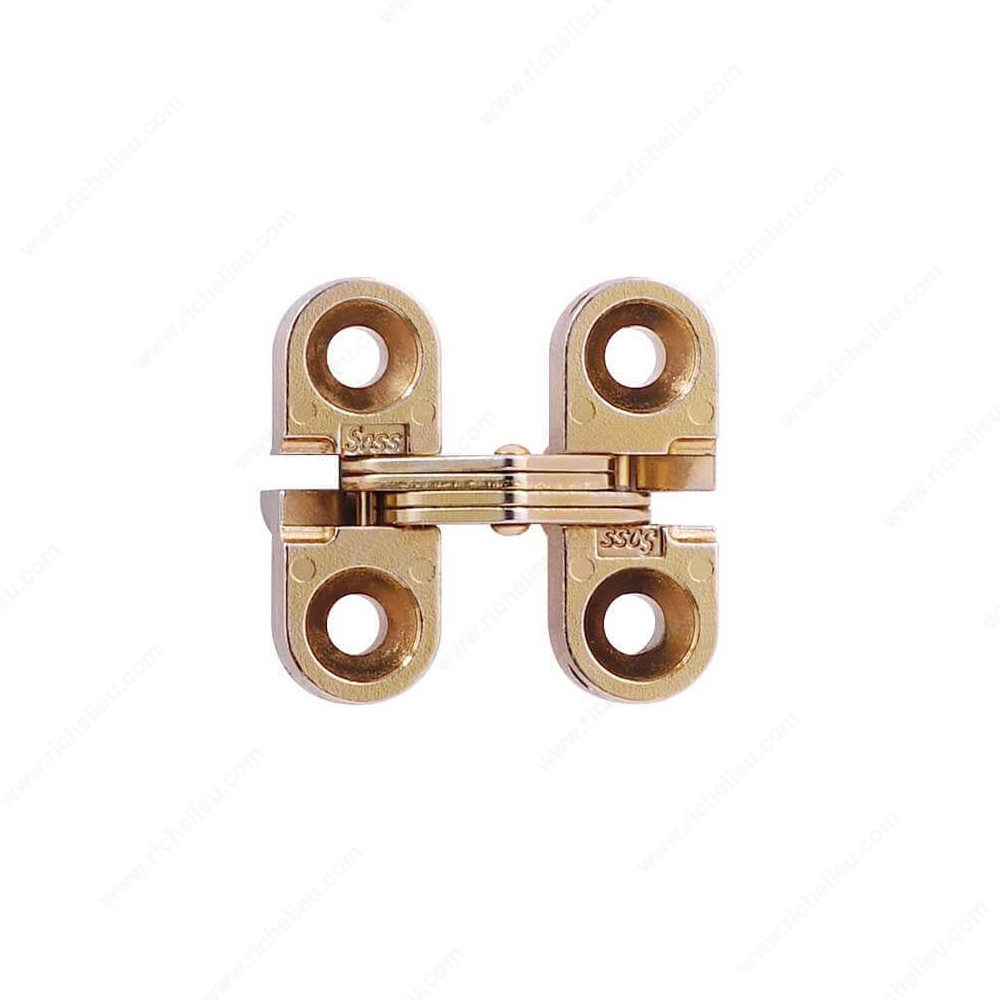

Concealed Steel Hinge - Model 100
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 5/8 in
Dimension A: 3/8 in
Dimension B: 9/32 in
Dimension C: 1 in
Dimension D: 3/32 in
Dimension E: 3/32 in
Dimension F: 3/8 in
Dimension G: 1/32 in
Dimension H: 15/32 in
Dimension I: 15/64 in
Door/ Jamb Gap: 3/32 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 3/32 in
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 100
Handedness: Reversible
Height: 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 3/8 in
Leaf Gap: 9/32 in
Leaf Mortise Depth: 15/64 in
Length: 1 in
Material: Steel
Minimum Door Thickness: 1/2 in
Mounting Type: Mortise
Product #: 420100160
Product number: 420100160
Product №: 420100160
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 3/8 in
Wood Screw Sizes: #5 x 3/4" (3.5 mm x 19 mm)
