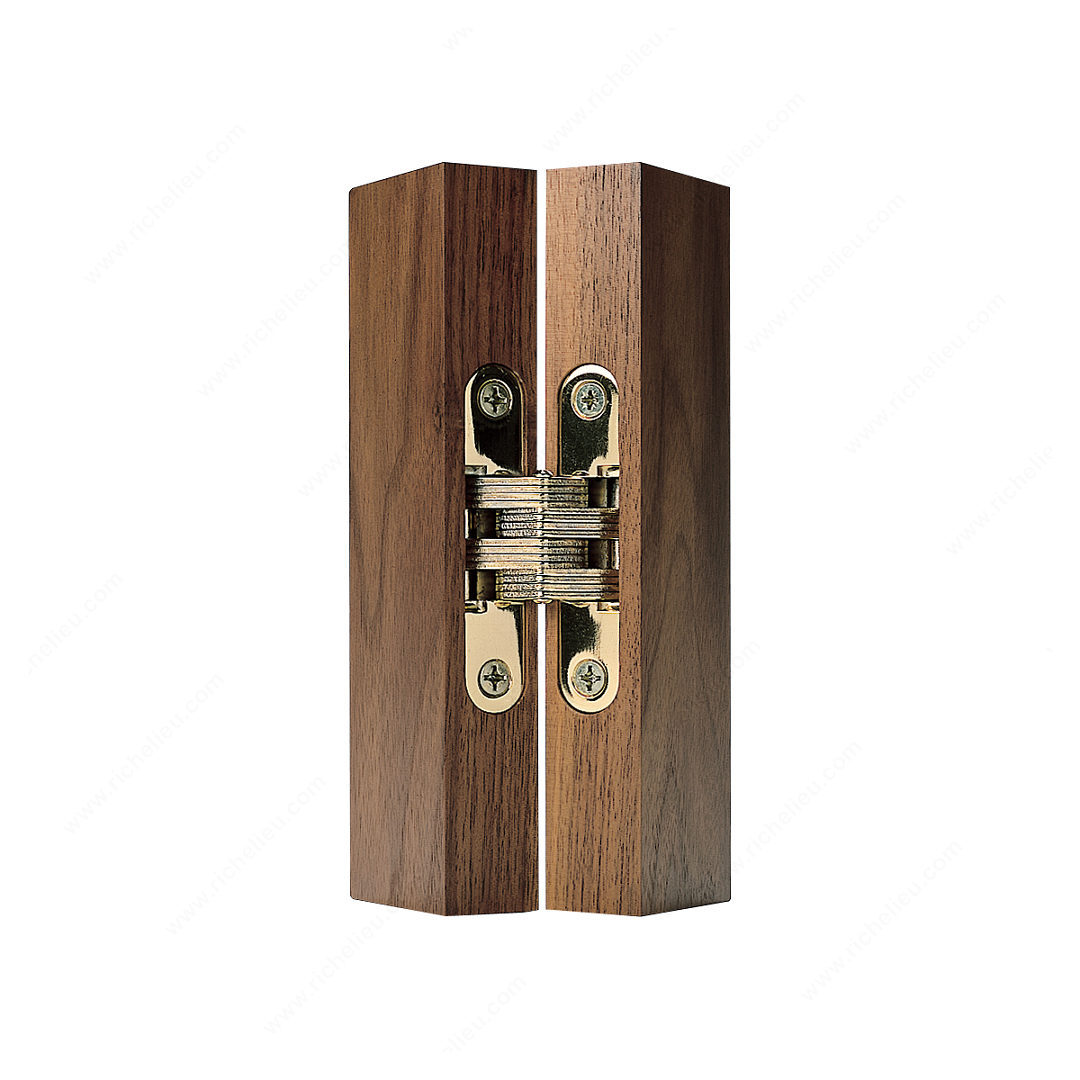

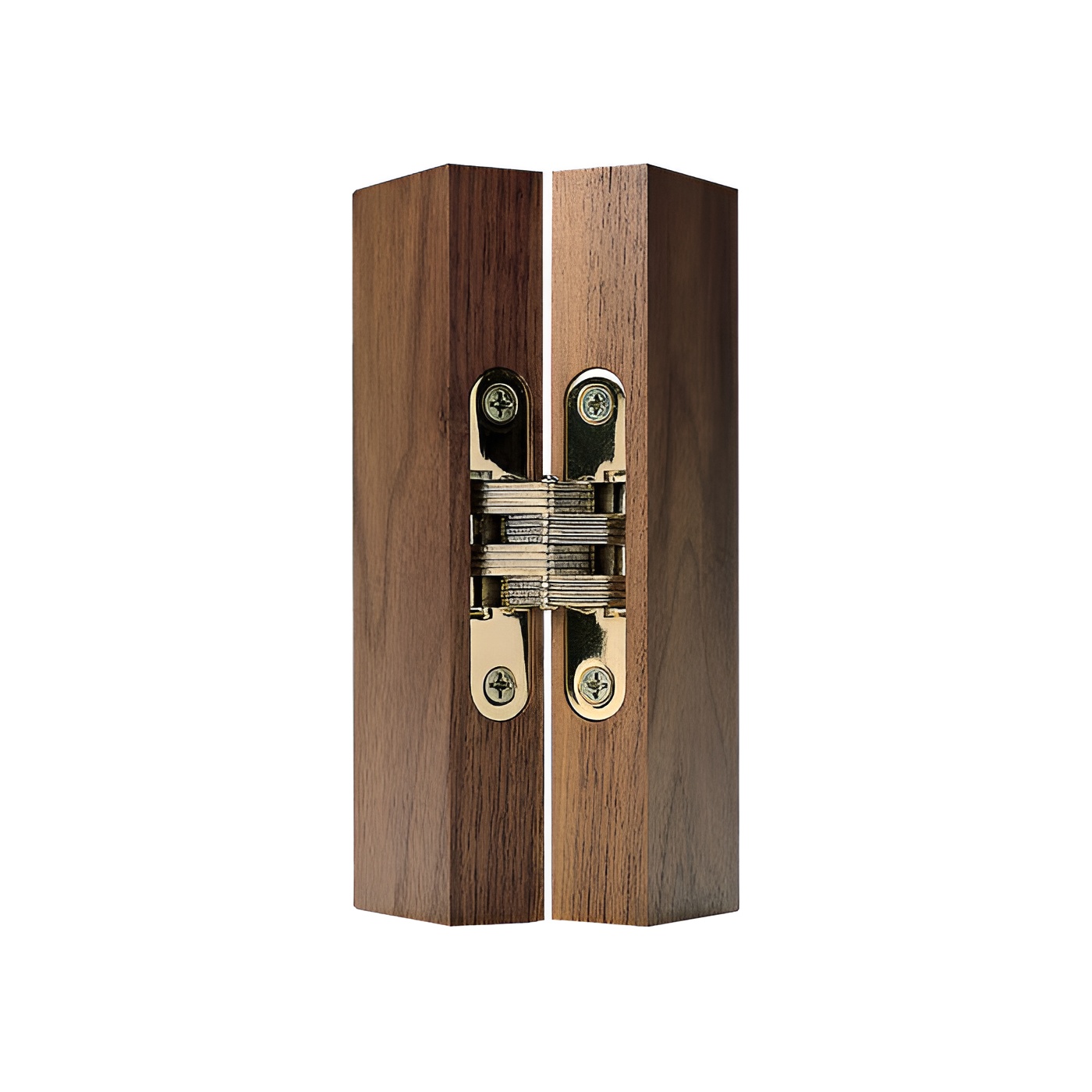

Richelieu 420101160 Concealed Steel Hinge - Model 101 offers an exceptional blend of durability and aesthetic appeal, making it a prime choice for both wood and metal doors. This hinge features a sleek satin brass finish that enhances its contemporary design, while its robust steel construction ensures long-lasting performance. Designed for easy installation, the hinge is mortised for a clean, seamless look, integrating effortlessly into your cabinetry. With a cabinet opening angle of +180°, it provides maximum accessibility, making it ideal for high-traffic areas. The minimum door thickness requirement of just 1/2 inch allows versatility in application, catering to various door styles. The hinge boasts a height of 29/64 inches and a width of 3/8 inches, while maintaining precise door/jamb gaps of 7/64 inches and a 1/32 inch gap in the closed position. The included screws simplify the fixing process, ensuring secure placement. Whether you are outfitting a commercial space or enhancing your home, the Richelieu Concealed Steel Hinge combines functionality with a refined look, meeting all your hardware needs. Trust this hinge to deliver both style and reliability in any construction project.

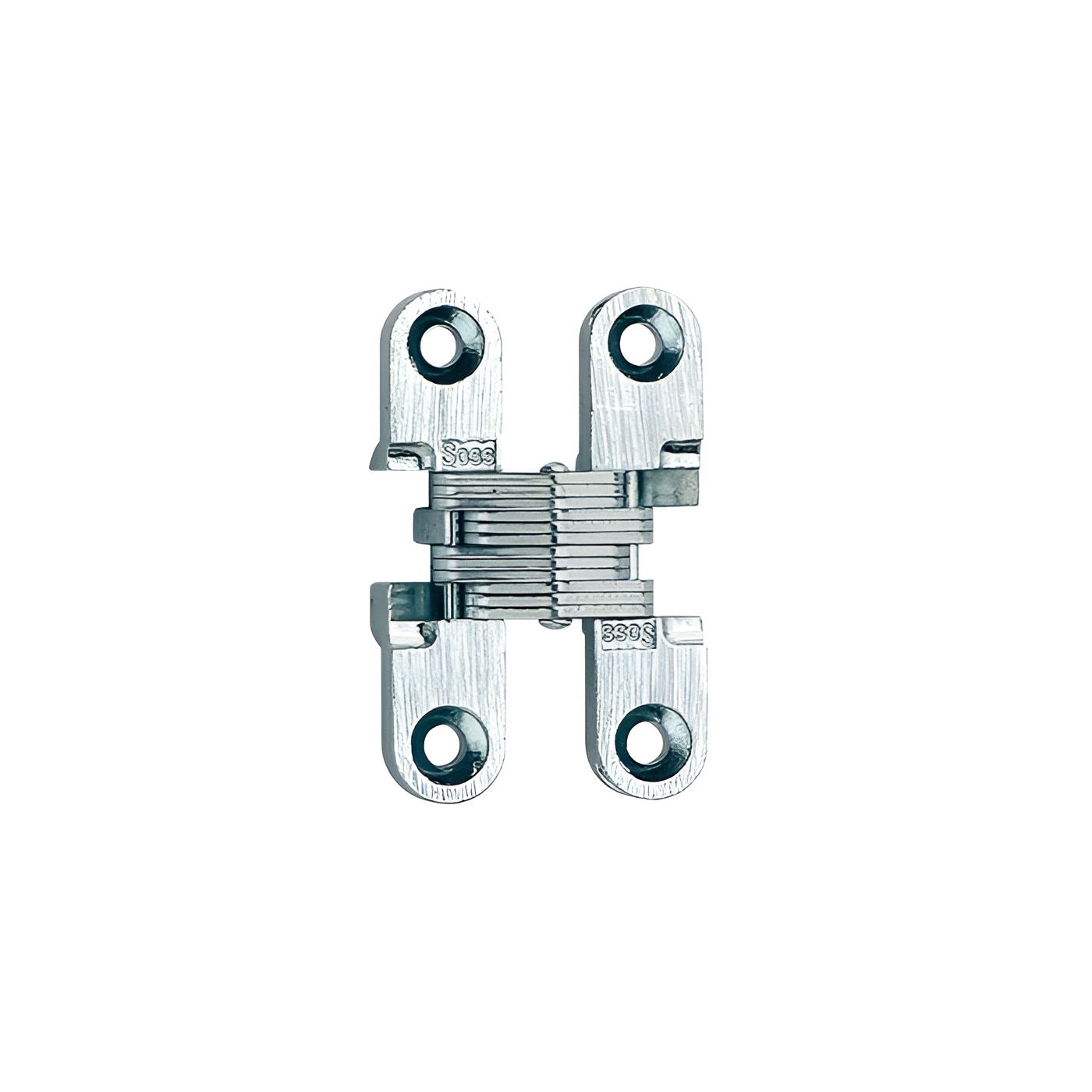

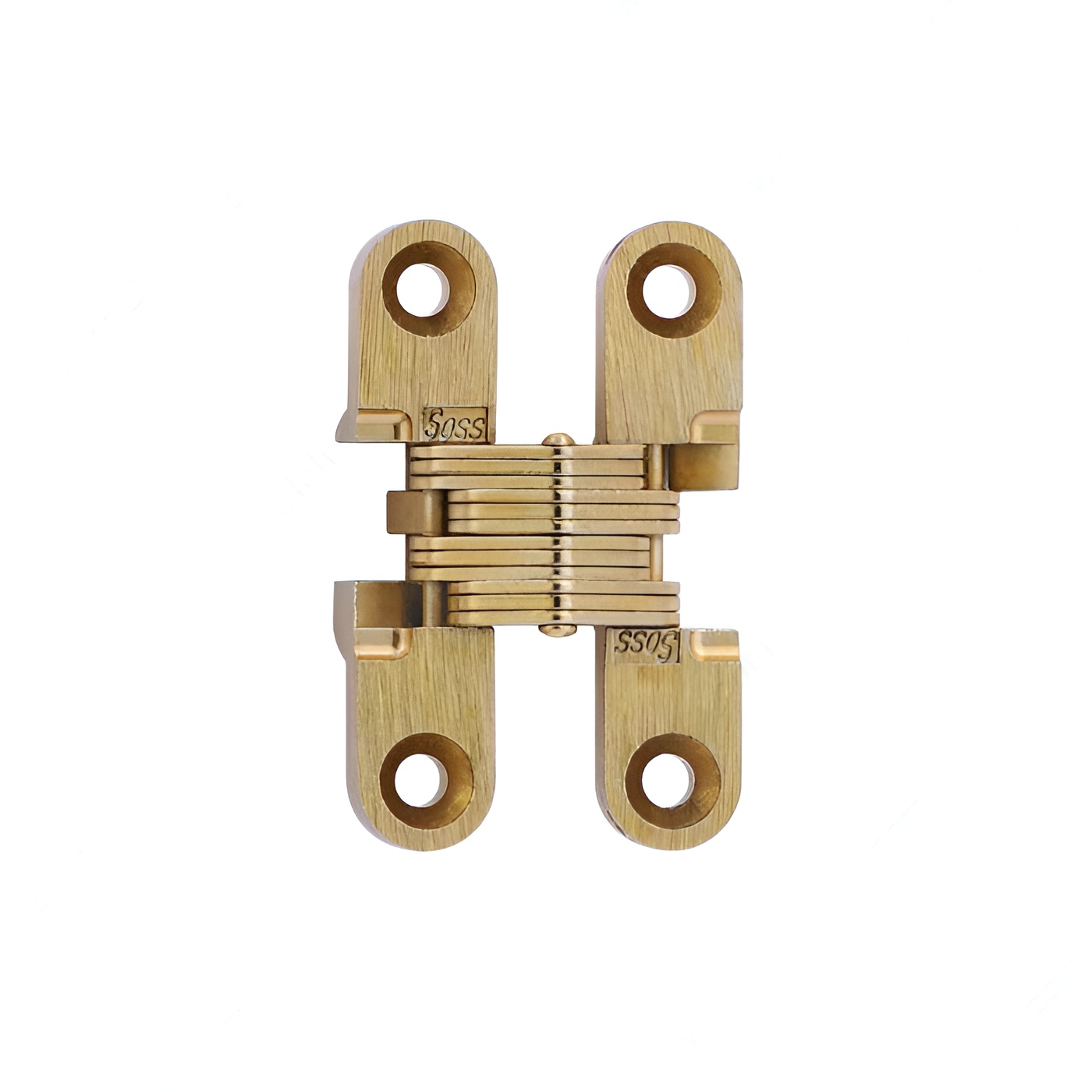

Concealed Steel Hinge - Model 101
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 5/16 in

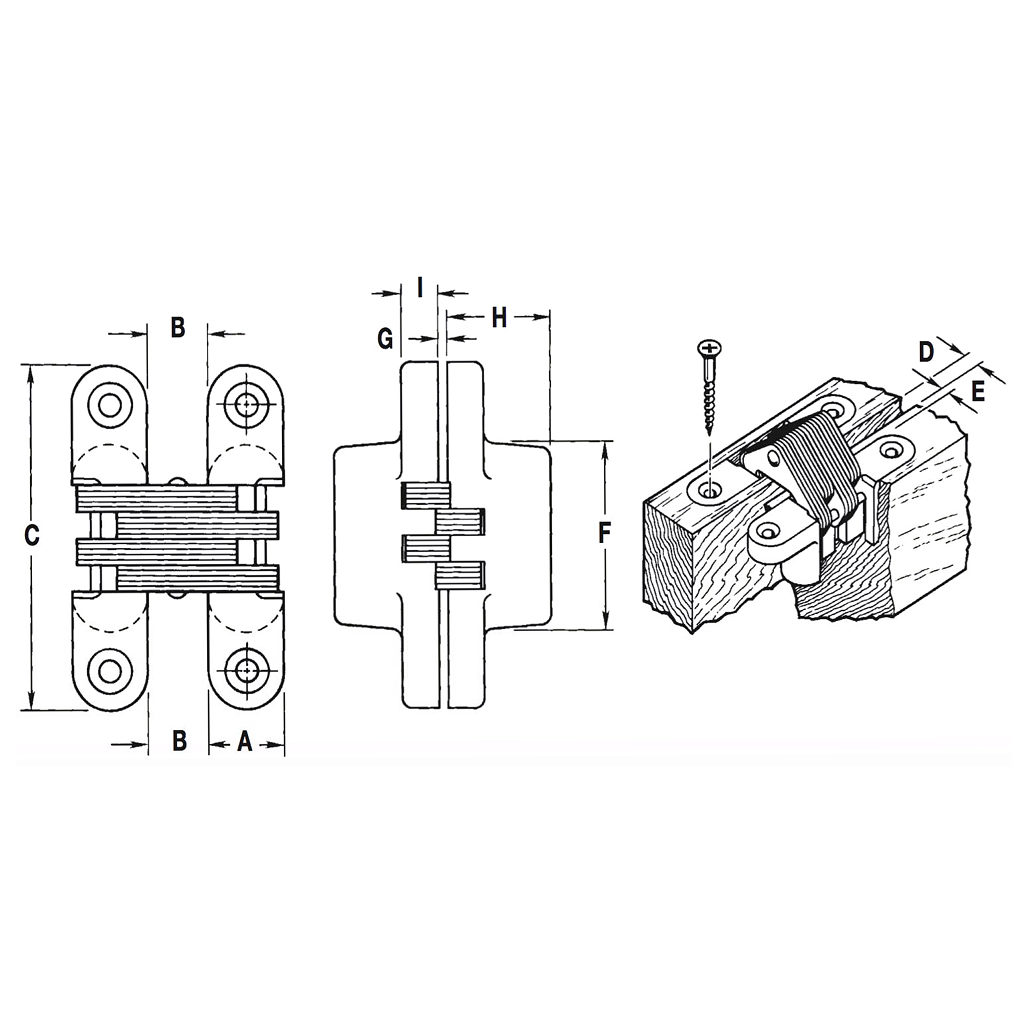

Dimension A: 3/8 in
Dimension B: 19/64 in
Dimension C: 1 11/16 in
Dimension D: 7/64 in
Dimension E: 3/32 in
Dimension F: 7/8 in
Dimension G: 1/32 in
Dimension H: 29/64 in
Dimension I: 7/32 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/16 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 3/32 in
Door/ Jamb Inset (mm): 3 mm
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 101
Handedness: Right-Hand Opening
Height: 29/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 7/8 in
Leaf Gap: 19/64 in
Leaf Mortise Depth: 7/32 in
Length: 1 11/16 in
Material: Steel
Minimum Door Thickness: 1/2 in
Mounting Type: Mortise
Product #: 420101160
Product number: 420101160
Product №: 420101160
Screw/ Nail: Included
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 3/8 in
Wood Screw Sizes: #5 x 3/4" (3.5 mm x 19 mm)
