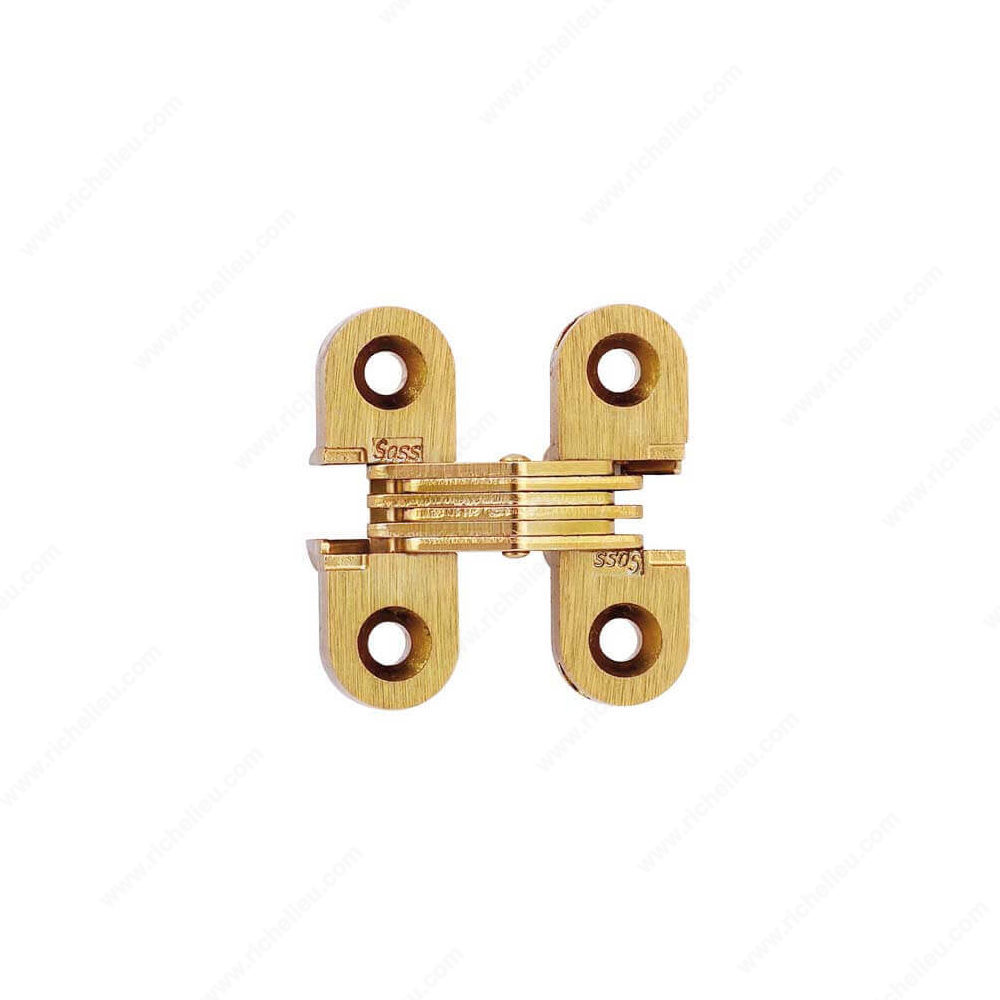

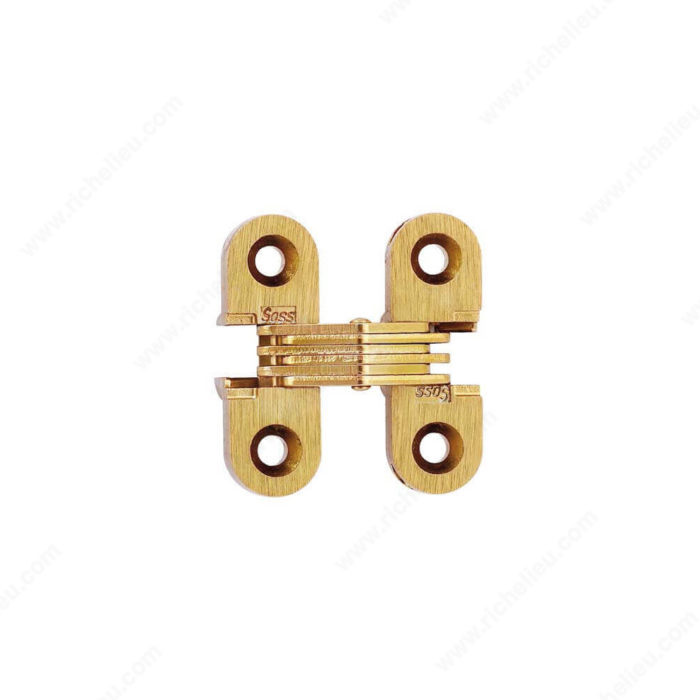

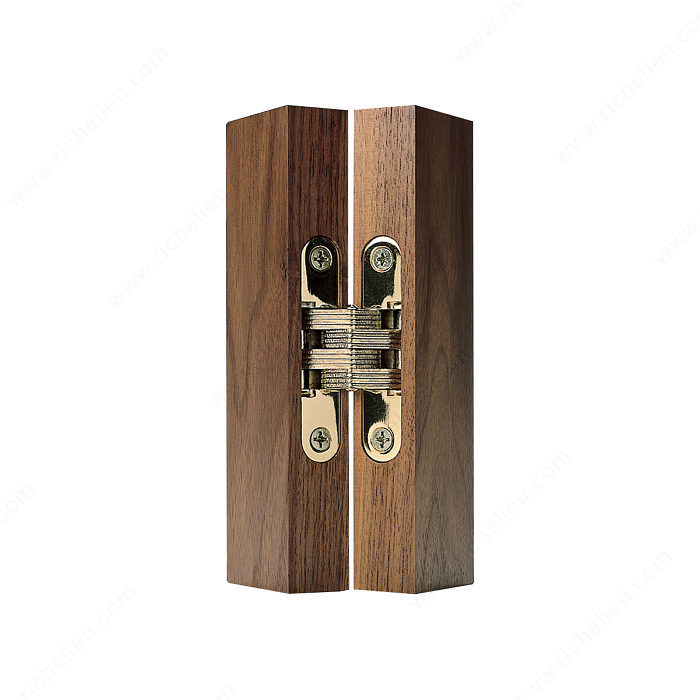

Richelieu 420103160 Concealed Steel Hinge - Model 103 delivers an exceptional combination of style and functionality for your woodworking or metalwork projects. Designed for easy installation, this hinge is perfect for a variety of applications and is suitable for both wood and metal doors. Its reversible design ensures versatility, accommodating different door configurations with ease. Featuring a sleek satin brass finish, this hinge not only enhances the aesthetic of your doors but also promises durability over time. With a hinge opening angle of +180°, it allows for maximum accessibility, while the 1/8 inch door/jamb gap in the closed position ensures a seamless look. The hinge's mortise mounting type and screw-on fixing provide secure installation, making it reliable for everyday use. Constructed from high-quality steel, this hinge is built to withstand regular wear and tear, with a minimum door thickness requirement of 3/4 inch. The product measures 1 1/2 inches in length and 1/2 inch in width, with a leaf body mortise length of 11/16 inch. Wood screws are included for your convenience, ensuring you have everything needed to complete your project efficiently. Experience the blend of elegance and strength with the Richelieu Concealed Steel Hinge.
Concealed Steel Hinge - Model 103
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 in

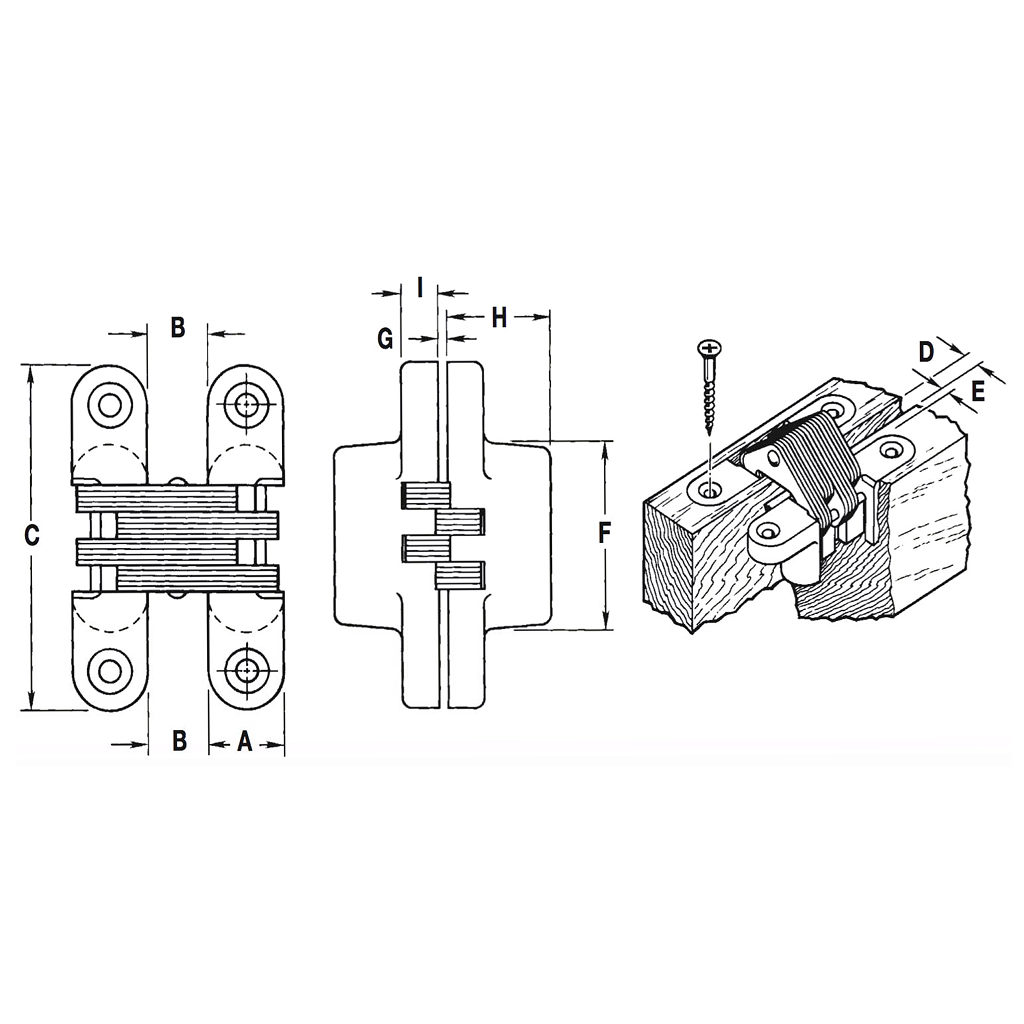

Dimension A: 1/2 in
Dimension B: 3/8 in
Dimension C: 1 1/2 in
Dimension D: 1/8 in
Dimension E: 1/8 in
Dimension F: 11/16 in
Dimension G: 1/32 in
Dimension H: 19/32 in
Dimension I: 7/32 in
Door/ Jamb Gap: 1/8 in
Door/ Jamb Gap (mm): 1/8 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 3/8 in
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 103
Handedness: Reversible
Height: 19/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 11/16 in
Leaf Gap: 3/8 in
Leaf Mortise Depth: 7/32 in
Length: 1 1/2 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420103160
Product number: 420103160
Product №: 420103160
Screw/ Nail: Included
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #6 x 1" (3.5 mm x 25 mm)
