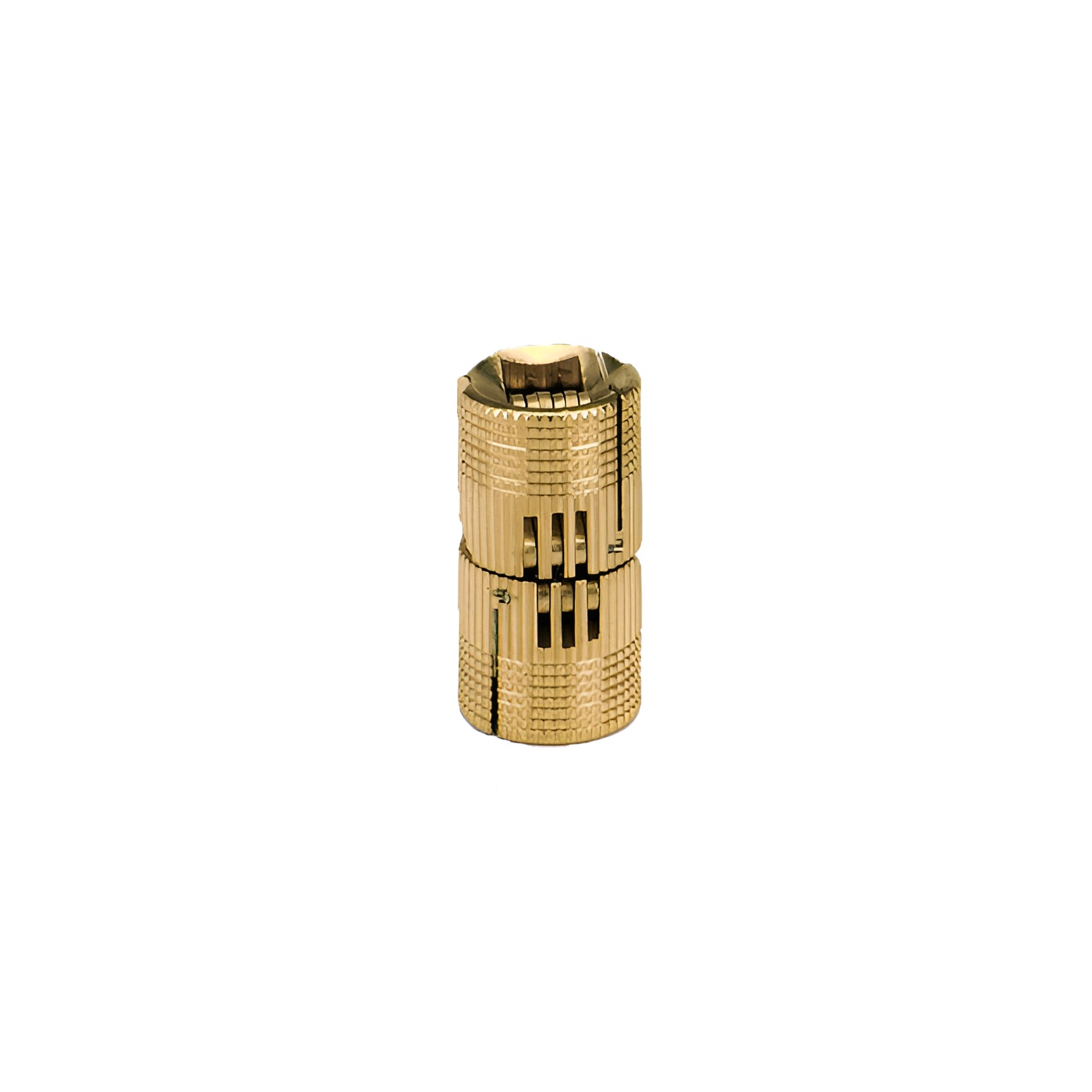

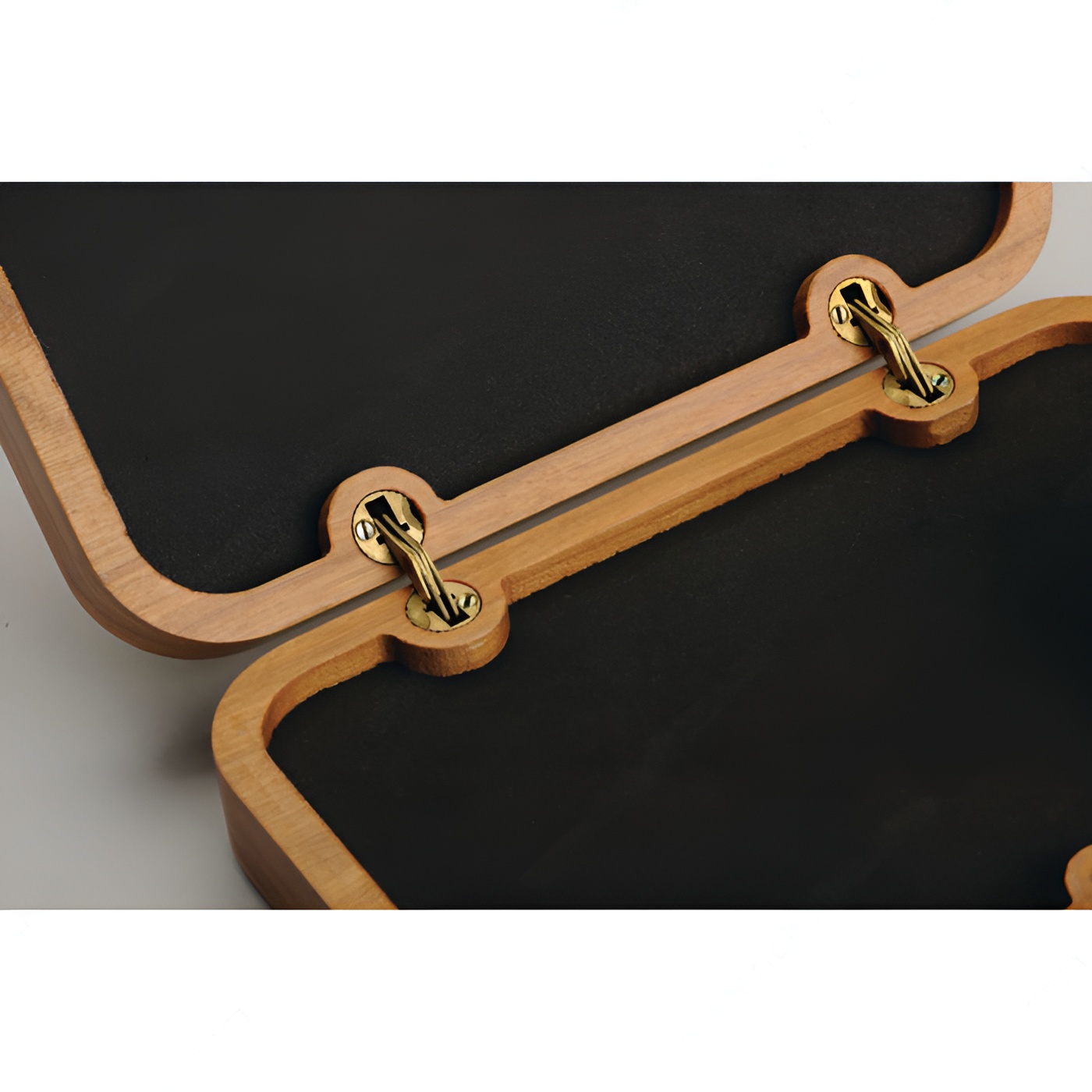

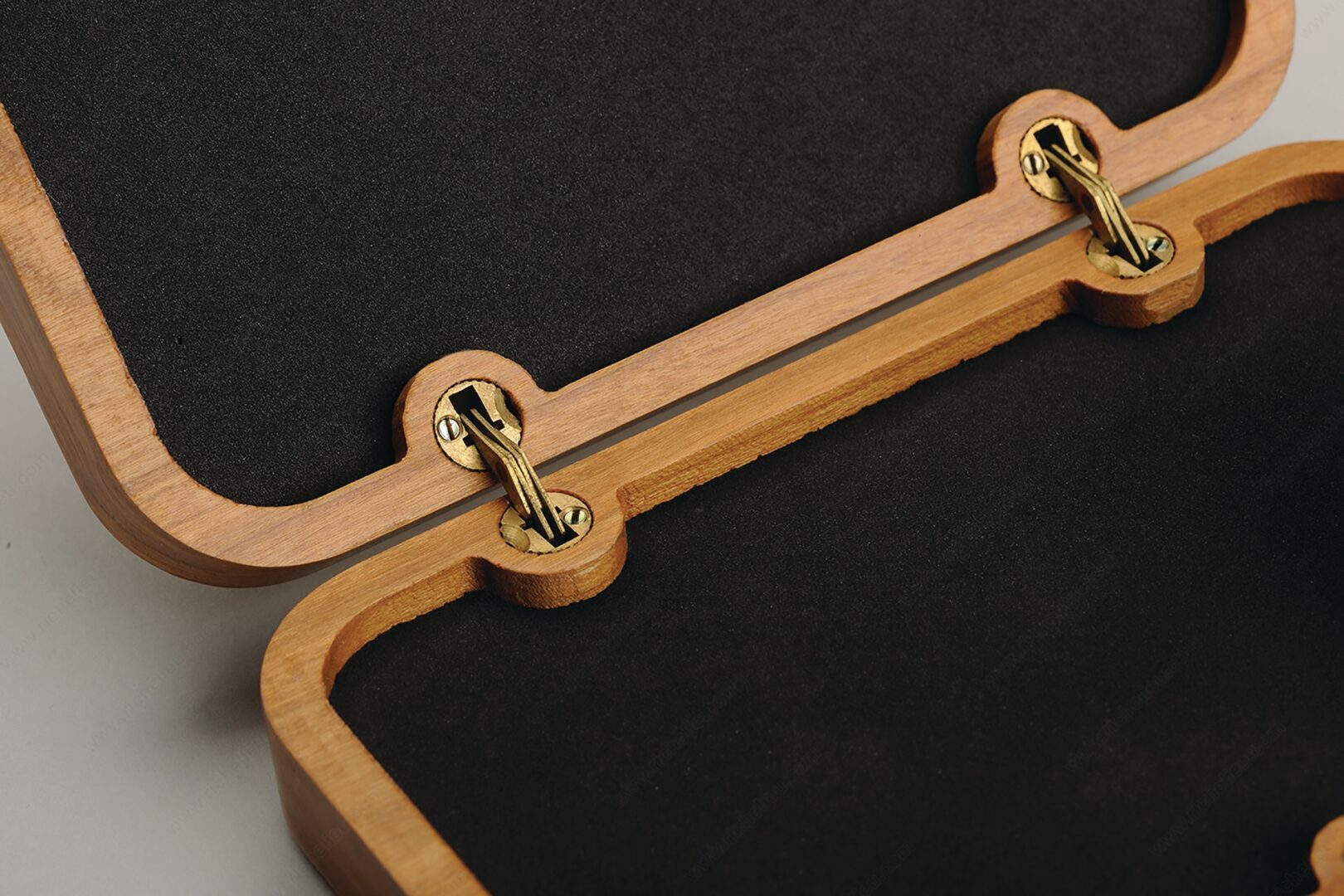

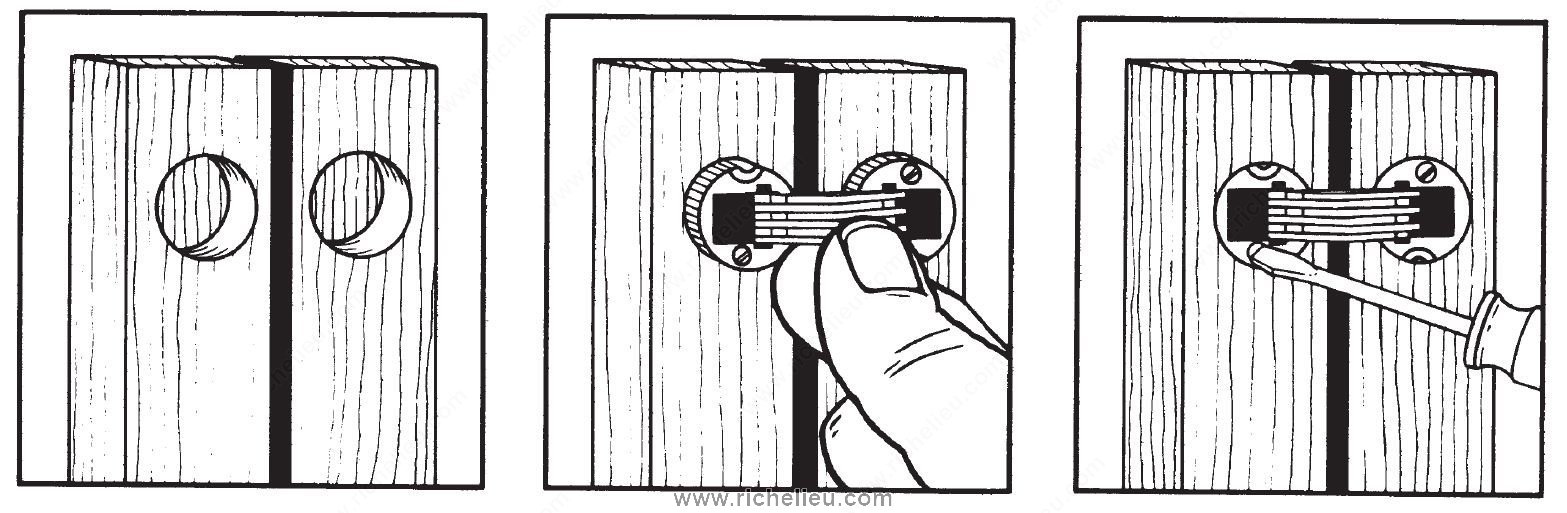

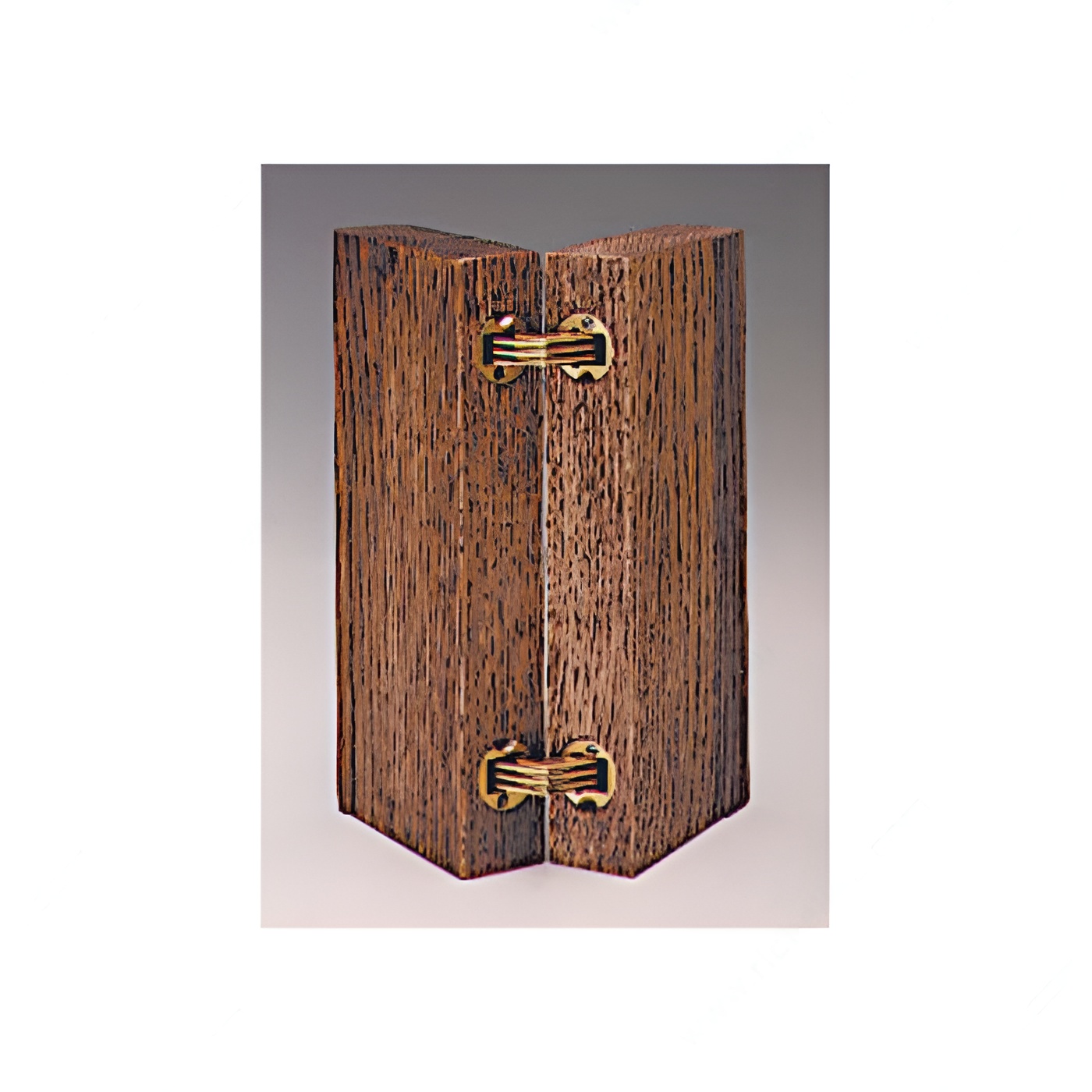

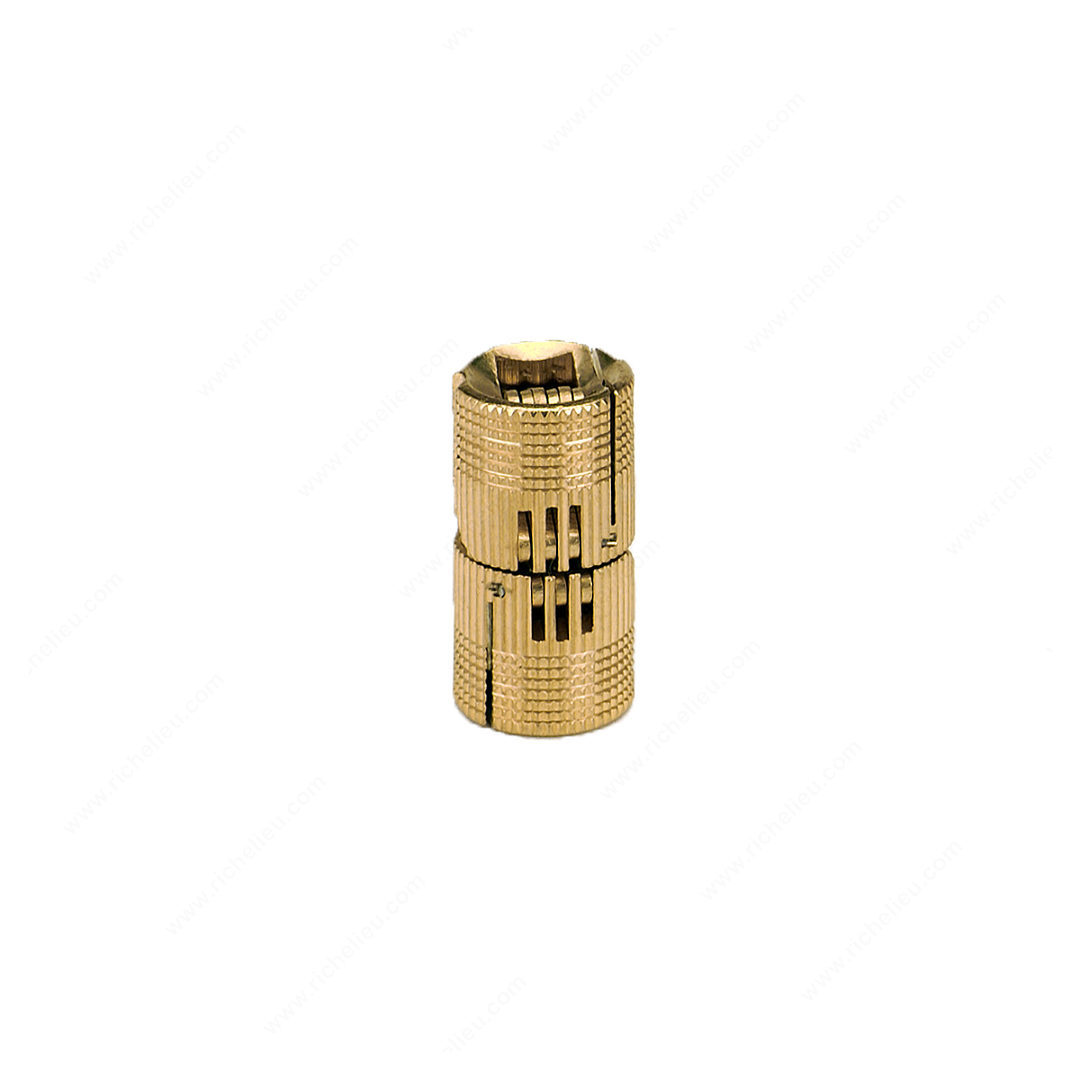

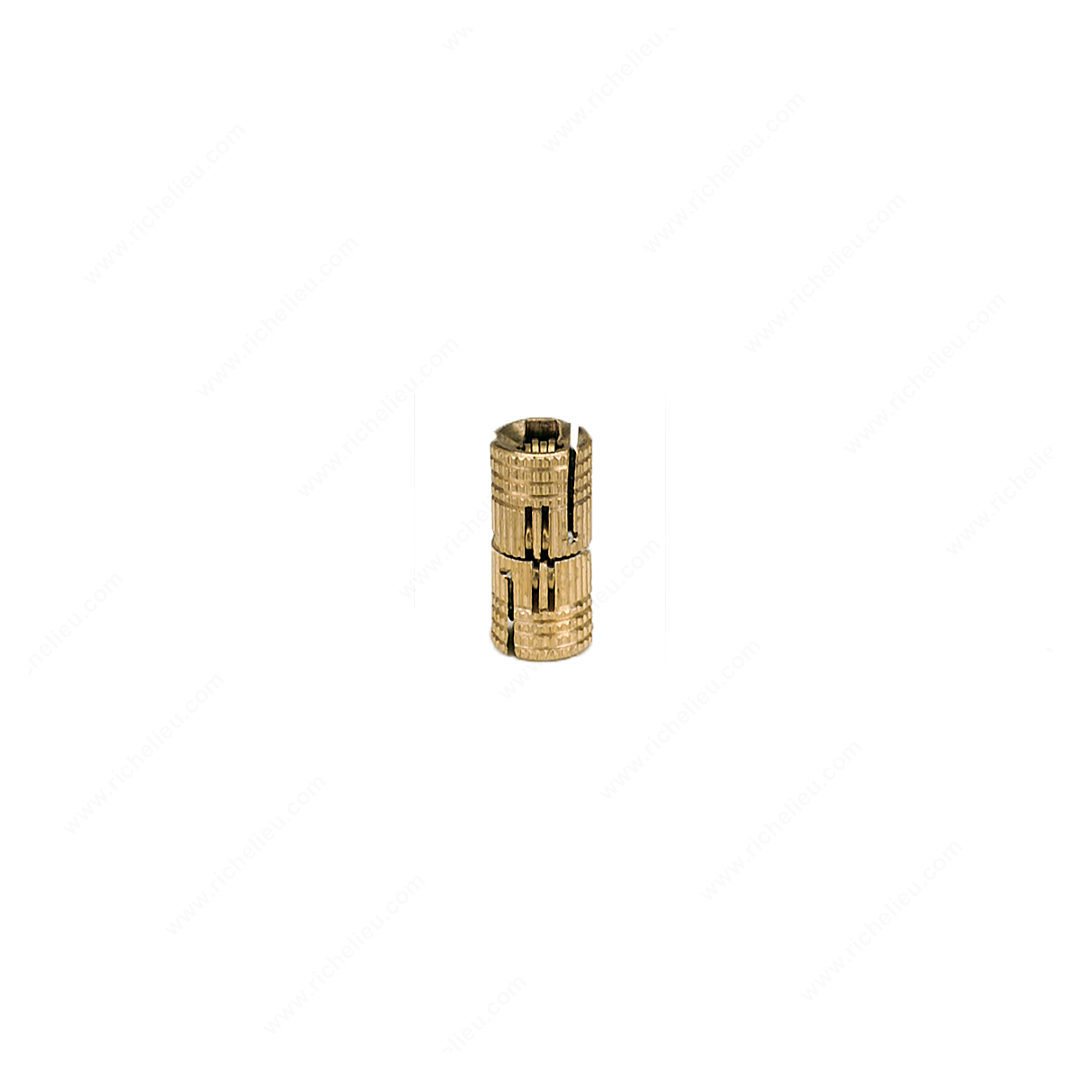

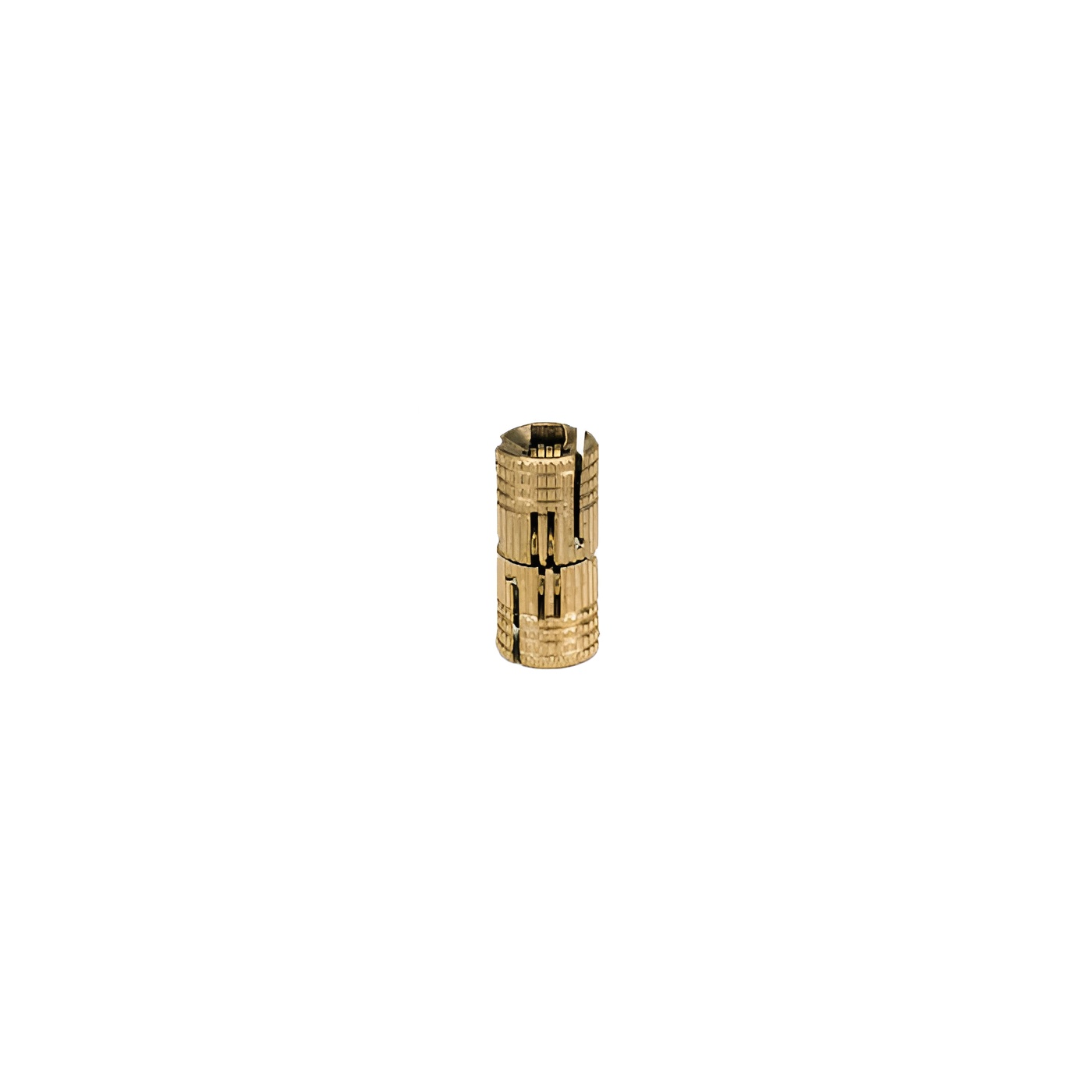

Richelieu 420104130 Concealed Brass Barrel Hinge - 420 Series combines elegant aesthetics with exceptional durability, making it an ideal choice for light wooden doors in various applications. Designed for a contemporary look, these hinges provide a seamless appearance while ensuring functionality. Crafted from solid brass, the hinge offers longevity and an attractive finish that complements any decor. Its reversible nature enhances versatility, allowing for easy installation on doors with a minimum thickness of 1/2 inch. The concealed design means that the hinge remains hidden when the door is closed, maintaining a clean line and sophisticated style. Installation is straightforward, utilizing a knock-in fixing type and requiring a drill bit size of 13/32 inches. The hinge features a height of 5/8 inches and a leaf gap of 7/16 inches, ensuring a secure fit while accommodating a door/jamb gap of 3/32 inches and a door/jamb inset of 1/16 inches. Not recommended for vertical applications, the Richelieu 420104130 hinge is perfect for standard door use, enhancing both the functionality and aesthetic of your spaces. Each package comes with screws included, making it a convenient choice for builders and DIY enthusiasts alike.
Concealed Brass Barrel Hinge - 420 Series
Brand: Soss
Center to Center (mm): 16.5 mm
Diameter (mm): 10 mm
Dimension A: 10 mm
Dimension B: 11.5 mm
Dimension C: 15.7 mm
Dimension D: 2 mm
Dimension E: 1.8 mm
Door/ Jamb Gap: 2 mm
Door/ Jamb Inset: 1.8 mm
Drill Bit: 10 mm
Drilling Depth (mm): 11 mm
Finish: Brass
Fixing Type: Knock-In
Handedness: Reversible
Height: 15.7 mm
Leaf Gap: 11.5 mm
Length: 10 mm
Material: Solid Brass
Minimum Door Thickness: 1/2 in
Product #: 420104130
Product number: 420104130
Product №: 420104130
Screw/ Nail: Included
Type of Hinge: Wood Door Only
Unit 1: package - 24
Use Type: Standard Door
Width: 10 mm
