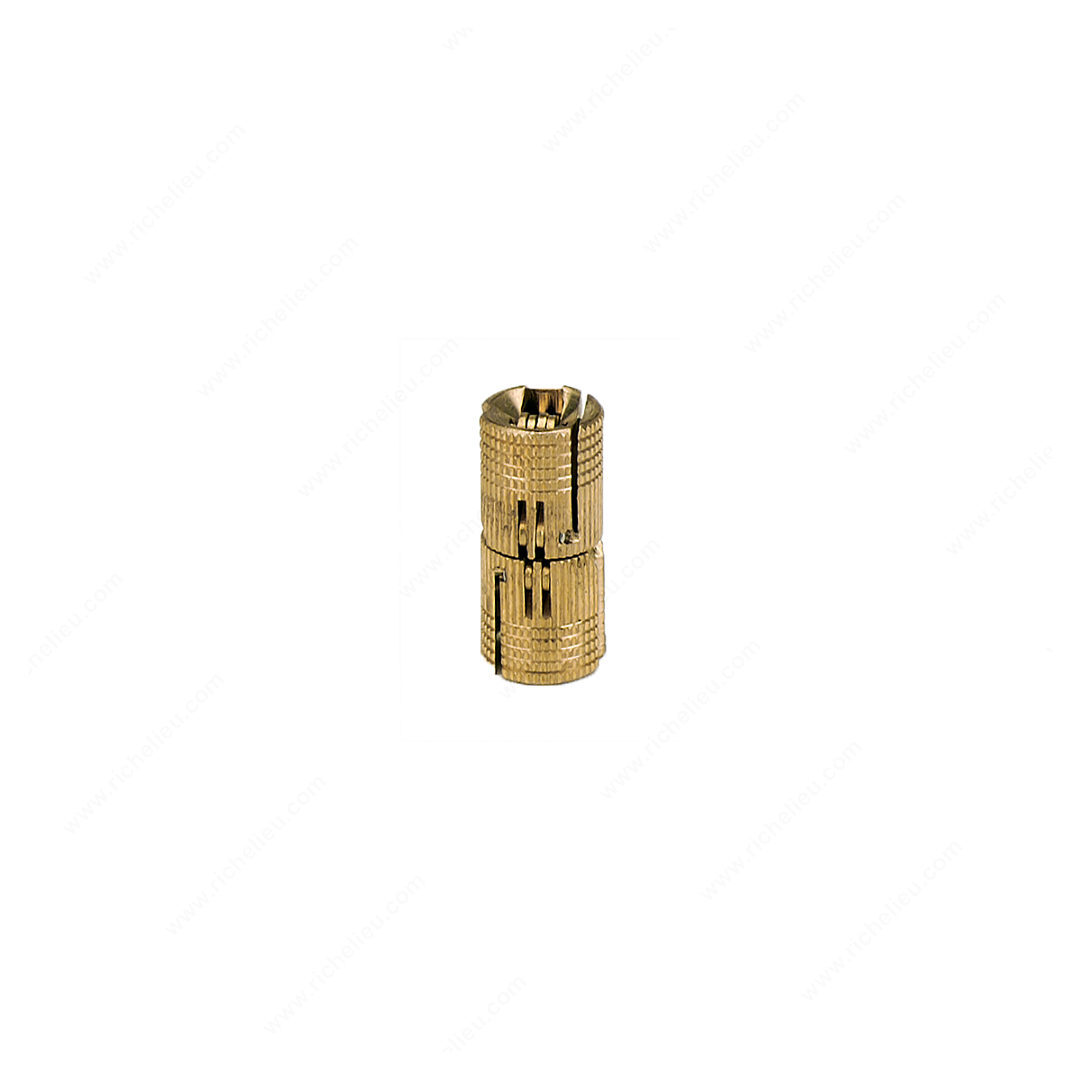

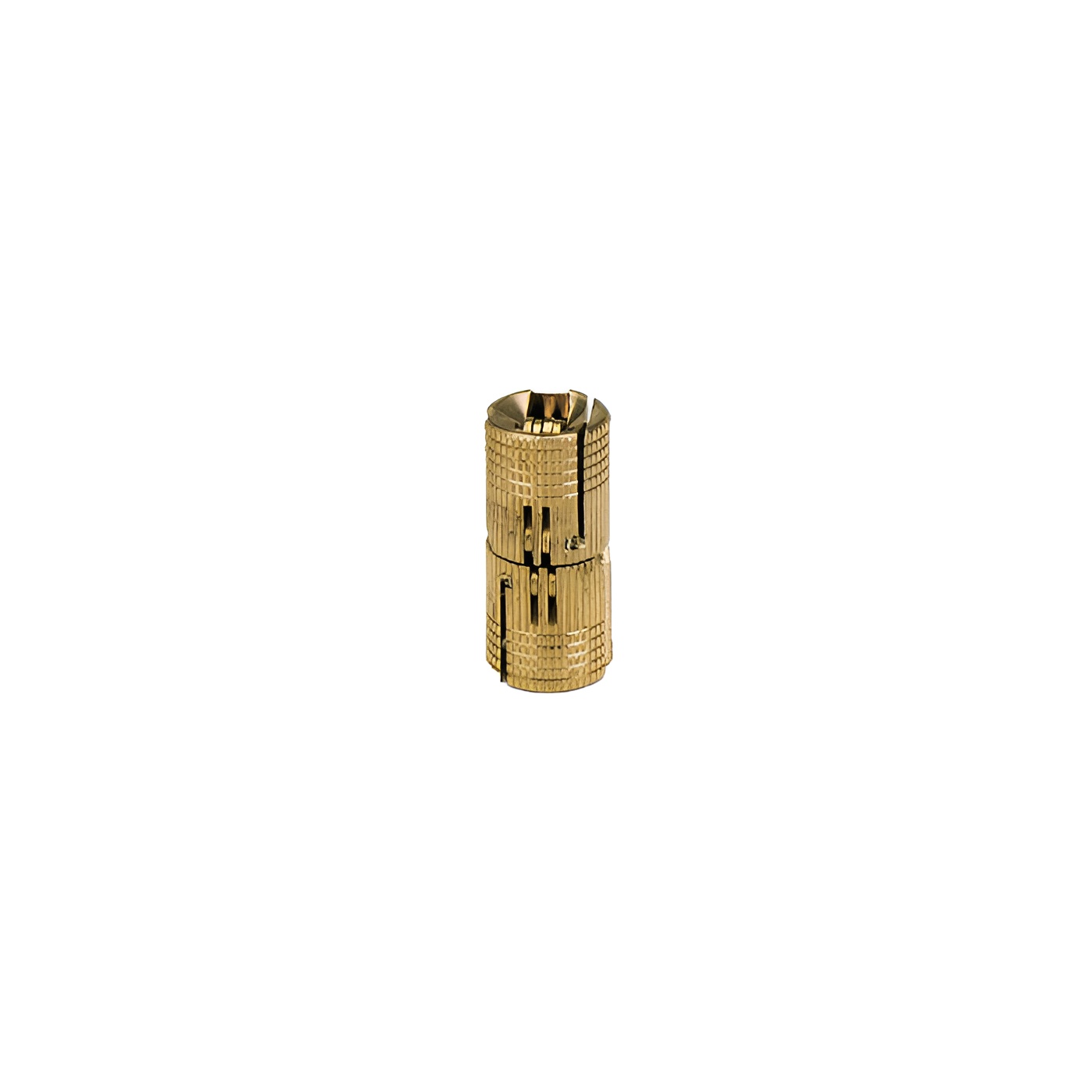

Richelieu 420124130 Concealed Brass Barrel Hinge - 420 Series offers an exceptional blend of aesthetic appeal and enduring performance, making it an ideal choice for light wooden doors. Crafted from solid brass, this hinge not only enhances the visual richness of your installations but also ensures lasting durability. Its contemporary design seamlessly integrates into various architectural styles, while the reversible feature adds versatility to your projects. Designed specifically for wooden doors, this hinge requires a minimum door thickness of 5/8 inch and is suitable for standard door applications. The concealed design allows for a clean look, free of visible hardware, while still providing reliability. Installation is straightforward, with a knock-in fixing type and included screws for convenience. With a diameter of 15/32 inch and a height of 3/4 inch, the hinge maintains a discreet profile, allowing doors to swing smoothly with a leaf gap of 17/32 inch. The drilling depth of 17/32 inch and door/jamb gap of 3/32 inch ensure precise fitting, while the hinge's center-to-center measurement of 25/32 inch allows for accurate placement. Richelieu's 420124130 hinge is not recommended for vertical applications, making it perfect for traditional horizontal door setups. Elevate your door hardware solutions with this exceptional concealed hinge.
Concealed Brass Barrel Hinge - 420 Series
Brand: Soss
Center to Center (mm): 20 mm
Diameter (mm): 12 mm
Dimension A: 12 mm
Dimension B: 13.3 mm
Dimension C: 19 mm
Dimension D: 2.7 mm
Dimension E: 2.1 mm
Door/ Jamb Gap: 2.7 mm
Door/ Jamb Inset: 2.1 mm
Drill Bit: 12 mm
Drilling Depth (mm): 13.5 mm
Finish: Brass
Fixing Type: Knock-In
Handedness: Reversible
Height: 19 mm
Leaf Gap: 13.3 mm
Length: 12 mm
Material: Solid Brass
Minimum Door Thickness: 5/8 in
Product #: 420124130
Product number: 420124130
Product №: 420124130
Screw/ Nail: Included
Type of Hinge: Wood Door Only
Unit 1: package - 24
Use Type: Standard Door
Width: 12 mm
