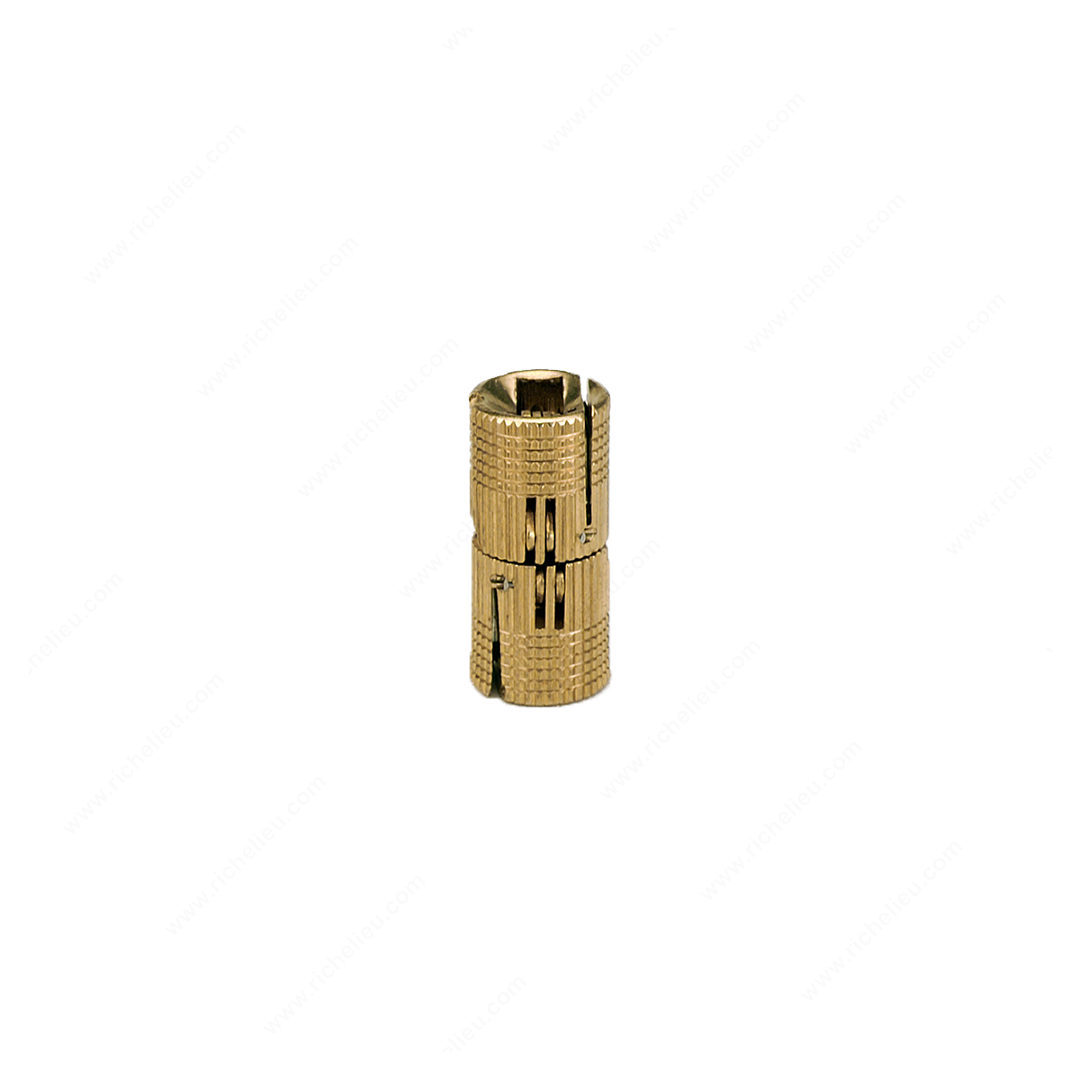

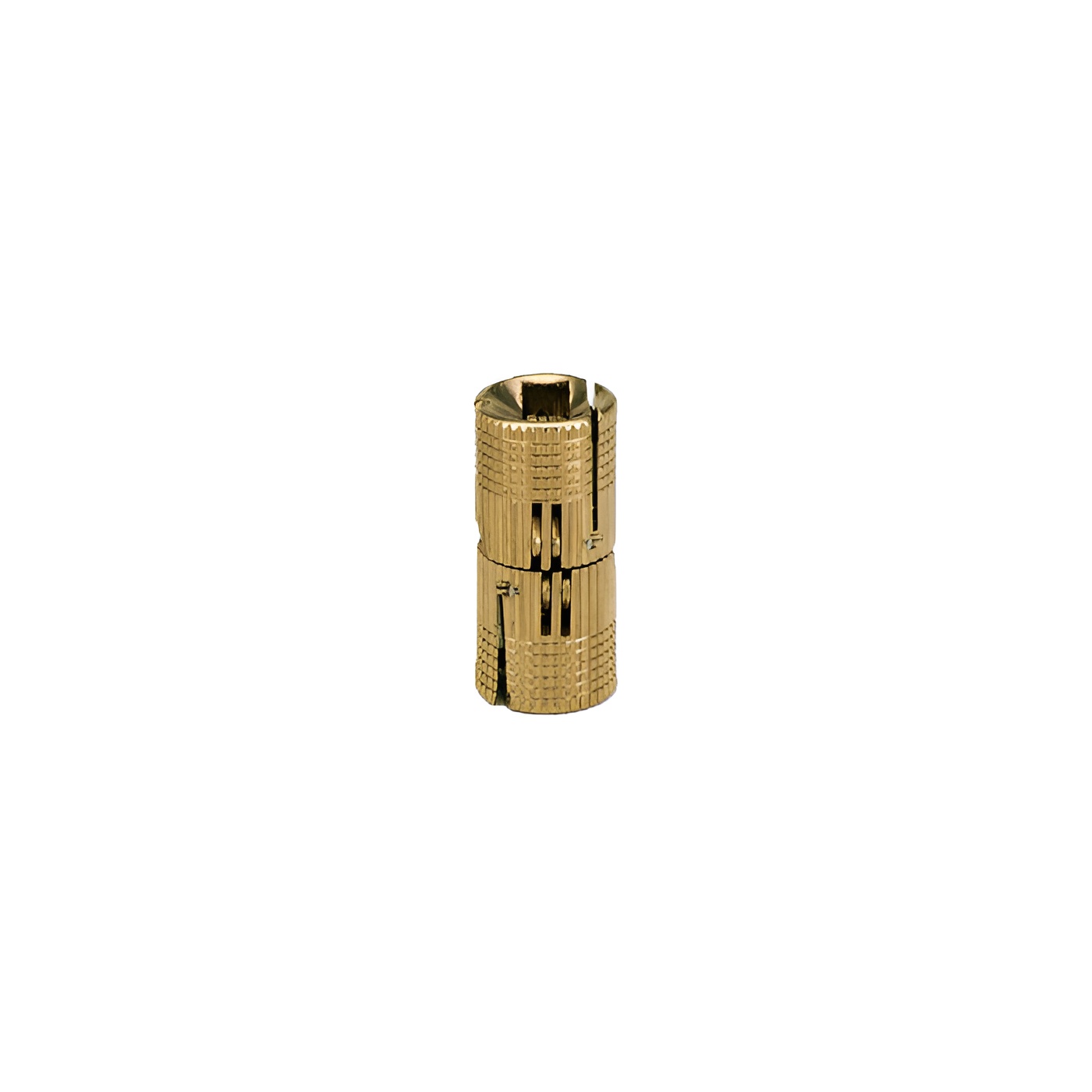

Richelieu 420144130 Concealed Brass Barrel Hinge - 420 Series combines elegance with functionality, making it an ideal choice for light wooden doors. This hinge is designed to be installed seamlessly, providing a clean aesthetic while ensuring durability in various applications. Crafted from solid brass, it not only enhances the visual appeal of your doors but also guarantees longevity. Measuring 29/32 inches in height and featuring a diameter of 9/16 inches, this hinge is engineered for precision. With a minimum door thickness requirement of 3/4 inch and a door/jamb gap of 1/8 inch, it is suitable for standard door applications. The reversible handedness allows for versatile installation, accommodating different door configurations. Installation is straightforward with the knock-in fixing type and includes screws for added convenience. The drilling depth of 5/8 inches and the compatible drill bit size of 9/16 inches ensure a perfect fit. However, it's important to note that this hinge is not recommended for vertical applications. For a hinge that marries style with reliable performance, the Richelieu 420144130 is an outstanding choice for building professionals and discerning homeowners alike.
Concealed Brass Barrel Hinge - 420 Series
Brand: Soss
Center to Center (mm): 23 mm
Diameter (mm): 14 mm
Dimension A: 14 mm
Dimension B: 15.5 mm
Dimension C: 23 mm
Dimension D: 3 mm
Dimension E: 3 mm
Door/ Jamb Gap: 3 mm
Door/ Jamb Inset: 3 mm
Drill Bit: 14 mm
Drilling Depth (mm): 15.5 mm
Finish: Brass
Fixing Type: Knock-In
Handedness: Reversible
Height: 23 mm
Leaf Gap: 15.5 mm
Length: 14 mm
Material: Solid Brass
Minimum Door Thickness: 3/4 in
Product #: 420144130
Product number: 420144130
Product №: 420144130
Screw/ Nail: Included
Type of Hinge: Wood Door Only
Unit 1: package - 24
Use Type: Standard Door
Width: 14 mm
