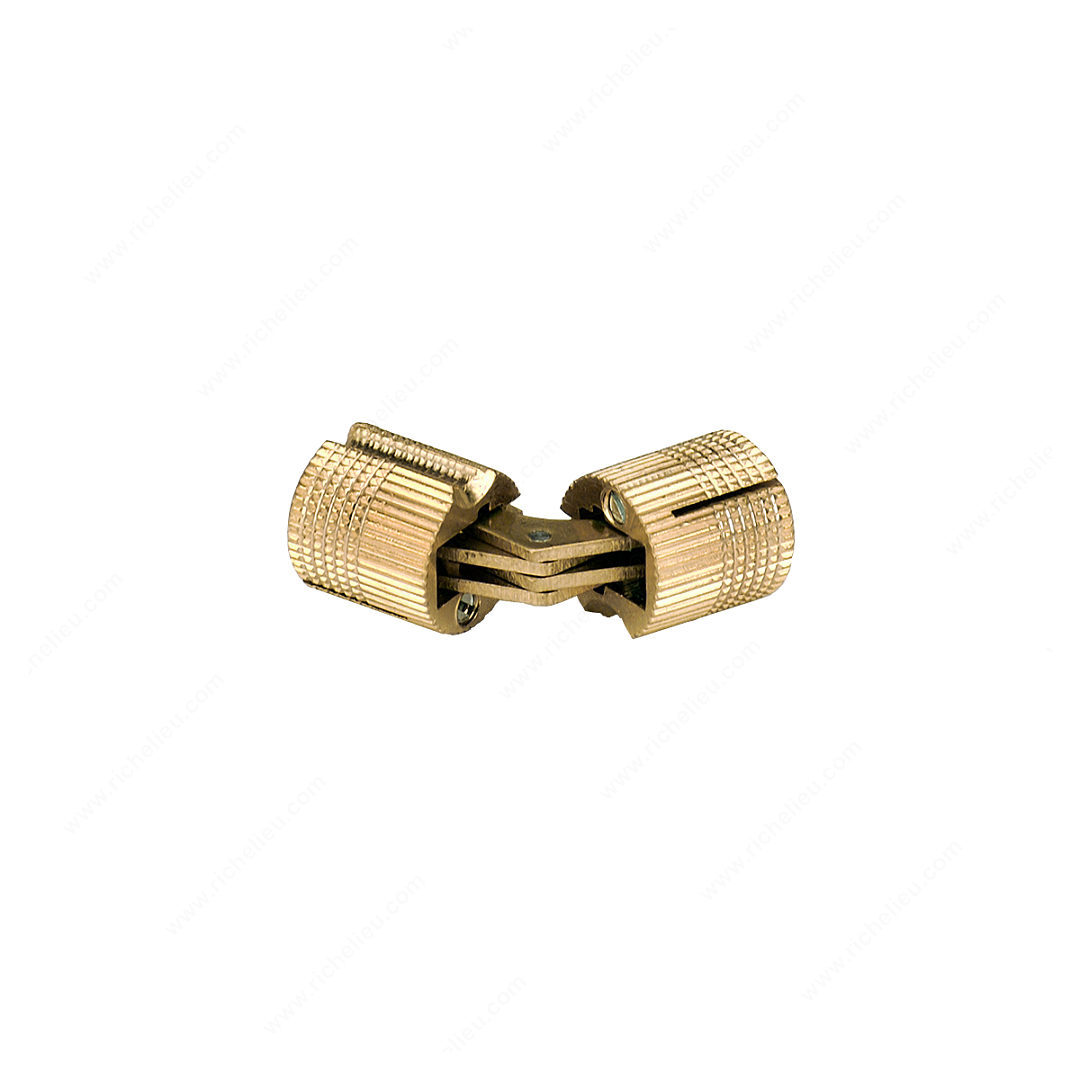

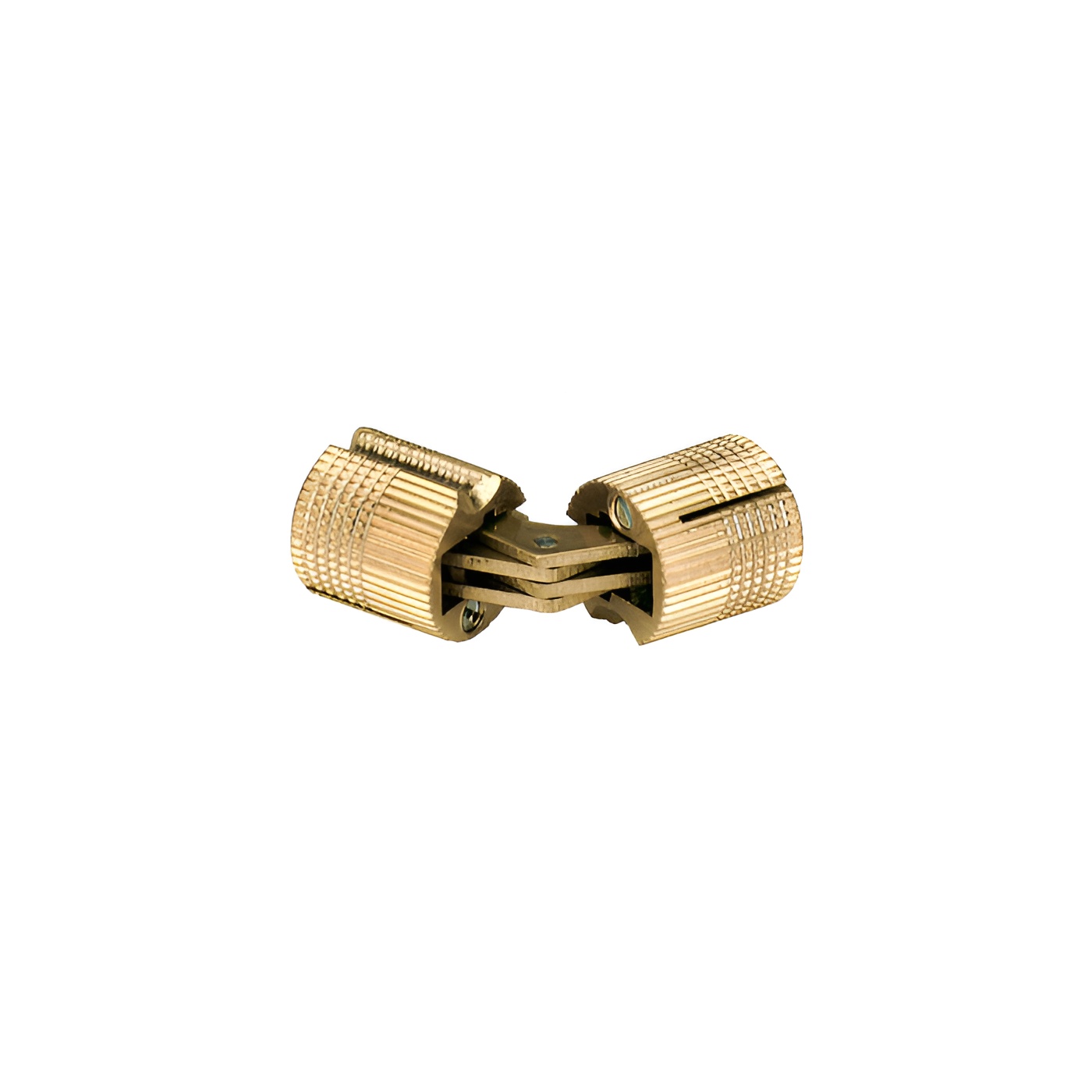

Richelieu 420164130 Concealed Brass Barrel Hinge - 420 Series offers an exceptional blend of durability and contemporary style, making it an ideal choice for light wooden doors. This concealed hinge is designed for easy installation, allowing for a clean aesthetic that enhances the overall appearance of your project. It is suitable for standard door applications, although it is not recommended for vertical installations. Crafted from solid brass, this hinge not only ensures longevity but also provides a sophisticated finish that complements various interior designs. With a width of 5/8 inches and a height of 15/16 inches, it fits seamlessly within the door structure. The hinge features a reversible design, accommodating both left and right-handed doors, while its knock-in fixing type simplifies the installation process. The Richelieu 420164130 hinge requires a minimum door thickness of 7/8 inches and includes screws for convenient setup. Key specifications include a center-to-center measurement of 31/32 inches and a door/jamb gap of 1/8 inches. Whether you are a building professional or a knowledgeable homeowner, this hinge provides a reliable solution for enhancing your door's functionality and style.
Concealed Brass Barrel Hinge - 420 Series
Brand: Soss
Center to Center (mm): 25 mm
Diameter (mm): 16 mm
Dimension A: 16 mm
Dimension B: 16.5 mm
Dimension C: 23.5 mm
Dimension D: 3 mm
Dimension E: 2.3 mm
Door/ Jamb Gap: 3 mm
Door/ Jamb Inset: 2.3 mm
Drill Bit: 16 mm
Drilling Depth (mm): 16.5 mm
Finish: Brass
Fixing Type: Knock-In
Handedness: Reversible
Height: 23.5 mm
Leaf Gap: 16.5 mm
Length: 16 mm
Material: Solid Brass
Minimum Door Thickness: 7/8 in
Product #: 420164130
Product number: 420164130
Product №: 420164130
Screw/ Nail: Included
Type of Hinge: Wood Door Only
Unit 1: package - 24
Use Type: Standard Door
Width: 16 mm
