Richelieu 420203145 Concealed Steel Hinge - Model 203 seamlessly combines aesthetics and functionality, making it an exceptional choice for both wood and metal doors. Engineered for easy installation, this hinge is ideal for a variety of applications, ensuring you meet all your project requirements with confidence. Crafted from durable steel and finished in elegant satin chrome, this hinge not only enhances the visual appeal of your doors but also promises long-lasting performance. With a reversible design, it offers versatility for different setups, while its mortise mounting type guarantees a clean, flush appearance. The hinge opens to a full 180°, providing unrestricted access and convenience. Key specifications include a minimum door thickness of 3/4 inch and a leaf body mortise length of 3/4 inch, ensuring compatibility with various door styles. The door/jamb gap is set at 7/64 inch, with a gap in the closed position of just 1/32 inch, allowing for precise alignment. Additionally, the product includes necessary screws for easy installation. Whether you're a building professional or a knowledgeable homeowner, the Richelieu Concealed Steel Hinge is a reliable solution that elevates both function and form in your projects.

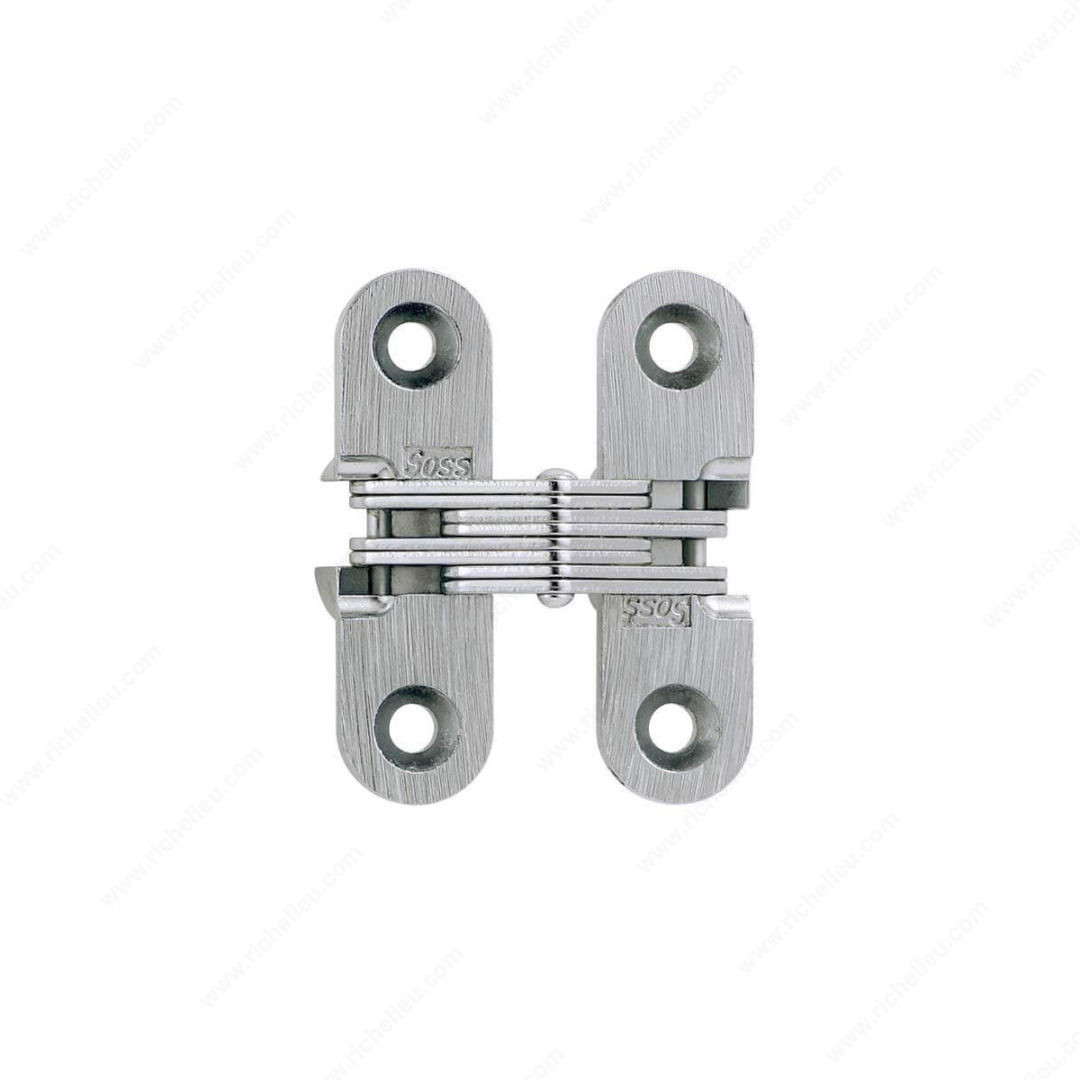

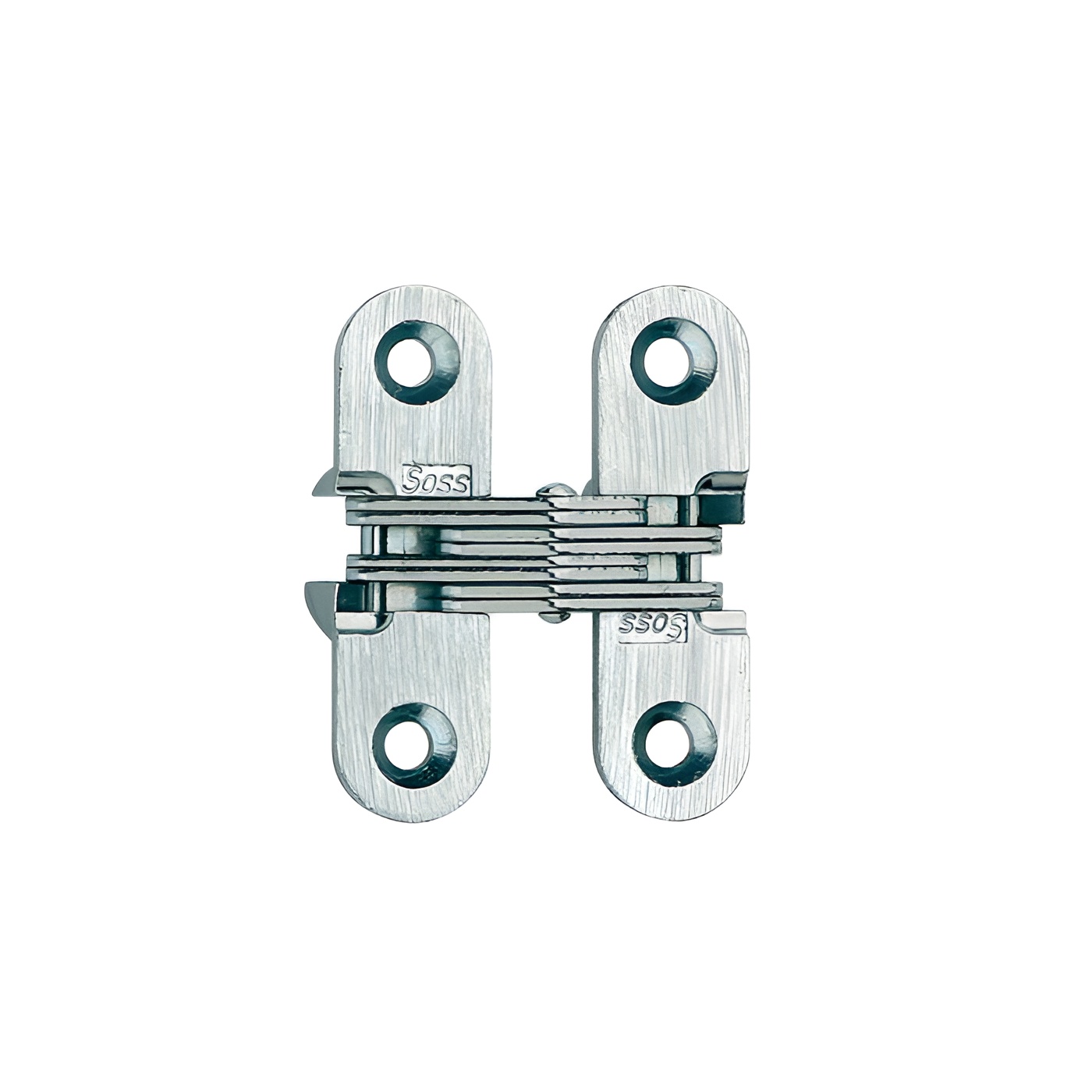

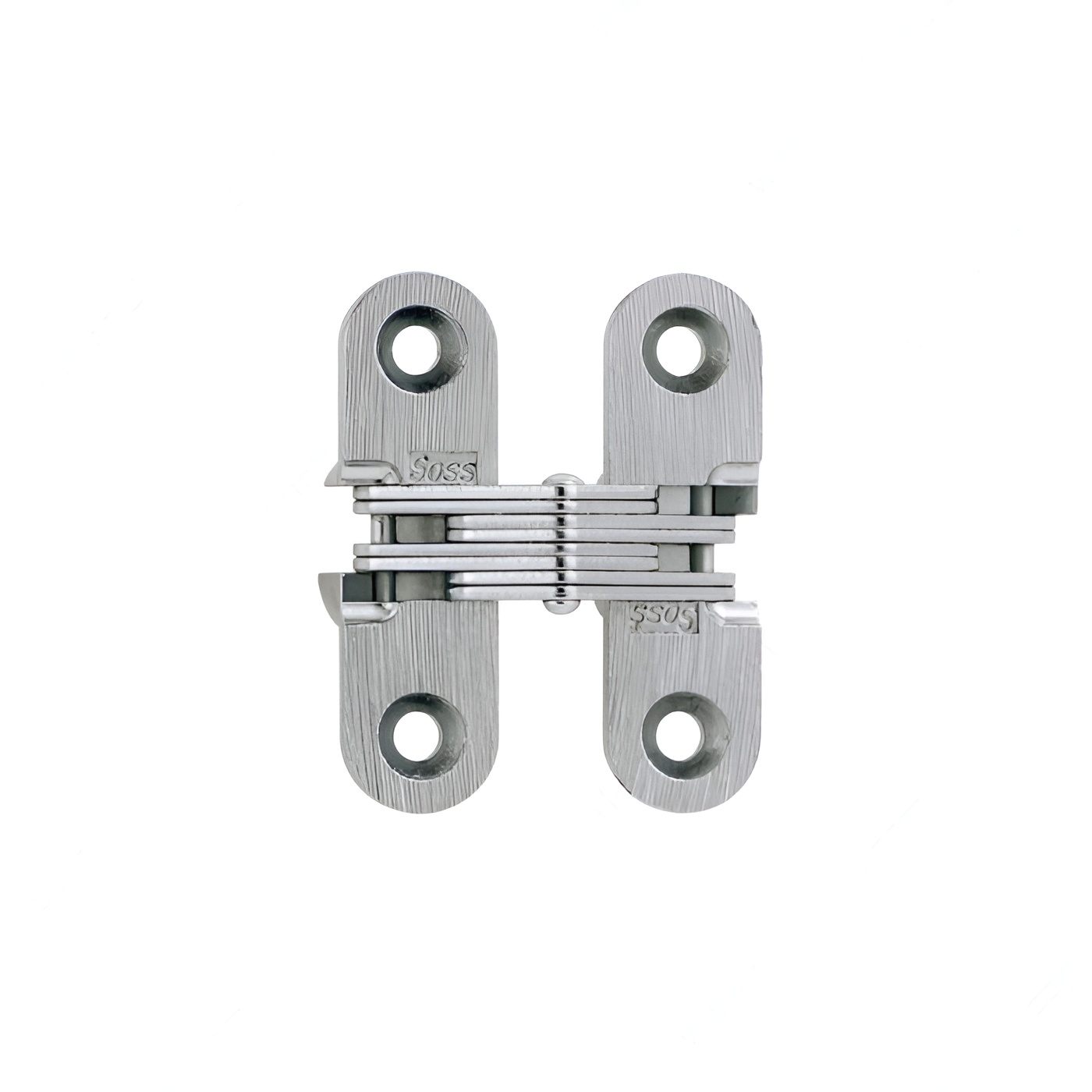

Concealed Steel Hinge - Model 203
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 1/4 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 1 3/4 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 3/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 3/16 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Satin Chrome
Fixing Type: Screw-On
For Hinge #: 203
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 3/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 3/16 in
Length: 1 3/4 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420203145
Product number: 420203145
Product №: 420203145
Screw/ Nail: Included
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #6 x 1" (3.5 mm x 25 mm)
