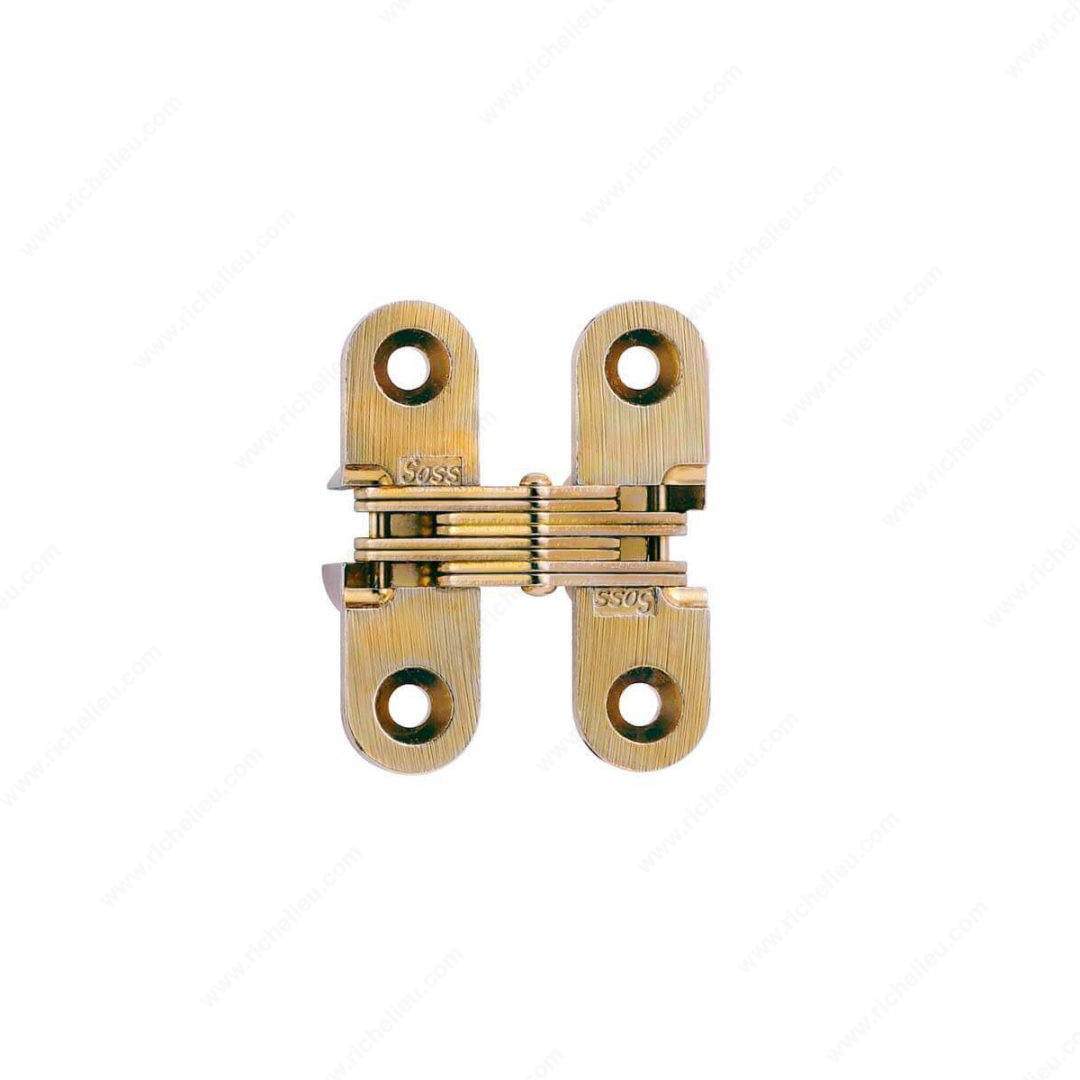

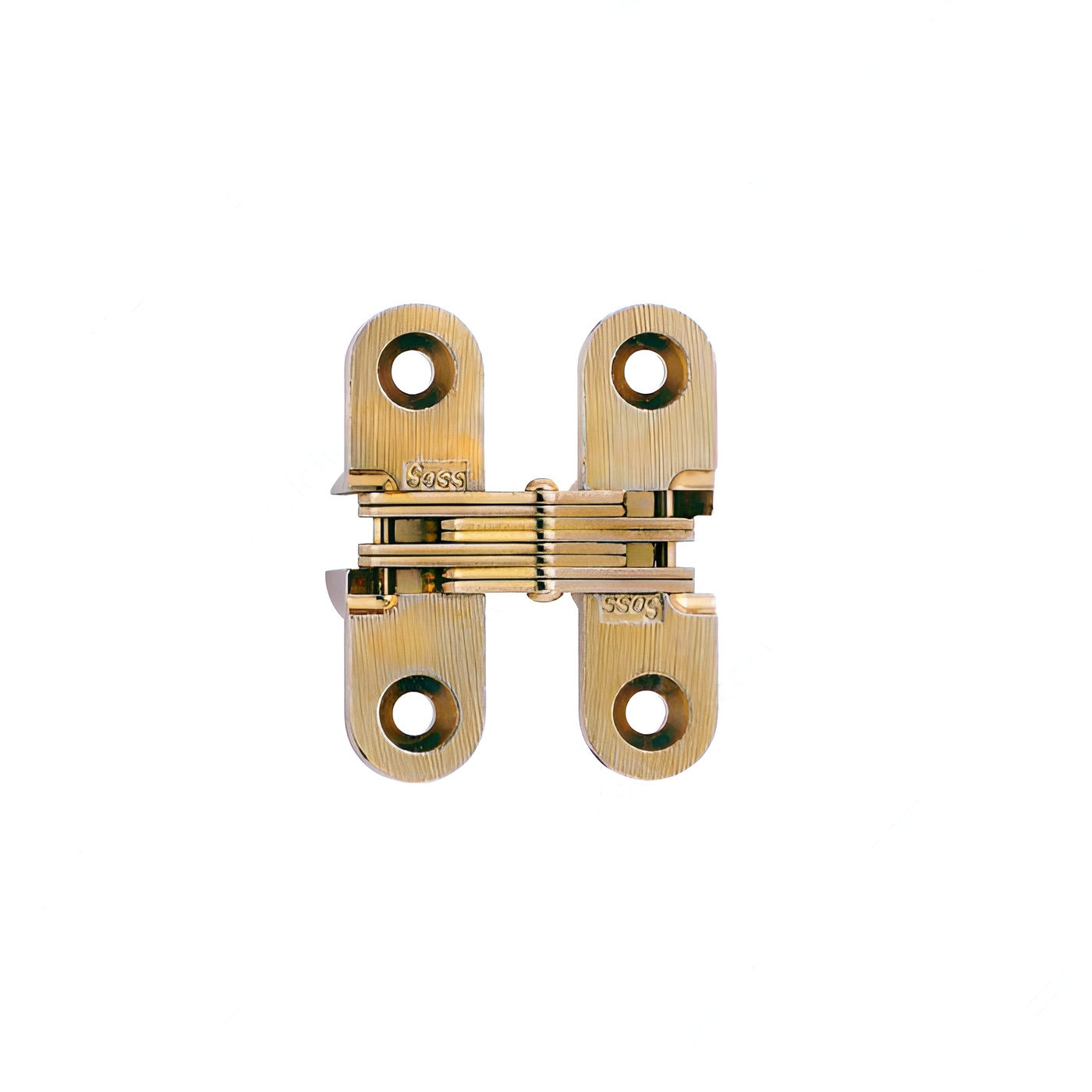

Richelieu 420203160 Concealed Steel Hinge - Model 203 offers a perfect blend of style and functionality, making it an ideal choice for both wood and metal doors. Designed for ease of installation, this hinge is versatile enough to meet a variety of applications. With a sleek satin brass finish, it not only enhances the aesthetic appeal of your doors but also promises durability over time. This hinge features a 180° opening angle, allowing for maximum accessibility, and a mortise mounting type that ensures a seamless appearance. The hinge has a minimum door thickness requirement of 3/4 inch, making it suitable for a range of door styles. With dimensions of 1 3/4 inches in length and 1/2 inch in width, it fits discreetly within your door’s design. The Richelieu concealed hinge accommodates a door/jamb gap of 7/64 inches, ensuring a tight fit. Additionally, its reversible handedness allows for flexible installation options. Equipped with included screws for straightforward setup, this hinge is a reliable choice for professionals and knowledgeable homeowners alike. Elevate your door hardware with the Richelieu 420203160, where quality meets contemporary design.
Concealed Steel Hinge - Model 203
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 1/4 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 1 3/4 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 3/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 3/16 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 203
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 3/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 3/16 in
Length: 1 3/4 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420203160
Product number: 420203160
Product №: 420203160
Screw/ Nail: Included
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #6 x 1" (3.5 mm x 25 mm)
