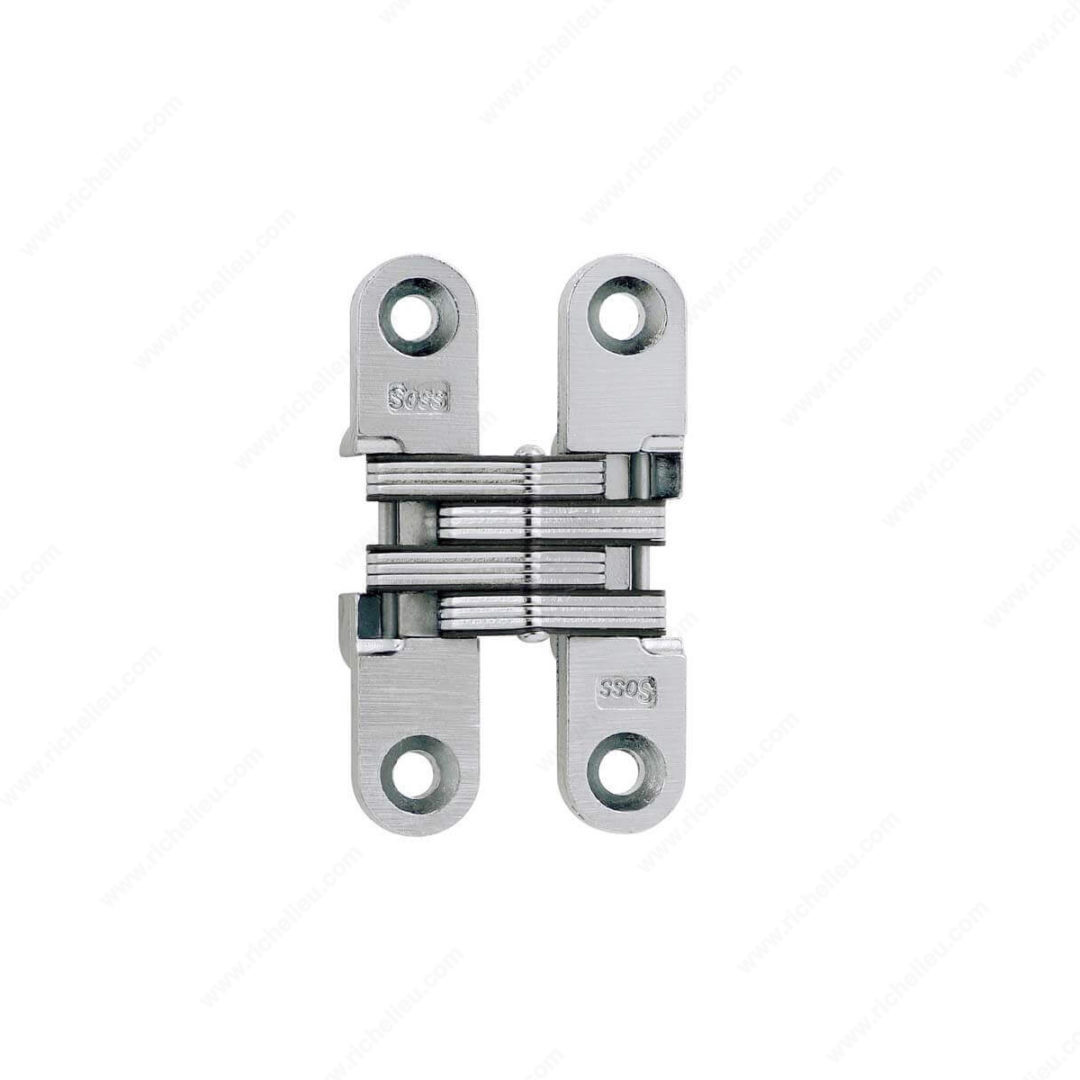

Richelieu 420204145 Concealed Steel Hinge - Model 204 seamlessly combines style and functionality, making it an ideal choice for both wood and metal doors. Designed for ease of installation, this hinge is perfect for a variety of applications, enhancing your projects with its contemporary aesthetic. Crafted from durable steel and finished in Satin Chrome, the hinge not only provides long-lasting performance but also adds a sleek look to your doors. With a generous hinge opening angle of +180°, it allows for maximum accessibility, while the reversible handedness offers flexibility in application. The hinge features a mortise mounting type, ensuring a clean and discreet installation. Measuring 2 3/8 inches in length and 1/2 inch in width, it is compatible with doors that have a minimum thickness of 3/4 inch. The door/jamb gap is meticulously designed at 7/64 inches, maintaining a refined appearance when closed. Additionally, the hinge comes with screws included for easy setup. Whether you're a professional builder or a knowledgeable homeowner, the Richelieu Concealed Steel Hinge provides the reliability and style you need to elevate any door project.
Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Satin Chrome
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204145
Product number: 420204145
Product №: 420204145
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
