Richelieu 420204160 Concealed Steel Hinge - Model 204 offers a seamless blend of contemporary style and exceptional durability, making it an ideal choice for a variety of applications on both wood and metal doors. This reversible hinge features a generous 180° opening angle, allowing for maximum accessibility while maintaining a clean aesthetic. With a height of 23/32 in and a width of 1/2 in, it fits discreetly into your design, ensuring that functionality does not compromise style. The satin brass finish adds a touch of elegance, making this hinge a perfect fit for modern interiors. Designed for ease of installation, the hinge uses a mortise mounting type and is secured with screw-on fixing, with screws included for added convenience. It accommodates a minimum door thickness of 3/4 in and supports a door/jamb gap of 7/64 in, ensuring a precise fit that enhances the overall performance. Constructed from robust steel, this hinge is built to withstand the rigors of everyday use, while its mortise depth of 1/4 in and leaf mortise length of 1 1/4 in guarantee reliable functionality. Upgrade your doors with Richelieu's Model 204 and experience the perfect combination of style and strength.

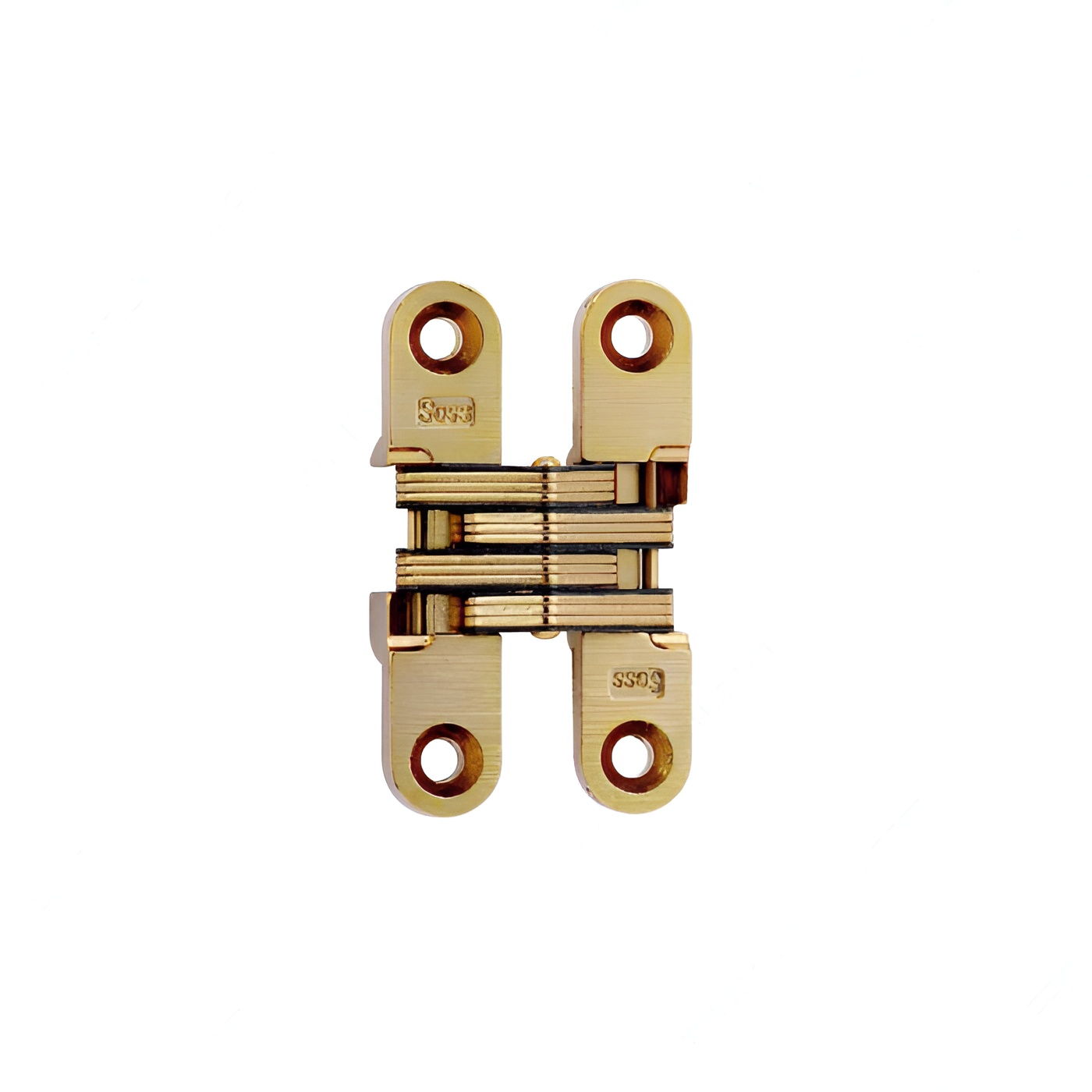

Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204160
Product number: 420204160
Product №: 420204160
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
