Richelieu 42020490 Concealed Steel Hinge - Model 204 offers a seamless blend of contemporary design and robust functionality, making it an ideal choice for both wood and metal doors. Crafted from high-quality steel, this hinge ensures durability and a sleek appearance that enhances any cabinetry or door installation. With a 180° hinge opening angle, it provides ample access and movement, while its reversible handedness allows for versatile applications. The hinge features a screw-on fixing type, with included screws for easy installation. Measuring 2 3/8 inches in length and 1/2 inch in width, it is designed for minimum door thickness of 3/4 inch, making it suitable for various door styles. The Richelieu 42020490 hinge includes a leaf mortise depth of 1/4 inch and a leaf body mortise length of 1 1/4 inches, ensuring a secure fit. The door/jamb gap is optimized at 7/64 inch, providing a precise finish. Finished in black, it complements modern design aesthetics while remaining functional. Whether you are outfitting a new kitchen, updating cabinetry, or working on a commercial project, the Richelieu concealed hinge stands out as a reliable and stylish choice for building professionals and discerning homeowners alike.

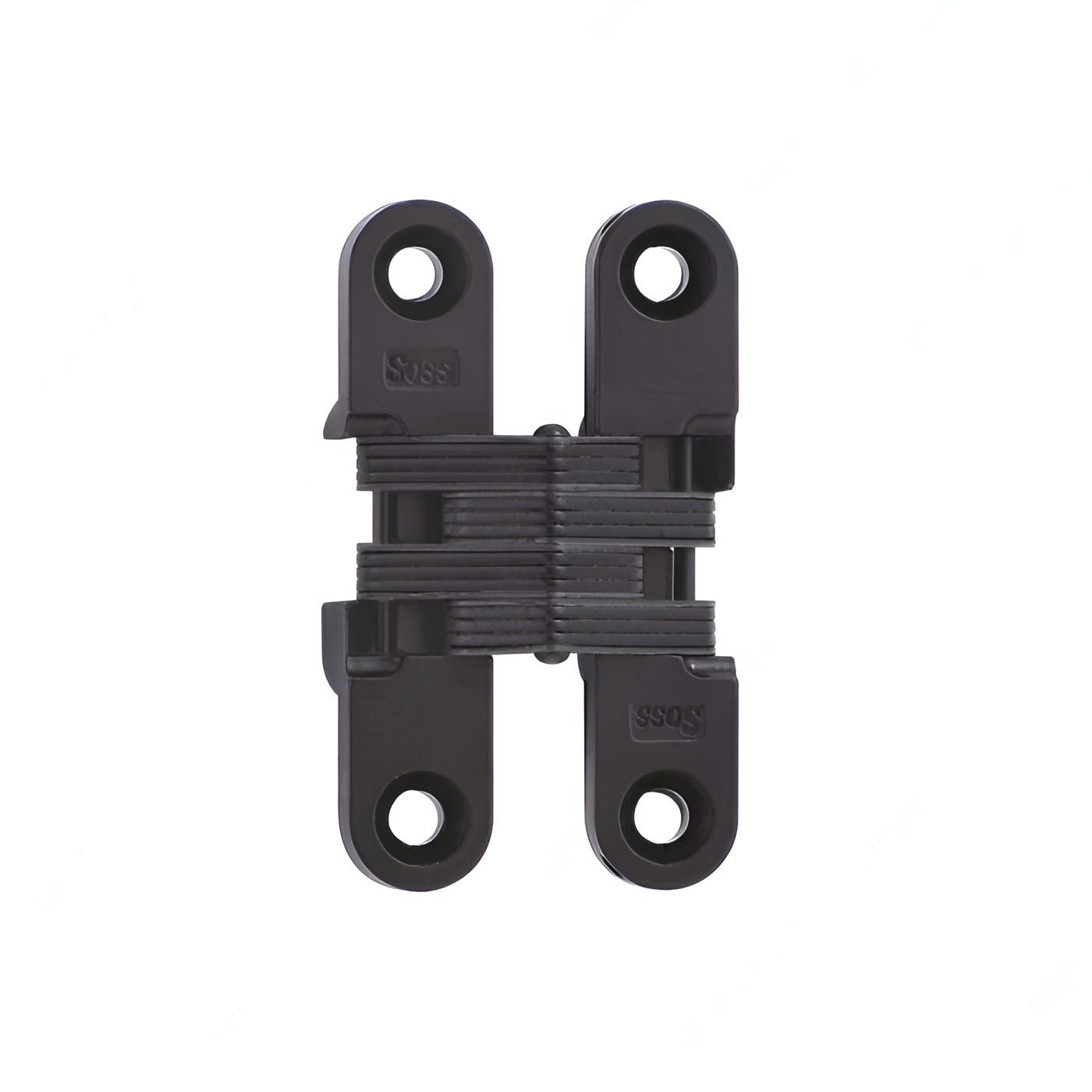

Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Black
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 42020490
Product number: 42020490
Product №: 42020490
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: case - 10
Unit 2: case - 10
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
