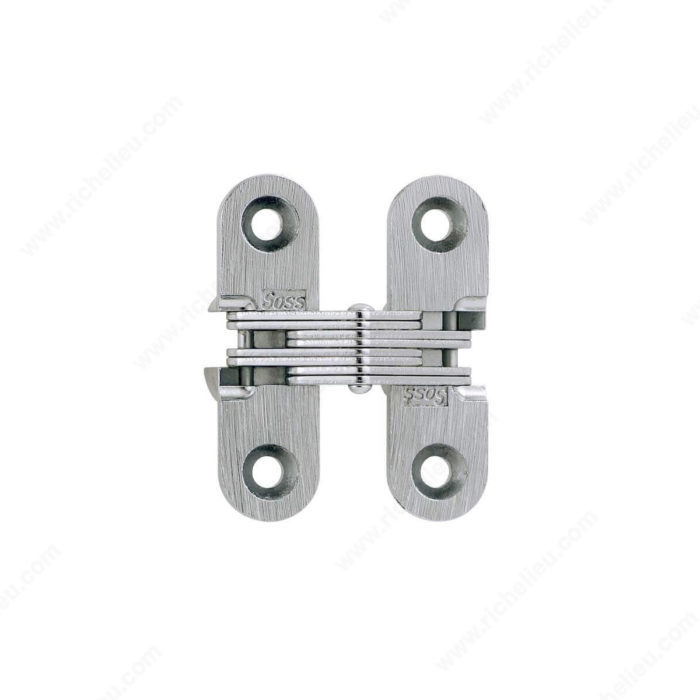

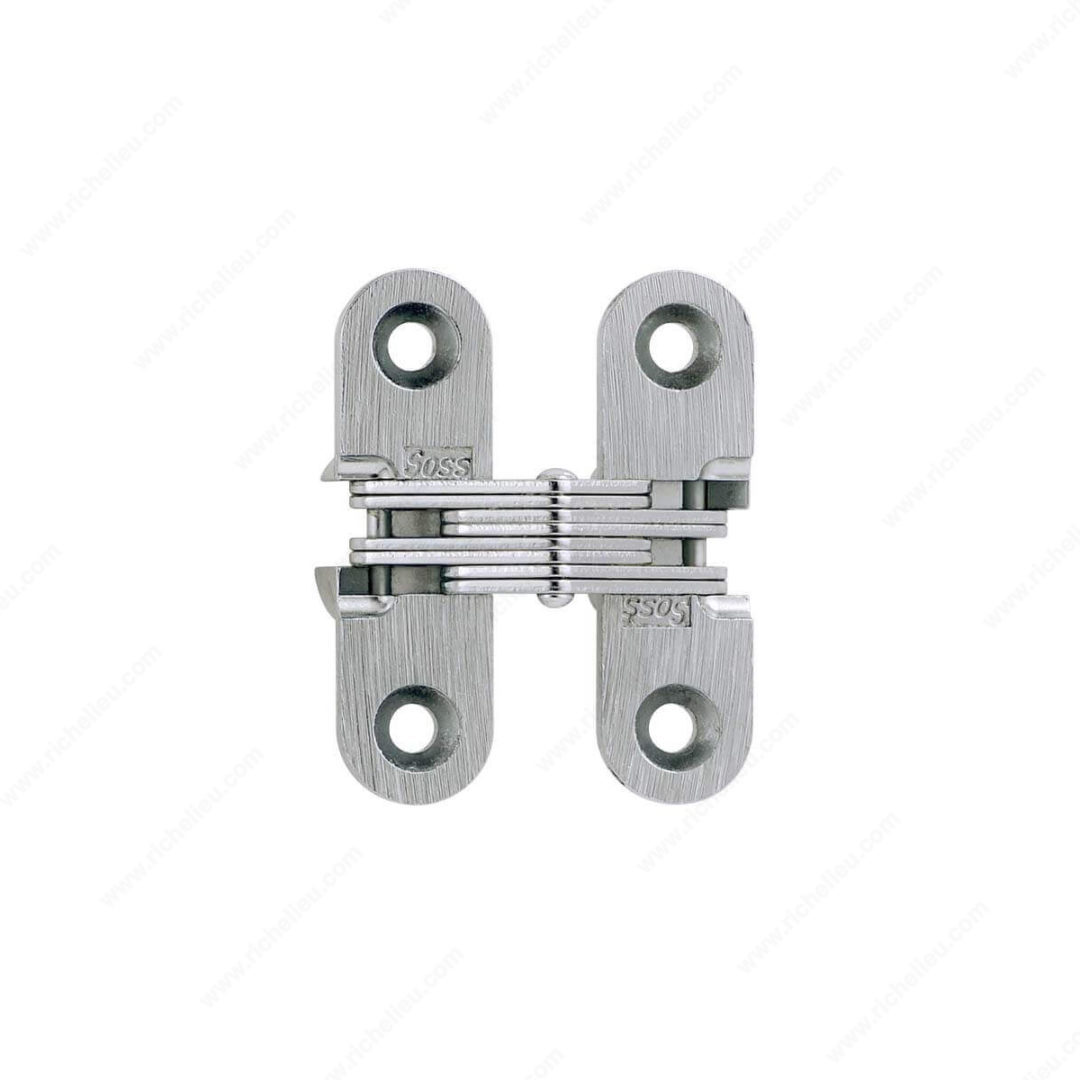

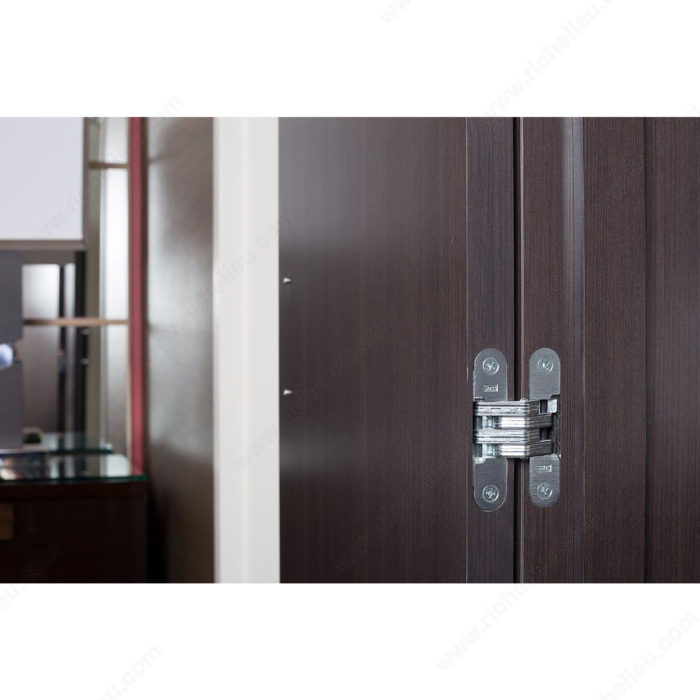

Richelieu 420303145 Concealed Steel Hinge - Model 303 combines contemporary design with exceptional functionality, making it an ideal choice for various wood and metal door applications. Engineered for ease of installation, this hinge ensures a sleek and unobtrusive appearance while delivering superior durability. Designed with a cabinet angle of 180°, the hinge allows for seamless door operation, opening fully to enhance accessibility. Its reversible handedness provides versatile installation options, catering to diverse project needs. The satin chrome finish not only adds a touch of elegance but also contributes to the hinge's resilience against wear and tear. With a minimum door thickness requirement of 11/16 in, the hinge supports a robust construction. It features a mortise mounting type, ensuring a secure fit within the door frame. The hinge's dimensions include a height of 41/64 in, a width of 1/2 in, and a length of 1 33/64 in, with a leaf mortise length of 19/32 in. The door/jamb gap measures 1/8 in, allowing for an optimal seal when closed. Whether your project is commercial or residential, Richelieu's concealed hinge is a reliable choice that enhances both functionality and aesthetic appeal.
Concealed Steel Hinge - Model 303
Cabinet Angle: 180°
Center to Center (mm): 1 in

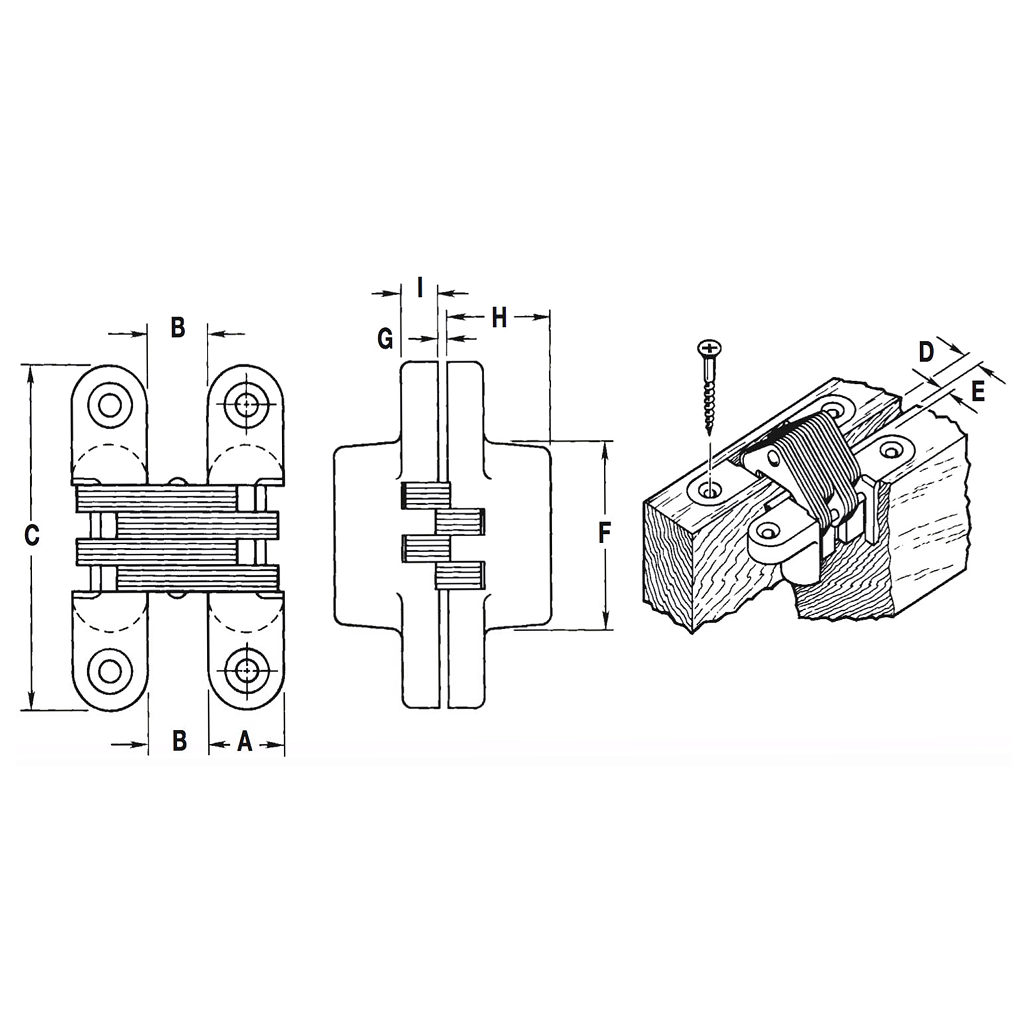

Dimension A: 1/2 in
Dimension B: 3/8 in
Dimension C: 1 33/64 in
Dimension D: 1/8 in
Dimension E: 1/8 in
Dimension F: 19/32 in
Dimension G: 1/32 in
Dimension H: 41/64 in
Dimension I: 3/64 in
Door/ Jamb Gap: 1/8 in
Door/ Jamb Gap (mm): 1/8 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 3/8 in
Finish: Satin Chrome
Fixing Type: Screw-On
For Hinge #: 303
Handedness: Reversible
Height: 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 19/32 in
Leaf Gap: 3/8 in
Leaf Mortise Depth: 3/64 in
Length: 1 33/64 in
Material: Steel
Minimum Door Thickness: 11/16 in
Mounting Type: Mortise
Product #: 420303145
Product number: 420303145
Product №: 420303145
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #5 x 3/4" (3.5 mm x 19 mm)
