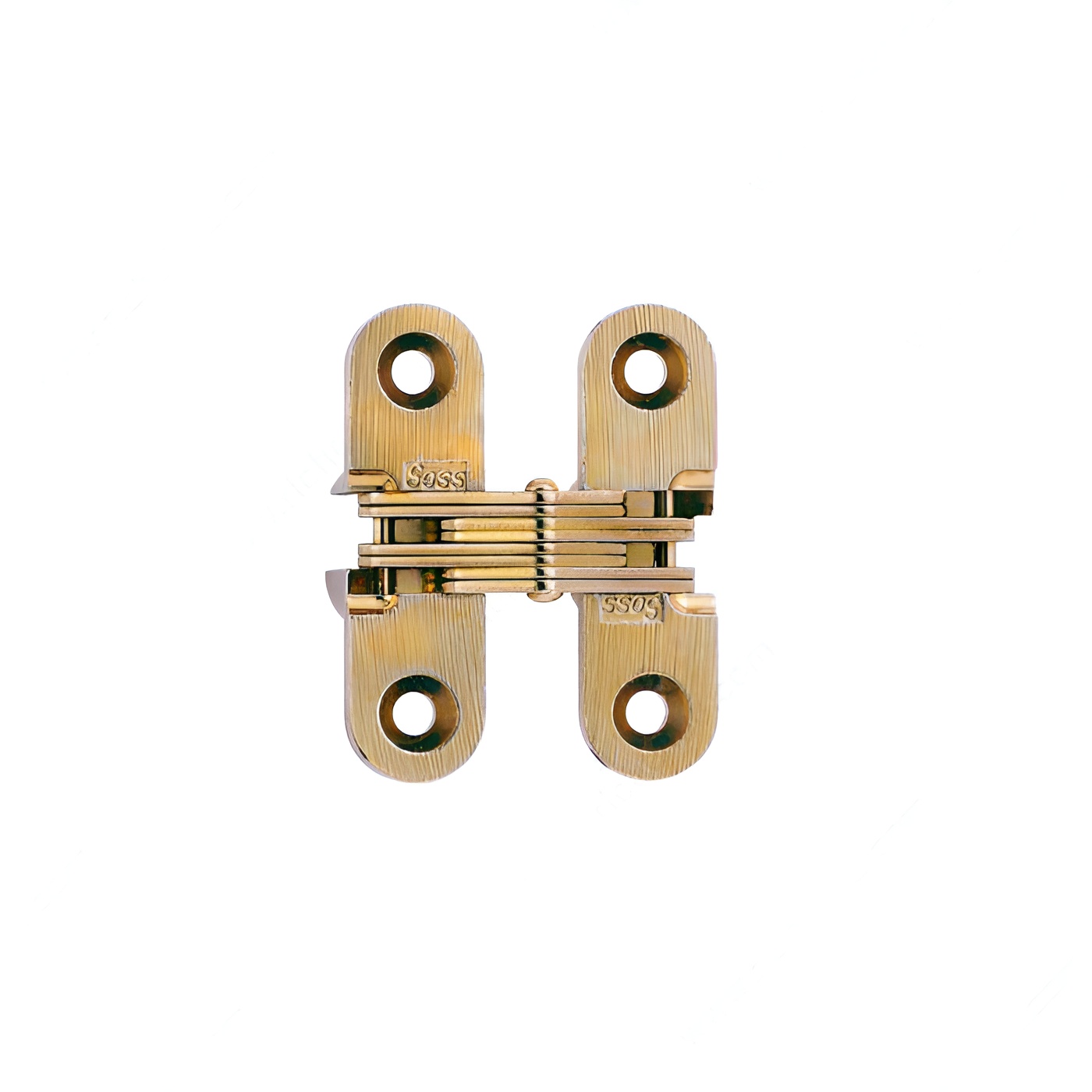

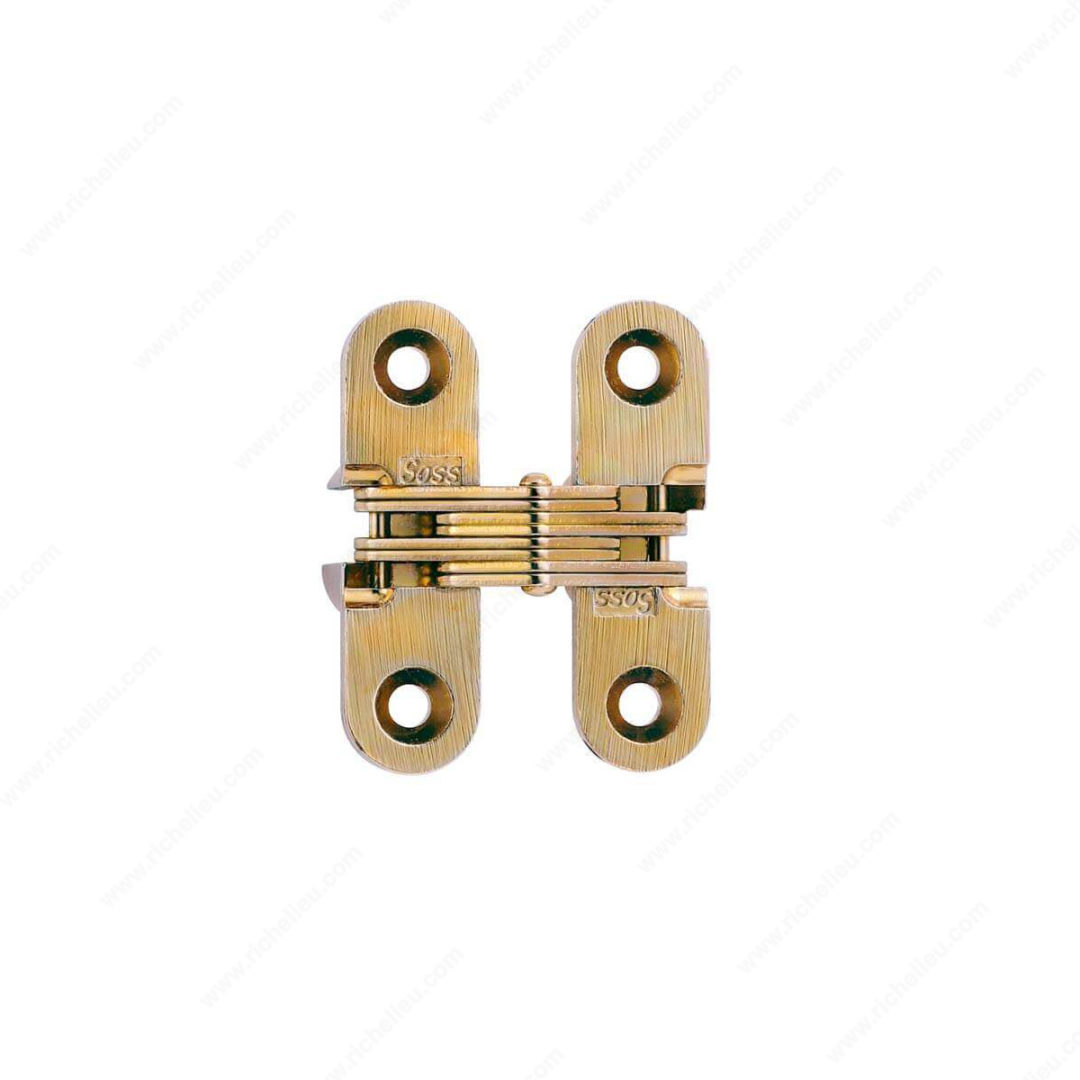

Richelieu 420303160 Concealed Steel Hinge - Model 303 delivers an exceptional blend of contemporary style and robust functionality, making it ideal for various applications on both wood and metal doors. The hinge features a sleek satin brass finish that enhances its modern appeal while ensuring long-lasting durability. Designed for easy installation, this reversible hinge accommodates a cabinet angle of 180°, allowing for maximum access and flexibility. With a minimum door thickness of 11/16 in, it supports a reliable and secure fit. The concealed design provides a clean aesthetic, as it remains hidden when the door is closed, contributing to a seamless look. Key specifications include a mortise mounting type with a leaf body mortise length of 19/32 in and a leaf gap of 3/8 in. The hinge also features a door/jamb gap of 1/8 in, ensuring precise alignment. With a height of 41/64 in and a width of 1/2 in, it is engineered for stability and strength. Richelieu's hinge is supplied with screws for easy fixing, making it a practical choice for builders and DIY enthusiasts alike. Upgrade your door hardware with the Richelieu 420303160, where quality meets functionality.
Concealed Steel Hinge - Model 303
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 in
Dimension A: 1/2 in
Dimension B: 3/8 in
Dimension C: 1 33/64 in
Dimension D: 1/8 in
Dimension E: 1/8 in
Dimension F: 19/32 in
Dimension G: 1/32 in
Dimension H: 41/64 in
Dimension I: 3/64 in
Door/ Jamb Gap: 1/8 in
Door/ Jamb Gap (mm): 1/8 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 3/8 in
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 303
Handedness: Reversible
Height: 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 19/32 in
Leaf Gap: 3/8 in
Leaf Mortise Depth: 3/64 in
Length: 1 33/64 in
Material: Steel
Minimum Door Thickness: 11/16 in
Mounting Type: Mortise
Product #: 420303160
Product number: 420303160
Product №: 420303160
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 1/2 in
Wood Screw Sizes: #5 x 3/4" (3.5 mm x 19 mm)
