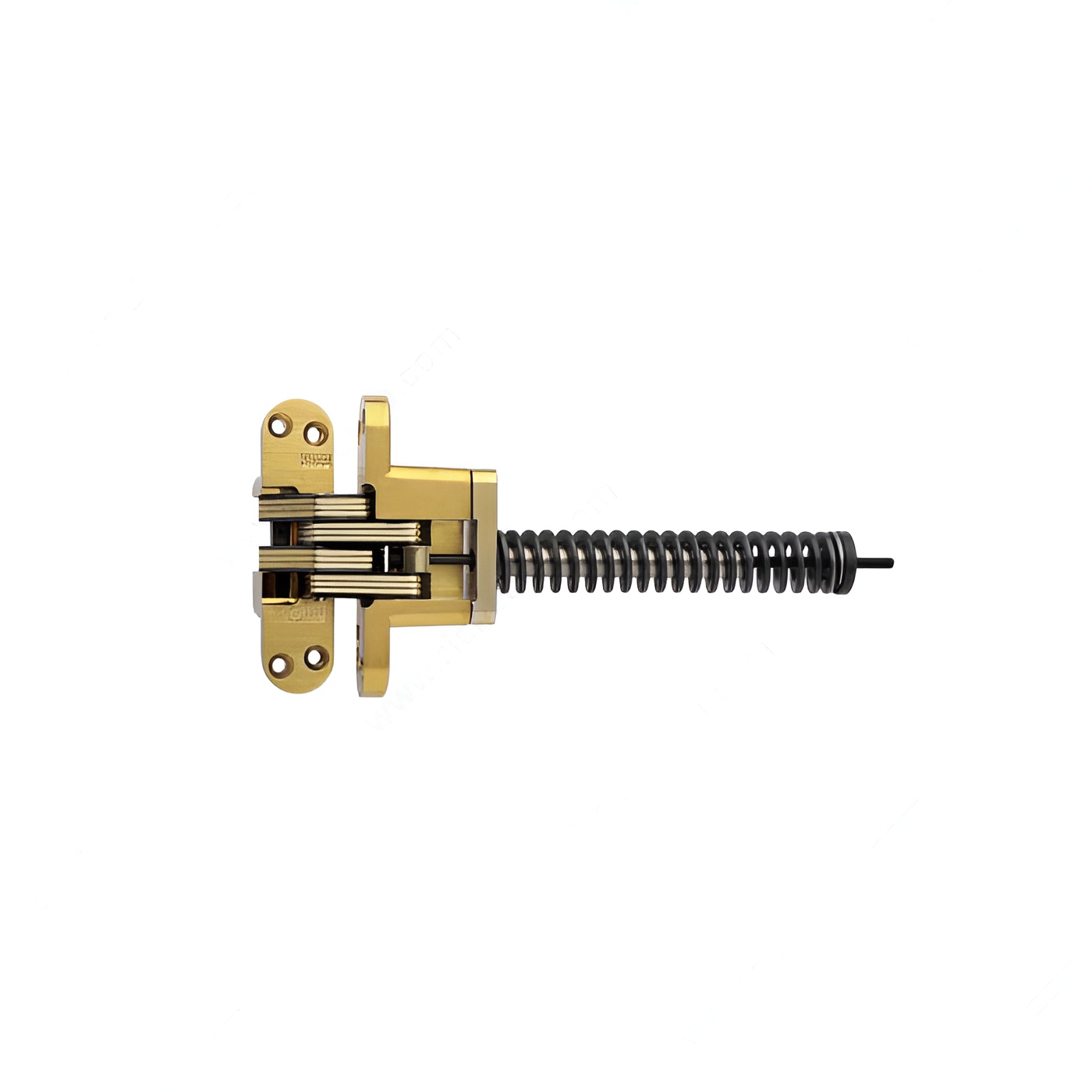

Richelieu 421218160 Concealed Steel Hinge delivers a sophisticated blend of functionality and style, making it an ideal choice for both wood and metal doors. Its contemporary design enhances the overall appearance of cabinetry, while its robust steel construction ensures long-lasting durability. With a generous 180° hinge opening angle, this hinge allows for maximum accessibility and seamless operation. Designed for easy installation, the Richelieu concealed hinge features a mortise mounting type and is reversible, providing flexibility for various applications. It accommodates a minimum door thickness of 1 3/4 inches, making it suitable for a wide range of projects. The satin brass finish adds a touch of elegance, ensuring that this hinge not only performs well but also looks great. Additionally, the hinge offers a fire resistance rating of 20 minutes, meeting safety standards for residential and commercial use. With a leaf body mortise length of 2 15/32 inches and a width of 1 1/8 inches, it’s engineered for precise fit and function. The package includes wood screws for quick installation, allowing you to complete your project efficiently. Trust the Richelieu 421218160 for reliable performance and style in your next design endeavor.
Concealed Steel Hinge
Cabinet Angle: 180°
Center to Center (mm): 7 in
Diameter (mm): 1 41/64 in
Dimension A (mm): 1 41/64 in
Dimension B (mm): 3/8 in
Dimension C (mm): 7 in
Dimension D (mm): 1 in
Door/ Jamb Gap: 7/8 in
Door/ Jamb Gap (mm): 1 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 3/16 in
Drilling Depth (mm): 3/8 in
Finish: Satin Brass
Fire Resistant: 20 minutes
Fixing Type: Screw-On
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180°
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 3/8 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Product #: 421218160
Product number: 421218160
Product №: 421218160
Screw/ Nail: Wood Screw (Included), Screw/Nail (Included)
Standards and Certifications: UL R13638
Type of Hinge: Spring Closer
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
