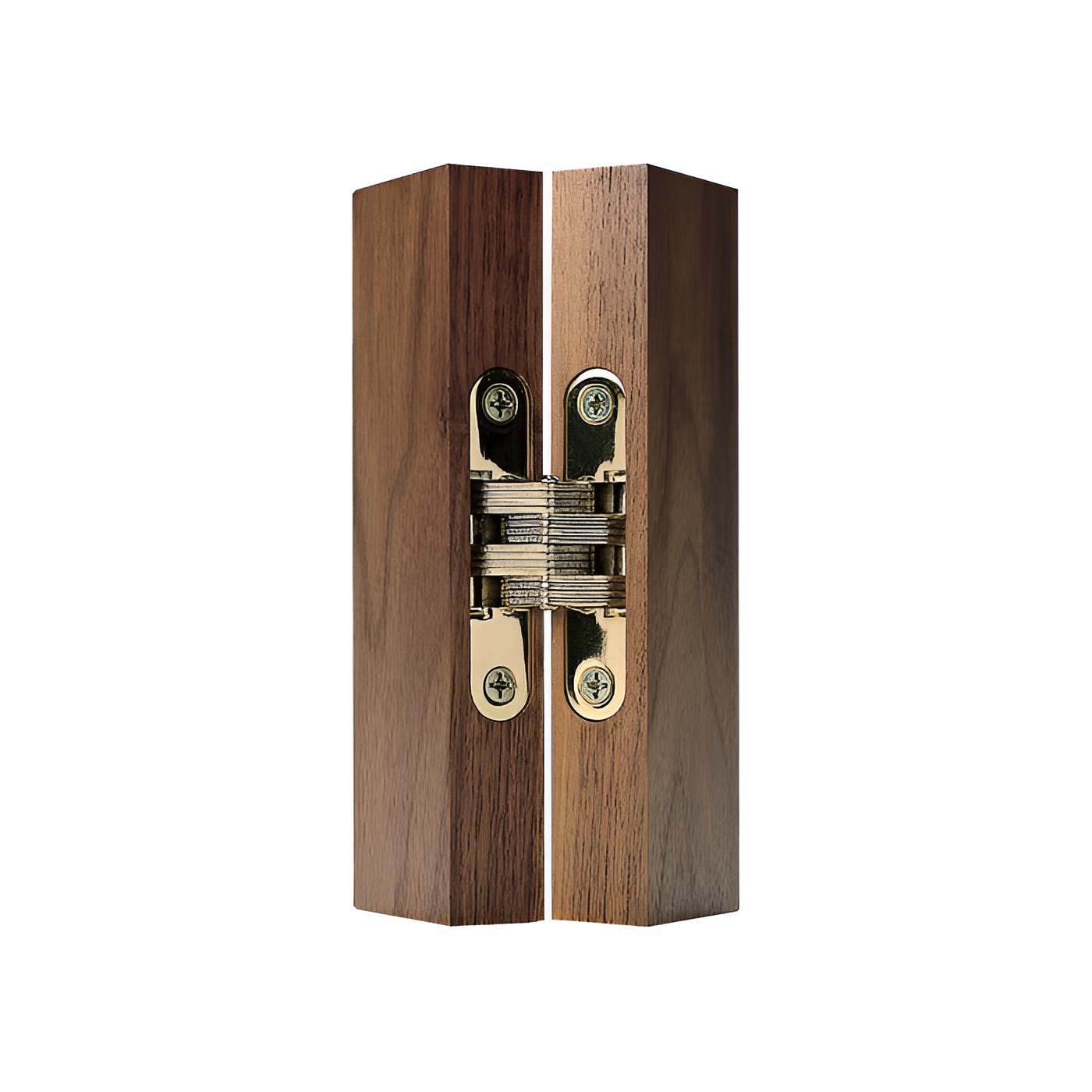

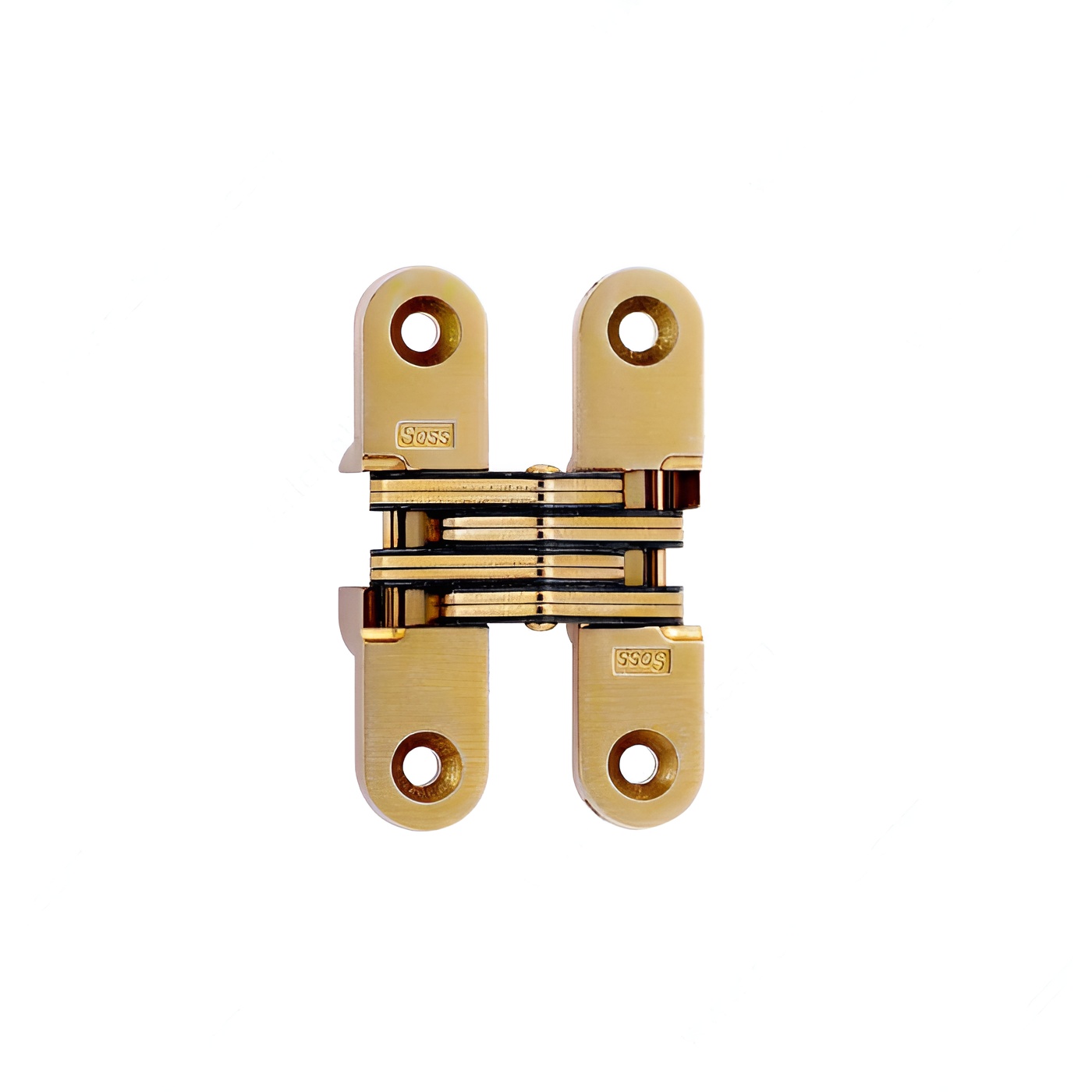

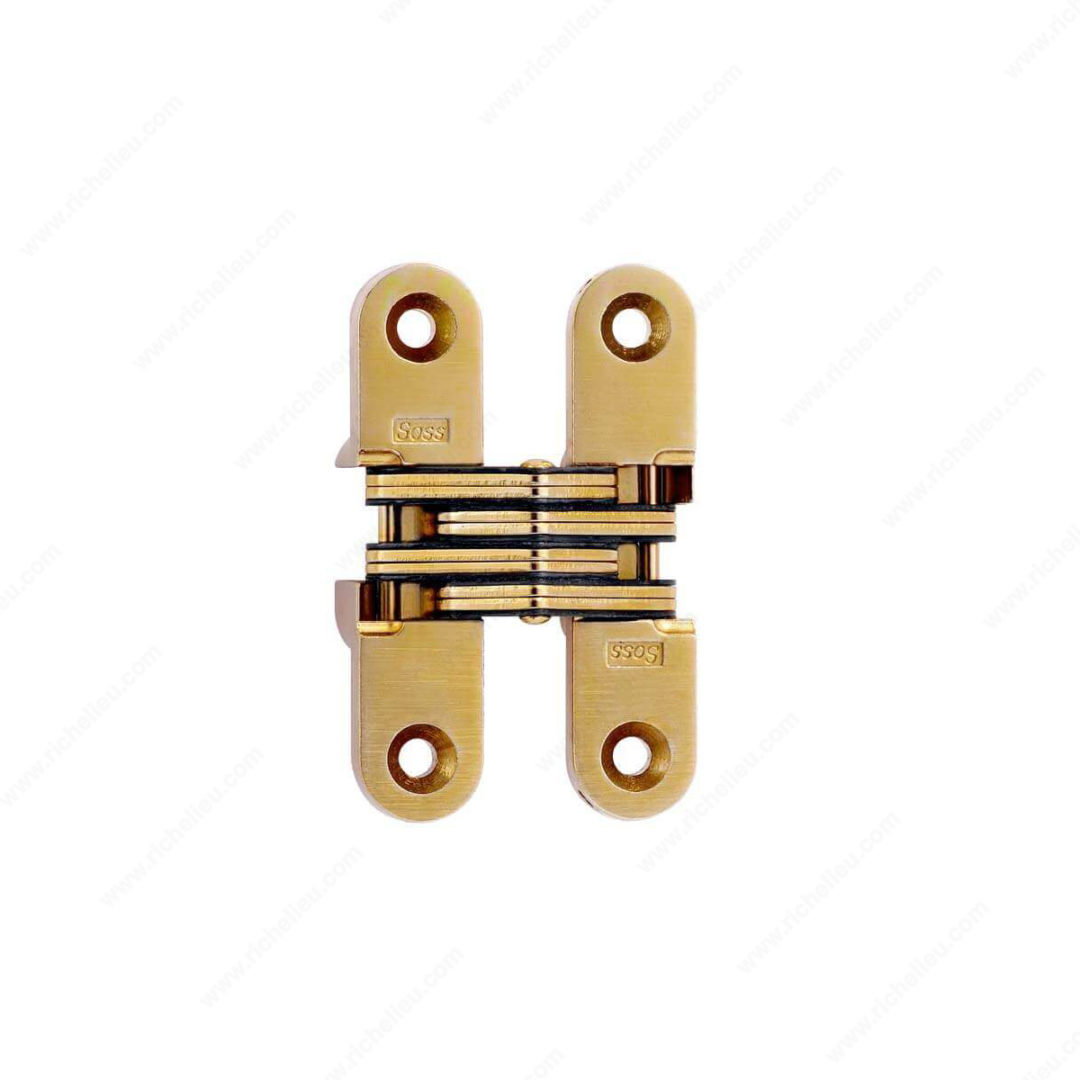

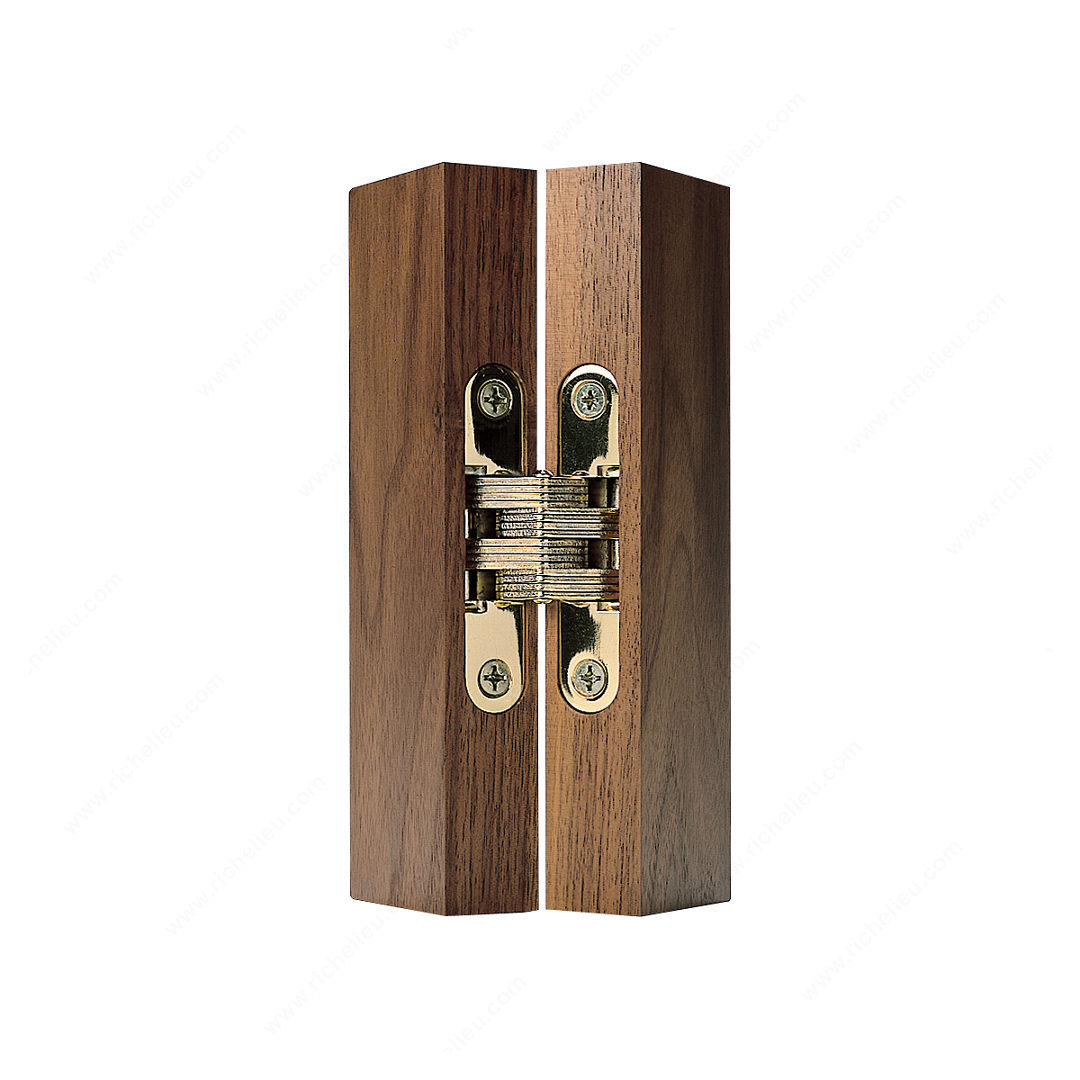

Richelieu 429208160 Concealed Steel Hinge - Model 208 combines superior appearance with exceptional durability, making it a prime choice for both wood and metal doors. This hinge is designed for seamless installation across a variety of applications, ensuring it meets all your project needs. With a generous hinge opening angle of +180°, the Model 208 allows for maximum accessibility while maintaining a clean, contemporary aesthetic. The satin brass finish adds a touch of elegance, making it suitable for modern interiors. The hinge features a reversible design, accommodating various handedness, which enhances installation flexibility. Crafted from high-quality steel, this hinge boasts a minimum door thickness requirement of 1 inch and a mortise mounting type for secure fitment. The dimensions include a length of 2 3/4 inches and a width of 5/8 inch, with a leaf body mortise length of 1 11/32 inches. It also offers a door/jamb gap of 9/64 inches in both open and closed positions, ensuring smooth operation. Included with the hinge are screws for easy installation. Choose the Richelieu Model 208 for a reliable, functional solution that elevates your spaces while providing the strength needed for everyday use.
Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Satin Brass
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 429208160
Product number: 429208160
Product №: 429208160
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
