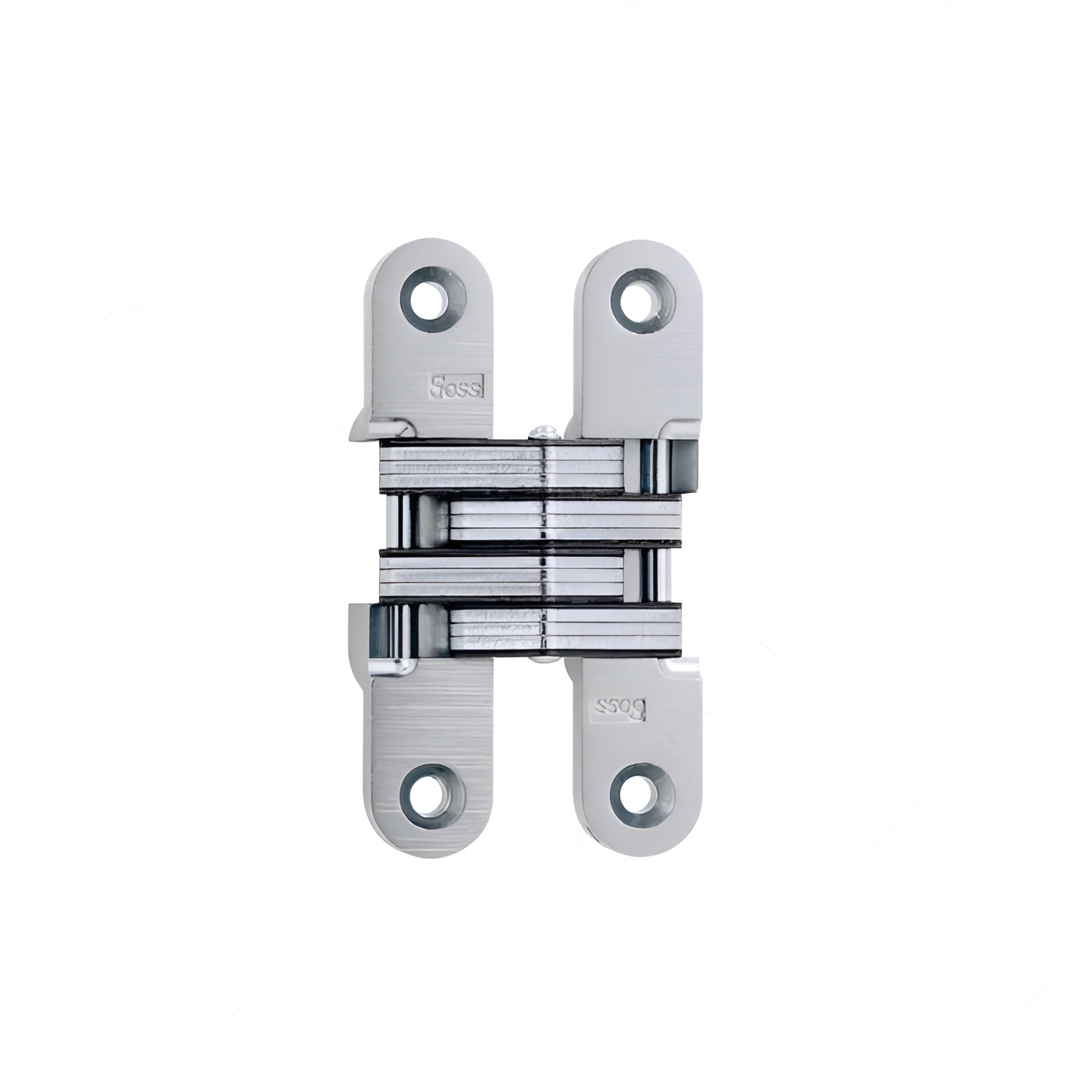

Richelieu 429212145 Concealed Steel Hinge - Model 212 offers a blend of superior appearance and remarkable durability, making it an ideal choice for modern applications. Designed for seamless integration into wood or metal doors, this hinge showcases a contemporary style that enhances any space. With a 180° hinge opening angle, it allows for smooth and unrestricted access, while the reversible design ensures versatility for various installations. The hinge features a satin chrome finish, lending a polished look that complements any decor. Measuring 3 3/4 inches in length and 3/4 inch in width, it is specifically crafted for doors with a minimum thickness of 1 1/8 inches. Installation is straightforward with the screw-on fixing type, and the hinge includes screws for added convenience. The leaf mortise depth of 3/8 inch and a gap of 11/64 inch between the door and jamb in the closed position ensure a snug fit, enhancing both functionality and aesthetics. Whether you’re working on a new project or a renovation, the Richelieu 429212145 Concealed Steel Hinge is engineered to meet your needs while providing reliable performance. Elevate your door hardware with this exceptional hinge solution that combines style and practicality.
Concealed Steel Hinge - Model 212
Cabinet Angle: 180°
Center to Center (mm): 3 in
Dimension A: 3/4 in
Dimension B: 35/64 in
Dimension C: 3 3/4 in
Dimension D: 11/64 in
Dimension E: 3/16 in
Dimension F: 2 1/16 in
Dimension G: 3/64 in
Dimension H: 1 5/64 in
Dimension I: 3/8 in
Door/ Jamb Gap: 11/64 in
Door/ Jamb Gap (mm): 5/32 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 3/16 in
Door/ Jamb Inset (mm): 17/32 in
Finish: Satin Chrome
Fixing Type: Screw-On
For Hinge #: 212
Handedness: Reversible
Height: 1 5/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 1/16 in
Leaf Gap: 35/64 in
Leaf Mortise Depth: 3/8 in
Length: 3 3/4 in
Material: Steel
Minimum Door Thickness: 1 1/8 in
Mounting Type: Mortise
Product #: 429212145
Product number: 429212145
Product №: 429212145
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 3/4 in
Wood Screw Sizes: #10 x 1-1/4" (4.8 mm x 32 mm)
