Richelieu 429216145 Concealed Steel Hinge - For Hinge 216 offers an exceptional combination of style and durability for your door installations. Designed for both wood and metal doors, this hinge ensures a clean, contemporary appearance while providing functionality that meets various application needs. With a generous 180° opening angle and reversible handedness, this hinge accommodates a wide range of door configurations. Its satin chrome finish adds a sleek touch, while the steel construction ensures long-lasting performance. The hinge is designed for mortise mounting and is easy to install with included screws, making it a practical choice for professionals and homeowners alike. Measuring 4 5/8 inches in length and 1 inch in width, this hinge is suitable for doors with a minimum thickness of 1 3/8 inches. It features a door/jamb gap of 15/64 inches and offers a fire resistance rating of 20 minutes, ensuring safety alongside aesthetic appeal. The product is UL certified (R13634) and includes all necessary fixing materials. For a hinge that balances functionality with a modern design, the Richelieu 429216145 is an ideal solution for your next project.

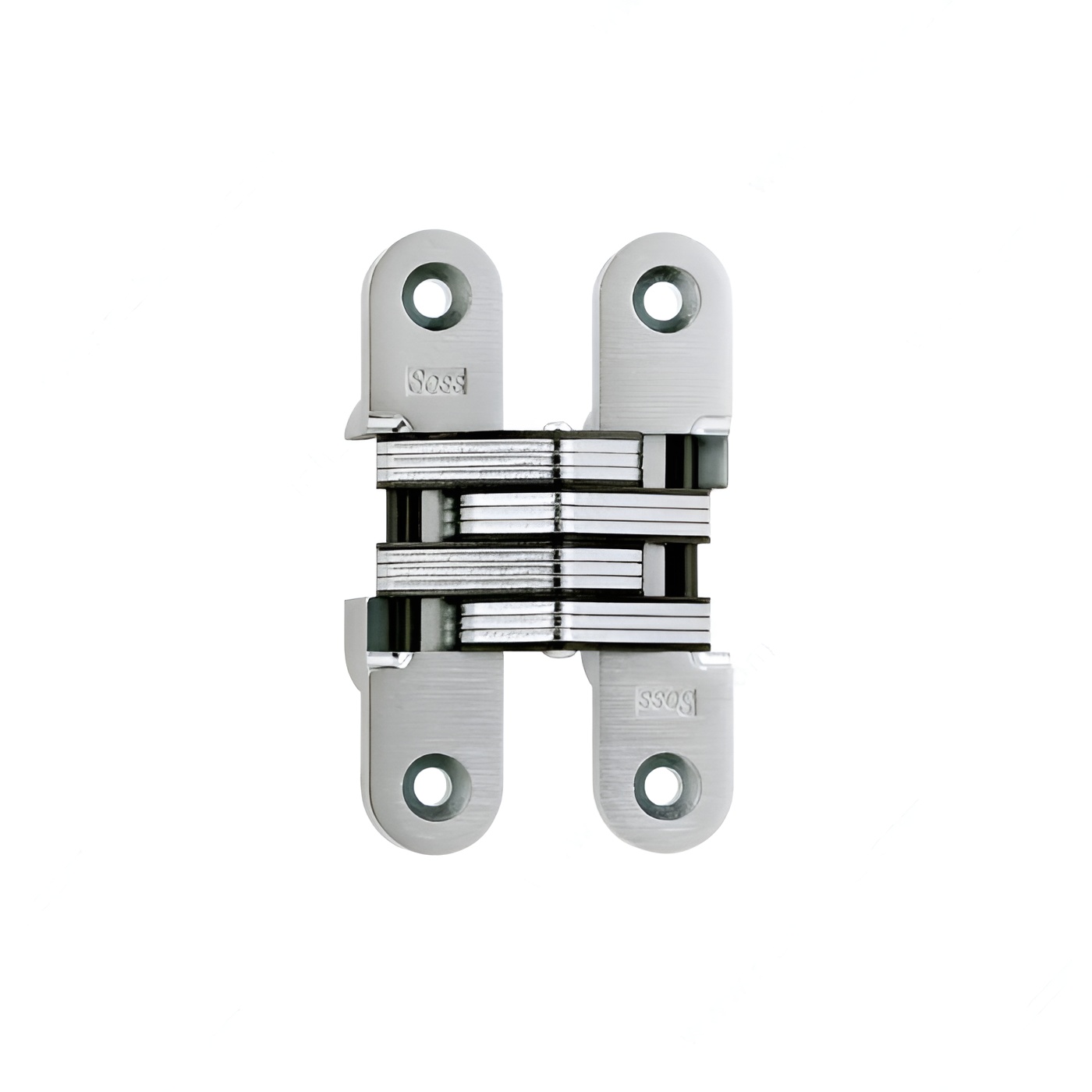

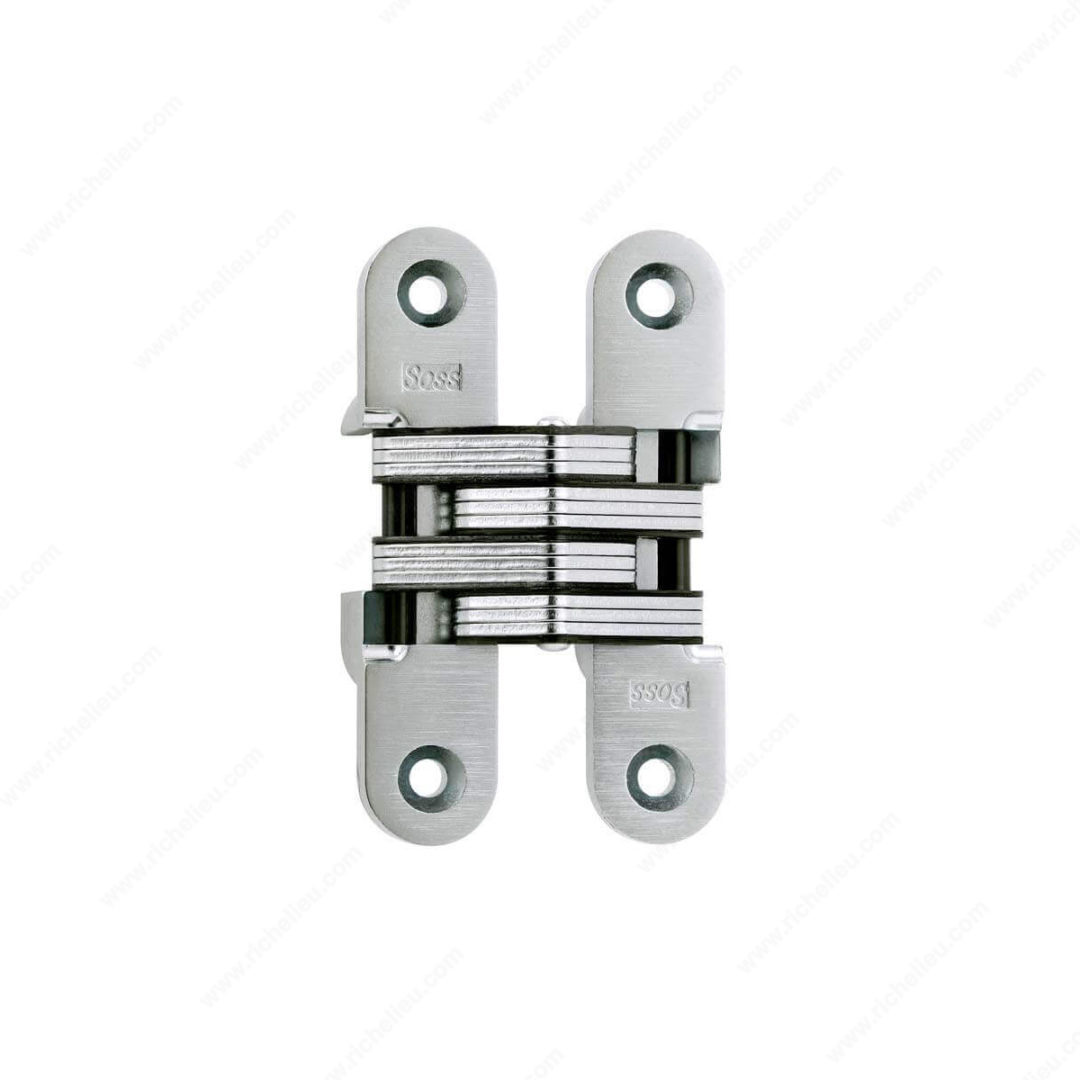

Concealed Steel Hinge - For Hinge 216
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in
Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Satin Chrome
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 429216145
Product number: 429216145
Product №: 429216145
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
