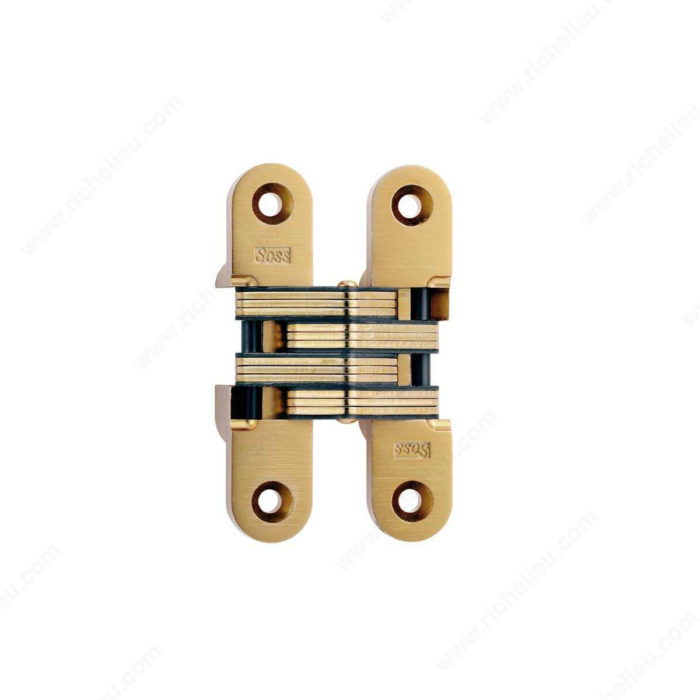

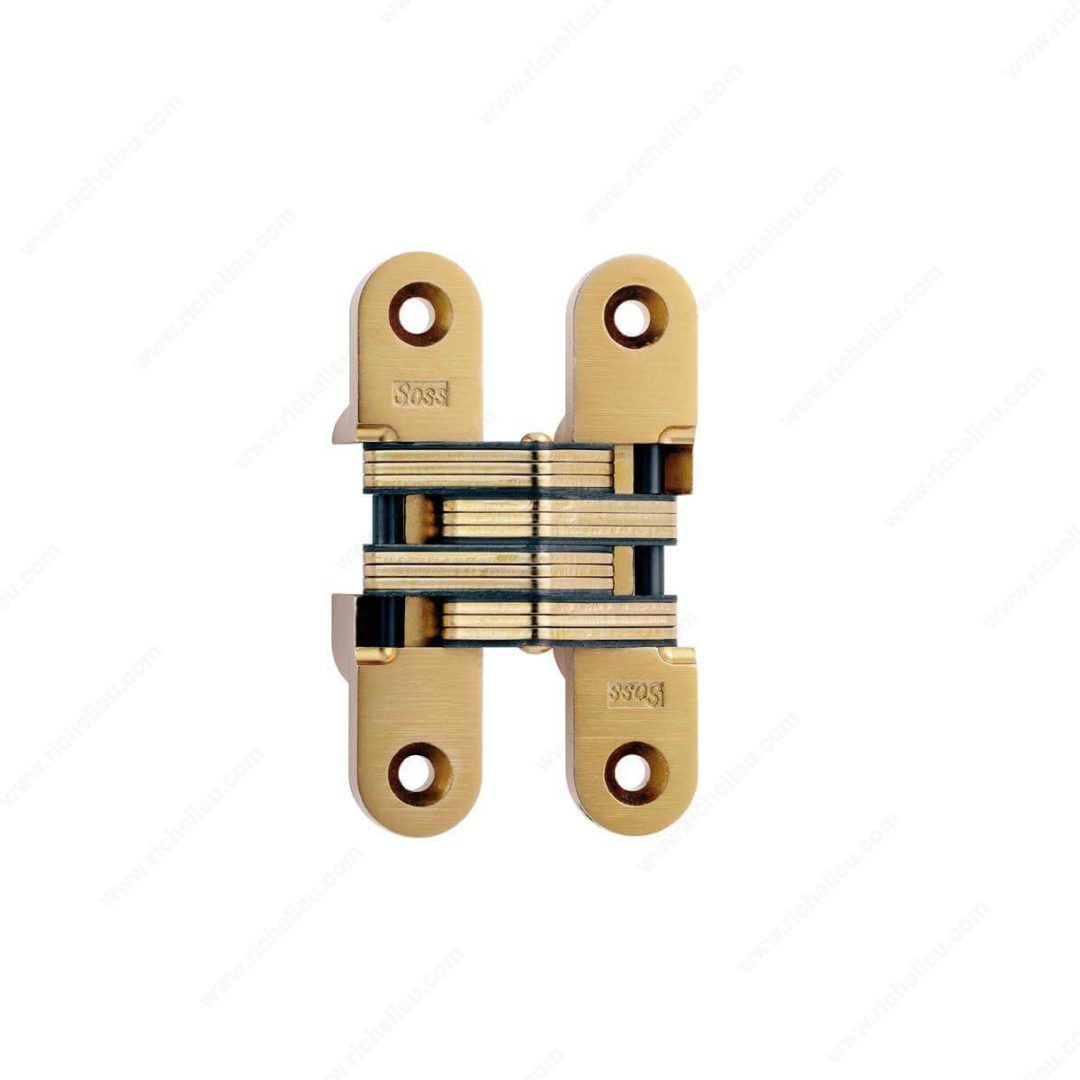

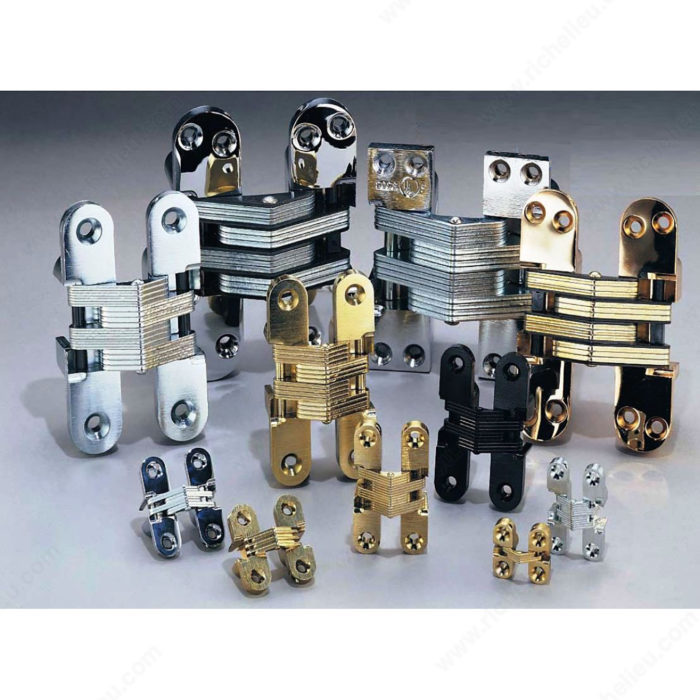

Richelieu 429216160 Concealed Steel Hinge is designed to offer a blend of contemporary aesthetics and robust functionality. Crafted from durable steel and finished in elegant satin brass, this hinge ensures a refined appearance while maintaining strength in various applications. Its reversible design allows for versatile installation on both wood and metal doors, accommodating a minimum door thickness of 1 3/8 inches. With a remarkable hinge opening angle of +180°, this hinge provides maximum accessibility, making it an excellent choice for both residential and commercial environments. The mortise mounting type ensures a seamless integration into door structures, while the included screws facilitate straightforward installation. The hinge also meets the UL R13634 standards, providing a level of fire resistance up to 20 minutes, enhancing safety in your spaces. Key specifications include a cabinet angle of 180°, a door/jamb gap of 1/16 inches when closed, and a leaf body mortise length of 2 19/32 inches. With a width of 1 inch and a length of 4 5/8 inches, the Richelieu concealed hinge is engineered for performance while delivering a polished look, making it an ideal choice for discerning builders and homeowners alike.
Concealed Steel Hinge - For Hinge 216
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in

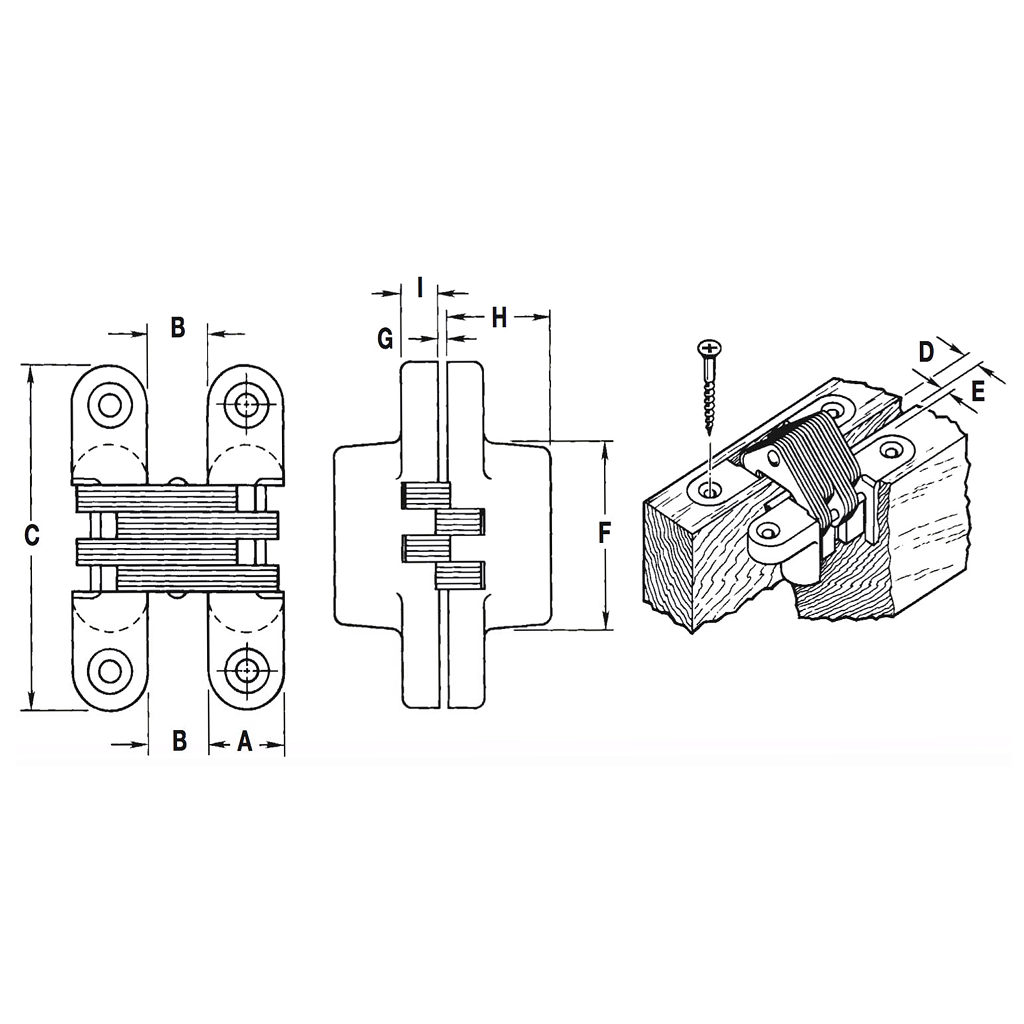

Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Satin Brass
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 429216160
Product number: 429216160
Product №: 429216160
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
