Richelieu 429218145 Concealed Steel Hinge - Model 218 offers a perfect blend of style and functionality, making it an essential choice for both wood and metal doors. Designed for ease of installation, this hinge is reversible and ensures a sleek, modern appearance that enhances any architectural design. With a robust satin chrome finish, it not only provides aesthetic appeal but also durability for long-lasting performance. This hinge features an impressive 180° opening angle, allowing for full access and flexibility in tight spaces. Its dimensions include a height of 1 41/64 inches and a width of 1 1/8 inches, making it suitable for a variety of door thicknesses, with a minimum requirement of 1 3/4 inches. The mortise mounting type ensures a secure fit, while the included screw fastening provides added convenience during installation. Additionally, the hinge is fire-resistant for up to 20 minutes, meeting safety standards (UL R13634) for added peace of mind. The leaf gap of 7/8 inches and the door/jamb gap of 3/8 inches in the closed position ensures seamless operation. Elevate your door hardware with the Richelieu Model 218, where contemporary design meets reliable functionality.

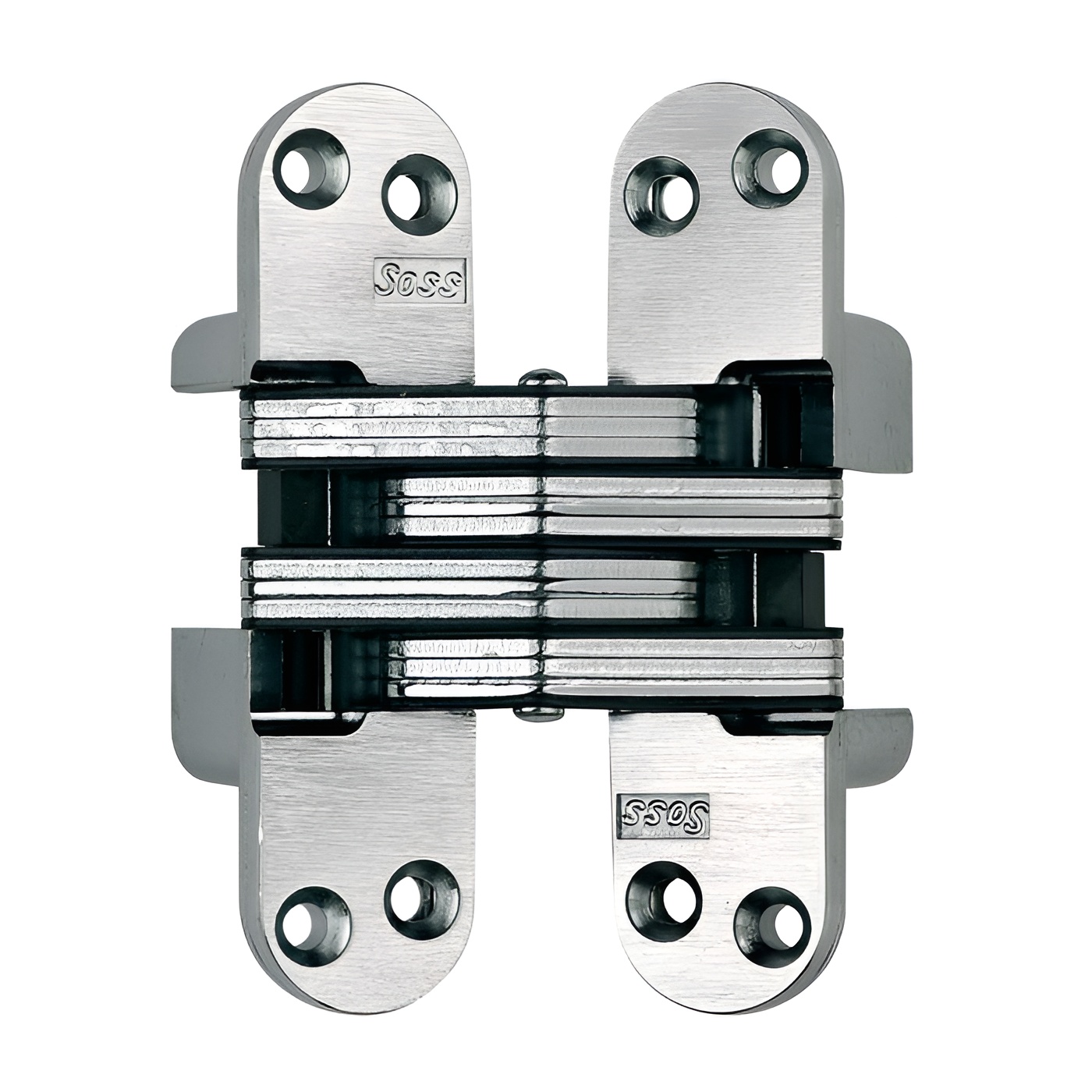

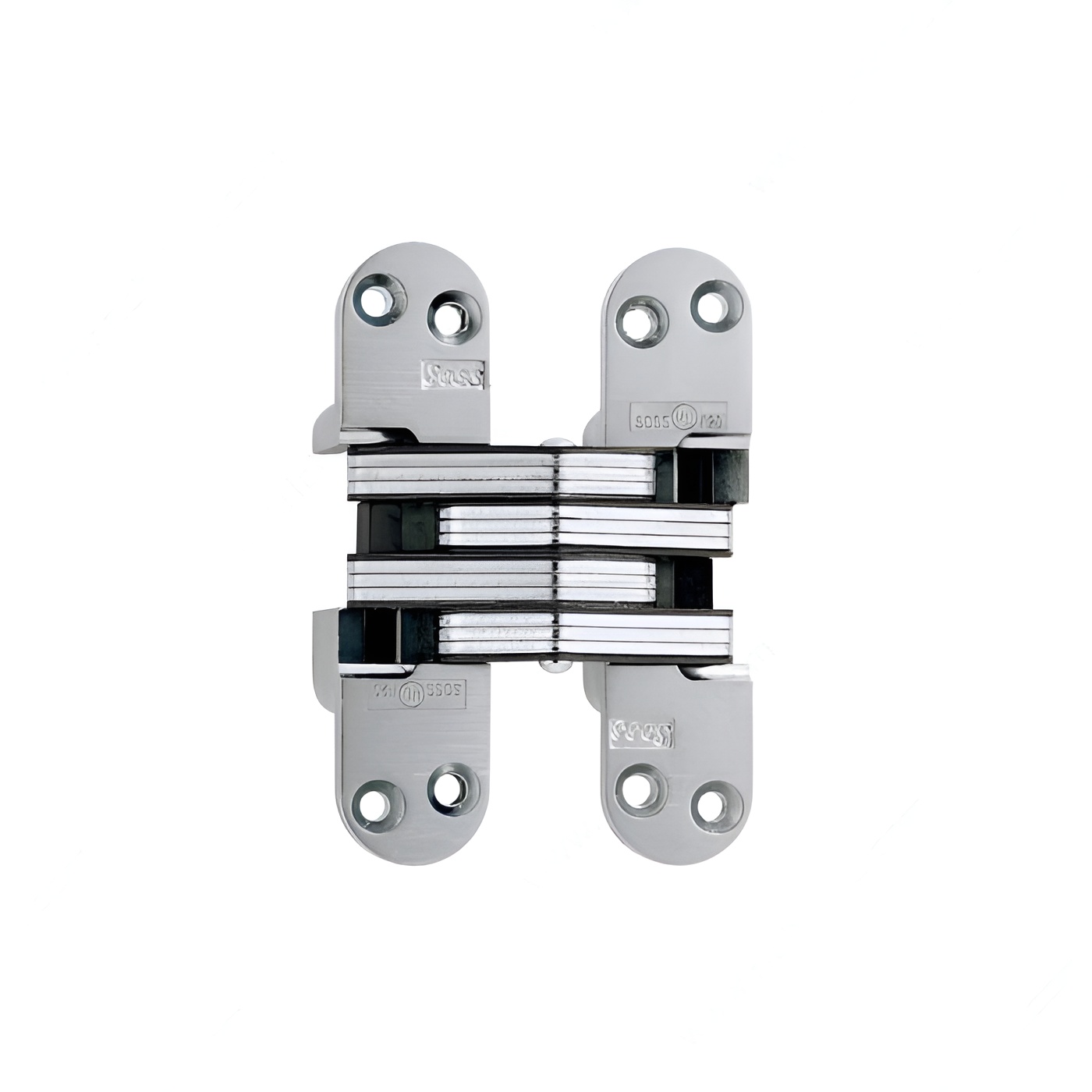

Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Satin Chrome
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 429218145
Product number: 429218145
Product №: 429218145
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
