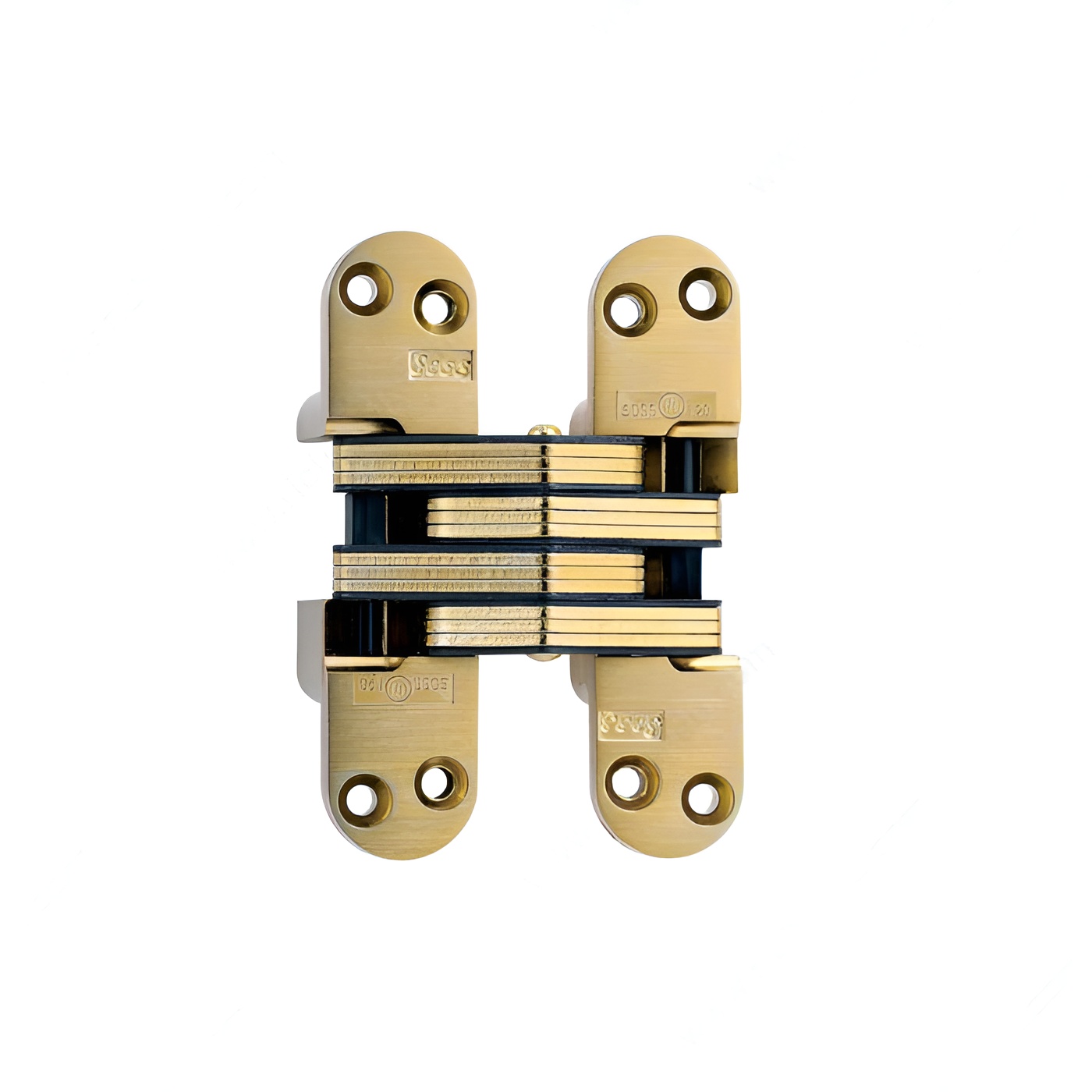

Richelieu 429218160 Concealed Steel Hinge - Model 218 seamlessly combines contemporary design with exceptional functionality. Crafted from durable steel and finished in elegant satin brass, this hinge is engineered to enhance the aesthetic of any wood or metal door while providing reliable performance. The hinge features a reversible design, making it versatile for various applications, and allows for a generous opening angle of +180°, facilitating easy access. With a mortise mounting type, installation is straightforward, and the hinge is compatible with doors that have a minimum thickness of 1 3/4 inches. It accommodates a door/jamb gap of 3/8 inches, ensuring a snug fit that enhances both appearance and functionality. Additionally, the hinge is fire-resistant for up to 20 minutes, meeting safety standards (UL R13634) while providing peace of mind. The hinge's dimensions include a height of 1 41/64 inches, a width of 1 1/8 inches, and a length of 4 5/8 inches, making it suitable for a wide range of door styles. Each unit comes with screws included for easy installation, ensuring that you have everything you need right out of the box. Elevate your projects with the reliability and style of Richelieu's concealed hinge.
Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Satin Brass
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 429218160
Product number: 429218160
Product №: 429218160
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
