Richelieu 429220145 Concealed Steel Hinge - Model 220 offers a seamless blend of modern aesthetics and robust functionality, making it an ideal choice for both wood and metal doors. This hinge is designed for easy installation, ensuring that you can enhance your projects with minimal effort. With a full 180° cabinet angle, the hinge provides excellent accessibility, while the satin chrome finish adds a touch of elegance to any space. It features a reversible handedness, allowing for versatile applications, and is suitable for doors with a minimum thickness of 2 inches. The hinge's mortise mounting type ensures a clean and integrated look, making it perfect for contemporary designs. Built to last, this hinge meets UL R13634 standards and is fire-resistant for up to 20 minutes, providing added safety. The leaf body mortise length is 2 15/16 inches, with a depth of 15/32 inches, accommodating various door configurations. Additionally, the hinge includes screws and nails for easy fixing, ensuring a hassle-free installation process. Richelieu 429220145 is the reliable choice for professionals looking for quality and style in concealed hinges.

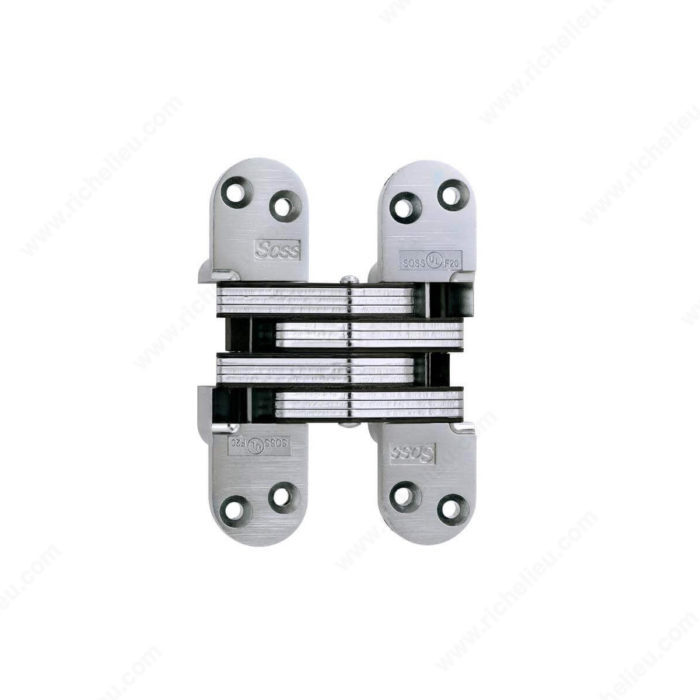

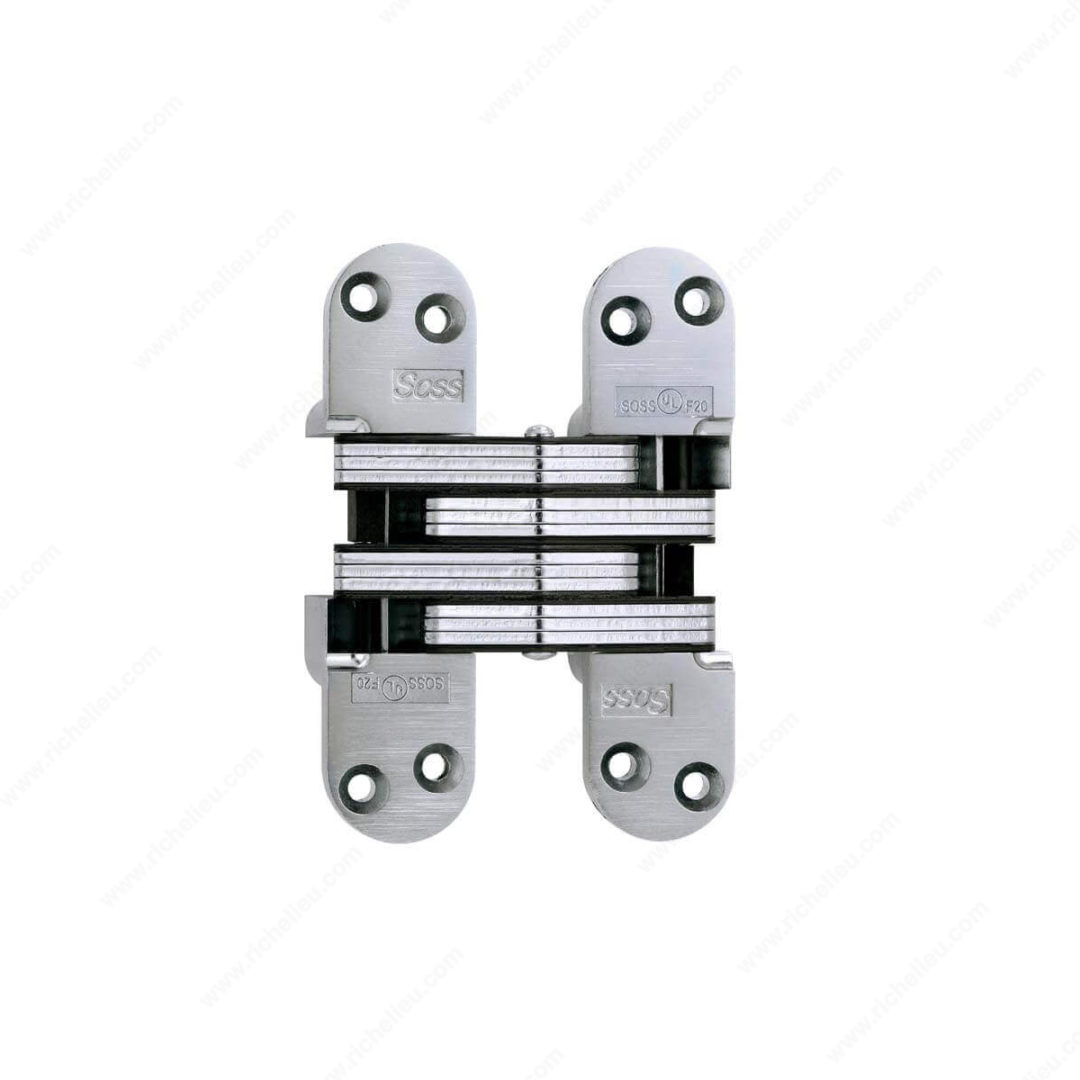

Concealed Steel Hinge - Model 220
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 4 1/8 in

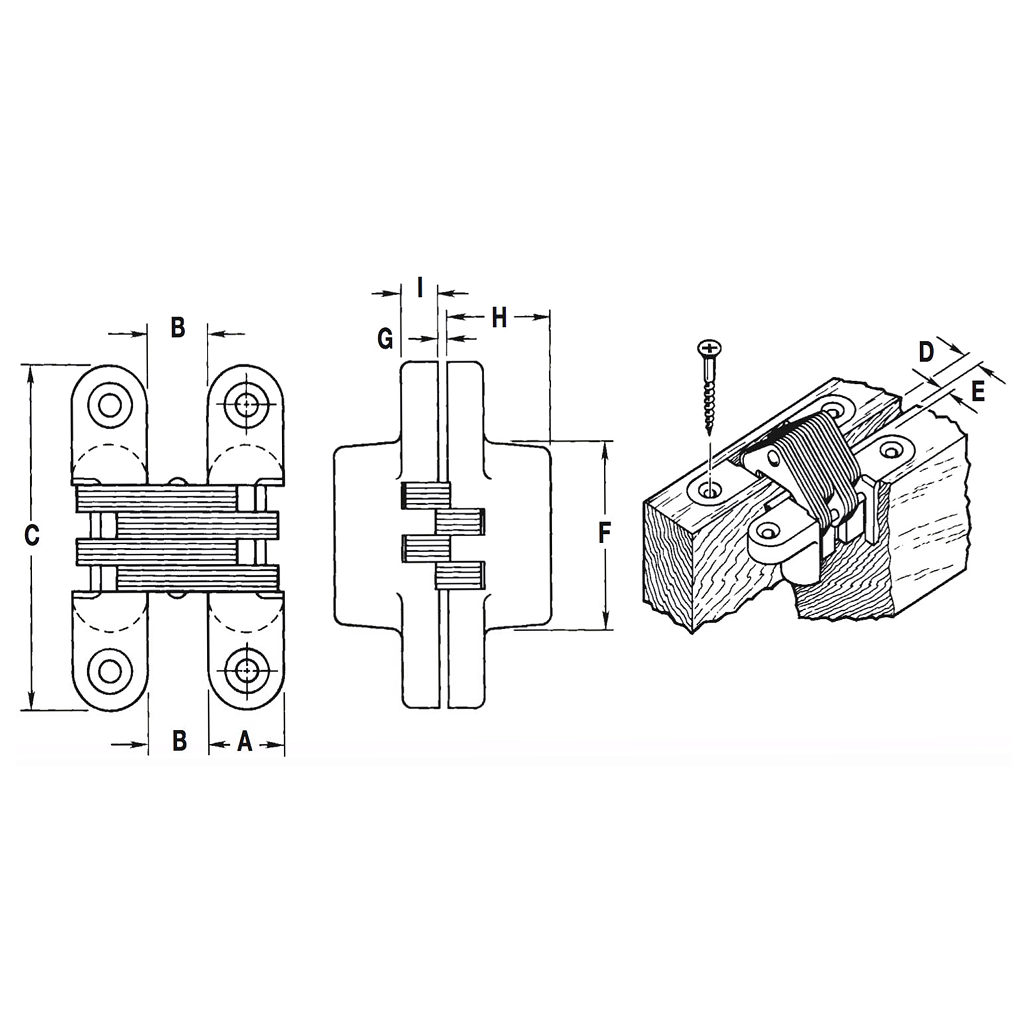

Dimension A: 1 3/8 in
Dimension B: 1 1/16 in
Dimension C: 5 1/2 in
Dimension D: 1/2 in
Dimension E: 9/32 in
Dimension F: 2 15/16 in
Dimension G: 1/16 in
Dimension H: 1 63/64 in
Dimension I: 15/32 in
Door/ Jamb Gap: 1/2 in
Door/ Jamb Gap (mm): 1/2 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 9/32 in
Door/ Jamb Inset (mm): 9/32 in
Finish: Satin Chrome
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 220
Handedness: Reversible
Height: 1 63/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/16 in
Leaf Gap: 1 1/16 in
Leaf Mortise Depth: 15/32 in
Length: 5 1/2 in
Material: Steel
Minimum Door Thickness: 2 in
Mounting Type: Mortise
Product #: 429220145
Product number: 429220145
Product №: 429220145
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 3/8 in
Wood Screw Sizes: #12 x 1-1/2" (5.5 mm x 38 mm)
