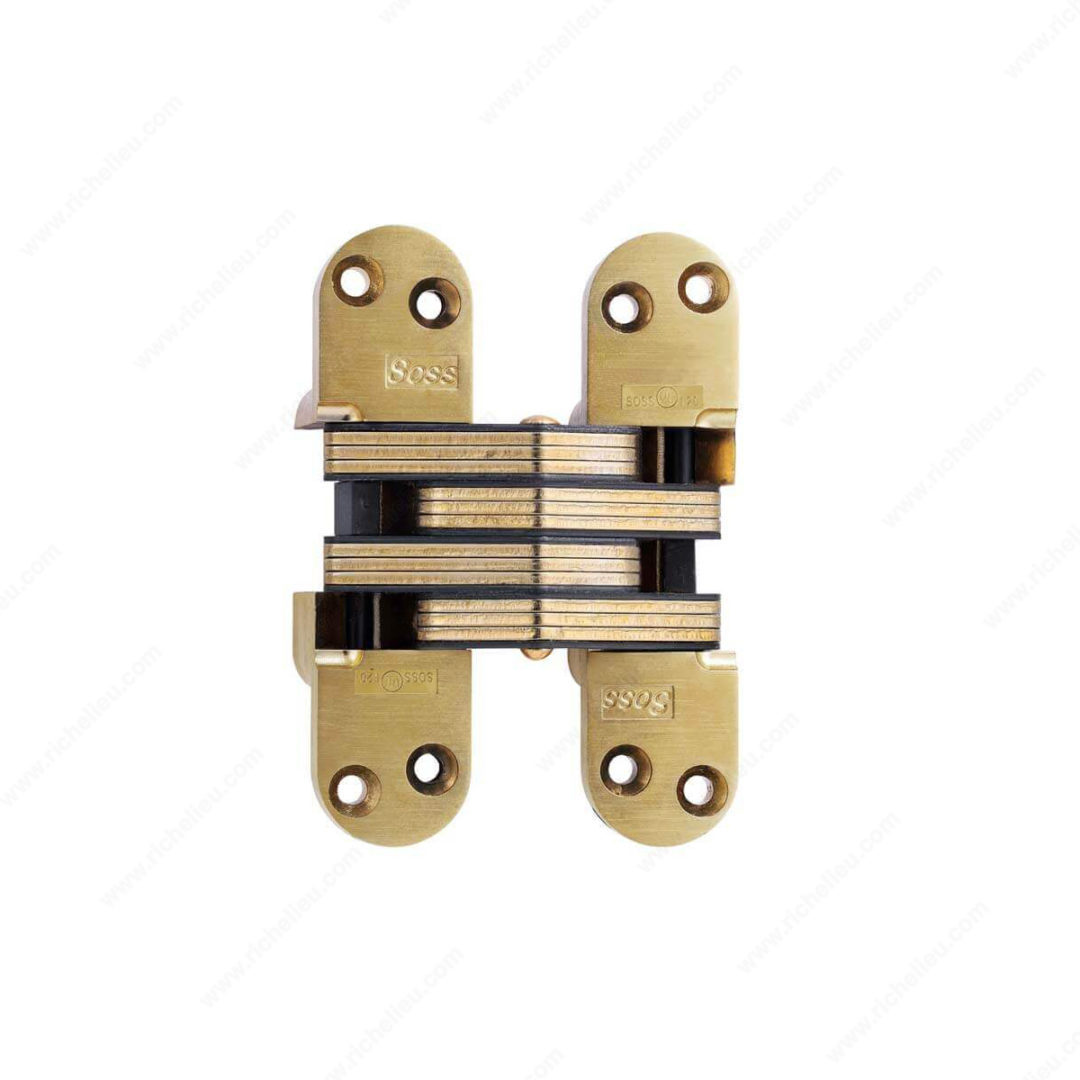

Richelieu 429220160 Concealed Steel Hinge - Model 220 combines an elegant satin brass finish with robust functionality, making it an ideal choice for both wood and metal doors. Designed for seamless integration, this hinge ensures a clean, contemporary look while providing superior durability for high-traffic applications. With a remarkable 180° hinge opening angle, the Richelieu Model 220 enhances accessibility and convenience. It features a reversible handedness design, allowing for flexible installation to accommodate various door configurations. The hinge is constructed from high-quality steel, ensuring long-lasting performance, while its fire-resistant rating of 20 minutes adds an important safety feature. Installation is straightforward, thanks to the mortise mounting type and included screws. The hinge supports a minimum door thickness of 2 inches, with a leaf body mortise length of 2 15/16 inches and a leaf gap of 1 1/16 inches. The door to jamb gap is set at 1/2 inch, with a precise 1/16 inch gap in the closed position to ensure a snug fit. Richelieu's 429220160 hinge meets UL R13634 standards, making it a reliable choice for your architectural needs. Upgrade your projects with this functional and stylish hinge, perfect for enhancing the aesthetic and operational qualities of your doors.

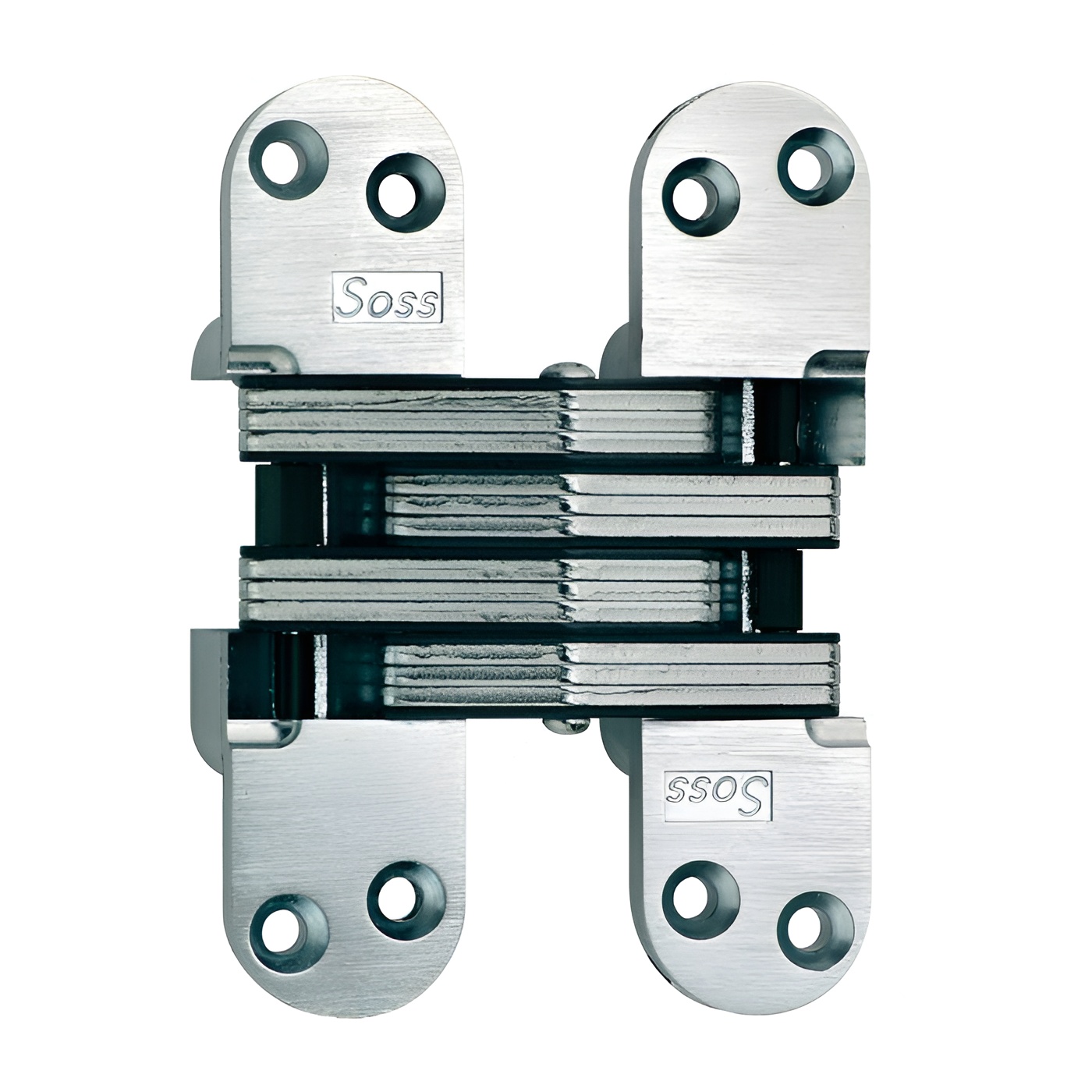

Concealed Steel Hinge - Model 220
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 4 1/8 in
Dimension A: 1 3/8 in
Dimension B: 1 1/16 in
Dimension C: 5 1/2 in
Dimension D: 1/2 in
Dimension E: 9/32 in
Dimension F: 2 15/16 in
Dimension G: 1/16 in
Dimension H: 1 63/64 in
Dimension I: 15/32 in
Door/ Jamb Gap: 1/2 in
Door/ Jamb Gap (mm): 1/2 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 9/32 in
Door/ Jamb Inset (mm): 9/32 in
Finish: Satin Brass
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 220
Handedness: Reversible
Height: 1 63/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/16 in
Leaf Gap: 1 1/16 in
Leaf Mortise Depth: 15/32 in
Length: 5 1/2 in
Material: Steel
Minimum Door Thickness: 2 in
Mounting Type: Mortise
Product #: 429220160
Product number: 429220160
Product №: 429220160
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 3/8 in
Wood Screw Sizes: #12 x 1-1/2" (5.5 mm x 38 mm)
